Article no.: F032113466

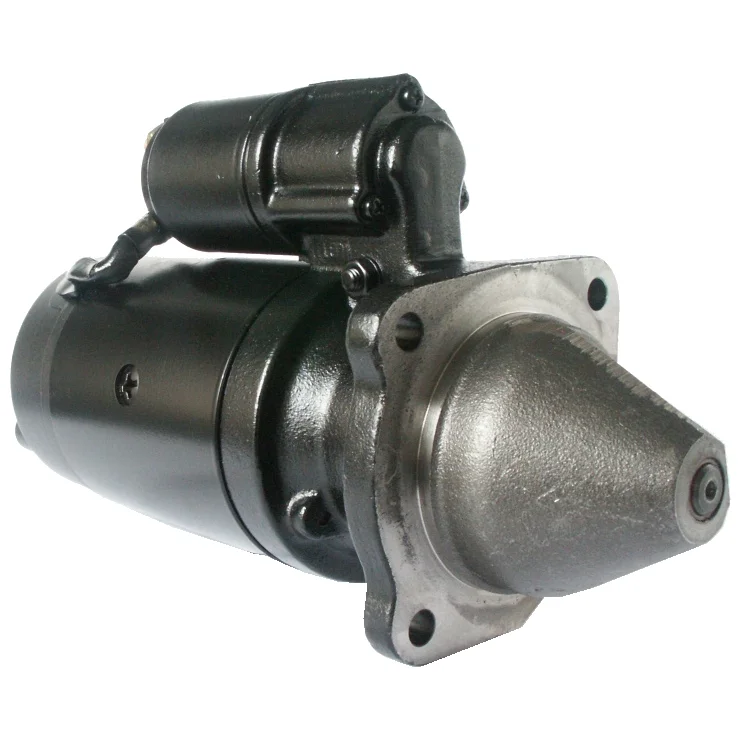

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 10, Rotation: CW

Description

Voltage: 24
kilowatts: 4.0
Mounting flange: 89.00
Drive distance: 22.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 244.50
Distance / front: 69.00
Number / teeth: 10
B+: M10
Position / 50: 45
Terminal 50: M5
Gear type: GR
Distance 2: 89.00
Distance 3: 89.00
Distance mm: 127.00
Rotation: CW
Total length mm: 316.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    A5.00055-9254, AZF4508, AZF4527, azj3188, cs1464, cs608, d11e122, d11e122t, d11e99, F032113466, M93R3104SE, RGO 113466, 11.130.598, 11.130.729, 11.130.944, 81.26201-9011, 81.26201-9013, 1986S10070, 1986S10096, 12900, 076517, 76517, 860103, 861039, 0001231009, 0001263010, 0001360013, 0001360050, 0001368052, 0001368070, 0001368304, 0001368306, 1516786R, 19024280, 19084009, 00025841036, 0025841036, 0025841044, 0258410361, 5000041221, 5000137323, 5000559254, 5000791211, 5001014221, 5001859572, 5010090370, 5010090683, 5010306143, 5010306413, 5010508443, 7485003362, 7485003742, 89262016005

  • Normalised article numbler
    a5000559254, azf4508, azf4527, azj3188, bso7072, cs1464, cs608, cst10660, cst10702, cst10707, d11e122, d11e122t, d11e99, drs0164, drs0970, f032113466, f042002085, f042s02085, is0598, is0944, les0455, lrs00633, lrs01954, lrs02152, m93r3104se, ms331, ms435, ms443, nd076, rgo113466, s0075, s0150, s0150bosch, s0819s, s9434letrika, str2312, 8ea012586451, 8ea730178001, 8ea738258931, 1547, 1986s10070, 1986s10096, 8515, 8515r, 10608, 11401n, 12900, 19679n, 30127n, 33432, 33465, 076517, 76517, 101464, 103395, 201148, 220274, 220274a, 220734, 220734a, 436096, 450412, 451320, 453199, 458183, 860103, 861039, 0001231009, 0001263010, 0001360013, 0001360050, 0001368052, 0001368070, 0001368304, 0001368306, 1516786r, 8810970, 8810971, 11010970, 11130598, 11130729, 11130944, 19024280, 19084009, 00025841036, 0025841036, 0025841044, 0258410361, 330041104, 571007103, 571523103, 600005104, 630016104, 943252274, 0986001205, 0986010970, 0986010971, 0986010973, 0986022990, 5000041221, 5000137323, 5000559254, 5000791211, 5001014221, 5001859572, 5010090370, 5010090683, 5010306143, 5010306413, 5010508443, 7485003362, 7485003742, 81262019011, 81262019013, 89262016005, 943252274010
  • Description
    Voltage: 24
    kilowatts: 4.0
    Mounting flange: 89.00
    Drive distance: 22.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 244.50
    Distance / front: 69.00
    Number / teeth: 10
    B+: M10
    Position / 50: 45
    Terminal 50: M5
    Gear type: GR
    Distance 2: 89.00
    Distance 3: 89.00
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 316.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      A5.00055-9254, AZF4508, AZF4527, azj3188, cs1464, cs608, d11e122, d11e122t, d11e99, F032113466, M93R3104SE, RGO 113466, 11.130.598, 11.130.729, 11.130.944, 81.26201-9011, 81.26201-9013, 1986S10070, 1986S10096, 12900, 076517, 76517, 860103, 861039, 0001231009, 0001263010, 0001360013, 0001360050, 0001368052, 0001368070, 0001368304, 0001368306, 1516786R, 19024280, 19084009, 00025841036, 0025841036, 0025841044, 0258410361, 5000041221, 5000137323, 5000559254, 5000791211, 5001014221, 5001859572, 5010090370, 5010090683, 5010306143, 5010306413, 5010508443, 7485003362, 7485003742, 89262016005

    • Normalised article numbler
      a5000559254, azf4508, azf4527, azj3188, bso7072, cs1464, cs608, cst10660, cst10702, cst10707, d11e122, d11e122t, d11e99, drs0164, drs0970, f032113466, f042002085, f042s02085, is0598, is0944, les0455, lrs00633, lrs01954, lrs02152, m93r3104se, ms331, ms435, ms443, nd076, rgo113466, s0075, s0150, s0150bosch, s0819s, s9434letrika, str2312, 8ea012586451, 8ea730178001, 8ea738258931, 1547, 1986s10070, 1986s10096, 8515, 8515r, 10608, 11401n, 12900, 19679n, 30127n, 33432, 33465, 076517, 76517, 101464, 103395, 201148, 220274, 220274a, 220734, 220734a, 436096, 450412, 451320, 453199, 458183, 860103, 861039, 0001231009, 0001263010, 0001360013, 0001360050, 0001368052, 0001368070, 0001368304, 0001368306, 1516786r, 8810970, 8810971, 11010970, 11130598, 11130729, 11130944, 19024280, 19084009, 00025841036, 0025841036, 0025841044, 0258410361, 330041104, 571007103, 571523103, 600005104, 630016104, 943252274, 0986001205, 0986010970, 0986010971, 0986010973, 0986022990, 5000041221, 5000137323, 5000559254, 5000791211, 5001014221, 5001859572, 5010090370, 5010090683, 5010306143, 5010306413, 5010508443, 7485003362, 7485003742, 81262019011, 81262019013, 89262016005, 943252274010
