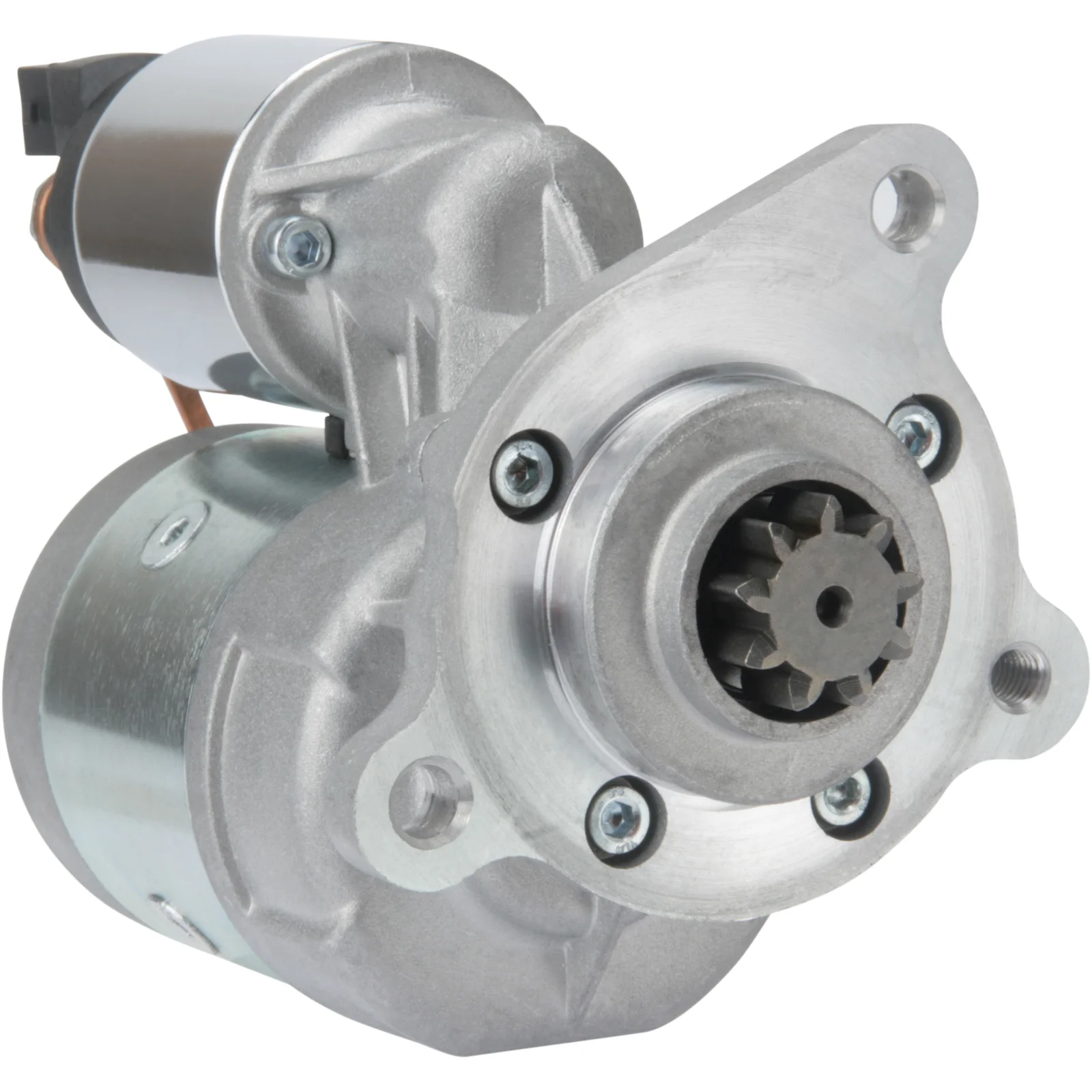

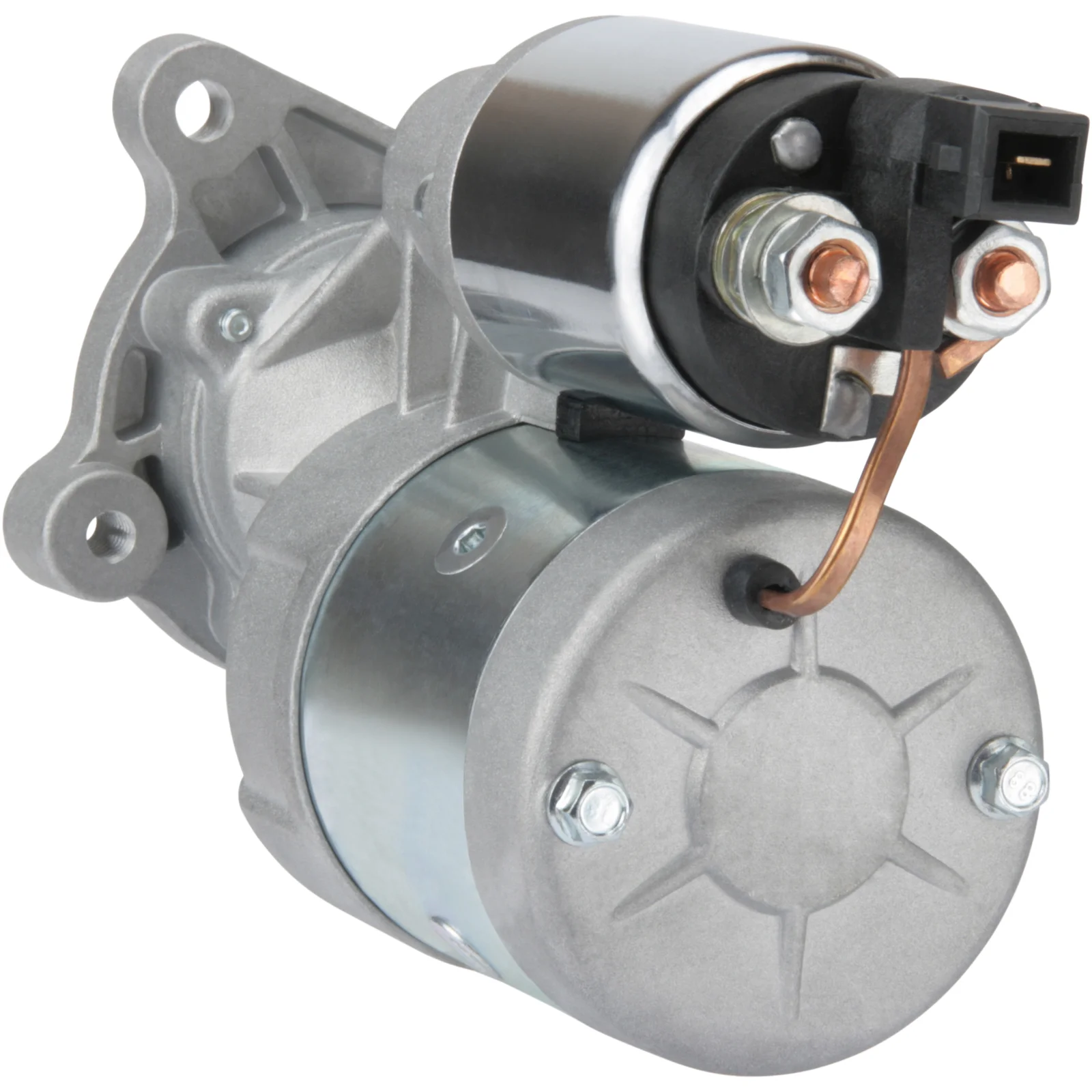

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112388

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CCW

Description

Voltage: 12
kW: 1.0
Mounting flange: 50.00
Drive distance: 21.00
Mounting hole 3 mm: 8.50
Mounting hole 1 mm: 8.50
Distance / back: 146.00
Distance / front: 20.50
Number / teeth: 9
B+: M8
Position / 50: 60
Terminal 50: 4.80
Gear type: GR
Distance 2: 82.50
Distance 3: 93.50
Distance mm: 61.00
Rotation: CCW
Total length mm: 199.00
Clutch type: Wet
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (1)

Files

  • OEM
    cs1204, D7ES, F032112388, RGO 112388, 9141331, 047911023, 047911023BX, 047911023c, 047911023CX, 047911023g, 047911023GX, 443115141331, 443115141338

  • Normalised article numbler
    cs1204, cst48101, d7es, drs3826, f032112388, lrs01647, rgo112388, s3142, s9011, 8ea012526281, 8ea737876001, 3230, 32647n, 32647r, 101204, 104780, 253183, 458777, 8080107, 9141331, 11022570, 11090043, 42023490, 42438073, 047911023, 047911023bx, 047911023c, 047911023cx, 047911023g, 047911023gx, 300544083, 312006092, 0986023490, 443115141331, 443115141338, 944280801070
  • Description
    Voltage: 12
    kW: 1.0
    Mounting flange: 50.00
    Drive distance: 21.00
    Mounting hole 3 mm: 8.50
    Mounting hole 1 mm: 8.50
    Distance / back: 146.00
    Distance / front: 20.50
    Number / teeth: 9
    B+: M8
    Position / 50: 60
    Terminal 50: 4.80
    Gear type: GR
    Distance 2: 82.50
    Distance 3: 93.50
    Distance mm: 61.00
    Rotation: CCW
    Total length mm: 199.00
    Clutch type: Wet
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (1)

    Files

  • Suitable for these vehicles

    • OEM
      cs1204, D7ES, F032112388, RGO 112388, 9141331, 047911023, 047911023BX, 047911023c, 047911023CX, 047911023g, 047911023GX, 443115141331, 443115141338

    • Normalised article numbler
      cs1204, cst48101, d7es, drs3826, f032112388, lrs01647, rgo112388, s3142, s9011, 8ea012526281, 8ea737876001, 3230, 32647n, 32647r, 101204, 104780, 253183, 458777, 8080107, 9141331, 11022570, 11090043, 42023490, 42438073, 047911023, 047911023bx, 047911023c, 047911023cx, 047911023g, 047911023gx, 300544083, 312006092, 0986023490, 443115141331, 443115141338, 944280801070
