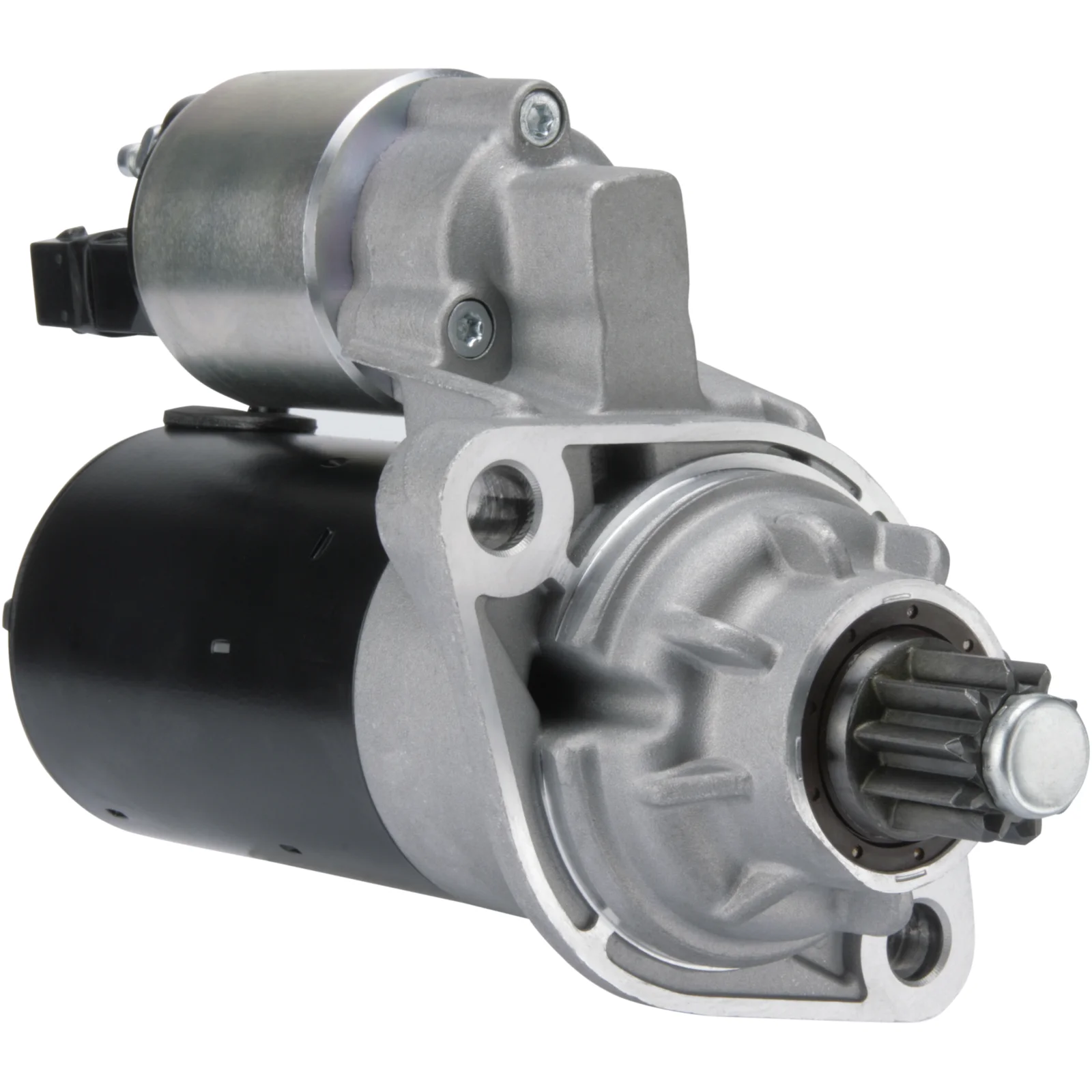

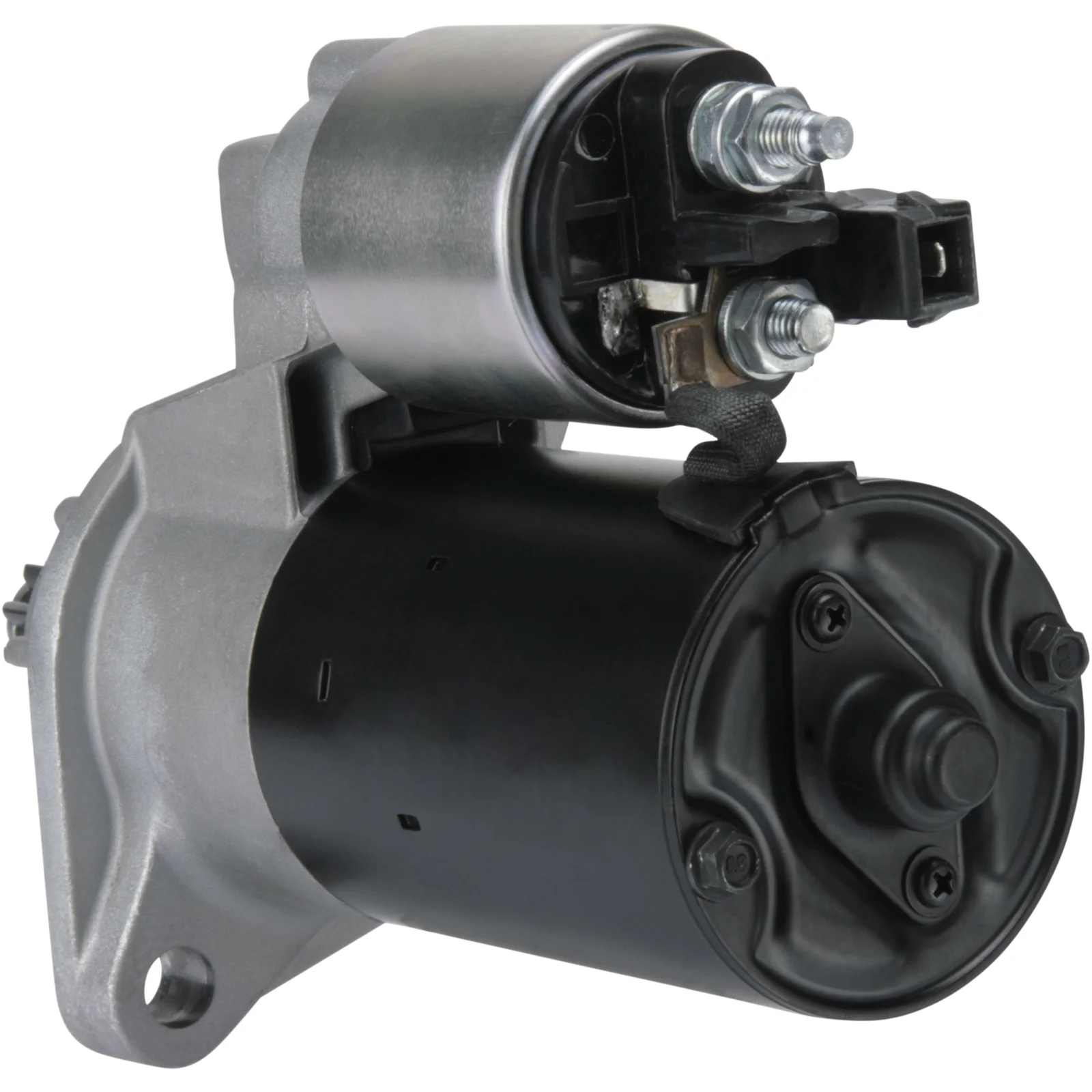

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114174

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 10, Rotation: CCW

Description

Voltage: 12
kW: 1.1
Mounting flange: 76.20
Drive distance: 62.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/ rear: 154.50
Distance/ front: 68.00
Number/ teeth: 10
B+: M8
Position/B+: 60
Position/50: 18
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 111.00
Rotation: Counterclockwise
Total length in millimeters: 234.00
Clutch type: Dry
Drive type: Steel
Number/ mounting holes: 2 (0)

Files

  • OEM
    cs1337, F00E100236, F032114174, RGO 114174, YM2111000EA, 02M911023, 02M911023X, 0001121022, 0001121023, 0001121037

  • Normalised article numbler
    cs1337, cst10320, drs8920, f00e100236, f032114174, f042s0h097, rgo114174, s0119, strh097, ym2111000ea, 02m911023, 02m911023x, 8ea012527541, 3096, 17919n, 17919r, 101337, 220213, 220213a, 253129, 458822, 0001121022, 0001121023, 0001121037, 8212563, 11018920, 42018920, 311090102, 0986018920
  • Description
    Voltage: 12
    kW: 1.1
    Mounting flange: 76.20
    Drive distance: 62.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/ rear: 154.50
    Distance/ front: 68.00
    Number/ teeth: 10
    B+: M8
    Position/B+: 60
    Position/50: 18
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 111.00
    Rotation: Counterclockwise
    Total length in millimeters: 234.00
    Clutch type: Dry
    Drive type: Steel
    Number/ mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1337, F00E100236, F032114174, RGO 114174, YM2111000EA, 02M911023, 02M911023X, 0001121022, 0001121023, 0001121037

    • Normalised article numbler
      cs1337, cst10320, drs8920, f00e100236, f032114174, f042s0h097, rgo114174, s0119, strh097, ym2111000ea, 02m911023, 02m911023x, 8ea012527541, 3096, 17919n, 17919r, 101337, 220213, 220213a, 253129, 458822, 0001121022, 0001121023, 0001121037, 8212563, 11018920, 42018920, 311090102, 0986018920
