Article no.: F032111060

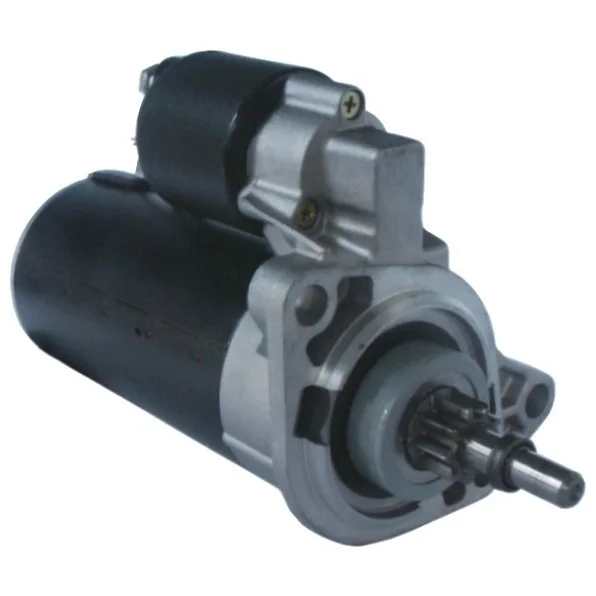

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 9, Rotation: CCW

Description

VW Starter motor 12V-1.7kW, 9k CCW 12V - 1.7kW, 9k, CCW For Yourex product order 91-620-1305

Voltage: 12
kW: 1.7
Mounting flange: 76.20
Drive distance: 32.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 12.30
Back/spacing: 182.50
Front/spacing: 67.00
Number of teeth: 9
B+: M8
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Spacing 2: 111.50
Spacing 3: 122.00
Spacing mm: 32.00
Rotation: CCW
Total length mm: 264.50
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Remarks: Bushing D.E. (clutch house): HC-CARGO 140018.
Number of mounting holes: 3 (0)

Files

  • OEM
    AZE2536, b001117071, cs295, F032111060, RGO 111060, 0001 110 001, 0001 110 002, 0001 110 014, 0001 110 015, 0001 117 008, 11.130.722, 068 911 023G, 068 911 024K, 176 911 023, 0986 013 050, 111060, 0001110001, 0001110002, 0001110014, 0001110015, 0001110133, 0001110134, 0001117008, 0001125015, 1516724R, 9141393, 068911023DX, 068911023EX, 068911023g, 068911023GX, 068911023JX, 068911023MX, 068911024K, 068911024KX, 176911023

  • Normalised article numbler
    aze2536, b001117071, bso7082, cs295, cst10137, drs0920, drs3050, f032111060, f042002057, f042s02057, frs168, is0722, lrs00528, ms302, msr483, qs1450, rgo111060, s0045, s0045bosch, sr34x, str2203, vs255, 8ea012527001, 8ea726055001, 1239, 3582, 3637, 10295, 11398, 17030, 17030n, 17030r, 21365bo, 103180, 111060, 220189, 220189a, 251013, 436020, 438495, 448075, 726834, 0001110001, 0001110002, 0001110014, 0001110015, 0001110133, 0001110134, 0001117008, 0001125015, 1516724r, 4113050, 8013050, 9141393, 11013050, 11130722, 068911023dx, 068911023ex, 068911023g, 068911023gx, 068911023jx, 068911023mx, 068911024k, 068911024kx, 176911023, 311025092, 943251655, 0986013050, 063521101330, 943251655010, 944280130500
  • Description
    VW Starter motor 12V-1.7kW, 9k CCW 12V - 1.7kW, 9k, CCW For Yourex product order 91-620-1305

    Voltage: 12
    kW: 1.7
    Mounting flange: 76.20
    Drive distance: 32.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 12.30
    Back/spacing: 182.50
    Front/spacing: 67.00
    Number of teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Spacing 2: 111.50
    Spacing 3: 122.00
    Spacing mm: 32.00
    Rotation: CCW
    Total length mm: 264.50
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Bushing D.E. (clutch house): HC-CARGO 140018.
    Number of mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZE2536, b001117071, cs295, F032111060, RGO 111060, 0001 110 001, 0001 110 002, 0001 110 014, 0001 110 015, 0001 117 008, 11.130.722, 068 911 023G, 068 911 024K, 176 911 023, 0986 013 050, 111060, 0001110001, 0001110002, 0001110014, 0001110015, 0001110133, 0001110134, 0001117008, 0001125015, 1516724R, 9141393, 068911023DX, 068911023EX, 068911023g, 068911023GX, 068911023JX, 068911023MX, 068911024K, 068911024KX, 176911023

    • Normalised article numbler
      aze2536, b001117071, bso7082, cs295, cst10137, drs0920, drs3050, f032111060, f042002057, f042s02057, frs168, is0722, lrs00528, ms302, msr483, qs1450, rgo111060, s0045, s0045bosch, sr34x, str2203, vs255, 8ea012527001, 8ea726055001, 1239, 3582, 3637, 10295, 11398, 17030, 17030n, 17030r, 21365bo, 103180, 111060, 220189, 220189a, 251013, 436020, 438495, 448075, 726834, 0001110001, 0001110002, 0001110014, 0001110015, 0001110133, 0001110134, 0001117008, 0001125015, 1516724r, 4113050, 8013050, 9141393, 11013050, 11130722, 068911023dx, 068911023ex, 068911023g, 068911023gx, 068911023jx, 068911023mx, 068911024k, 068911024kx, 176911023, 311025092, 943251655, 0986013050, 063521101330, 943251655010, 944280130500
