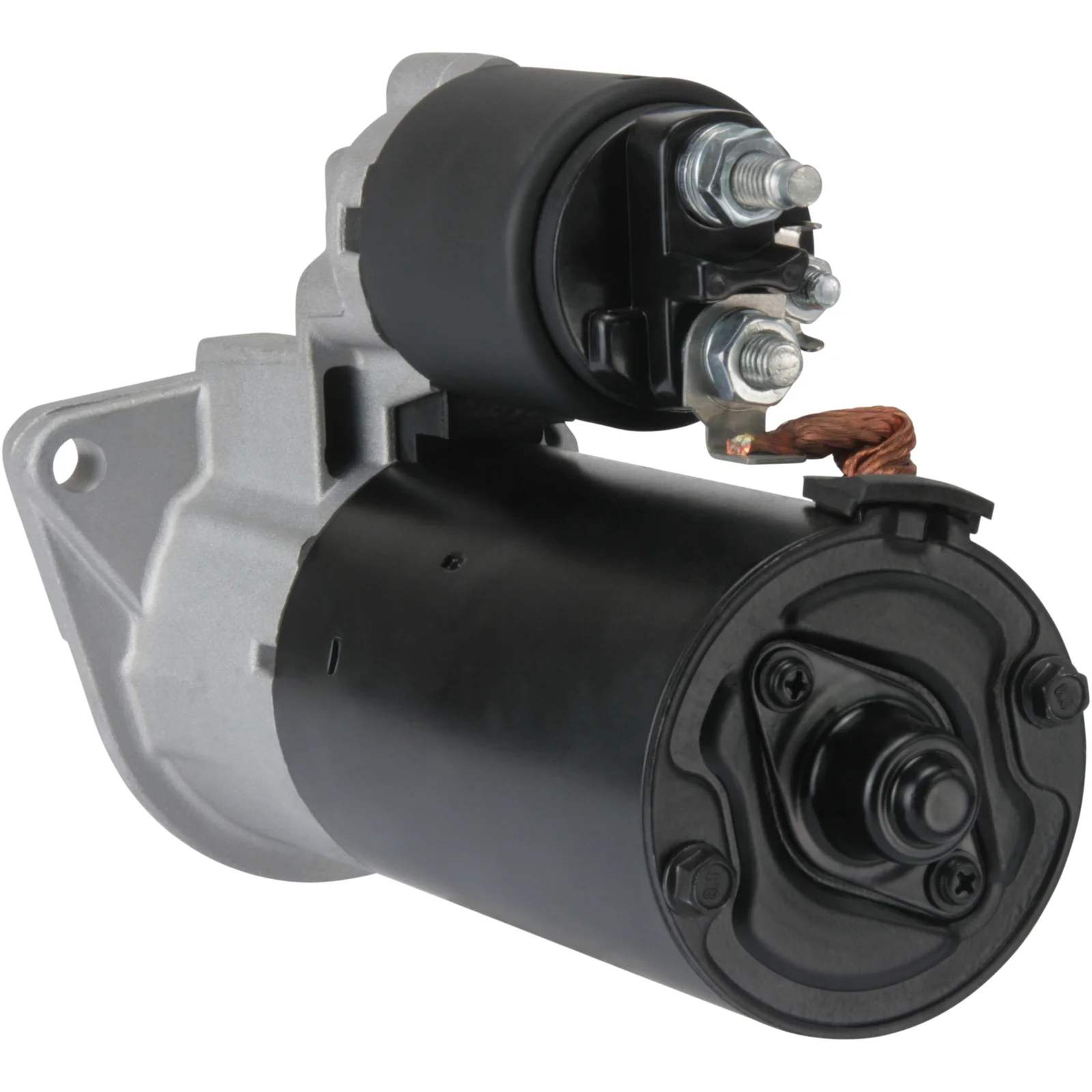

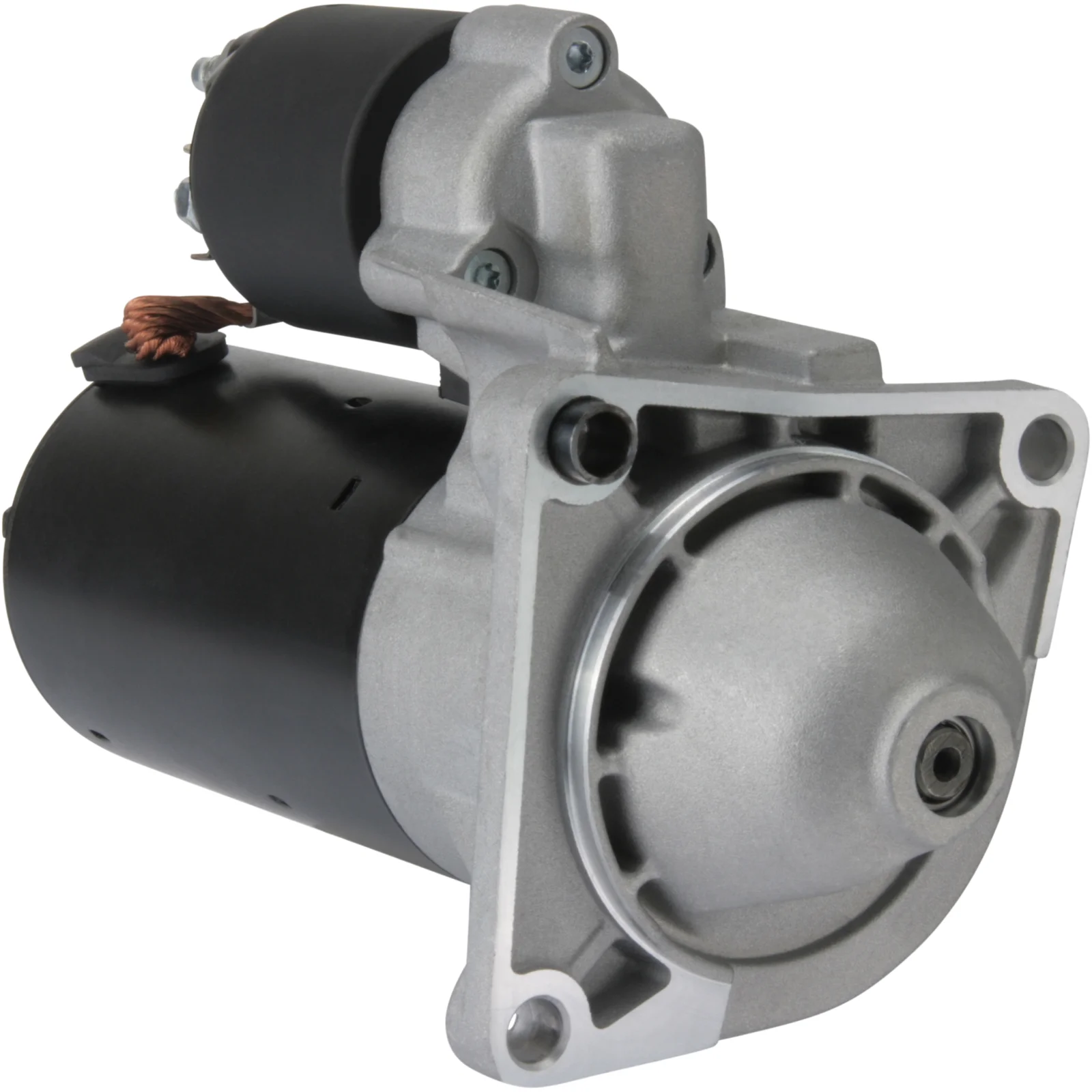

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115399

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 1.7
Mounting flange: 76.20
Drive distance: 3.00
Mounting hole 3 mm: 9.00
Mounting hole 2 mm: 9.00
Mounting hole 1 mm: 9.00
Distance / rear: 176.00
Distance / front: 37.00
Number / teeth: 11
B+: M8
Position / 50: 15
Terminal 50: M6
Gear type: GR
Dist. 2: 81.00
Dist. 3: 81.00
Distance mm: 115.00
Rotation: CW
Total length mm: 227.00
Starter type: Start/Stop
Number / mounting holes: 3 (0)

Files

  • OEM
    F032115399, RGO 115399, 1986S00648, 1986S00830, 31100-55PA0, 31100-62MA0, 0001138009, 0001138010, 0001138071, 0001138072, 0001174400, 0001174401, 0001174406, 51810308, 51916171, 95512513

  • Normalised article numbler
    cst10447, drs0309, f032115399, lrs02610, rgo115399, s0314, 8ea011611931, 1986s00648, 1986s00830, 33282n, 220687, 220687a, 254283, 255254, 458878, 0001138009, 0001138010, 0001138071, 0001138072, 0001174400, 0001174401, 0001174406, 3110055pa0, 3110062ma0, 11040997, 11090208, 42025190, 51810308, 51916171, 95512513, 318222112, 500560093, 500560113, 0986025190
  • Description
    Voltage: 12
    kW: 1.7
    Mounting flange: 76.20
    Drive distance: 3.00
    Mounting hole 3 mm: 9.00
    Mounting hole 2 mm: 9.00
    Mounting hole 1 mm: 9.00
    Distance / rear: 176.00
    Distance / front: 37.00
    Number / teeth: 11
    B+: M8
    Position / 50: 15
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 81.00
    Dist. 3: 81.00
    Distance mm: 115.00
    Rotation: CW
    Total length mm: 227.00
    Starter type: Start/Stop
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032115399, RGO 115399, 1986S00648, 1986S00830, 31100-55PA0, 31100-62MA0, 0001138009, 0001138010, 0001138071, 0001138072, 0001174400, 0001174401, 0001174406, 51810308, 51916171, 95512513

    • Normalised article numbler
      cst10447, drs0309, f032115399, lrs02610, rgo115399, s0314, 8ea011611931, 1986s00648, 1986s00830, 33282n, 220687, 220687a, 254283, 255254, 458878, 0001138009, 0001138010, 0001138071, 0001138072, 0001174400, 0001174401, 0001174406, 3110055pa0, 3110062ma0, 11040997, 11090208, 42025190, 51810308, 51916171, 95512513, 318222112, 500560093, 500560113, 0986025190
