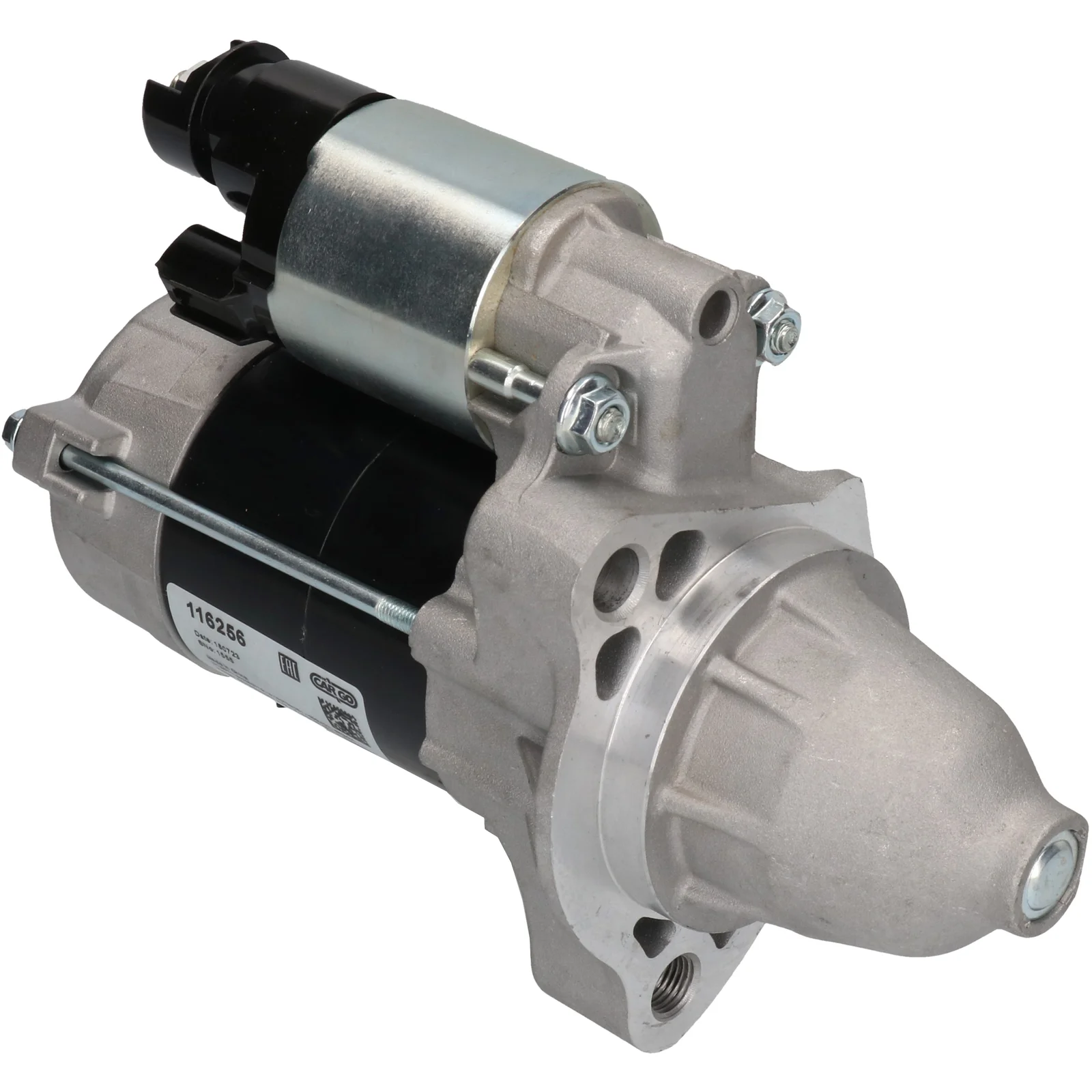

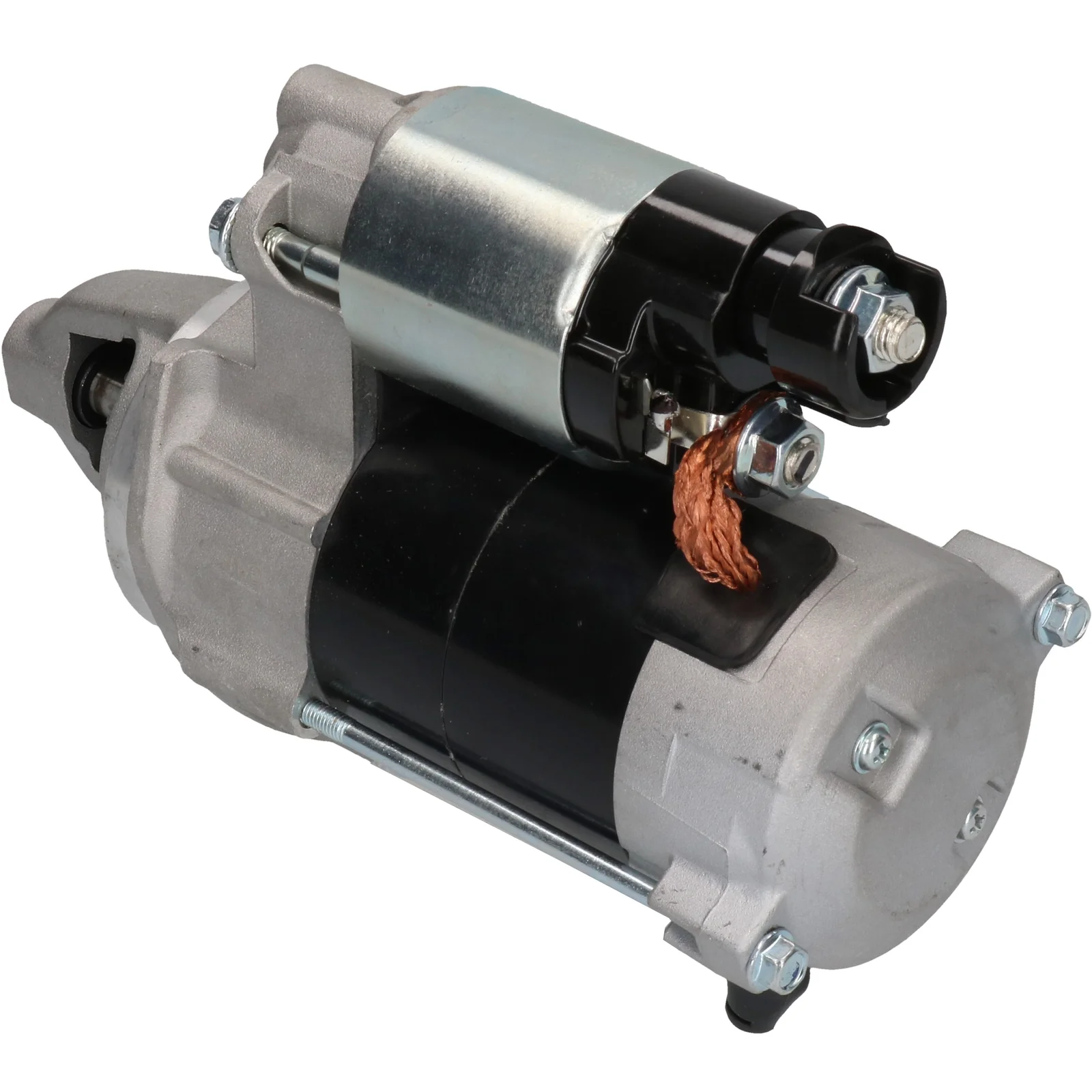

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116256

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.8, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 0.8
Mounting flange: 70.00
Drive distance: 33.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: M12-1.25
Distance / back: 147.00
Distance / front: 66.50
Number / teeth: 9
B+: M8
Position / 50: 22
Terminal 50: Plug
Gear type: GR
Distance in millimeters: 91.50
Rotation: CW
Total length in millimeters: 213.50
Number / mounting holes: 2 (1)

Files

  • OEM
    F032116256, RGO 116256, 1986S00593, 31200-rb1-003, 31200-rb1-013, 31200R-3RE01, 428000-5410

  • Normalised article numbler
    drs0673, dsn1385, f032116256, f042200500, rgo116256, s6215s, 8ea011612321, 1986s00593, 19013n, 31200r3re01, 31200rb1003, 31200rb1013, 220998, 220998a, 254441, 458943, 11040865, 0986027060, 4280005410
  • Description
    Voltage: 12
    kW: 0.8
    Mounting flange: 70.00
    Drive distance: 33.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: M12-1.25
    Distance / back: 147.00
    Distance / front: 66.50
    Number / teeth: 9
    B+: M8
    Position / 50: 22
    Terminal 50: Plug
    Gear type: GR
    Distance in millimeters: 91.50
    Rotation: CW
    Total length in millimeters: 213.50
    Number / mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032116256, RGO 116256, 1986S00593, 31200-rb1-003, 31200-rb1-013, 31200R-3RE01, 428000-5410

    • Normalised article numbler
      drs0673, dsn1385, f032116256, f042200500, rgo116256, s6215s, 8ea011612321, 1986s00593, 19013n, 31200r3re01, 31200rb1003, 31200rb1013, 220998, 220998a, 254441, 458943, 11040865, 0986027060, 4280005410
