Article no.: F032112167

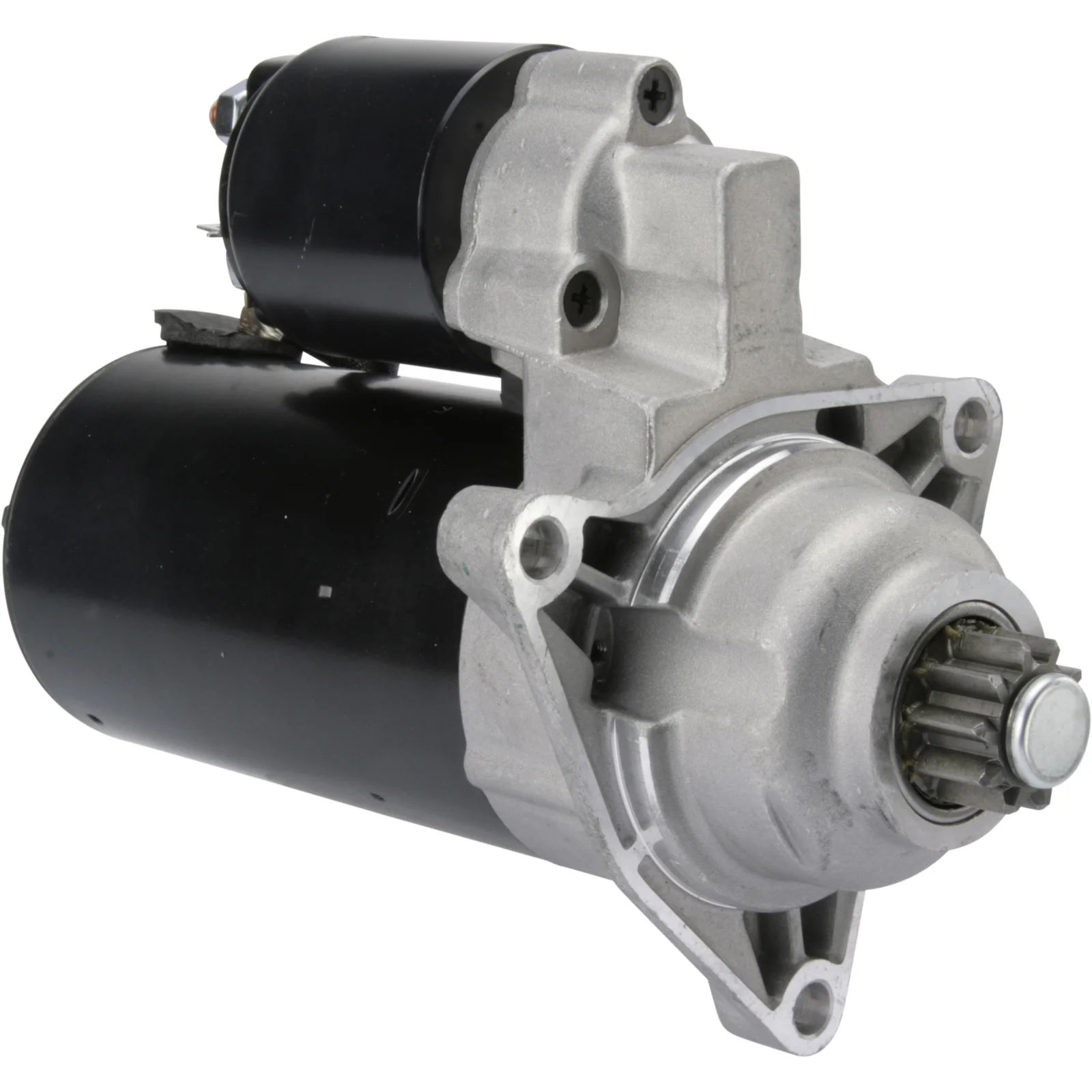

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.8, No./teeth: 10, Rotation: CCW

Description

Voltage: 12
kW: 1.8
Mount. flange: 76.00
Drive dist.: 52.00
Mount. hole 3 mm: 9.00
Mount. hole 2 mm: 9.00
Mount. hole 1 mm: 9.00
Dist./back: 165.00
Dist./front: 55.50
No./teeth: 10
B+: M8
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Dist. 2: 106.00
Dist. 3: 101.50
Dist. mm: 101.50
Rotation: CCW
Total length mm: 236.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: Bushing D.E. (clutch housing): HC-CARGO 140018.
No./mounting holes: 3 (0)

Files

  • OEM
    cs598, F032112167, RGO 112167, 02b911023c, 02B911023CX, 1986S00593, 1986S00808, 0001110061, 0001110062, 1516782R, 9141319

  • Normalised article numbler
    bso7179, cs598, cst10211, drs6190, f032112167, f042002060, f042s02060, les0269, lrs00964, ms384, qs2074, qs2635, rgo112167, s0005pr, s0005sr, s0495, str2205, 02b911023c, 02b911023cx, 8ea726222001, 1456, 1986s00593, 1986s00808, 10598, 11718, 17231n, 17231r, 21531bo, 103412, 220085, 220085a, 251311, 455628, 726991, 0001110061, 0001110062, 1516782r, 4116190, 8016190, 9141319, 11016190, 311041102, 943251225, 0986016190, 0986016194, 0986016197, 943251225010, 944280161900
  • Description
    Voltage: 12
    kW: 1.8
    Mount. flange: 76.00
    Drive dist.: 52.00
    Mount. hole 3 mm: 9.00
    Mount. hole 2 mm: 9.00
    Mount. hole 1 mm: 9.00
    Dist./back: 165.00
    Dist./front: 55.50
    No./teeth: 10
    B+: M8
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Dist. 2: 106.00
    Dist. 3: 101.50
    Dist. mm: 101.50
    Rotation: CCW
    Total length mm: 236.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Bushing D.E. (clutch housing): HC-CARGO 140018.
    No./mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs598, F032112167, RGO 112167, 02b911023c, 02B911023CX, 1986S00593, 1986S00808, 0001110061, 0001110062, 1516782R, 9141319

    • Normalised article numbler
      bso7179, cs598, cst10211, drs6190, f032112167, f042002060, f042s02060, les0269, lrs00964, ms384, qs2074, qs2635, rgo112167, s0005pr, s0005sr, s0495, str2205, 02b911023c, 02b911023cx, 8ea726222001, 1456, 1986s00593, 1986s00808, 10598, 11718, 17231n, 17231r, 21531bo, 103412, 220085, 220085a, 251311, 455628, 726991, 0001110061, 0001110062, 1516782r, 4116190, 8016190, 9141319, 11016190, 311041102, 943251225, 0986016190, 0986016194, 0986016197, 943251225010, 944280161900
