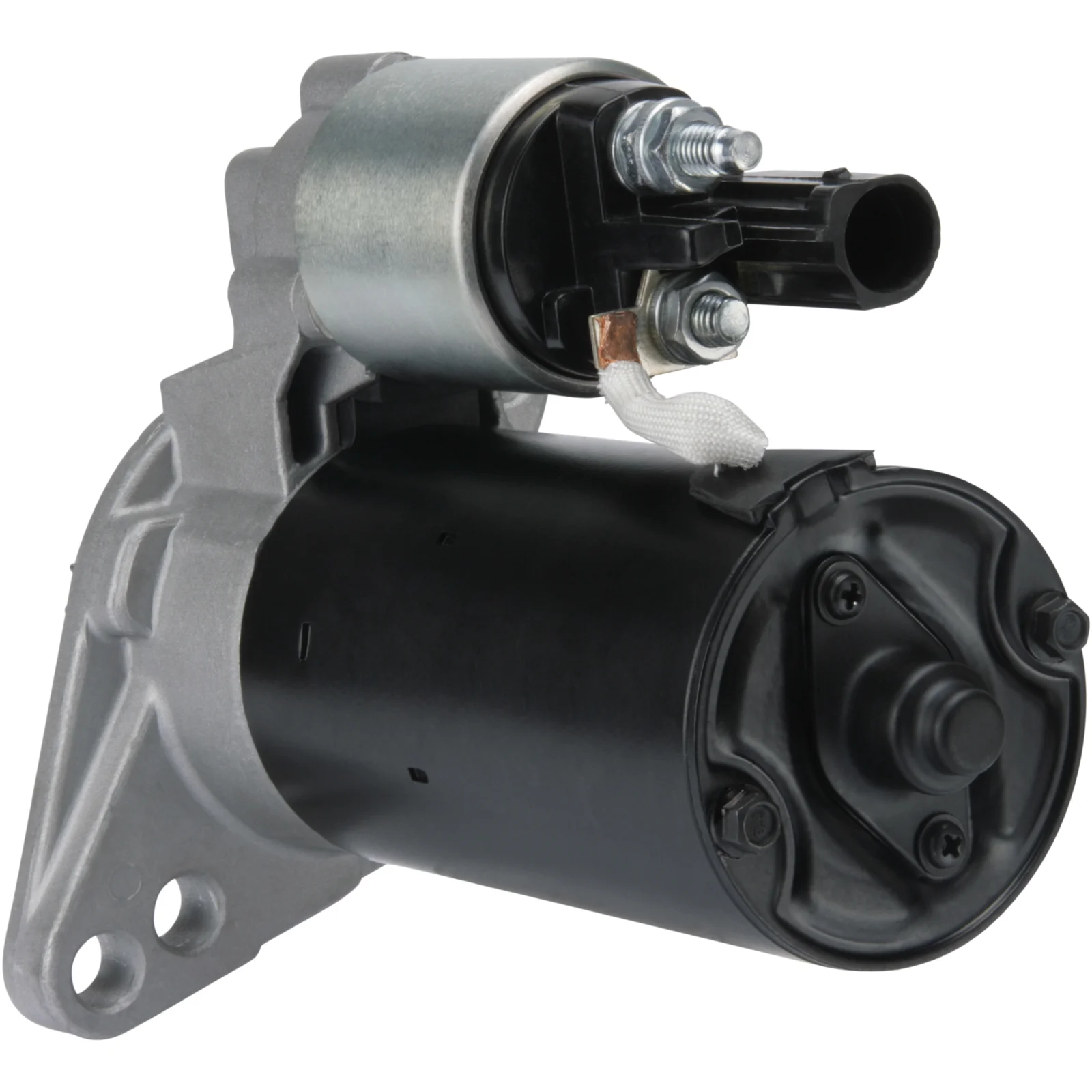

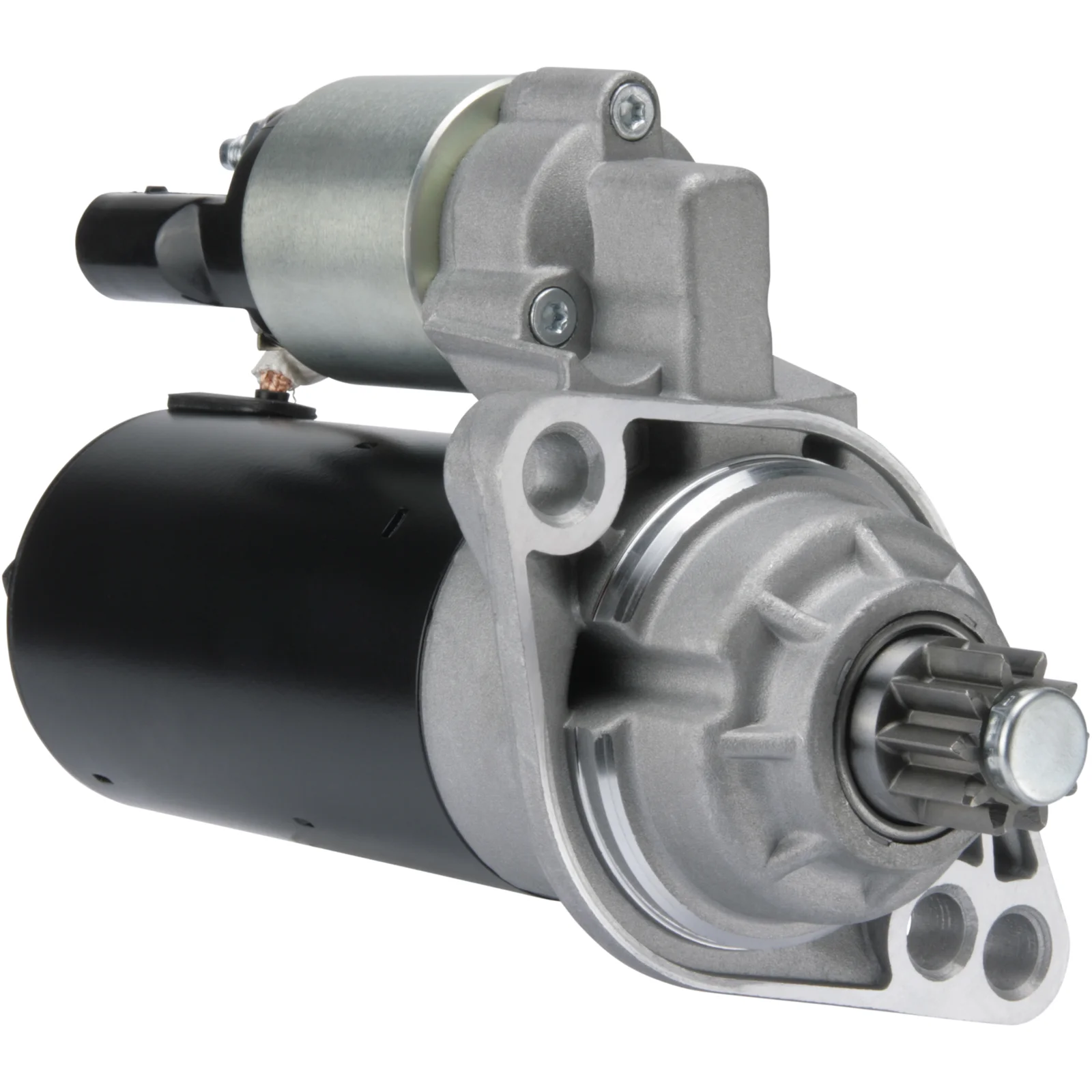

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114173

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 10, Rotation: CCW

Description

VW Caddy Starter motor 12V-1.7kW 12V - 1.7kW, 10 teeth, CCW A - 76mm, B - 57 For Yourex product order 91-620-2032

Voltage: 12
kW: 1.7
Mounting flange: 76.00
Drive distance: 58.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 168.00
Distance / front: 63.00
Number / teeth: 10
P+: M8
Position / 50: 15
Terminal 50: Plug
Gear type: GR
Distance mm: 111.00
Rotation: CCW
Total length mm: 244.00
Clutch type: Dry
Drive type: Steel
Number / mounting holes: 2 (0)

Files

  • OEM
    0AH 911 023B, 0AH911023B, 0AH911023BX, cs1397, F032114173, RGO 114173, 0001 123 020, 0001 123 021, 0986 020 320, 1986S00800, 114173, 0001123020, 0001123021

  • Normalised article numbler
    0ah911023b, 0ah911023bx, cs1397, cst10445, drt0320, drt0320x, f032114173, f042s0h096, lrs02473, rgo114173, s0229, s0229pr, strh096, 8ea012528051, 1986s00800, 3043, 32688n, 101397, 105510, 114173, 254145, 458875, 0001123020, 0001123021, 8213300, 11020320, 311264102, 0986020320
  • Description
    VW Caddy Starter motor 12V-1.7kW 12V - 1.7kW, 10 teeth, CCW A - 76mm, B - 57 For Yourex product order 91-620-2032

    Voltage: 12
    kW: 1.7
    Mounting flange: 76.00
    Drive distance: 58.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 168.00
    Distance / front: 63.00
    Number / teeth: 10
    P+: M8
    Position / 50: 15
    Terminal 50: Plug
    Gear type: GR
    Distance mm: 111.00
    Rotation: CCW
    Total length mm: 244.00
    Clutch type: Dry
    Drive type: Steel
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      0AH 911 023B, 0AH911023B, 0AH911023BX, cs1397, F032114173, RGO 114173, 0001 123 020, 0001 123 021, 0986 020 320, 1986S00800, 114173, 0001123020, 0001123021

    • Normalised article numbler
      0ah911023b, 0ah911023bx, cs1397, cst10445, drt0320, drt0320x, f032114173, f042s0h096, lrs02473, rgo114173, s0229, s0229pr, strh096, 8ea012528051, 1986s00800, 3043, 32688n, 101397, 105510, 114173, 254145, 458875, 0001123020, 0001123021, 8213300, 11020320, 311264102, 0986020320
