Article no.: F032113761

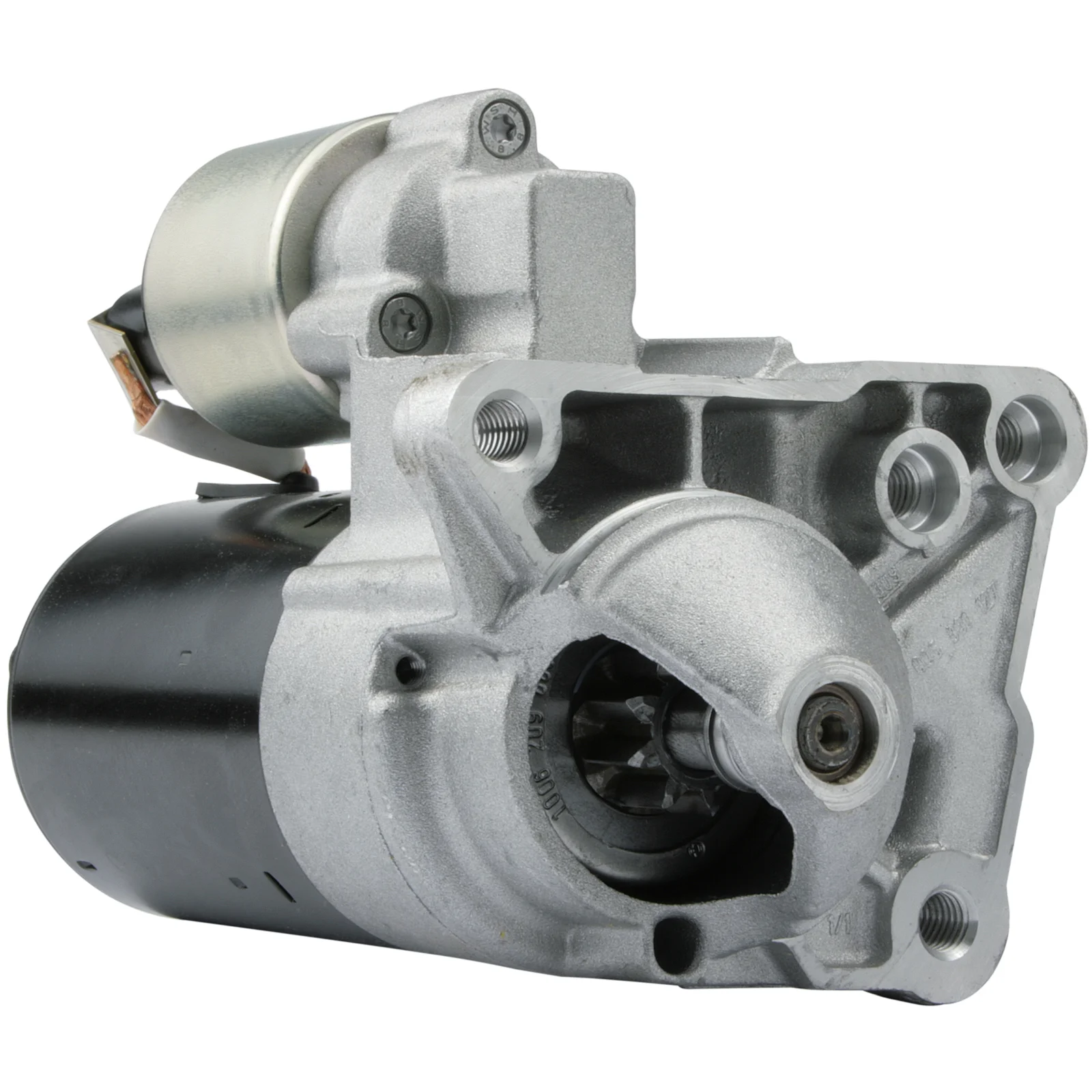

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.9, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 0.9
Mounting flange: 66.00
Drive distance: -0.50
Mounting hole 4 mm: M10
Mounting hole 3 mm: M10
Distance / back: 162.00
Distance / front: 32.00
Number / teeth: 9
B+: M8
Position / 50: 5
Terminal 50: M5-6.30
Gear type: GR
Distance 2: 74.00
Distance 3: 104.50
Distance 4: 73.00
Distance in millimeters: 22.00
Rotation: CW
Total length in millimeters: 208.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 4 (4)

Files

  • OEM
    cs1179, F032113761, RGO 113761, 0001106012, 0001106017, 0001106021, 0001106022, 8253505, 7700115294, 7700872450, 7700875450, 8200050150, 8200186144, 8200466744, 8200466761, 8200724786, 8200724817

  • Normalised article numbler
    cs1179, cst10259, drs6330, drs8770, drs8770x, f032113761, lrs01632, lrt00235, rgo113761, s0225, 8ea012527881, 31235n, 31235r, 101179, 104438, 104722, 105358, 201175, 220923, 220923a, 252493, 253161, 438507, 438508, 458189, 458263, 726147, 0001106012, 0001106017, 0001106021, 0001106022, 8018360, 8018770, 8021030, 8253505, 11018360, 11018770, 11021030, 330020092, 330036092, 0986018360, 0986018770, 0986021030, 7700115294, 7700872450, 7700875450, 8200050150, 8200186144, 8200466744, 8200466761, 8200724786, 8200724817, 943253152010, 943253171010, 944280183600, 944280187700, 944280210300
  • Description
    Voltage: 12
    kW: 0.9
    Mounting flange: 66.00
    Drive distance: -0.50
    Mounting hole 4 mm: M10
    Mounting hole 3 mm: M10
    Distance / back: 162.00
    Distance / front: 32.00
    Number / teeth: 9
    B+: M8
    Position / 50: 5
    Terminal 50: M5-6.30
    Gear type: GR
    Distance 2: 74.00
    Distance 3: 104.50
    Distance 4: 73.00
    Distance in millimeters: 22.00
    Rotation: CW
    Total length in millimeters: 208.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 4 (4)

    Files

  • Suitable for these vehicles

    • OEM
      cs1179, F032113761, RGO 113761, 0001106012, 0001106017, 0001106021, 0001106022, 8253505, 7700115294, 7700872450, 7700875450, 8200050150, 8200186144, 8200466744, 8200466761, 8200724786, 8200724817

    • Normalised article numbler
      cs1179, cst10259, drs6330, drs8770, drs8770x, f032113761, lrs01632, lrt00235, rgo113761, s0225, 8ea012527881, 31235n, 31235r, 101179, 104438, 104722, 105358, 201175, 220923, 220923a, 252493, 253161, 438507, 438508, 458189, 458263, 726147, 0001106012, 0001106017, 0001106021, 0001106022, 8018360, 8018770, 8021030, 8253505, 11018360, 11018770, 11021030, 330020092, 330036092, 0986018360, 0986018770, 0986021030, 7700115294, 7700872450, 7700875450, 8200050150, 8200186144, 8200466744, 8200466761, 8200724786, 8200724817, 943253152010, 943253171010, 944280183600, 944280187700, 944280210300
