Article no.: F032113389

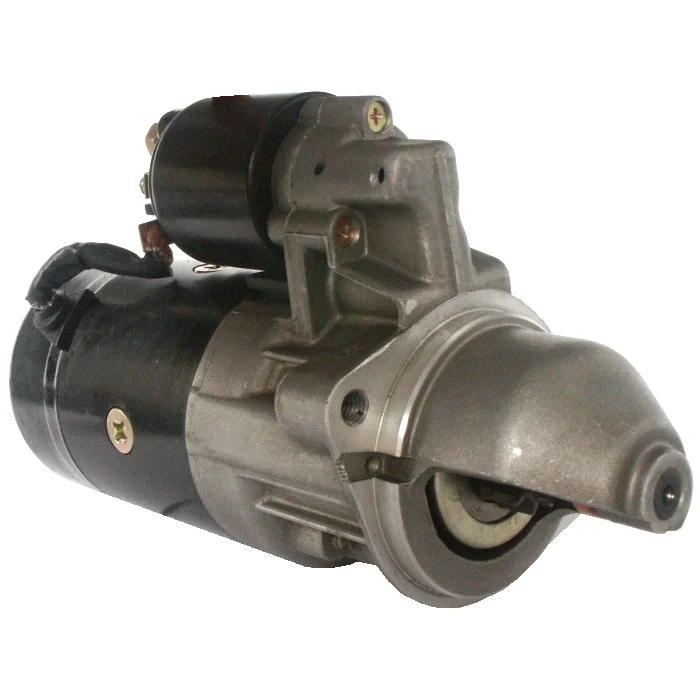

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.2
Mounting flange: 82.50
Drive distance: 26.00
Distance/rewind: 209.00
Distance/front: 63.00
Number of teeth: 10
B+: M8
Position/50: 15
Terminal 50: M4
Gear type: GR
Distance in millimeters: 104.50
Rotation: CW
Total length in millimeters: 272.50
Drive type: Steel
Product information: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (2)

Files

  • OEM
    A0041512001, A004151200180, A0041513601, A004151360180, a0061512701, AZE4140, cs576, F032113389, RGO 113389, 11.139.441, 860100, 0001218016, 0001218110, 0001218710, 1516778R, 0041512001, 0041513601, 0061512701, 004151200180, 004151360180

  • Normalised article numbler
    a0041512001, a004151200180, a0041513601, a004151360180, a0061512701, alt20050, aze4140, cs576, cst10161, drs3910, f032113389, f042002140, f042s02140, is9434, lrs00744, ms127, rgo113389, s0144, str50190, strb001, vs310, 8ea726200001, 1633, 3803, 10576, 30775n, 33825, 103503, 106248, 203025, 220101, 220101a, 251264, 252138, 455624, 860100, 0001218016, 0001218110, 0001218710, 1516778r, 2513910, 8013910, 11013910, 11139441, 0041512001, 0041513601, 42013910, 0061512701, 325013102, 943251302, 0986013910, 0986013913, 004151200180, 004151360180, 943251302010, 944280139100
  • Description
    Voltage: 12
    kW: 2.2
    Mounting flange: 82.50
    Drive distance: 26.00
    Distance/rewind: 209.00
    Distance/front: 63.00
    Number of teeth: 10
    B+: M8
    Position/50: 15
    Terminal 50: M4
    Gear type: GR
    Distance in millimeters: 104.50
    Rotation: CW
    Total length in millimeters: 272.50
    Drive type: Steel
    Product information: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      A0041512001, A004151200180, A0041513601, A004151360180, a0061512701, AZE4140, cs576, F032113389, RGO 113389, 11.139.441, 860100, 0001218016, 0001218110, 0001218710, 1516778R, 0041512001, 0041513601, 0061512701, 004151200180, 004151360180

    • Normalised article numbler
      a0041512001, a004151200180, a0041513601, a004151360180, a0061512701, alt20050, aze4140, cs576, cst10161, drs3910, f032113389, f042002140, f042s02140, is9434, lrs00744, ms127, rgo113389, s0144, str50190, strb001, vs310, 8ea726200001, 1633, 3803, 10576, 30775n, 33825, 103503, 106248, 203025, 220101, 220101a, 251264, 252138, 455624, 860100, 0001218016, 0001218110, 0001218710, 1516778r, 2513910, 8013910, 11013910, 11139441, 0041512001, 0041513601, 42013910, 0061512701, 325013102, 943251302, 0986013910, 0986013913, 004151200180, 004151360180, 943251302010, 944280139100
