HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116644

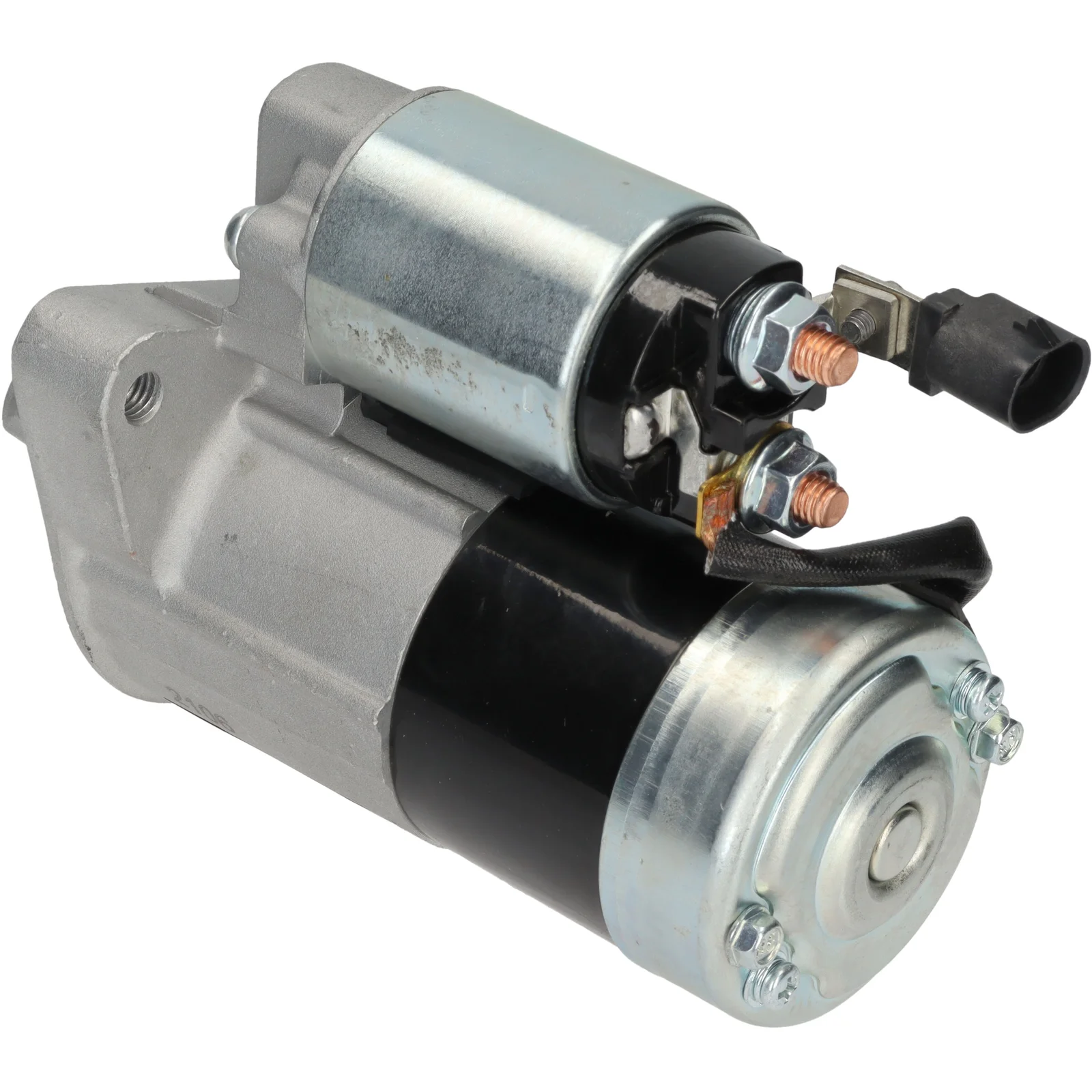

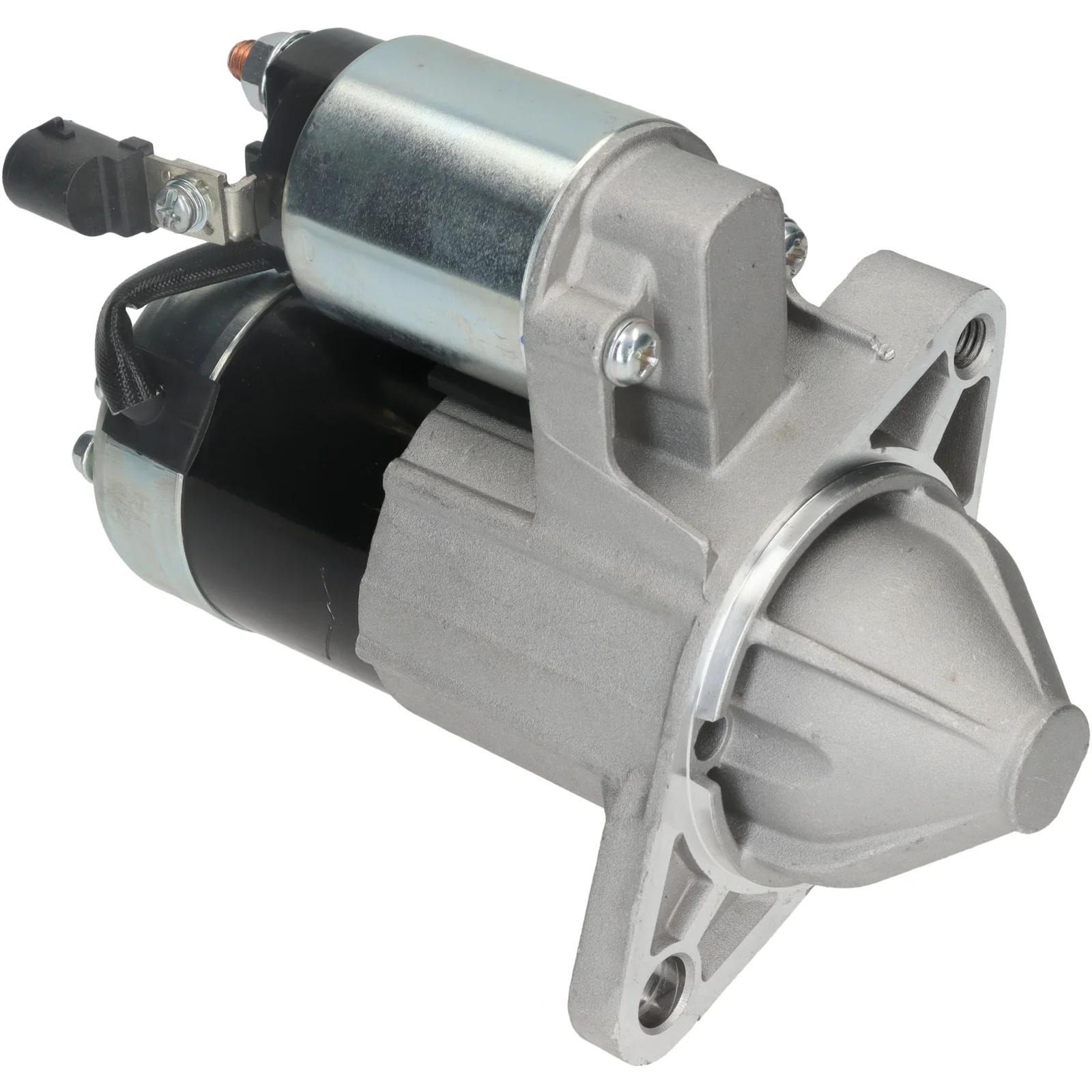

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.2
Mounting flange: 74.00
Drive distance: 9.00
Mounting hole 2 mm: 2.80
Distance/backup: 147.50
Distance/front: 45.50
Number/teeth: 9
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: Plug
Gear type: GR
Dist. mm: 120.00
Rotation: CW
Total length mm: 194.00
Number/mounting holes: 2 (1)

Files

  • OEM
    F032116644, js1316, M000T84881, M000T84881ZC, M000T84882, M000T84882ZC, m0t84881, M0T84881ZC, M0T84882, M0T84882ZC, RGO 116644, 1986S01219, 05033067AA, 05033067AB, 5033067aa, 5033067ab

  • Normalised article numbler
    cst35167, cst35167as, drs0083, f032116644, js1316, lrs01739, m000t84881, m000t84881zc, m000t84882, m000t84882zc, m0t84881, m0t84881zc, m0t84882, m0t84882zc, rgo116644, s5339s, 8ea011611291, 1986s01219, 106196, 201315, 201316, 253298, 458769, 05033067aa, 05033067ab, 5033067aa, 5033067ab, 8080276, 8212201, 11040788, 634032092, 830559082, 830559092, 0986023890, 830559092130
  • Description
    Voltage: 12
    kW: 1.2
    Mounting flange: 74.00
    Drive distance: 9.00
    Mounting hole 2 mm: 2.80
    Distance/backup: 147.50
    Distance/front: 45.50
    Number/teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 120.00
    Rotation: CW
    Total length mm: 194.00
    Number/mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032116644, js1316, M000T84881, M000T84881ZC, M000T84882, M000T84882ZC, m0t84881, M0T84881ZC, M0T84882, M0T84882ZC, RGO 116644, 1986S01219, 05033067AA, 05033067AB, 5033067aa, 5033067ab

    • Normalised article numbler
      cst35167, cst35167as, drs0083, f032116644, js1316, lrs01739, m000t84881, m000t84881zc, m000t84882, m000t84882zc, m0t84881, m0t84881zc, m0t84882, m0t84882zc, rgo116644, s5339s, 8ea011611291, 1986s01219, 106196, 201315, 201316, 253298, 458769, 05033067aa, 05033067ab, 5033067aa, 5033067ab, 8080276, 8212201, 11040788, 634032092, 830559082, 830559092, 0986023890, 830559092130
