HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110336

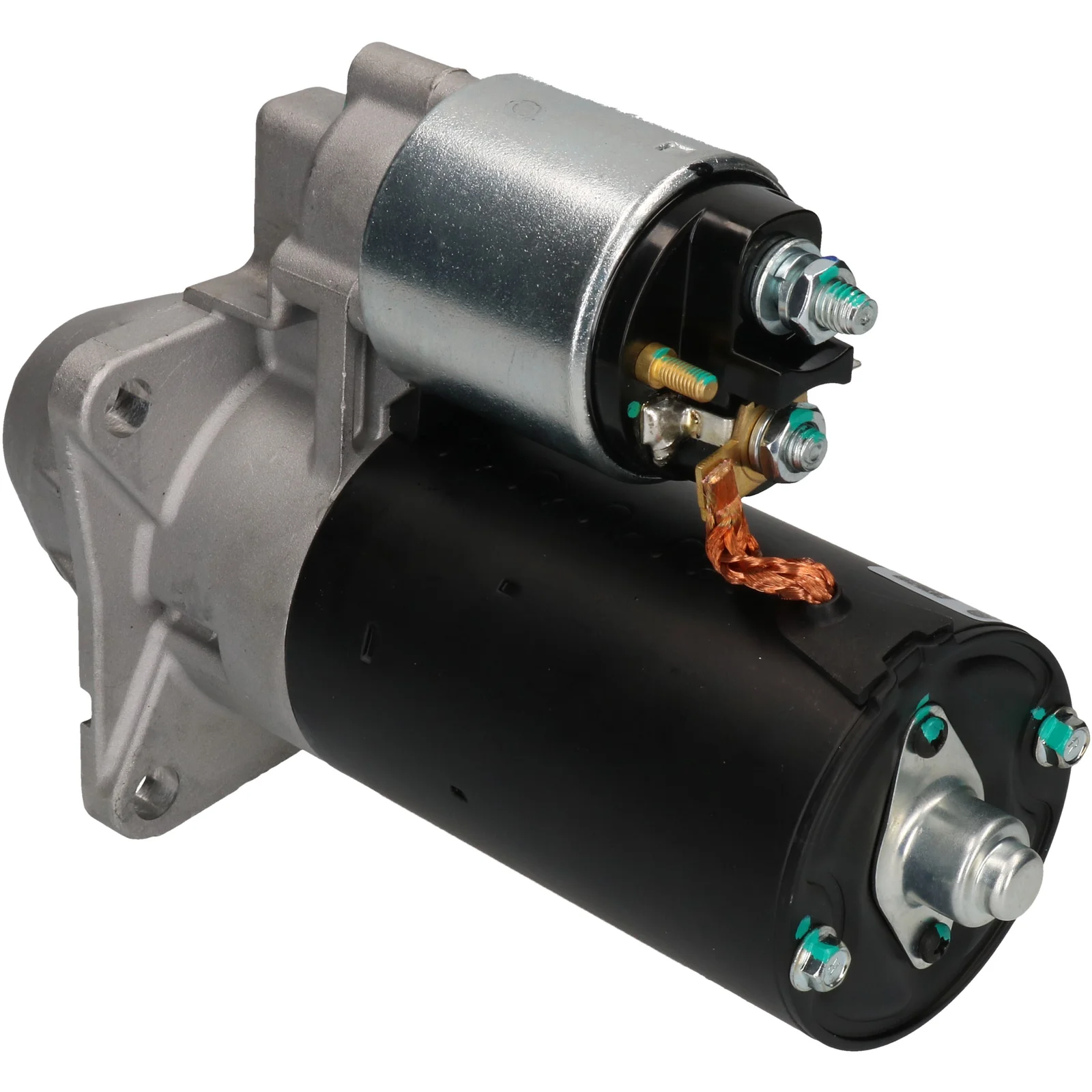

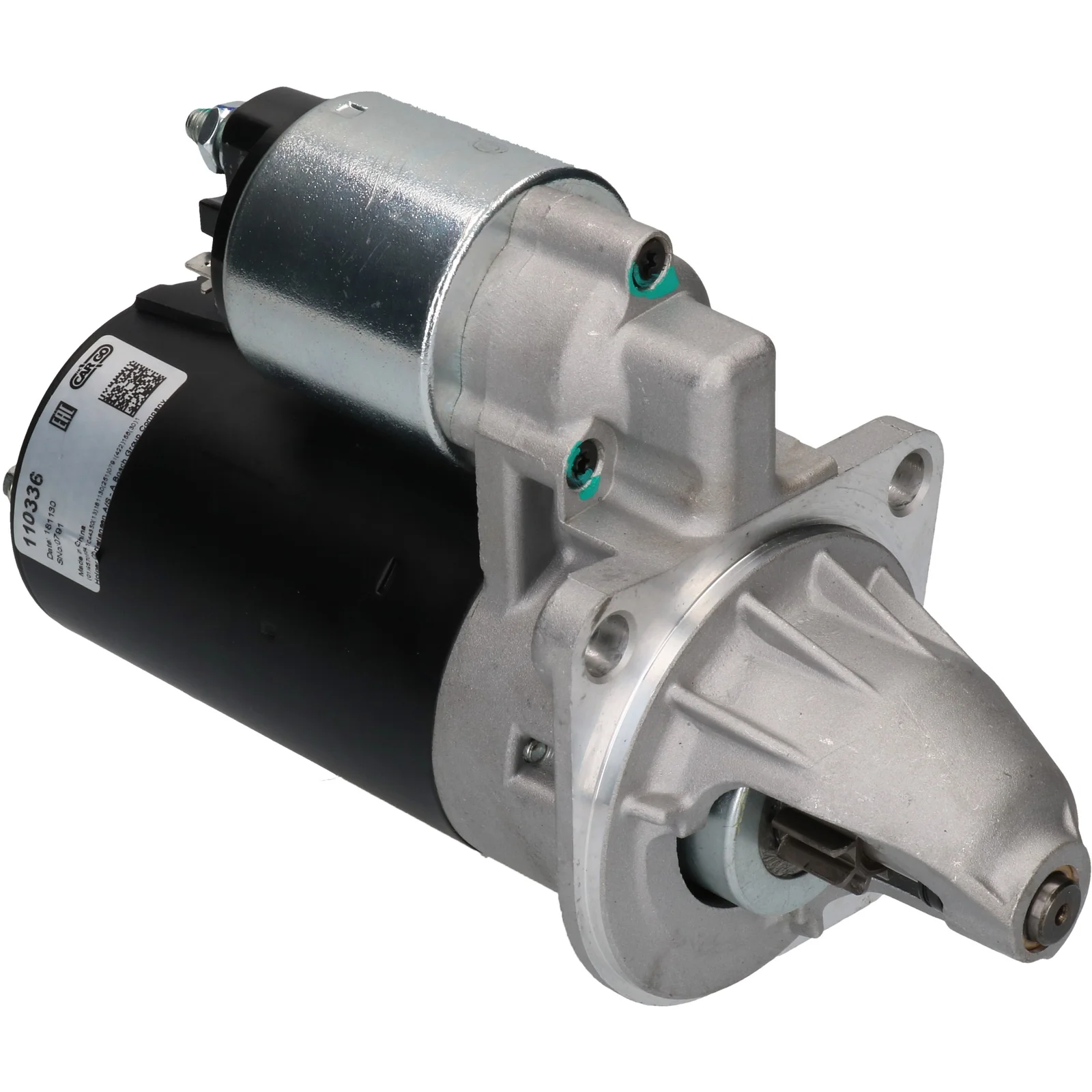

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.75, No./teeth: 10, Rotation: CW

Description

Ford Starter motor 12V-1.0kW 12V - 1.0kW, 10k A - 89mm, B - 27mm For Yourex product order 91-180-1071

Voltage: 12
kW: 0.75
Mount. flange: 89.00
Drive distance: 28.00
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Distance / back: 165.00
Distance / front: 66.50
Number / teeth: 10
B+: M8
Position / 15a: 45
Terminal 15a: M5
Position / 50: 15
Terminal 50: 6.30
Gear type: DD / GR
Distance 2: 114.00
Distance 3: 81.00
Distance mm: 81.00
Rotation: CW
Total length mm: 243.00
Clutch type: Dry
Drive type: Steel
Prod. info: Remanufactured
Waterproof: No
Oil sealed: No
Number / mount. holes: 3 (0)

Files

  • OEM
    b001111025, cs78, d9e107, d9e167, F032110336, R73AB11000BA, R75AB11000B2A, R76AB11000AA, R78BB11000AA, R82GB11000CA, R83BB11000CA, R89FB11000AA, R89FB11000BA, r91ab11000ka, R91AB11000KB, RGO 110336, 0001 208 219, 0001 208 513, 0001 208 521, 0001 208 706, 0001 208 715, 0001 208 718, 0001 211 206, 0001 211 228, 0001 211 513, 0001 211 533, 0001 211 989, 0001 311 038, 0001 311 048, 0001 311 113, 0001 311 149, 7M5Q9F481AA, 11-0336, 71bb11000da, 73ab11000aa, 73AB11000BA, 73gb11000ba, 75ab11000a2a, 75ab11000a2b, 75ab11000aa, 75AB11000B1A, 75ab11000b2a, 75ab11000ba, 76ab11000aa, 76AB11300AA, 78ab11000ca, 79ab11000bb, 79ab11000bc, 79ab11000bo, 81ab11000bo, 82gb11000ca, 82GB11000DA, 83bb11000aa, 83bb11000ab, 83BB11000CA, 83bb11000fa, 83bb11000fb, 86BB11000EA, 89fx11000ba, 0986 010 408, 0986 010 718, 0986 012 358, 25204, 25204a, 25204E, 25204H, 25204l, 25205, 25205a, 25205J, 25205l, 25208, 25208a, 25208e, 25249, 25249B, 25249f, 25270, 25270a, 25270k, 25270X, 25271, 25271a, 25271f, 25272, 25272a, 25272B, 25272h, 25289, 25289a, 25289D, 25289h, 25289j, 25335, 25335a, 25335b, 25357, 25357a, 25648, 25648a, 25648k, 028000-5400, 028000-5401, 028000-5407, 028000-5410, 028000-7710, 028000-7711, 1008828, 0001208219, 0001208513, 0001208521, 0001208706, 0001208715, 0001208718, 0001211049, 0001211206, 0001211228, 0001211513, 0001211533, 0001211989, 1491391, 1516805R, 1539703, 1571105, 5003638, 5007090, 5008974, 5010217, 5014234, 5023551, 5026496, 5027804, 6091922, 6094374, 6094378, 6157862, 6157863, 6168500, 6203382, 6203383, 11448297

  • Normalised article numbler
    b001111025, cs78, cst10129, d9e107, d9e167, drs0400, drs0710, f032110336, f032us0008, f042s02172, f042s0h151, lrs00144, lrs00168, lrs00654, lrs02024, nd061, qs0245, r73ab11000ba, r75ab11000b2a, r76ab11000aa, r78bb11000aa, r82gb11000ca, r83bb11000ca, r89fb11000aa, r89fb11000ba, r91ab11000ka, r91ab11000kb, rgo110336, sr72x, str2062, vs137, vs207, 7m5q9f481aa, 8ea726238001, 71bb11000da, 73ab11000aa, 73ab11000ba, 73gb11000ba, 75ab11000a2a, 75ab11000a2b, 75ab11000aa, 75ab11000b1a, 75ab11000b2a, 75ab11000ba, 76ab11000aa, 76ab11300aa, 78ab11000ca, 79ab11000bb, 79ab11000bc, 79ab11000bo, 81ab11000bo, 82gb11000ca, 82gb11000da, 83bb11000aa, 83bb11000ab, 83bb11000ca, 83bb11000fa, 83bb11000fb, 86bb11000ea, 89fx11000ba, 1009, 3409, 3462, 11229, 11235, 11451, 11544, 16133, 16184, 16184r, 16186, 16595, 21430bo, 21430lu, 25204, 25204a, 25204e, 25204h, 25204l, 25205, 25205a, 25205j, 25205l, 25208, 25208a, 25208e, 25249, 25249b, 25249f, 25270, 25270a, 25270k, 25270x, 25271, 25271a, 25271f, 25272, 25272a, 25272b, 25272h, 25289, 25289a, 25289d, 25289h, 25289j, 25335, 25335a, 25335b, 25357, 25357a, 25648, 25648a, 25648k, 110336, 251213, 260054, 433286, 433287, 433289, 433337, 838064, 1008828, 0001208219, 0001208513, 0001208521, 0001208706, 0001208715, 0001208718, 0001211049, 0001211206, 0001211228, 0001211513, 0001211533, 0001211989, 0001311038, 0001311048, 0001311113, 0001311149, 1491391, 1516805r, 1539703, 1571105, 2010400, 2010710, 2012350, 5003638, 5007090, 5008974, 5010217, 5014234, 5023551, 5026496, 5027804, 6091922, 6094374, 6094378, 6157862, 6157863, 6168500, 6203382, 6203383, 8012350, 11010400, 11010710, 11012350, 11013110, 11448297, 41024232, 0280005400, 0280005401, 0280005407, 0280005410, 0280007710, 0280007711, 319006102, 319102102, 319103102, 320104102, 320104112, 943251015, 943251413, 943251658, 0986001037, 0986010400, 0986010401, 0986010407, 0986010408, 0986010520, 0986010712, 0986010713, 0986010718, 0986012358, 0986013110, 943251015010, 943251658010
  • Description
    Ford Starter motor 12V-1.0kW 12V - 1.0kW, 10k A - 89mm, B - 27mm For Yourex product order 91-180-1071

    Voltage: 12
    kW: 0.75
    Mount. flange: 89.00
    Drive distance: 28.00
    Mount. hole 3 mm: 10.50
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Distance / back: 165.00
    Distance / front: 66.50
    Number / teeth: 10
    B+: M8
    Position / 15a: 45
    Terminal 15a: M5
    Position / 50: 15
    Terminal 50: 6.30
    Gear type: DD / GR
    Distance 2: 114.00
    Distance 3: 81.00
    Distance mm: 81.00
    Rotation: CW
    Total length mm: 243.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: Remanufactured
    Waterproof: No
    Oil sealed: No
    Number / mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      b001111025, cs78, d9e107, d9e167, F032110336, R73AB11000BA, R75AB11000B2A, R76AB11000AA, R78BB11000AA, R82GB11000CA, R83BB11000CA, R89FB11000AA, R89FB11000BA, r91ab11000ka, R91AB11000KB, RGO 110336, 0001 208 219, 0001 208 513, 0001 208 521, 0001 208 706, 0001 208 715, 0001 208 718, 0001 211 206, 0001 211 228, 0001 211 513, 0001 211 533, 0001 211 989, 0001 311 038, 0001 311 048, 0001 311 113, 0001 311 149, 7M5Q9F481AA, 11-0336, 71bb11000da, 73ab11000aa, 73AB11000BA, 73gb11000ba, 75ab11000a2a, 75ab11000a2b, 75ab11000aa, 75AB11000B1A, 75ab11000b2a, 75ab11000ba, 76ab11000aa, 76AB11300AA, 78ab11000ca, 79ab11000bb, 79ab11000bc, 79ab11000bo, 81ab11000bo, 82gb11000ca, 82GB11000DA, 83bb11000aa, 83bb11000ab, 83BB11000CA, 83bb11000fa, 83bb11000fb, 86BB11000EA, 89fx11000ba, 0986 010 408, 0986 010 718, 0986 012 358, 25204, 25204a, 25204E, 25204H, 25204l, 25205, 25205a, 25205J, 25205l, 25208, 25208a, 25208e, 25249, 25249B, 25249f, 25270, 25270a, 25270k, 25270X, 25271, 25271a, 25271f, 25272, 25272a, 25272B, 25272h, 25289, 25289a, 25289D, 25289h, 25289j, 25335, 25335a, 25335b, 25357, 25357a, 25648, 25648a, 25648k, 028000-5400, 028000-5401, 028000-5407, 028000-5410, 028000-7710, 028000-7711, 1008828, 0001208219, 0001208513, 0001208521, 0001208706, 0001208715, 0001208718, 0001211049, 0001211206, 0001211228, 0001211513, 0001211533, 0001211989, 1491391, 1516805R, 1539703, 1571105, 5003638, 5007090, 5008974, 5010217, 5014234, 5023551, 5026496, 5027804, 6091922, 6094374, 6094378, 6157862, 6157863, 6168500, 6203382, 6203383, 11448297

    • Normalised article numbler
      b001111025, cs78, cst10129, d9e107, d9e167, drs0400, drs0710, f032110336, f032us0008, f042s02172, f042s0h151, lrs00144, lrs00168, lrs00654, lrs02024, nd061, qs0245, r73ab11000ba, r75ab11000b2a, r76ab11000aa, r78bb11000aa, r82gb11000ca, r83bb11000ca, r89fb11000aa, r89fb11000ba, r91ab11000ka, r91ab11000kb, rgo110336, sr72x, str2062, vs137, vs207, 7m5q9f481aa, 8ea726238001, 71bb11000da, 73ab11000aa, 73ab11000ba, 73gb11000ba, 75ab11000a2a, 75ab11000a2b, 75ab11000aa, 75ab11000b1a, 75ab11000b2a, 75ab11000ba, 76ab11000aa, 76ab11300aa, 78ab11000ca, 79ab11000bb, 79ab11000bc, 79ab11000bo, 81ab11000bo, 82gb11000ca, 82gb11000da, 83bb11000aa, 83bb11000ab, 83bb11000ca, 83bb11000fa, 83bb11000fb, 86bb11000ea, 89fx11000ba, 1009, 3409, 3462, 11229, 11235, 11451, 11544, 16133, 16184, 16184r, 16186, 16595, 21430bo, 21430lu, 25204, 25204a, 25204e, 25204h, 25204l, 25205, 25205a, 25205j, 25205l, 25208, 25208a, 25208e, 25249, 25249b, 25249f, 25270, 25270a, 25270k, 25270x, 25271, 25271a, 25271f, 25272, 25272a, 25272b, 25272h, 25289, 25289a, 25289d, 25289h, 25289j, 25335, 25335a, 25335b, 25357, 25357a, 25648, 25648a, 25648k, 110336, 251213, 260054, 433286, 433287, 433289, 433337, 838064, 1008828, 0001208219, 0001208513, 0001208521, 0001208706, 0001208715, 0001208718, 0001211049, 0001211206, 0001211228, 0001211513, 0001211533, 0001211989, 0001311038, 0001311048, 0001311113, 0001311149, 1491391, 1516805r, 1539703, 1571105, 2010400, 2010710, 2012350, 5003638, 5007090, 5008974, 5010217, 5014234, 5023551, 5026496, 5027804, 6091922, 6094374, 6094378, 6157862, 6157863, 6168500, 6203382, 6203383, 8012350, 11010400, 11010710, 11012350, 11013110, 11448297, 41024232, 0280005400, 0280005401, 0280005407, 0280005410, 0280007710, 0280007711, 319006102, 319102102, 319103102, 320104102, 320104112, 943251015, 943251413, 943251658, 0986001037, 0986010400, 0986010401, 0986010407, 0986010408, 0986010520, 0986010712, 0986010713, 0986010718, 0986012358, 0986013110, 943251015010, 943251658010
