Article no.: F032112286

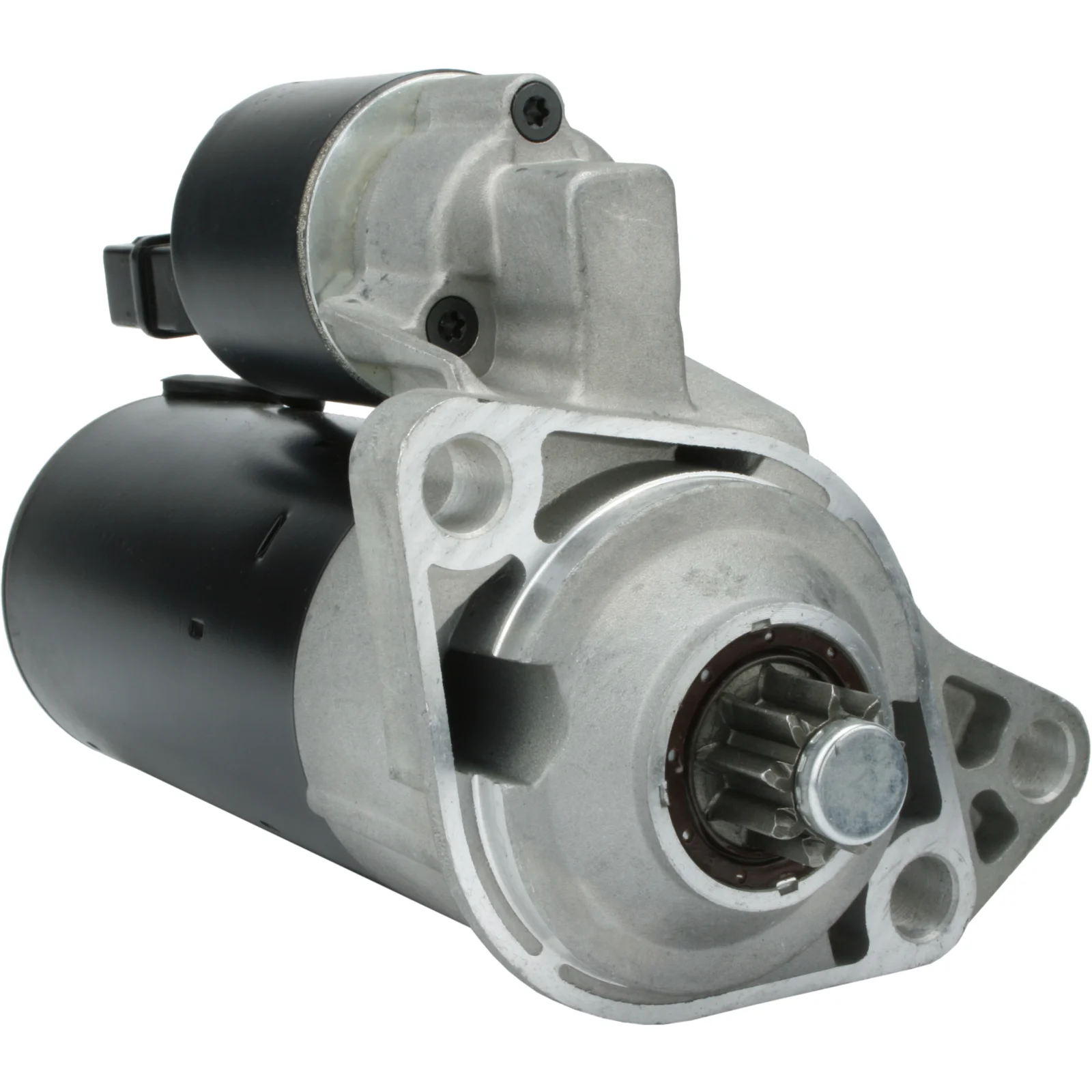

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 9, Rotation: CCW

Description

Voltage: 12
kW: 1.7
Mount. flange: 76.20
Drive dist.: 32.00
Mount. hole 3 mm: 12.50
Mount. hole 2 mm: 12.50
Mount. hole 1 mm: 12.00
Dist./back: 184.00
Dist./front: 36.50
No./teeth: 9
B+: M8
Position/50: 20
Terminal 50: 6.30
Gear type: GR
Dist. 2: 111.50
Dist. 3: 123.00
Dist. mm: 32.50
Rotation: CCW
Total length mm: 236.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Files

  • OEM
    A0041518701, aze2537, AZE2626, cs713, CS789, D7RS129, d7rs29, F032112286, RGO 112286, VVW020911024C, 1HS911023D, 1M2111000AA, 11.130.723, 11.131.057, 95VW11000EA, 95vw11000eb, 95vw11000ec, 97vw11000ba, 97vw11000bb, 1986S00809, 915109E, 1032666, 0001110076, 0001110077, 0001110098, 0001110099, 0001124003, 0001124004, 0001125005, 0001125006, 0001125014, 0001125035, 0001125036, 1147435, 7203212, 9141395, 9141396, 020911012P, 020911023b, 020911023d, 020911023DX, 020911023p, 020911023PX, 020911023r, 020911024A, 020911024AX, 020911024C, 0041518701, 068911023t, 068911023TX, 098911023A, 098911023B, 443115141395

  • Normalised article numbler
    a0041518701, aze2537, aze2626, bso7083, bso7229, cs713, cs789, cst10115, cst15209, d7rs129, d7rs29, drs5970, drs6310, drs7000, f032112286, f042002058, f042200067, f042s02058, frs443, frs633, is0723, is1043, lrs00781, lrs00966, ms303, ms48, msr677, qs1450, qs2640, rgo112286, s0006, s0006pr, s0006sr, s0417, s3041, s9083, sr0407x, str10036, str10044, str2203a, str50026, vvw020911024c, 1hs911023d, 1m2111000aa, 8ea011350521, 8ea011610531, 8ea012526591, 8ea012527491, 8ea730229001, 8ea731779001, 95vw11000ea, 95vw11000eb, 95vw11000ec, 97vw11000ba, 97vw11000bb, 1432, 1986s00809, 3835, 4125, 10713, 10789, 11398, 11697, 0015970, 17030rw, 17725n, 17725r, 21904bo, 101287, 103324, 105438, 201030, 201129, 220131, 220131a, 220388, 220388a, 251339, 252231, 438075, 442005, 442009, 442152, 455727, 455930, 726034, 726834, 726982, 915109e, 1032666, 0001110076, 0001110077, 0001110098, 0001110099, 0001124003, 0001124004, 0001125005, 0001125006, 0001125014, 0001125035, 0001125036, 1147435, 4115970, 7203212, 8015970, 8016980, 8017000, 8213123, 9141395, 9141396, 11015970, 11017000, 11130723, 11131057, 020911012p, 020911023b, 020911023d, 020911023dx, 020911023p, 020911023px, 020911023r, 020911024a, 020911024ax, 020911024c, 0041518701, 42017000, 068911023t, 068911023tx, 098911023a, 098911023b, 300511093, 311047092, 311063092, 311239092, 943251572, 0986015970, 0986015973, 0986015977, 0986017000, 0986017007, 063521250350, 443115141395, 943241136010, 943251572010, 944280159700
  • Description
    Voltage: 12
    kW: 1.7
    Mount. flange: 76.20
    Drive dist.: 32.00
    Mount. hole 3 mm: 12.50
    Mount. hole 2 mm: 12.50
    Mount. hole 1 mm: 12.00
    Dist./back: 184.00
    Dist./front: 36.50
    No./teeth: 9
    B+: M8
    Position/50: 20
    Terminal 50: 6.30
    Gear type: GR
    Dist. 2: 111.50
    Dist. 3: 123.00
    Dist. mm: 32.50
    Rotation: CCW
    Total length mm: 236.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      A0041518701, aze2537, AZE2626, cs713, CS789, D7RS129, d7rs29, F032112286, RGO 112286, VVW020911024C, 1HS911023D, 1M2111000AA, 11.130.723, 11.131.057, 95VW11000EA, 95vw11000eb, 95vw11000ec, 97vw11000ba, 97vw11000bb, 1986S00809, 915109E, 1032666, 0001110076, 0001110077, 0001110098, 0001110099, 0001124003, 0001124004, 0001125005, 0001125006, 0001125014, 0001125035, 0001125036, 1147435, 7203212, 9141395, 9141396, 020911012P, 020911023b, 020911023d, 020911023DX, 020911023p, 020911023PX, 020911023r, 020911024A, 020911024AX, 020911024C, 0041518701, 068911023t, 068911023TX, 098911023A, 098911023B, 443115141395

    • Normalised article numbler
      a0041518701, aze2537, aze2626, bso7083, bso7229, cs713, cs789, cst10115, cst15209, d7rs129, d7rs29, drs5970, drs6310, drs7000, f032112286, f042002058, f042200067, f042s02058, frs443, frs633, is0723, is1043, lrs00781, lrs00966, ms303, ms48, msr677, qs1450, qs2640, rgo112286, s0006, s0006pr, s0006sr, s0417, s3041, s9083, sr0407x, str10036, str10044, str2203a, str50026, vvw020911024c, 1hs911023d, 1m2111000aa, 8ea011350521, 8ea011610531, 8ea012526591, 8ea012527491, 8ea730229001, 8ea731779001, 95vw11000ea, 95vw11000eb, 95vw11000ec, 97vw11000ba, 97vw11000bb, 1432, 1986s00809, 3835, 4125, 10713, 10789, 11398, 11697, 0015970, 17030rw, 17725n, 17725r, 21904bo, 101287, 103324, 105438, 201030, 201129, 220131, 220131a, 220388, 220388a, 251339, 252231, 438075, 442005, 442009, 442152, 455727, 455930, 726034, 726834, 726982, 915109e, 1032666, 0001110076, 0001110077, 0001110098, 0001110099, 0001124003, 0001124004, 0001125005, 0001125006, 0001125014, 0001125035, 0001125036, 1147435, 4115970, 7203212, 8015970, 8016980, 8017000, 8213123, 9141395, 9141396, 11015970, 11017000, 11130723, 11131057, 020911012p, 020911023b, 020911023d, 020911023dx, 020911023p, 020911023px, 020911023r, 020911024a, 020911024ax, 020911024c, 0041518701, 42017000, 068911023t, 068911023tx, 098911023a, 098911023b, 300511093, 311047092, 311063092, 311239092, 943251572, 0986015970, 0986015973, 0986015977, 0986017000, 0986017007, 063521250350, 443115141395, 943241136010, 943251572010, 944280159700
