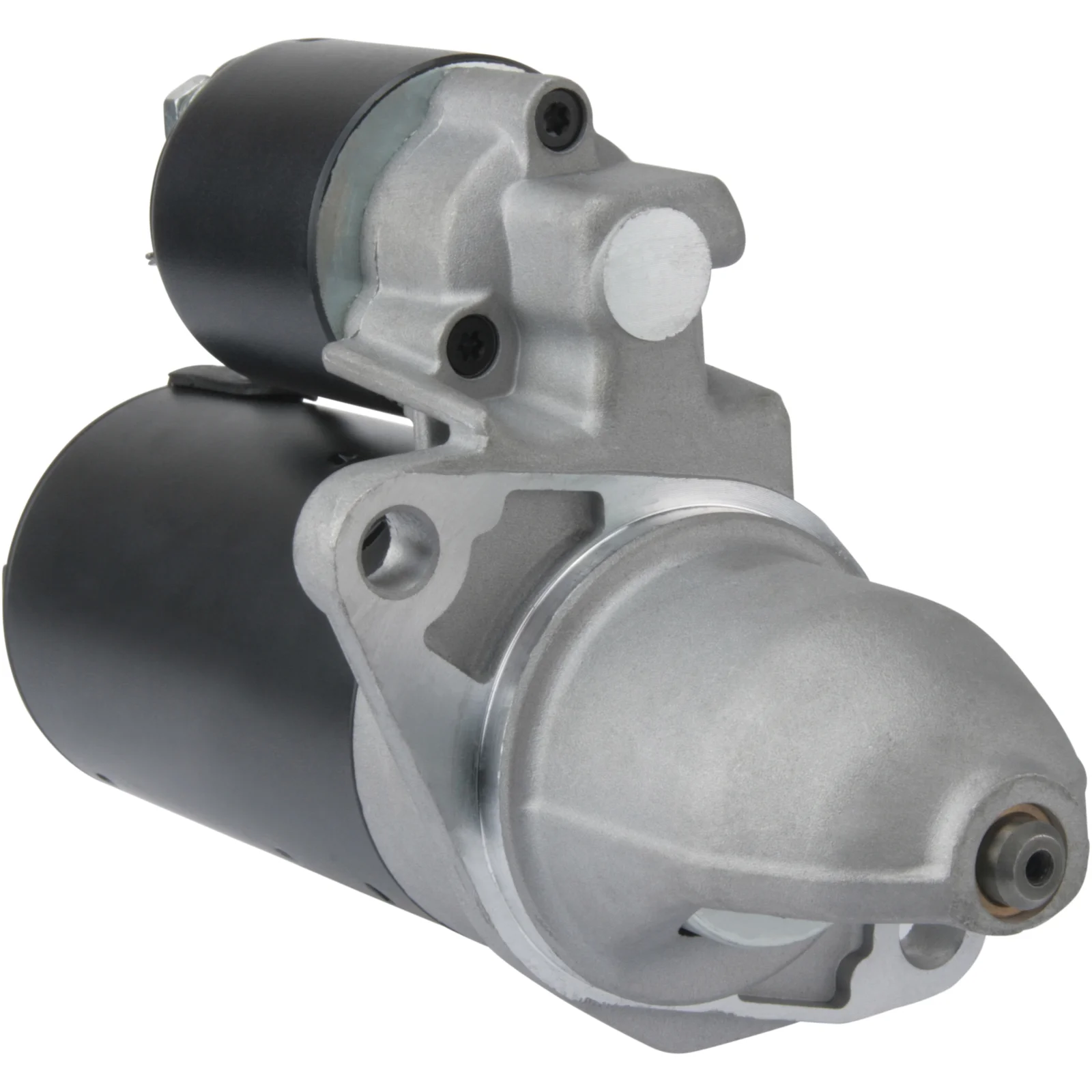

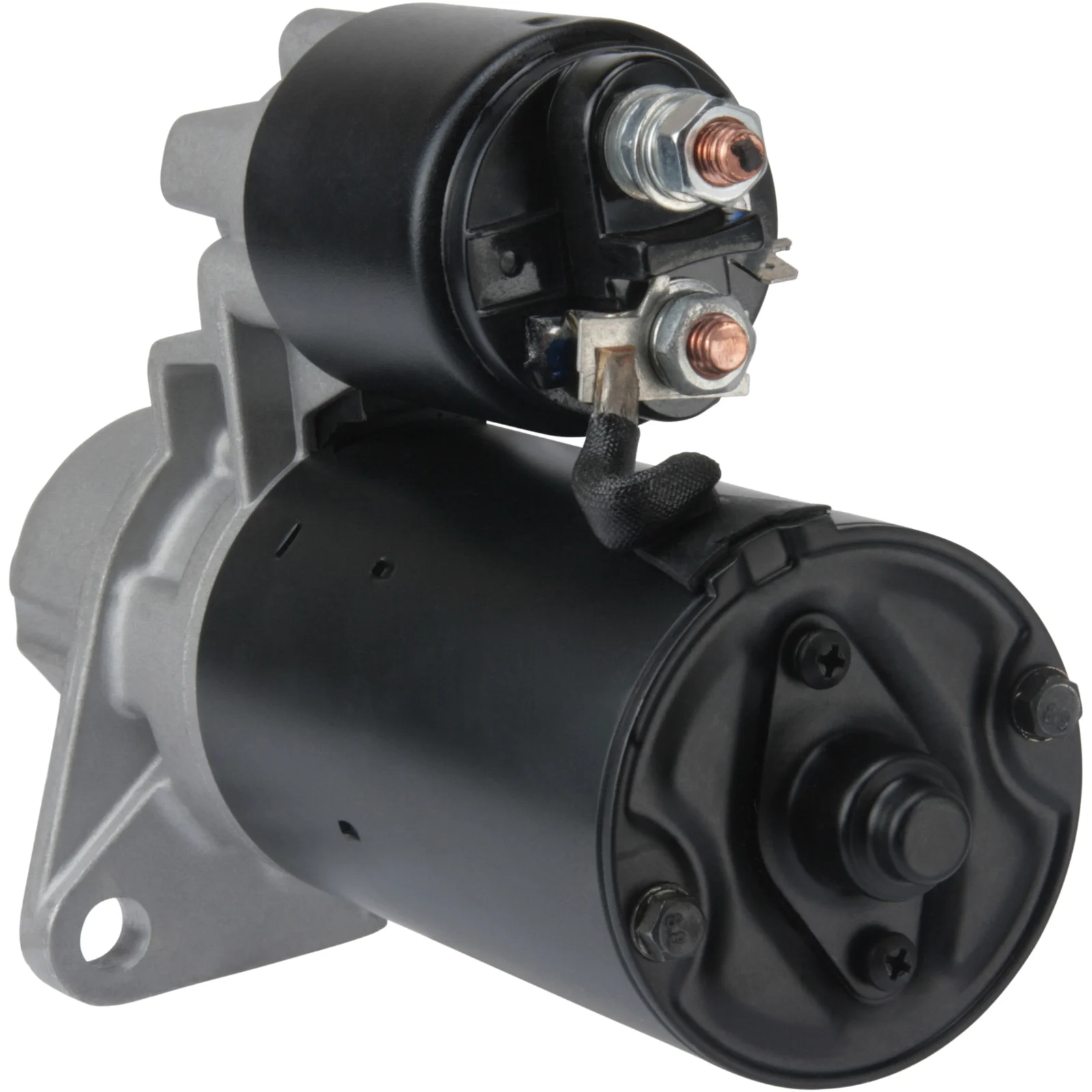

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111865

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.7
Mount. flange: 73.00
Drive dist.: 39.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 176.00
Dist./front: 77.50
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 20
Terminal 50: 6.30
Gear type: GR
Dist. mm: 118.00
Rotation: CW
Total length mm: 268.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Files

  • OEM
    AMR2165, AZE2201, C5658, c6578, cs589, ERR6087, ERR6087E, ESR2191, ESR2192, F032111865, nad10038, NAD100380, NAD10038E, NAD10119, nad101190, NAD101190E, NAD10149, NAD101490, RGO 111865, rtc6061n, 11.139.432, 1986S00723, 25681, 25681a, 25681d, 25696, 25696a, 25696E, 25696H, 25696J, 25696l, 26267, 26801, 0001107137, 0001108137, 0001109040, 0001110090, 0001110120, 63226801, 0726801000

  • Normalised article numbler
    amr2165, aze2201, bso7026, bso7298, c5658, c6578, cs589, cst10208, cst30149, drs3198, drs3198n, drs3199, drs3719, err6087, err6087e, esr2191, esr2192, f032111865, f042002077, f042s02077, frs139, frs172, is9425, lrs00196, lrs00709, lrs02102, lrt00169, ms172, nad10038, nad100380, nad10038e, nad10119, nad101190, nad101190e, nad10149, nad101490, qs1461, qs1693, rgo111865, rtc6061n, s0106, s0106bosch, s0386, str2025, str2228, str25001, str50059, str56027, vs179, vs243, 8ea726211001, 8ea726213001, 8ea737314001, 1986s00723, 3819, 4068, 4070, 4493, 10587, 10589, 11571, 11652, 16134r, 17453, 17453n, 17453r, 17663, 17705, 17792n, 17792r, 21325lu, 21765bo, 21899bo, 25681, 25681a, 25681d, 25696, 25696a, 25696e, 25696h, 25696j, 25696l, 26267, 26801, 101049, 103648, 220479, 220479a, 252103, 253018, 260306, 262099, 455897, 458253, 458566, 849104, 0001107137, 0001108137, 0001109040, 0001110090, 0001110120, 8017440, 8212283, 11017440, 11139432, 20510169, 063226801, 63226801, 339011092, 339018092, 339105092, 339109092, 450544092, 0726801000, 0986017440, 0986017447, 0986019597, 063226801010, 943253138010
  • Description
    Voltage: 12
    kW: 1.7
    Mount. flange: 73.00
    Drive dist.: 39.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 176.00
    Dist./front: 77.50
    No./teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 20
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 118.00
    Rotation: CW
    Total length mm: 268.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AMR2165, AZE2201, C5658, c6578, cs589, ERR6087, ERR6087E, ESR2191, ESR2192, F032111865, nad10038, NAD100380, NAD10038E, NAD10119, nad101190, NAD101190E, NAD10149, NAD101490, RGO 111865, rtc6061n, 11.139.432, 1986S00723, 25681, 25681a, 25681d, 25696, 25696a, 25696E, 25696H, 25696J, 25696l, 26267, 26801, 0001107137, 0001108137, 0001109040, 0001110090, 0001110120, 63226801, 0726801000

    • Normalised article numbler
      amr2165, aze2201, bso7026, bso7298, c5658, c6578, cs589, cst10208, cst30149, drs3198, drs3198n, drs3199, drs3719, err6087, err6087e, esr2191, esr2192, f032111865, f042002077, f042s02077, frs139, frs172, is9425, lrs00196, lrs00709, lrs02102, lrt00169, ms172, nad10038, nad100380, nad10038e, nad10119, nad101190, nad101190e, nad10149, nad101490, qs1461, qs1693, rgo111865, rtc6061n, s0106, s0106bosch, s0386, str2025, str2228, str25001, str50059, str56027, vs179, vs243, 8ea726211001, 8ea726213001, 8ea737314001, 1986s00723, 3819, 4068, 4070, 4493, 10587, 10589, 11571, 11652, 16134r, 17453, 17453n, 17453r, 17663, 17705, 17792n, 17792r, 21325lu, 21765bo, 21899bo, 25681, 25681a, 25681d, 25696, 25696a, 25696e, 25696h, 25696j, 25696l, 26267, 26801, 101049, 103648, 220479, 220479a, 252103, 253018, 260306, 262099, 455897, 458253, 458566, 849104, 0001107137, 0001108137, 0001109040, 0001110090, 0001110120, 8017440, 8212283, 11017440, 11139432, 20510169, 063226801, 63226801, 339011092, 339018092, 339105092, 339109092, 450544092, 0726801000, 0986017440, 0986017447, 0986019597, 063226801010, 943253138010
