Article no.: F032111995

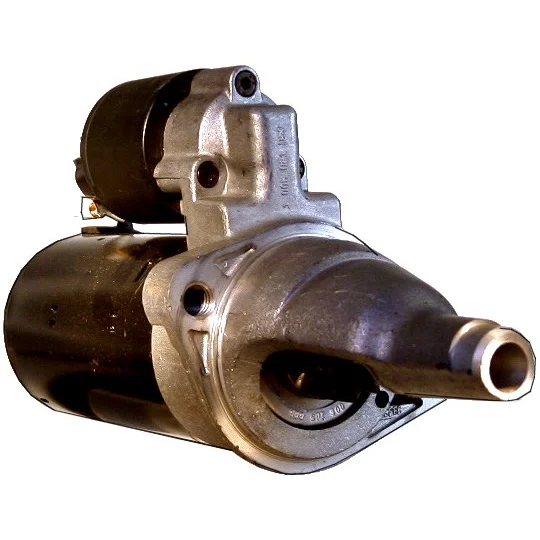

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mounting flange: 76.00
Drive distance: 29.00
Distance/backup: 180.00
Distance/front: 100.50
Number of teeth: 10
B+: M8
Position/50: 35
Terminal 50: 6.30
Gear type: GR
Distance mm: 100.50
Rotation: CW
Total length mm: 285.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (2)

Files

  • OEM
    B001116092, cs1114, F032111995, RGO 111995, 1986S00726, 313904, 0001109021, 0001109022, 0001109066, 0001109067, 059911023h, 059911023HX

  • Normalised article numbler
    b001116092, cs1114, cst10209, drs8020, f032111995, f042s0h034, lrt00217, rgo111995, s0176, s0176bosch, s0176pr, strh034, 8ea012526371, 8ea737557001, 1986s00726, 3874, 4571, 31217n, 101114, 103685, 220206, 220206a, 252363, 313904, 438407, 438439, 438465, 458220, 726117, 726846, 726917, 838022, 0001109021, 0001109022, 0001109066, 0001109067, 8018020, 8212372, 11018020, 42018020, 059911023h, 059911023hx, 311081102, 0986018020, 063521090660, 943253118010, 944280180200
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 76.00
    Drive distance: 29.00
    Distance/backup: 180.00
    Distance/front: 100.50
    Number of teeth: 10
    B+: M8
    Position/50: 35
    Terminal 50: 6.30
    Gear type: GR
    Distance mm: 100.50
    Rotation: CW
    Total length mm: 285.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      B001116092, cs1114, F032111995, RGO 111995, 1986S00726, 313904, 0001109021, 0001109022, 0001109066, 0001109067, 059911023h, 059911023HX

    • Normalised article numbler
      b001116092, cs1114, cst10209, drs8020, f032111995, f042s0h034, lrt00217, rgo111995, s0176, s0176bosch, s0176pr, strh034, 8ea012526371, 8ea737557001, 1986s00726, 3874, 4571, 31217n, 101114, 103685, 220206, 220206a, 252363, 313904, 438407, 438439, 438465, 458220, 726117, 726846, 726917, 838022, 0001109021, 0001109022, 0001109066, 0001109067, 8018020, 8212372, 11018020, 42018020, 059911023h, 059911023hx, 311081102, 0986018020, 063521090660, 943253118010, 944280180200
