Article no.: F032112537

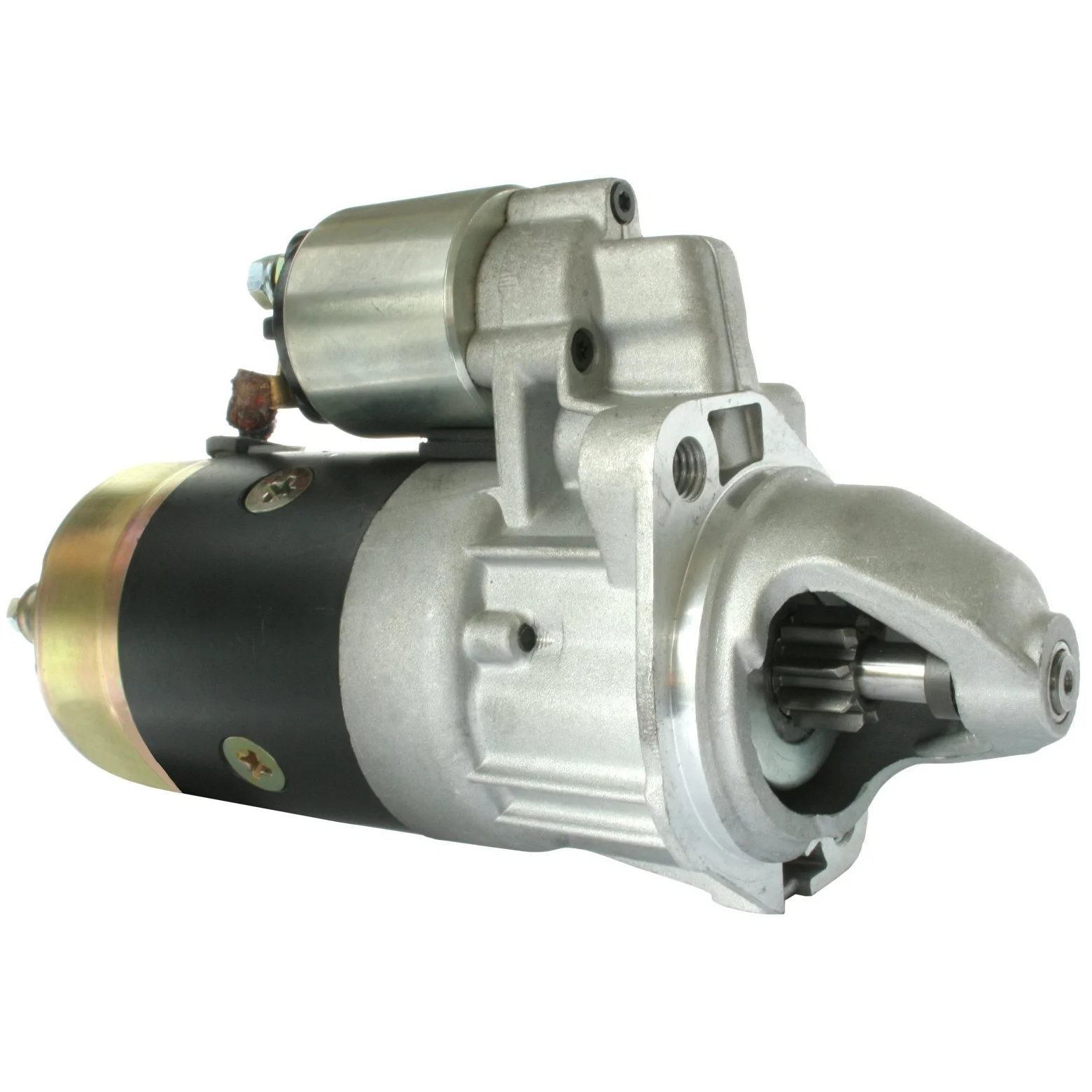

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.2
Mounting flange: 82.50
Drive distance: 22.00
Dist./back: 201.00
Dist./front: 61.50
Number/teeth: 9
B+: M8
Position/50: 43
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 274.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (2)

Files

  • OEM
    cs350, F032112537, RGO 112537, 1986A01603, 37300-2E110, 37300-2E200, 0001218012, 0001218013, 0001218018, 0001218113, 0001218114, 0001218115, 0001218715, 1516745R, 2610428, 046911023b, 046911023BX, 50246416, 069911023c, 069911023CX, 069911023d, 069911023DX, 943251415010

  • Normalised article numbler
    a9294s, cal32188, cs350, cst10223, cst10302, drs3410, drs8250, f032112537, frs176, lrs00991, qs2560, rgo112537, s0047, s0310, str50114, 8ea012527761, 8ea726098001, 1442, 1986a01603, 3534, 10350, 11129, 17042n, 17042r, 103201, 220096, 220096a, 250489, 373002e110, 373002e200, 436043, 438495, 600229, 0001218012, 0001218013, 0001218018, 0001218113, 0001218114, 0001218115, 0001218715, 1516745r, 2610428, 4113410, 8013410, 8018250, 11013410, 11018250, 046911023b, 046911023bx, 50246416, 069911023c, 069911023cx, 069911023d, 069911023dx, 155954090, 300028092, 943251415, 944280134, 0986013410, 0986013418, 0986018250, 943251415010, 944280134100
  • Description
    Voltage: 12
    kW: 2.2
    Mounting flange: 82.50
    Drive distance: 22.00
    Dist./back: 201.00
    Dist./front: 61.50
    Number/teeth: 9
    B+: M8
    Position/50: 43
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 274.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      cs350, F032112537, RGO 112537, 1986A01603, 37300-2E110, 37300-2E200, 0001218012, 0001218013, 0001218018, 0001218113, 0001218114, 0001218115, 0001218715, 1516745R, 2610428, 046911023b, 046911023BX, 50246416, 069911023c, 069911023CX, 069911023d, 069911023DX, 943251415010

    • Normalised article numbler
      a9294s, cal32188, cs350, cst10223, cst10302, drs3410, drs8250, f032112537, frs176, lrs00991, qs2560, rgo112537, s0047, s0310, str50114, 8ea012527761, 8ea726098001, 1442, 1986a01603, 3534, 10350, 11129, 17042n, 17042r, 103201, 220096, 220096a, 250489, 373002e110, 373002e200, 436043, 438495, 600229, 0001218012, 0001218013, 0001218018, 0001218113, 0001218114, 0001218115, 0001218715, 1516745r, 2610428, 4113410, 8013410, 8018250, 11013410, 11018250, 046911023b, 046911023bx, 50246416, 069911023c, 069911023cx, 069911023d, 069911023dx, 155954090, 300028092, 943251415, 944280134, 0986013410, 0986013418, 0986018250, 943251415010, 944280134100
