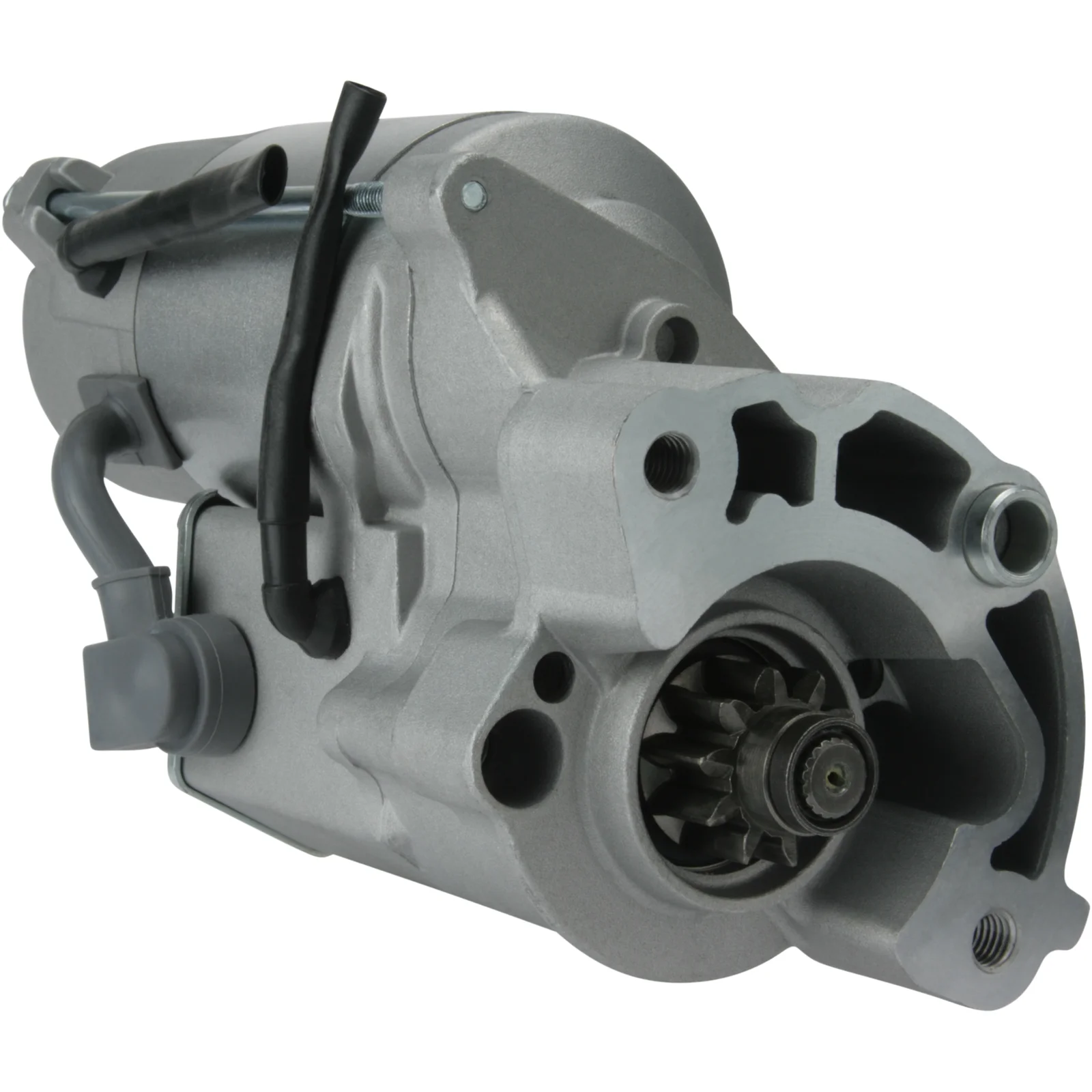

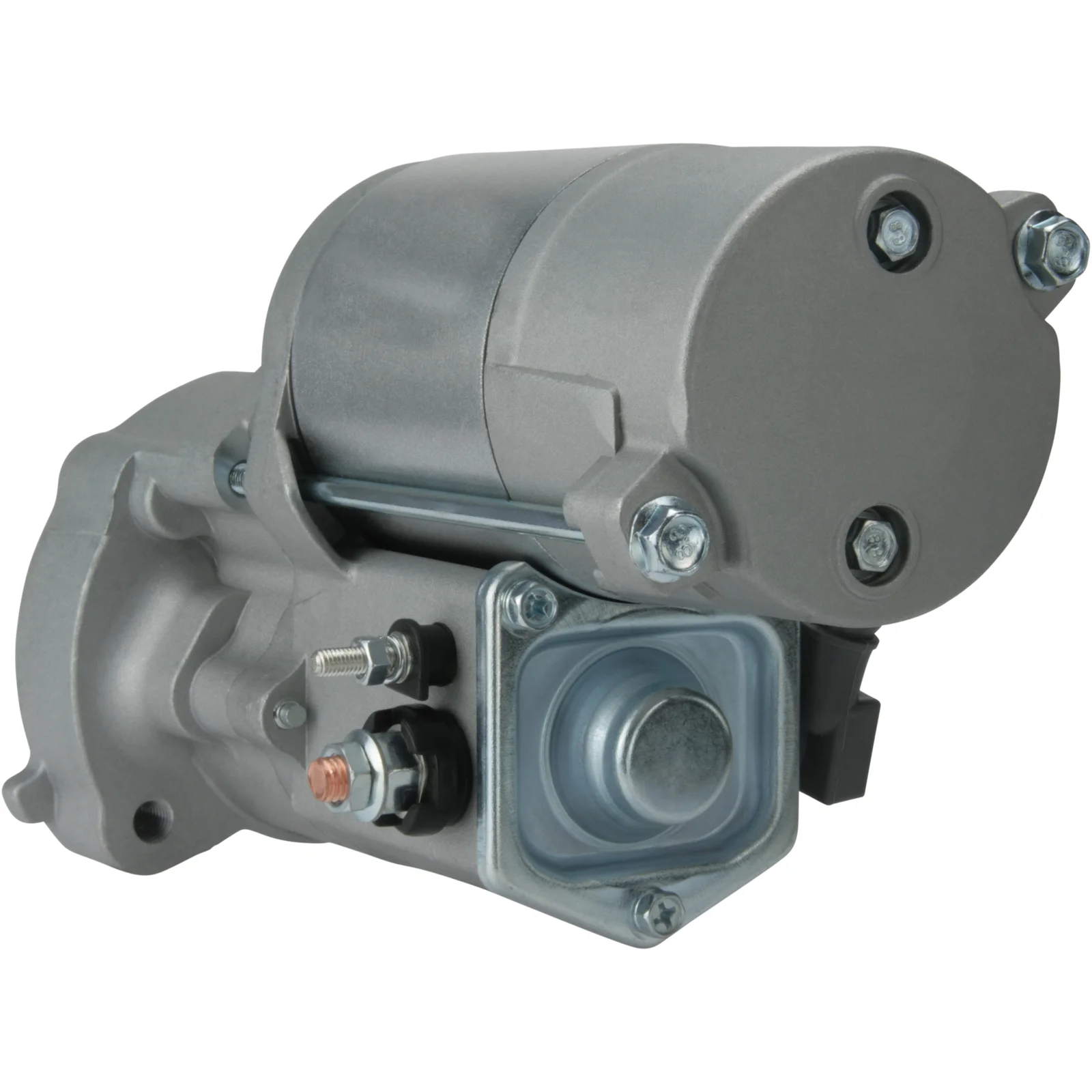

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115725

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.0
Drive distance: -5.00
Mounting hole 3 mm: M10
Mounting hole 2 mm: M10
Mounting hole 1 mm: M10
Distance / back: 152.00
Distance / front: 8.00
Number / teeth: 10
B+: M8
Position / 50: 50
Terminal 50: M5
Gear type: GR
Distance 2: 102.50
Distance 3: 66.50
Distance mm: 66.50
Rotation: CW
Total length mm: 220.00
Product info: BN
Number / mounting holes: 3 (3)

Files

  • OEM
    AH5211001AC, cs1579, F032115725, LR003468, lr007372, LR014060, RGO 115725, 6G9N11000Ma, 6G9N11000MB, 1986S00587, 1986S00987, 428000-4850, 428000-4851, 428000-6910

  • Normalised article numbler
    ah5211001ac, cs1579, drs0137, dsn1208, dsn973, f032115725, lr003468, lr007372, lr014060, rgo115725, s6178, s6178denso, 6g9n11000ma, 6g9n11000mb, 8ea011611691, 1986s00587, 1986s00987, 30160, 30243n, 107481, 220706, 220706a, 254439, 458906, 11040833, 314058102, 450525103, 0986025700, 0986026740, 4280004850, 4280004851, 4280006910
  • Description
    Voltage: 12
    kW: 2.0
    Drive distance: -5.00
    Mounting hole 3 mm: M10
    Mounting hole 2 mm: M10
    Mounting hole 1 mm: M10
    Distance / back: 152.00
    Distance / front: 8.00
    Number / teeth: 10
    B+: M8
    Position / 50: 50
    Terminal 50: M5
    Gear type: GR
    Distance 2: 102.50
    Distance 3: 66.50
    Distance mm: 66.50
    Rotation: CW
    Total length mm: 220.00
    Product info: BN
    Number / mounting holes: 3 (3)

    Files

  • Suitable for these vehicles

    • OEM
      AH5211001AC, cs1579, F032115725, LR003468, lr007372, LR014060, RGO 115725, 6G9N11000Ma, 6G9N11000MB, 1986S00587, 1986S00987, 428000-4850, 428000-4851, 428000-6910

    • Normalised article numbler
      ah5211001ac, cs1579, drs0137, dsn1208, dsn973, f032115725, lr003468, lr007372, lr014060, rgo115725, s6178, s6178denso, 6g9n11000ma, 6g9n11000mb, 8ea011611691, 1986s00587, 1986s00987, 30160, 30243n, 107481, 220706, 220706a, 254439, 458906, 11040833, 314058102, 450525103, 0986025700, 0986026740, 4280004850, 4280004851, 4280006910
