Article no.: F032112668

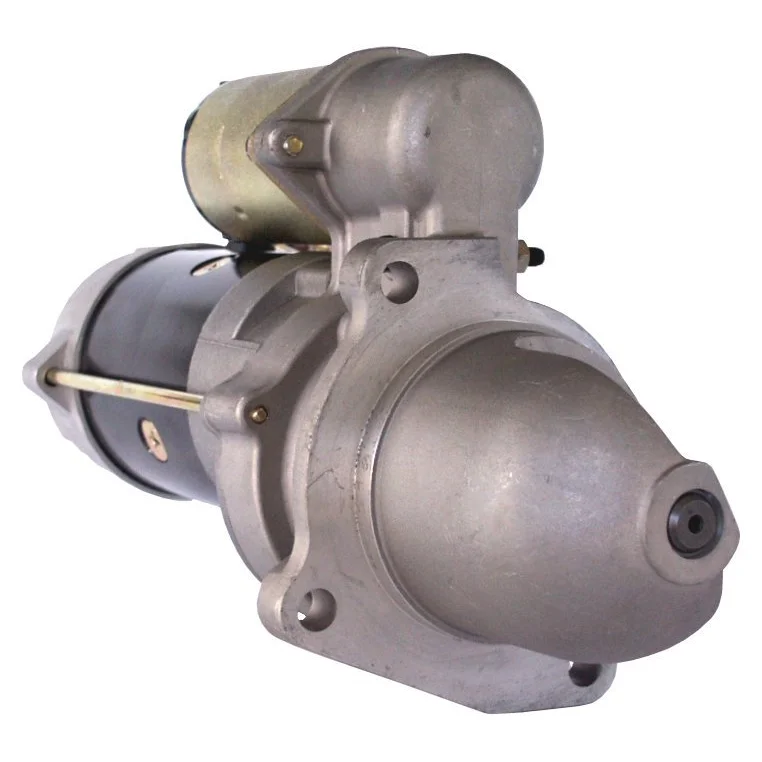

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kilowatt: 2.5
Mounting flange: 89.00
Drive distance: 46.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 250.00
Distance / front: 88.00
Number / teeth: 10
B+: M10
Position / 50: 45
Terminal 50: M5
Gear type: GR
Distance 2: 90.00
Distance 3: 127.00
Distance mm: 90.00
Rotation: CW
Total length mm: 338.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: Replacing: 28MT.
Number / mounting holes: 3 (0)

Files

  • OEM
    0-23000-2070, F032112668, 1113248, 1113284, 10461483

  • Normalised article numbler
    f032112668, f042003109, f042s03109, s1065, snk0005, snk0032, str7076, ts1648, 6572r, 6600, 6600n, 6600r, 508436, 1113248, 1113284, 10461483, 91014414, 0230002070
  • Description
    Voltage: 12
    kilowatt: 2.5
    Mounting flange: 89.00
    Drive distance: 46.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 250.00
    Distance / front: 88.00
    Number / teeth: 10
    B+: M10
    Position / 50: 45
    Terminal 50: M5
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 127.00
    Distance mm: 90.00
    Rotation: CW
    Total length mm: 338.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Replacing: 28MT.
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      0-23000-2070, F032112668, 1113248, 1113284, 10461483

    • Normalised article numbler
      f032112668, f042003109, f042s03109, s1065, snk0005, snk0032, str7076, ts1648, 6572r, 6600, 6600n, 6600r, 508436, 1113248, 1113284, 10461483, 91014414, 0230002070
