HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112674

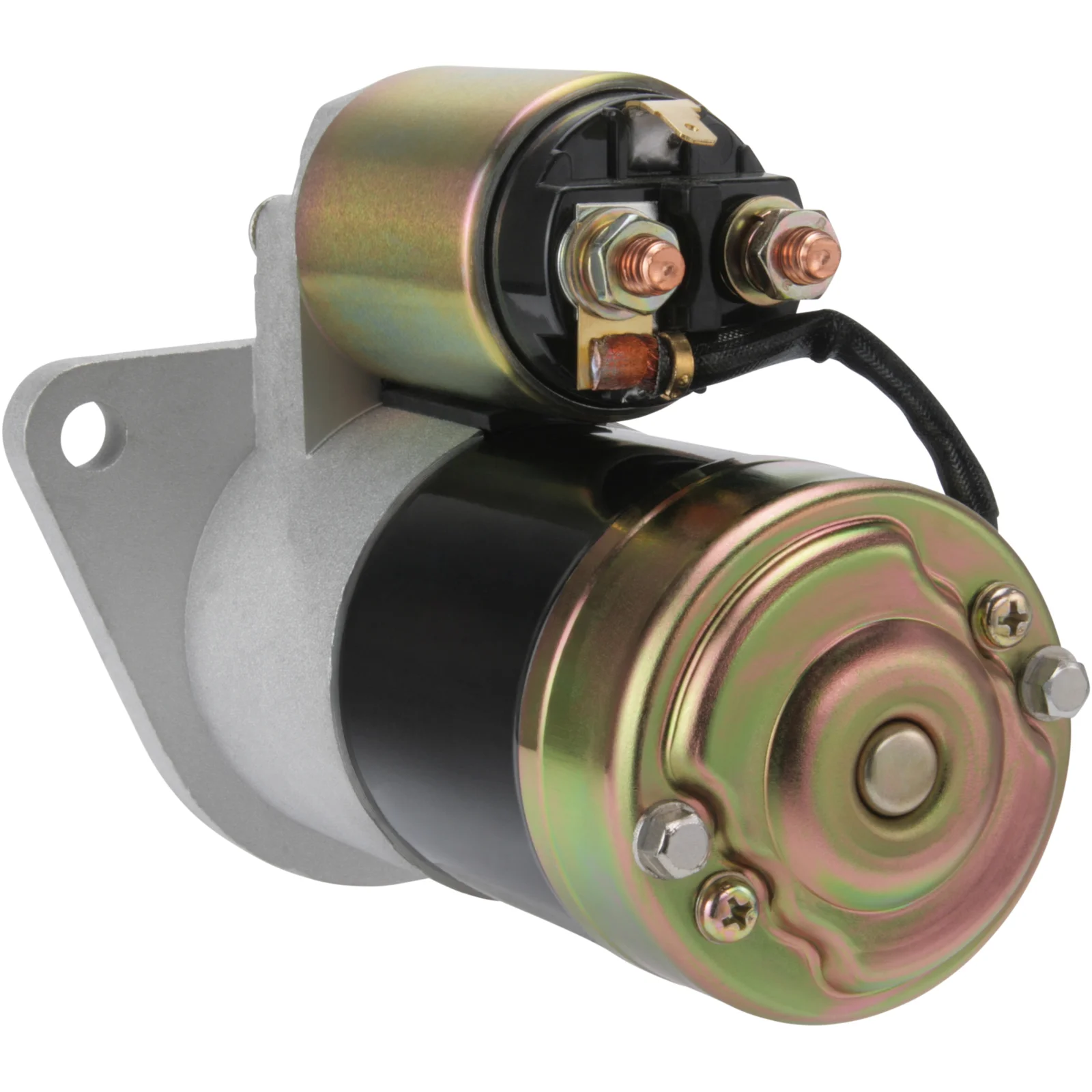

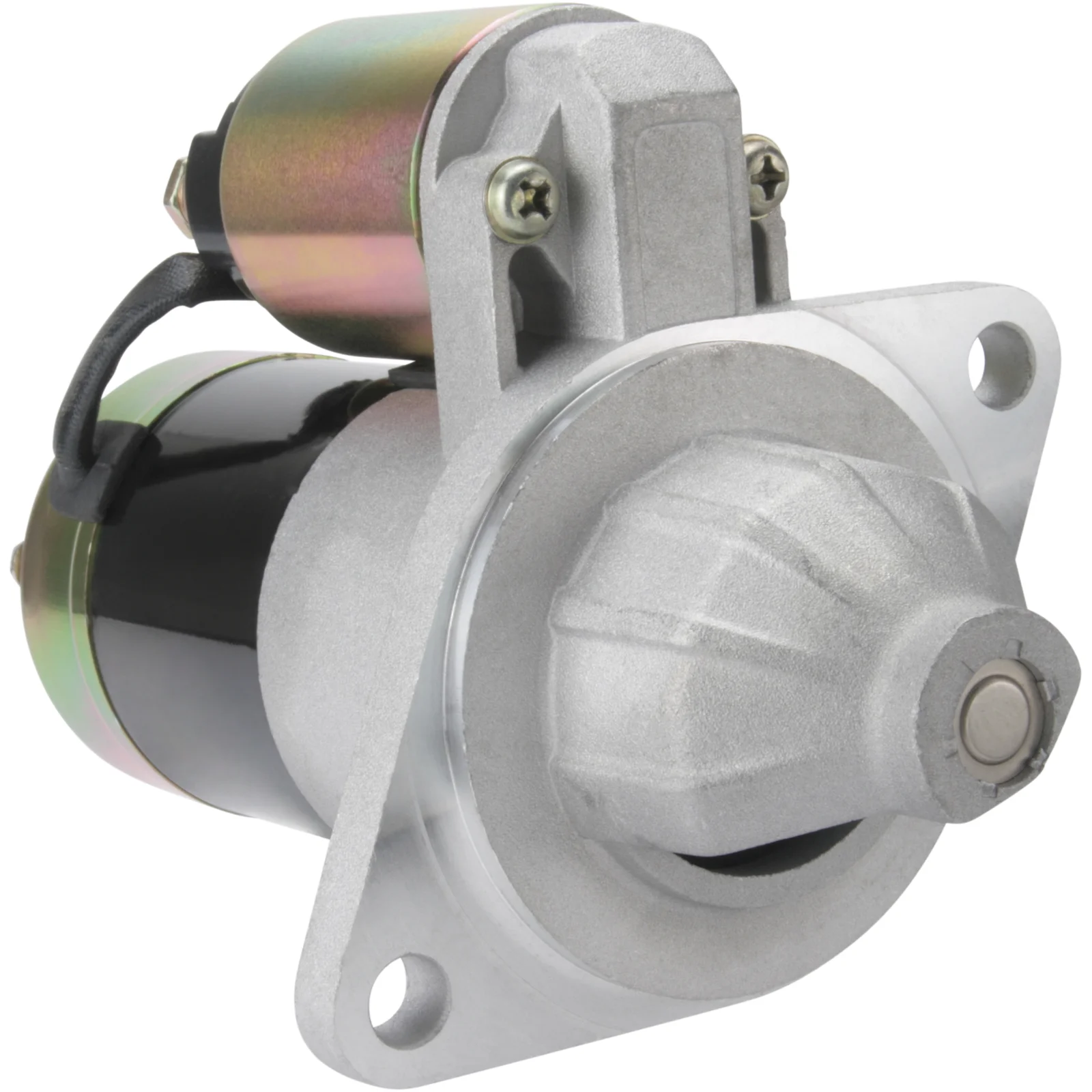

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.3, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 1.3
Mount. flange: 89.00
Drive distance: 23.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Distance / rear: 148.00
Distance / front: 58.00
Number / teeth: 11
B+: M8
Position / 50: 60
Terminal 50: 6.30
Gear type: DD/GR
Distance mm: 127.00
Rotation: CW
Total length mm: 208.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN/OE
Waterproof: No
Oil sealed: No
Number / mount. holes: 2 (0)

Files

  • OEM
    F032112674, S114-203, s114-219, s114-230, s114-230a, 124070-77010

  • Normalised article numbler
    cst20137, f032112674, lrs01168, s114203, s114219, s114230, s114230a, str23017, 18206, 18218n, 22015hi, 251163, 254627, 11040847, 682008112, 12407077010
  • Description
    Voltage: 12
    kW: 1.3
    Mount. flange: 89.00
    Drive distance: 23.00
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Distance / rear: 148.00
    Distance / front: 58.00
    Number / teeth: 11
    B+: M8
    Position / 50: 60
    Terminal 50: 6.30
    Gear type: DD/GR
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 208.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN/OE
    Waterproof: No
    Oil sealed: No
    Number / mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032112674, S114-203, s114-219, s114-230, s114-230a, 124070-77010

    • Normalised article numbler
      cst20137, f032112674, lrs01168, s114203, s114219, s114230, s114230a, str23017, 18206, 18218n, 22015hi, 251163, 254627, 11040847, 682008112, 12407077010
