Article no.: F032113662

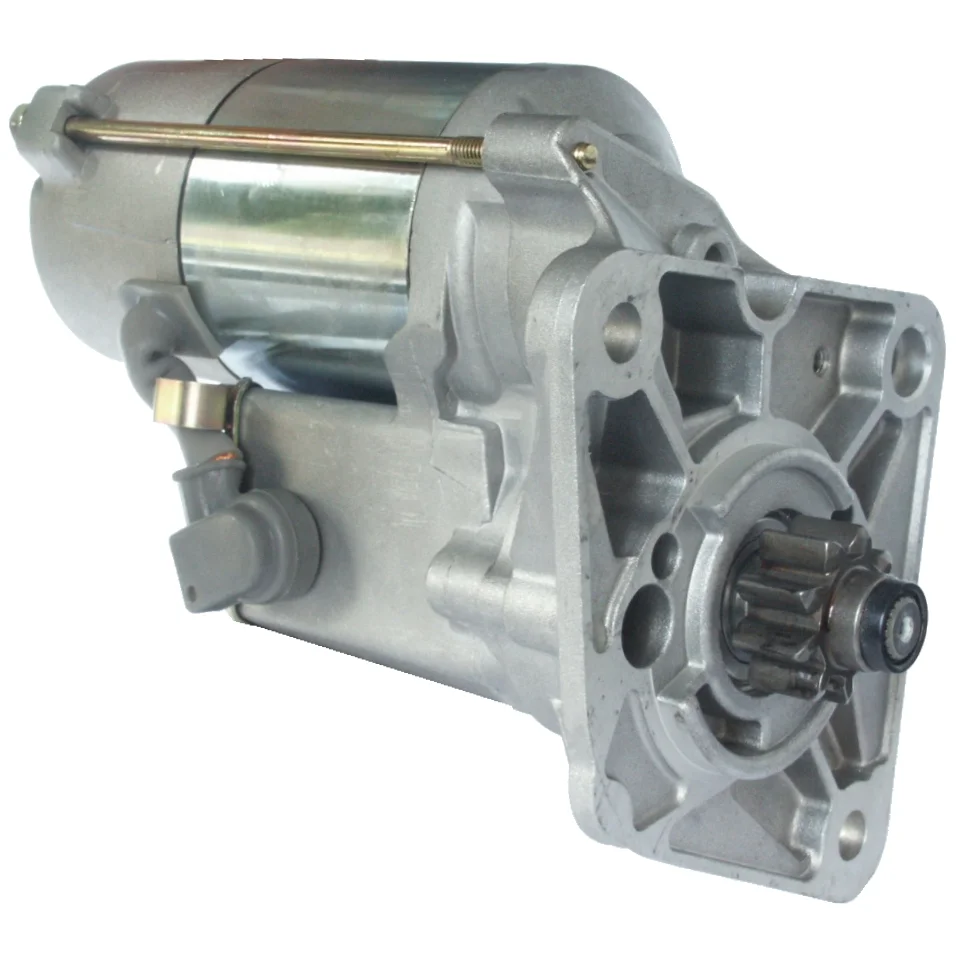

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mount. flange: 66.00
Drive dist.: 21.00
Mount. hole 3 mm: 11.20
Mount. hole 2 mm: 12.00
Mount. hole 1 mm: 11.20
Dist./back: 126.50
Dist./front: 33.00
No./teeth: 9
B+: M8
Position/50: 50
Terminal 50: 6.30
Gear type: GR
Dist. 2: 145.00
Dist. 3: 102.50
Dist. mm: 102.50
Rotation: CW
Total length mm: 220.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Files

  • OEM
    cs1242, F032113662, nad101240, RGO 113662, 1986S00957, 228000-7220

  • Normalised article numbler
    cs1242, cst40135, dendsn600, drs3718, dsn600, f032113662, f042000039, f042s00039, nad101240, rgo113662, s6007, str5027, str70069, 8ea011610141, 1986s00957, 3657, 31212n, 31212r, 101242, 104795, 220599, 220599a, 252489, 458378, 8080097, 8213347, 11022760, 20510171, 42022760, 314023092, 0986022760, 2280007220, 944280800970
  • Description
    Voltage: 12
    kW: 2.0
    Mount. flange: 66.00
    Drive dist.: 21.00
    Mount. hole 3 mm: 11.20
    Mount. hole 2 mm: 12.00
    Mount. hole 1 mm: 11.20
    Dist./back: 126.50
    Dist./front: 33.00
    No./teeth: 9
    B+: M8
    Position/50: 50
    Terminal 50: 6.30
    Gear type: GR
    Dist. 2: 145.00
    Dist. 3: 102.50
    Dist. mm: 102.50
    Rotation: CW
    Total length mm: 220.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1242, F032113662, nad101240, RGO 113662, 1986S00957, 228000-7220

    • Normalised article numbler
      cs1242, cst40135, dendsn600, drs3718, dsn600, f032113662, f042000039, f042s00039, nad101240, rgo113662, s6007, str5027, str70069, 8ea011610141, 1986s00957, 3657, 31212n, 31212r, 101242, 104795, 220599, 220599a, 252489, 458378, 8080097, 8213347, 11022760, 20510171, 42022760, 314023092, 0986022760, 2280007220, 944280800970
