Article no.: F032113281

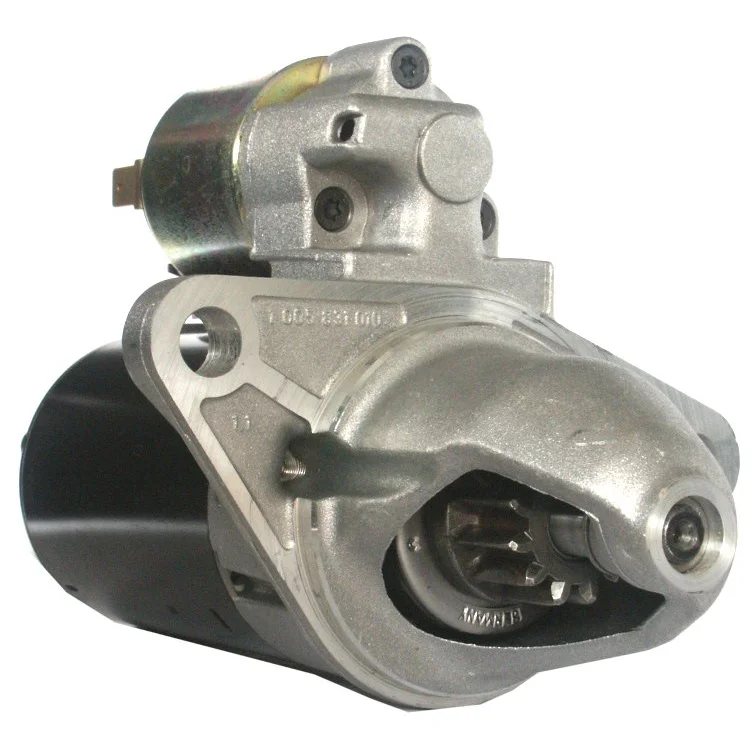

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 12, Rotation: CCW

Description

Voltage: 12
kW: 1.1
Mount. flange: 75.00
Drive dist.: 43.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 157.50
Dist./front: 73.00
No./teeth: 12
B+: M8
Position/50: 15
Terminal 50: 9.50
Gear type: GR
Dist. mm: 120.00
Rotation: CCW
Total length mm: 231.50
Clutch type: Dry
Drive type: Steel
Prod. info: BN
No./mount. holes: 2 (0)

Files

  • OEM
    aze2211, cs1253, F032113281, nad101340, RGO 113281, 11.139.448, 0001107080

  • Normalised article numbler
    aze2211, bso7285, cs1253, cst10379, drs3839, f032113281, is9440, lrt00208, ms16, nad101340, rgo113281, s0380, str50017, 8ea011611381, 31208n, 101253, 105266, 253182, 0001107080, 8019920, 8212685, 11019920, 11139448, 450506122, 0986019920, 944280199200
  • Description
    Voltage: 12
    kW: 1.1
    Mount. flange: 75.00
    Drive dist.: 43.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 157.50
    Dist./front: 73.00
    No./teeth: 12
    B+: M8
    Position/50: 15
    Terminal 50: 9.50
    Gear type: GR
    Dist. mm: 120.00
    Rotation: CCW
    Total length mm: 231.50
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      aze2211, cs1253, F032113281, nad101340, RGO 113281, 11.139.448, 0001107080

    • Normalised article numbler
      aze2211, bso7285, cs1253, cst10379, drs3839, f032113281, is9440, lrt00208, ms16, nad101340, rgo113281, s0380, str50017, 8ea011611381, 31208n, 101253, 105266, 253182, 0001107080, 8019920, 8212685, 11019920, 11139448, 450506122, 0986019920, 944280199200
