HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114295

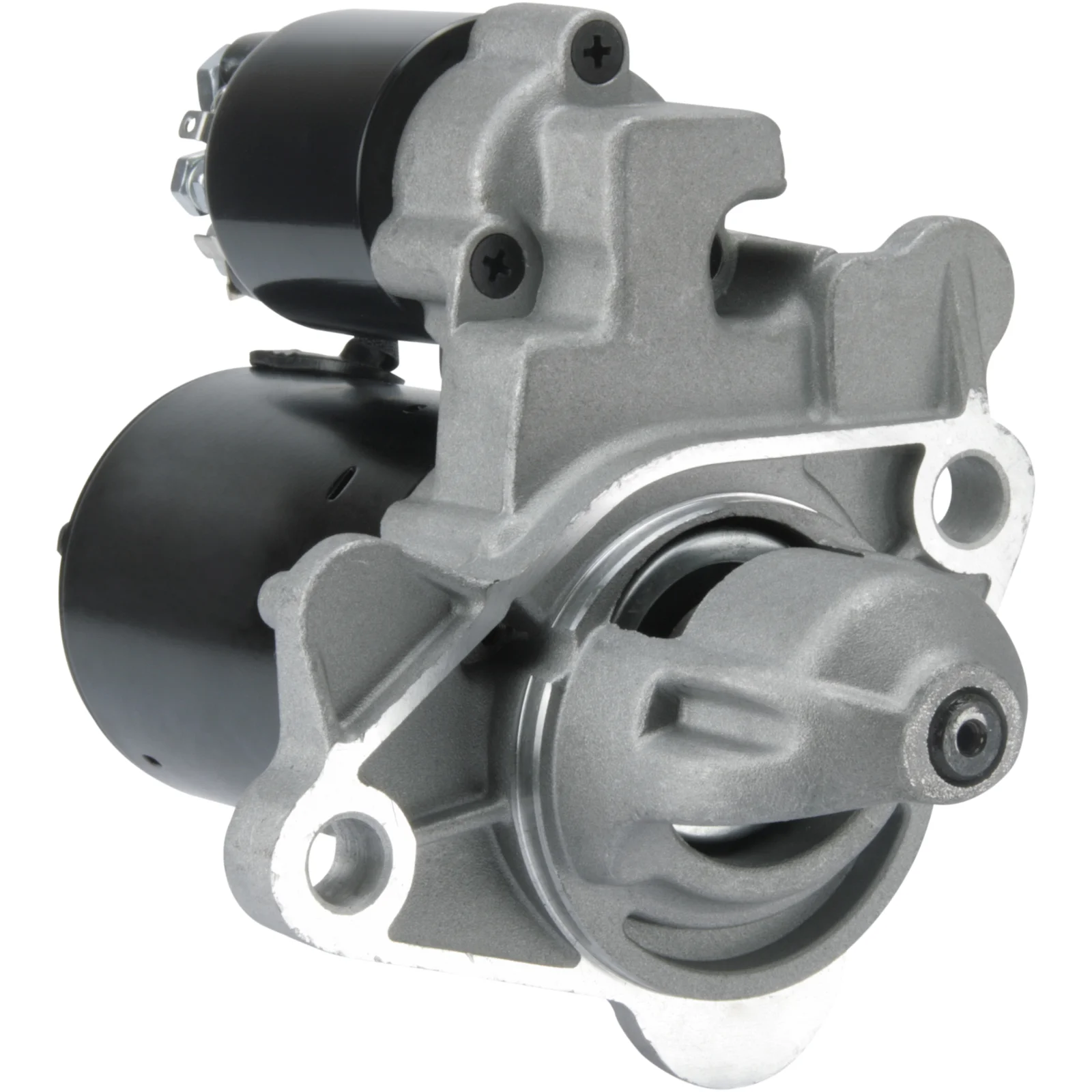

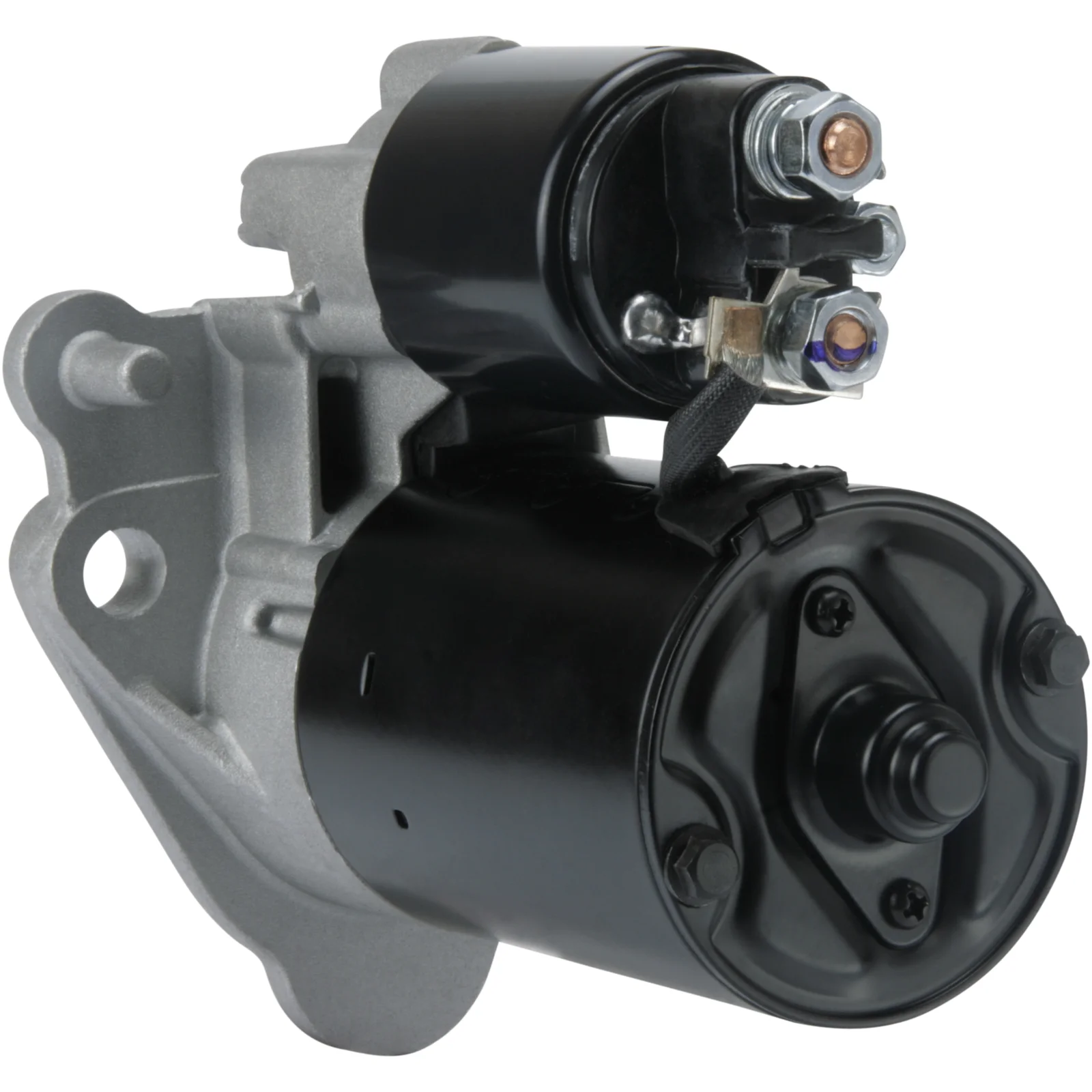

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.9, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 0.9
Mounting flange: 74.00
Drive distance: 25.50
Mounting hole 2 mm: 12.20
Mounting hole 1 mm: 13.00
Distance / back: 151.50
Distance / front: 60.00
Number / teeth: 9
B+: M8
Position / 50: 15
Terminal 50: M6
Gear type: GR
Distance in millimeters: 119.00
Rotation: CW
Total length in millimeters: 211.50
Servicing: Mini
Number / mounting holes: 2 (0)

Files

  • OEM
    cs1445, F032114295, NAD101481, RGO 114295, 1986S00650, 0001106018, 0001106026, 1489995, 1517328, 4542789, 7570488, 12411489995, 12411517328, 12414542789, 12417570488

  • Normalised article numbler
    cs1445, cst10365, drs8830, f032114295, ms14, nad101481, rgo114295, s0226, s0226bosch, sr0466x, 8ea012527791, 1986s00650, 3904, 17854n, 17854r, 101445, 105258, 253280, 438416, 458795, 0001106018, 0001106026, 1489995, 1517328, 4542789, 7570488, 11018830, 42018830, 315022092, 0986018830, 0986018833, 0986018837, 12411489995, 12411517328, 12414542789, 12417570488
  • Description
    Voltage: 12
    kW: 0.9
    Mounting flange: 74.00
    Drive distance: 25.50
    Mounting hole 2 mm: 12.20
    Mounting hole 1 mm: 13.00
    Distance / back: 151.50
    Distance / front: 60.00
    Number / teeth: 9
    B+: M8
    Position / 50: 15
    Terminal 50: M6
    Gear type: GR
    Distance in millimeters: 119.00
    Rotation: CW
    Total length in millimeters: 211.50
    Servicing: Mini
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1445, F032114295, NAD101481, RGO 114295, 1986S00650, 0001106018, 0001106026, 1489995, 1517328, 4542789, 7570488, 12411489995, 12411517328, 12414542789, 12417570488

    • Normalised article numbler
      cs1445, cst10365, drs8830, f032114295, ms14, nad101481, rgo114295, s0226, s0226bosch, sr0466x, 8ea012527791, 1986s00650, 3904, 17854n, 17854r, 101445, 105258, 253280, 438416, 458795, 0001106018, 0001106026, 1489995, 1517328, 4542789, 7570488, 11018830, 42018830, 315022092, 0986018830, 0986018833, 0986018837, 12411489995, 12411517328, 12414542789, 12417570488
