Article no.: F032113182

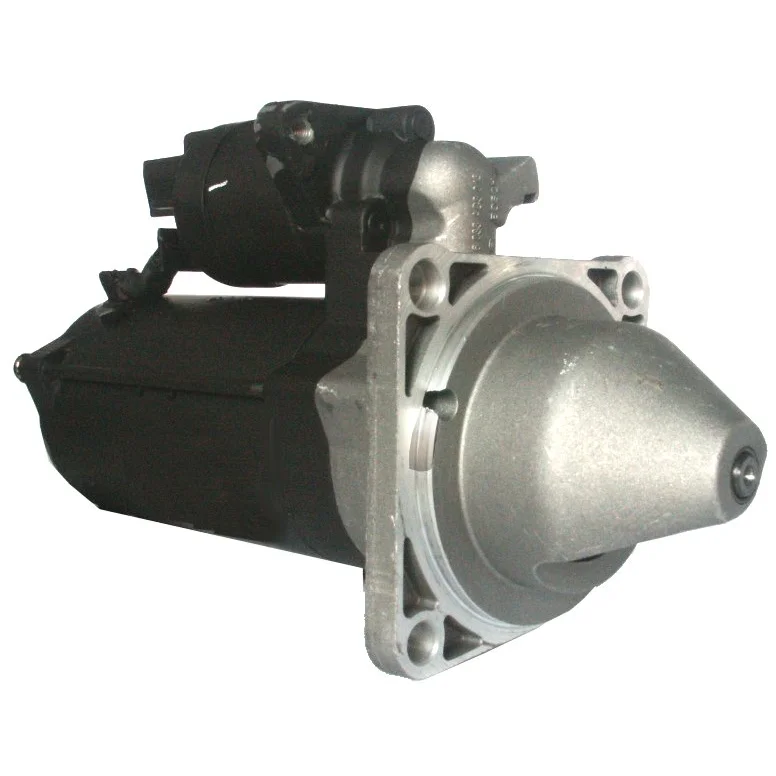

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 9, Rotation: CW

Description

Iveco Starter motor 12V-3.0kW 12V - 3.0kW, 9k A - 110mm, B - 27mm Alternative 4.2kW, original Mahle = 91-255-1262 For Yourex product order 91-255-1898

Voltage: 12
kW: 3.0
Mounting flange: 110.00
Drive distance: 27.00
Mounting hole 3 mm: 12.00
Mounting hole 2 mm: 12.00
Mounting hole 1 mm: 12.00
Distance/back: 229.00
Distance/front: 74.50
Number/of teeth: 9
B+: M10
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Distance 2: 103.00
Distance 3: 103.50
Distance mm: 146.00
Rotation: CW
Total length mm: 320.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/of mounting holes: 3 (0)

Files

  • OEM
    azf4155, F002G20814, F032113182, MSN2039, 0001 230 007, 0001 230 010, 0001 230 023, 0001 262 008, 11.131.604, 0986 018 980, 1262, 0001230007, 0001230010, 0001230023, 0001262007, 0001262008, 47783079, 87470949, 500325145, 0000500338952, 500338952, 0000504059251, 504059251, 0005801441814, 5801441814

  • Normalised article numbler
    azf4155, cst10153, cst10518, cst21220, drs0023, drs8980, f002g20814, f032113182, ms114, ms207, ms79, msn2039, s0081, s9243, str22029, 8ea015642361, 1262, 8039, 18374n, 23189bo, 220550, 220550a, 220753, 220753a, 253059, 254521, 0001230007, 0001230010, 0001230023, 0001262007, 0001262008, 11018980, 11131604, 47783079, 87470949, 500325145, 0000500338952, 500338952, 0000504059251, 504059251, 0986018980, 0986018987, 0005801441814, 5801441814, 063522300070, 063522300230
  • Description
    Iveco Starter motor 12V-3.0kW 12V - 3.0kW, 9k A - 110mm, B - 27mm Alternative 4.2kW, original Mahle = 91-255-1262 For Yourex product order 91-255-1898

    Voltage: 12
    kW: 3.0
    Mounting flange: 110.00
    Drive distance: 27.00
    Mounting hole 3 mm: 12.00
    Mounting hole 2 mm: 12.00
    Mounting hole 1 mm: 12.00
    Distance/back: 229.00
    Distance/front: 74.50
    Number/of teeth: 9
    B+: M10
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distance 2: 103.00
    Distance 3: 103.50
    Distance mm: 146.00
    Rotation: CW
    Total length mm: 320.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/of mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      azf4155, F002G20814, F032113182, MSN2039, 0001 230 007, 0001 230 010, 0001 230 023, 0001 262 008, 11.131.604, 0986 018 980, 1262, 0001230007, 0001230010, 0001230023, 0001262007, 0001262008, 47783079, 87470949, 500325145, 0000500338952, 500338952, 0000504059251, 504059251, 0005801441814, 5801441814

    • Normalised article numbler
      azf4155, cst10153, cst10518, cst21220, drs0023, drs8980, f002g20814, f032113182, ms114, ms207, ms79, msn2039, s0081, s9243, str22029, 8ea015642361, 1262, 8039, 18374n, 23189bo, 220550, 220550a, 220753, 220753a, 253059, 254521, 0001230007, 0001230010, 0001230023, 0001262007, 0001262008, 11018980, 11131604, 47783079, 87470949, 500325145, 0000500338952, 500338952, 0000504059251, 504059251, 0986018980, 0986018987, 0005801441814, 5801441814, 063522300070, 063522300230
