Article no.: F032113206

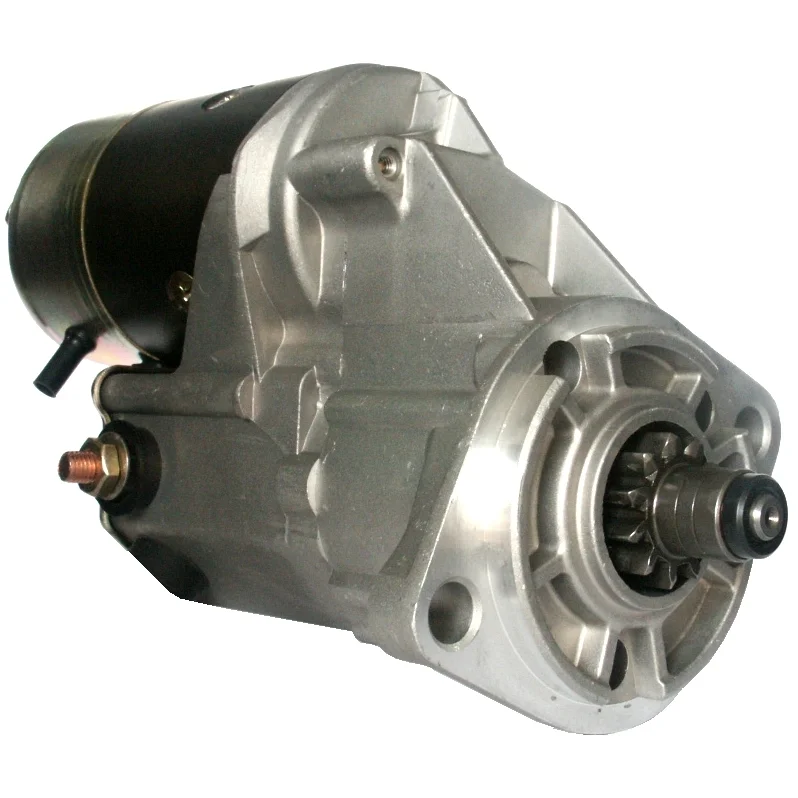

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 2.5
Mounting flange: 95.00
Drive distance: 21.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 189.00
Distance / front: 47.50
Number / teeth: 11
B+: M10
Position / 50: 25
Terminal 50: M5
Gear type: GR
Distance in millimeters: 120.00
Rotation: CW
Total length in millimeters: 297.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032113206, 600-813-1420, 128000-9970, 128000-9971, 128000-9972

  • Normalised article numbler
    cst40516, f032113206, f042000082, f042s00082, lrs01449, s6359s, s8529, snd0142, str30019, str6088, 19747n, 22232nd, 252378, 254477, 91295428, 1280009970, 1280009971, 1280009972, 6008131420
  • Description
    Voltage: 12
    kW: 2.5
    Mounting flange: 95.00
    Drive distance: 21.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 189.00
    Distance / front: 47.50
    Number / teeth: 11
    B+: M10
    Position / 50: 25
    Terminal 50: M5
    Gear type: GR
    Distance in millimeters: 120.00
    Rotation: CW
    Total length in millimeters: 297.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113206, 600-813-1420, 128000-9970, 128000-9971, 128000-9972

    • Normalised article numbler
      cst40516, f032113206, f042000082, f042s00082, lrs01449, s6359s, s8529, snd0142, str30019, str6088, 19747n, 22232nd, 252378, 254477, 91295428, 1280009970, 1280009971, 1280009972, 6008131420
