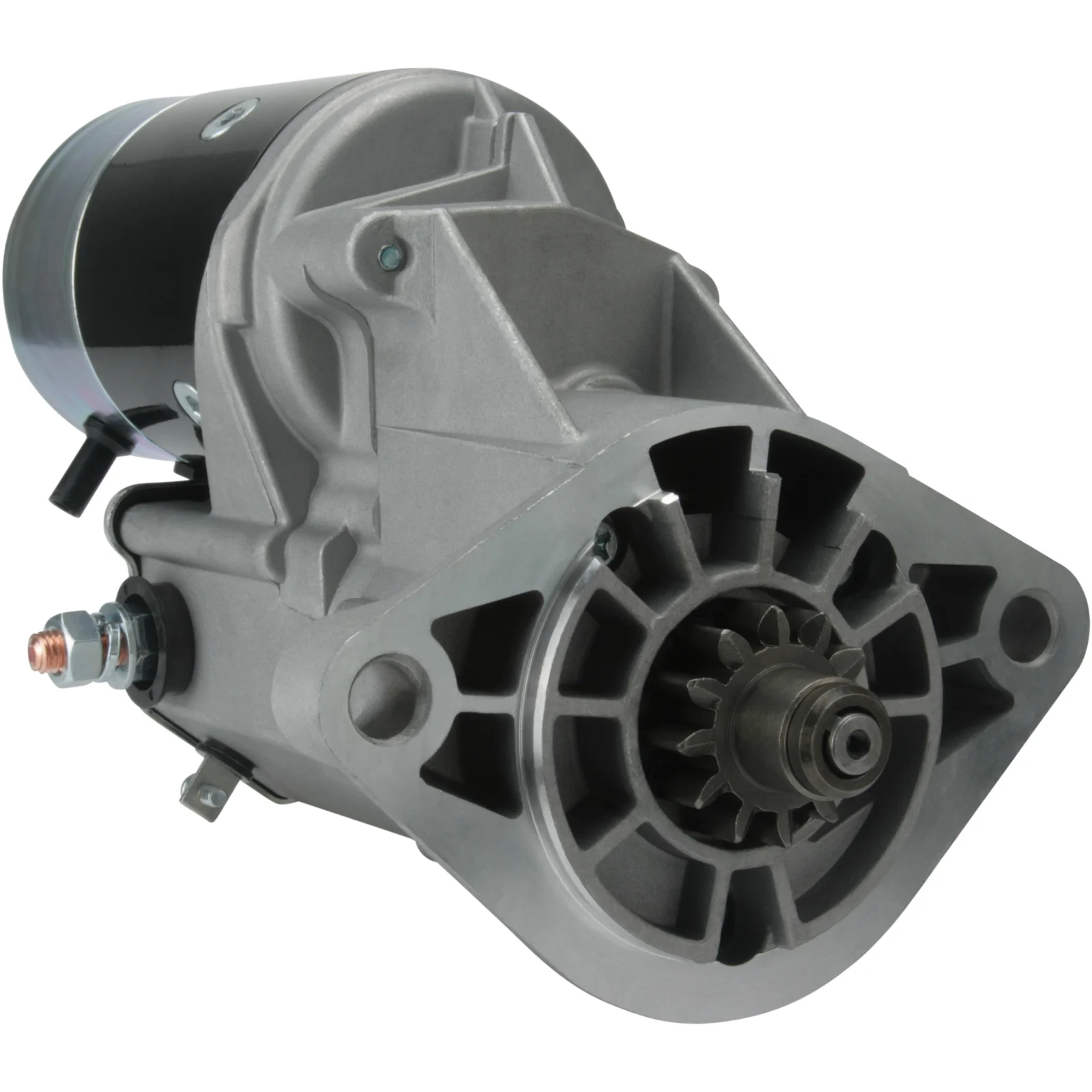

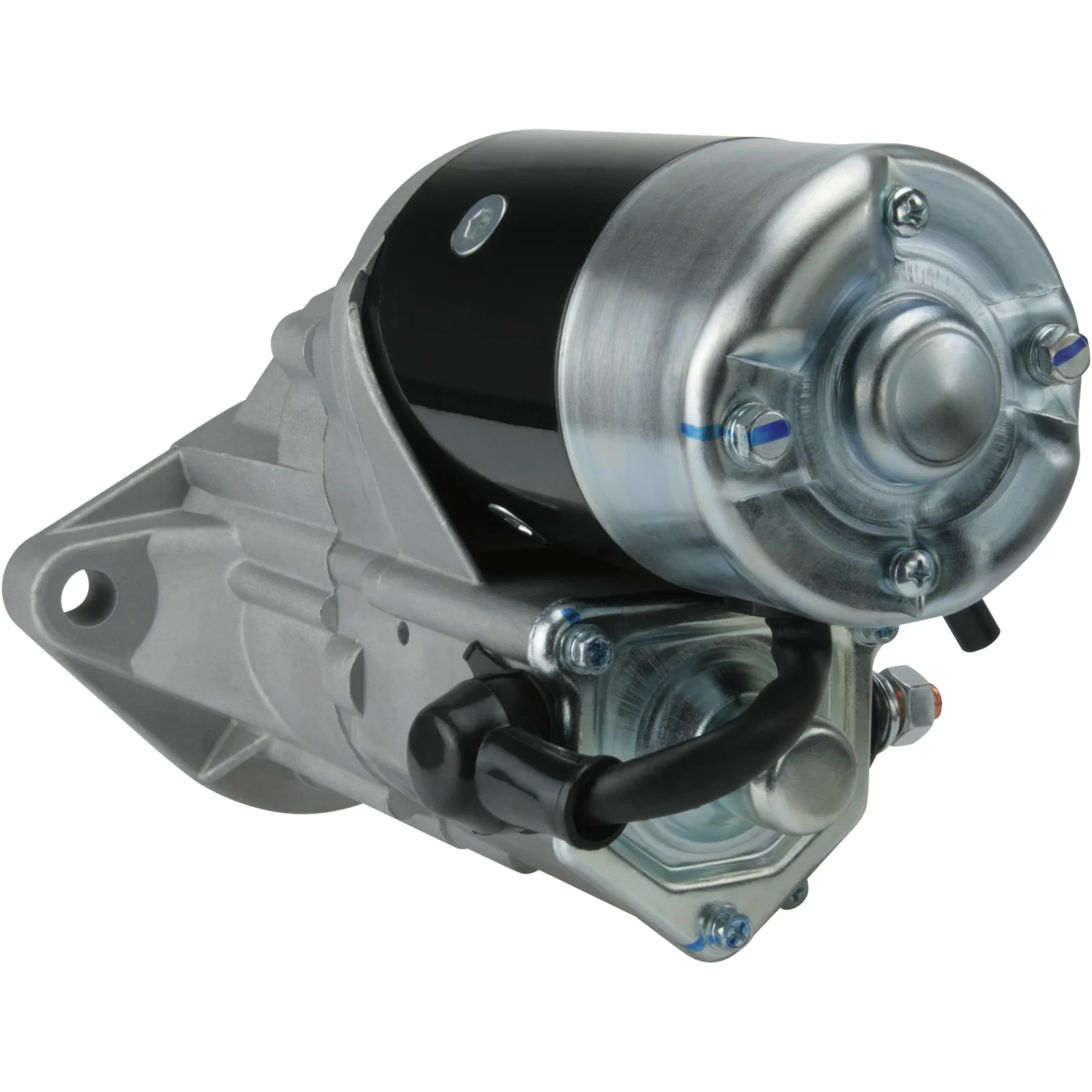

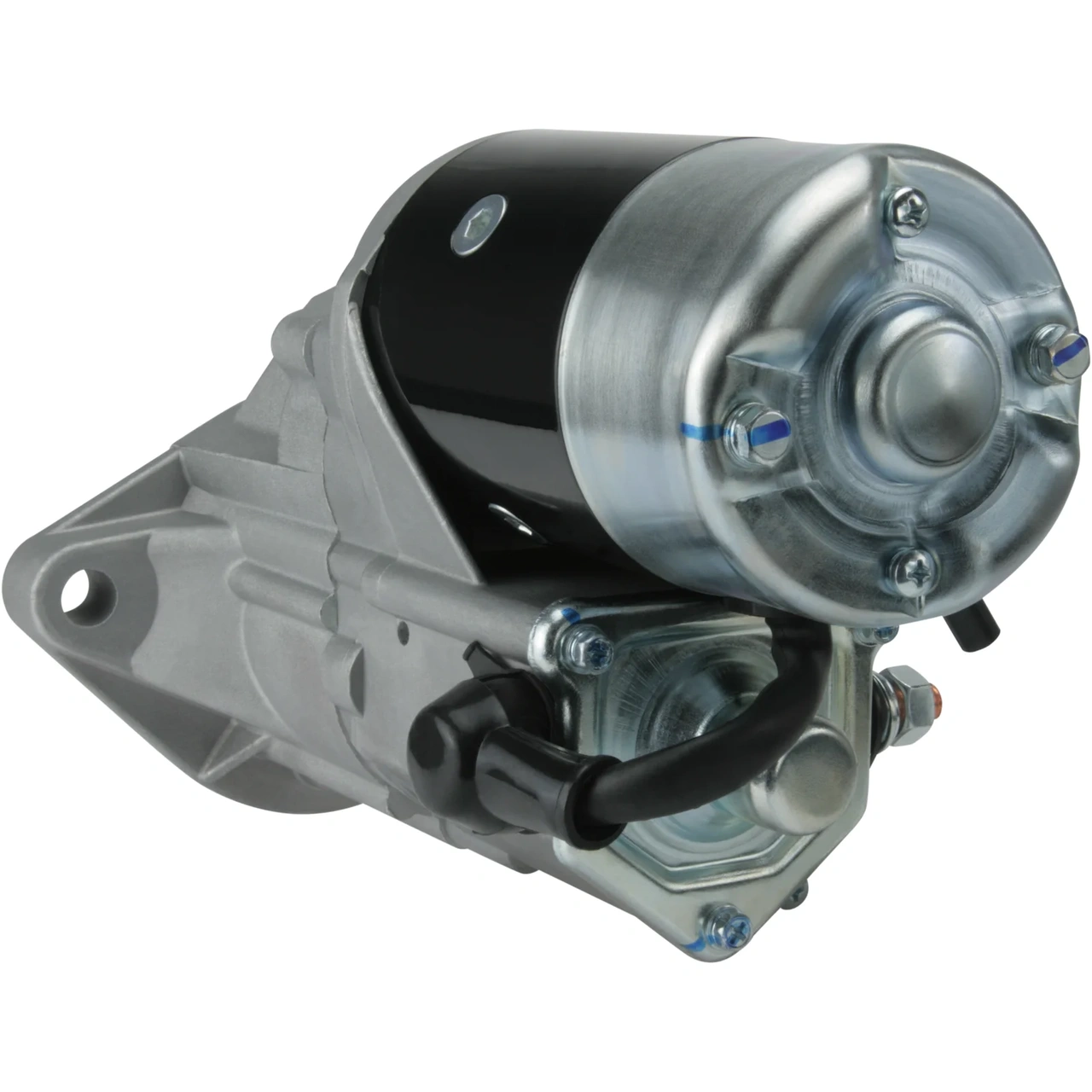

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113207

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.8, No./teeth: 12, Rotation: CW

Description

Voltage: 12
kW: 2.8
Mount. flange: 91.00
Drive distance: 15.50
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Distance / back: 196.00
Distance / front: 38.00
Number / teeth: 12
B+: M10
Position / 50: 25
Terminal 50: M5
Gear type: GR
Distance in millimeters: 142.50
Rotation: CW
Total length in millimeters: 295.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032113207, 6TA8180000, 119773-77010, 228000-2030, 228000-2031, 228000-2032, 228000-6290, 228000-6291

  • Normalised article numbler
    cst40221, drs0513, f032113207, lrs01444, str70101, 6ta8180000, 18424, 18424n, 252369, 254314, 2280002030, 2280002031, 2280002032, 2280006290, 2280006291, 11977377010
  • Description
    Voltage: 12
    kW: 2.8
    Mount. flange: 91.00
    Drive distance: 15.50
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Distance / back: 196.00
    Distance / front: 38.00
    Number / teeth: 12
    B+: M10
    Position / 50: 25
    Terminal 50: M5
    Gear type: GR
    Distance in millimeters: 142.50
    Rotation: CW
    Total length in millimeters: 295.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113207, 6TA8180000, 119773-77010, 228000-2030, 228000-2031, 228000-2032, 228000-6290, 228000-6291

    • Normalised article numbler
      cst40221, drs0513, f032113207, lrs01444, str70101, 6ta8180000, 18424, 18424n, 252369, 254314, 2280002030, 2280002031, 2280002032, 2280006290, 2280006291, 11977377010
