Article no.: F032113211

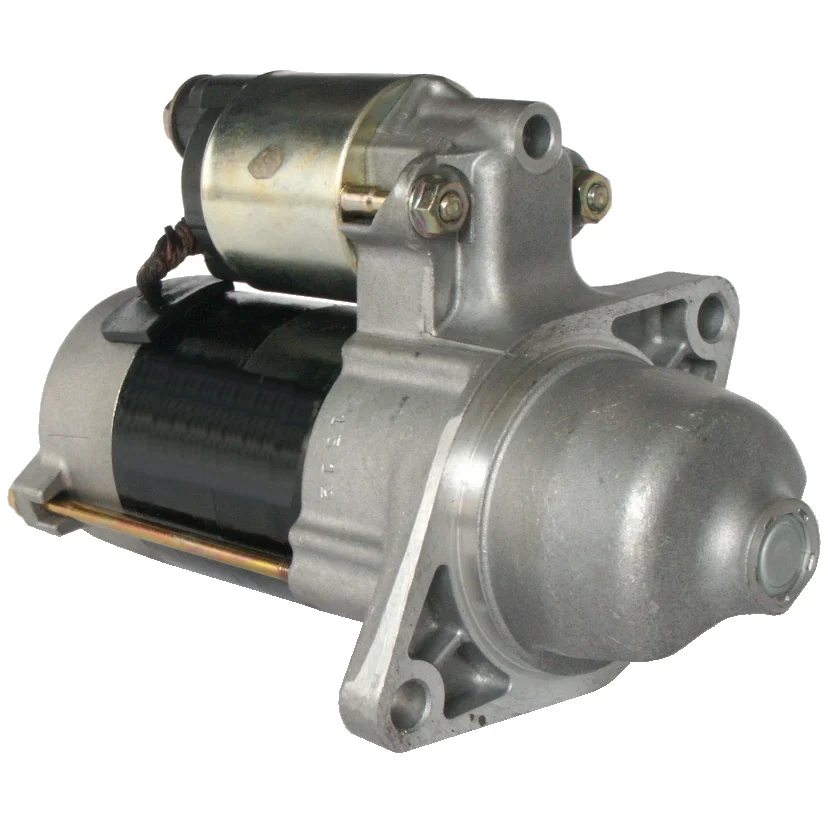

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.0
Mounting flange: 66.00
Drive distance: 19.00
Mounting hole 2 mm: 9.00
Mounting hole 1 mm: 9.00
Distance / back: 150.50
Distance / front: 52.50
Number / teeth: 9
B+: M8
Position / 50: 43
Terminal 50: 6.30
Gear type: DD
Distance mm: 110.00
Rotation: CW
Total length mm: 213.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032113211, 1G023-63010, 1G023-63011, 6A32059213, 67980-31151, 67980-31152, 228000-5910, 228000-5911, 228000-7480, 228000-7481

  • Normalised article numbler
    cst40166, dsn2075, f032113211, f042000285, f042s00285, lrs02300, s6199, s6199denso, str30014, 1g02363010, 1g02363011, 6a32059213, 18417, 253471, 255089, 458891, 683034092, 2280005910, 2280005911, 2280007480, 2280007481, 6798031151, 6798031152
  • Description
    Voltage: 12
    kW: 1.0
    Mounting flange: 66.00
    Drive distance: 19.00
    Mounting hole 2 mm: 9.00
    Mounting hole 1 mm: 9.00
    Distance / back: 150.50
    Distance / front: 52.50
    Number / teeth: 9
    B+: M8
    Position / 50: 43
    Terminal 50: 6.30
    Gear type: DD
    Distance mm: 110.00
    Rotation: CW
    Total length mm: 213.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113211, 1G023-63010, 1G023-63011, 6A32059213, 67980-31151, 67980-31152, 228000-5910, 228000-5911, 228000-7480, 228000-7481

    • Normalised article numbler
      cst40166, dsn2075, f032113211, f042000285, f042s00285, lrs02300, s6199, s6199denso, str30014, 1g02363010, 1g02363011, 6a32059213, 18417, 253471, 255089, 458891, 683034092, 2280005910, 2280005911, 2280007480, 2280007481, 6798031151, 6798031152
