Article no.: F032113238

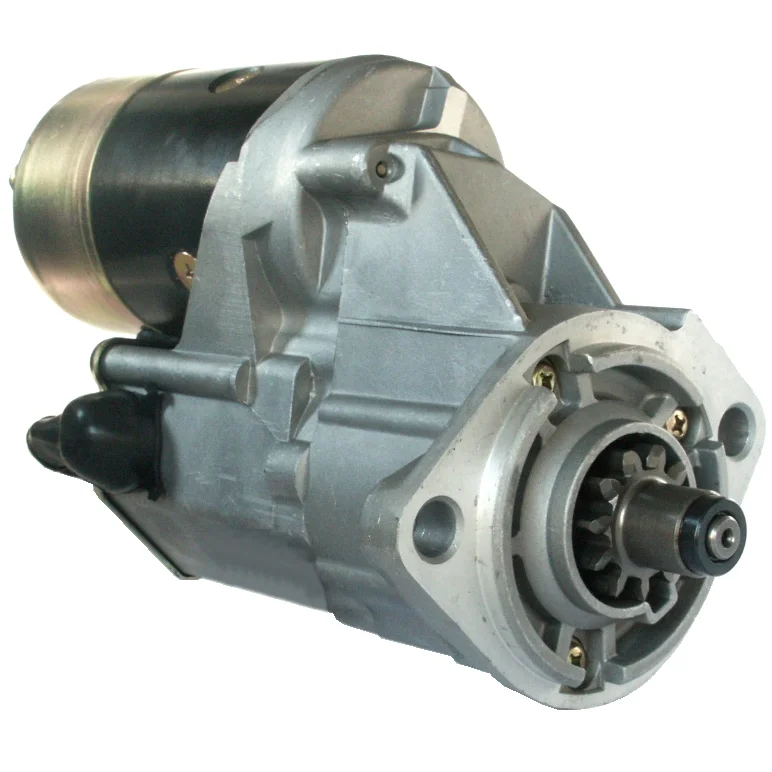

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 2.5
Mounting flange: 90.00
Drive distance: 16.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 192.00
Distance / front: 42.00
Number / teeth: 11
B+: M10
Position / 50: 35
Terminal 50: M5
Gear type: GR
Distance in millimeters: 113.00
Rotation: CW
Total length in millimeters: 293.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032113238, 28100-23660-71, 228000-3710, 228000-3711

  • Normalised article numbler
    dsn2112, f032113238, f042000072, f042s00072, s8512, str6053, str6073, 17311n, 252373, 91295320, 2280003710, 2280003711, 281002366071
  • Description
    Voltage: 12
    kW: 2.5
    Mounting flange: 90.00
    Drive distance: 16.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 192.00
    Distance / front: 42.00
    Number / teeth: 11
    B+: M10
    Position / 50: 35
    Terminal 50: M5
    Gear type: GR
    Distance in millimeters: 113.00
    Rotation: CW
    Total length in millimeters: 293.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113238, 28100-23660-71, 228000-3710, 228000-3711

    • Normalised article numbler
      dsn2112, f032113238, f042000072, f042s00072, s8512, str6053, str6073, 17311n, 252373, 91295320, 2280003710, 2280003711, 281002366071
