Article no.: F032113239

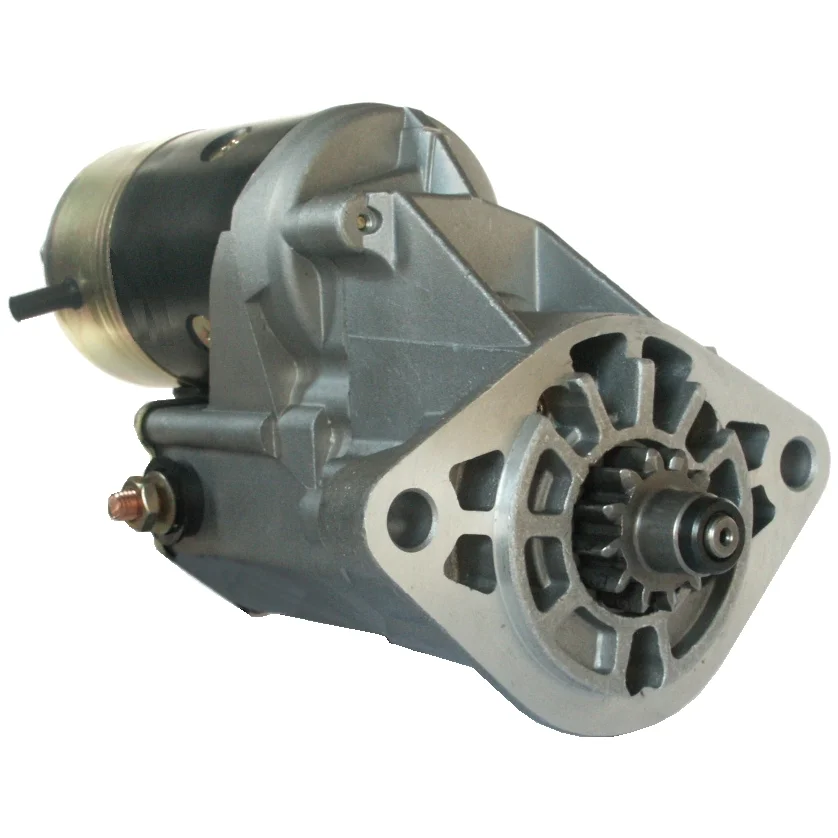

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 12, Rotation: CW

Description

Voltage: 12
kW: 2.5
Mounting flange: 91.00
Drive distance: 15.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 258.00
Distance / front: 36.00
Number / teeth: 12
B+: M10
Position / 50: 25
Terminal 50: M5
Gear type: GR
Distance in millimeters: 142.50
Rotation: CW
Total length in millimeters: 299.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032113239, 1986S00975, 1986S01396, 28100-17010, 28100-17040, 28100-17060, 28100-17090, 28100-17091, 128000-8640, 128000-8641, 228000-1610, 228000-1611, 228000-5990, 228000-5992, 428000-0520, 428000-0521

  • Normalised article numbler
    cst40208, cst40226, f032113239, f042000079, f042s00079, ga24610, j5212119, s6390s, s6404s, s8568, snd0120, str6081, 1986s00975, 1986s01396, 18197, 18197n, 22239nd, 30254r, 251408, 254253, 8213839, 11040252, 91295316, 335029122, 335039122, 335057122, 1280008640, 1280008641, 2280001610, 2280001611, 2280005990, 2280005992, 2810017010, 2810017040, 2810017060, 2810017090, 2810017091, 4280000520, 4280000521
  • Description
    Voltage: 12
    kW: 2.5
    Mounting flange: 91.00
    Drive distance: 15.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 258.00
    Distance / front: 36.00
    Number / teeth: 12
    B+: M10
    Position / 50: 25
    Terminal 50: M5
    Gear type: GR
    Distance in millimeters: 142.50
    Rotation: CW
    Total length in millimeters: 299.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113239, 1986S00975, 1986S01396, 28100-17010, 28100-17040, 28100-17060, 28100-17090, 28100-17091, 128000-8640, 128000-8641, 228000-1610, 228000-1611, 228000-5990, 228000-5992, 428000-0520, 428000-0521

    • Normalised article numbler
      cst40208, cst40226, f032113239, f042000079, f042s00079, ga24610, j5212119, s6390s, s6404s, s8568, snd0120, str6081, 1986s00975, 1986s01396, 18197, 18197n, 22239nd, 30254r, 251408, 254253, 8213839, 11040252, 91295316, 335029122, 335039122, 335057122, 1280008640, 1280008641, 2280001610, 2280001611, 2280005990, 2280005992, 2810017010, 2810017040, 2810017060, 2810017090, 2810017091, 4280000520, 4280000521
