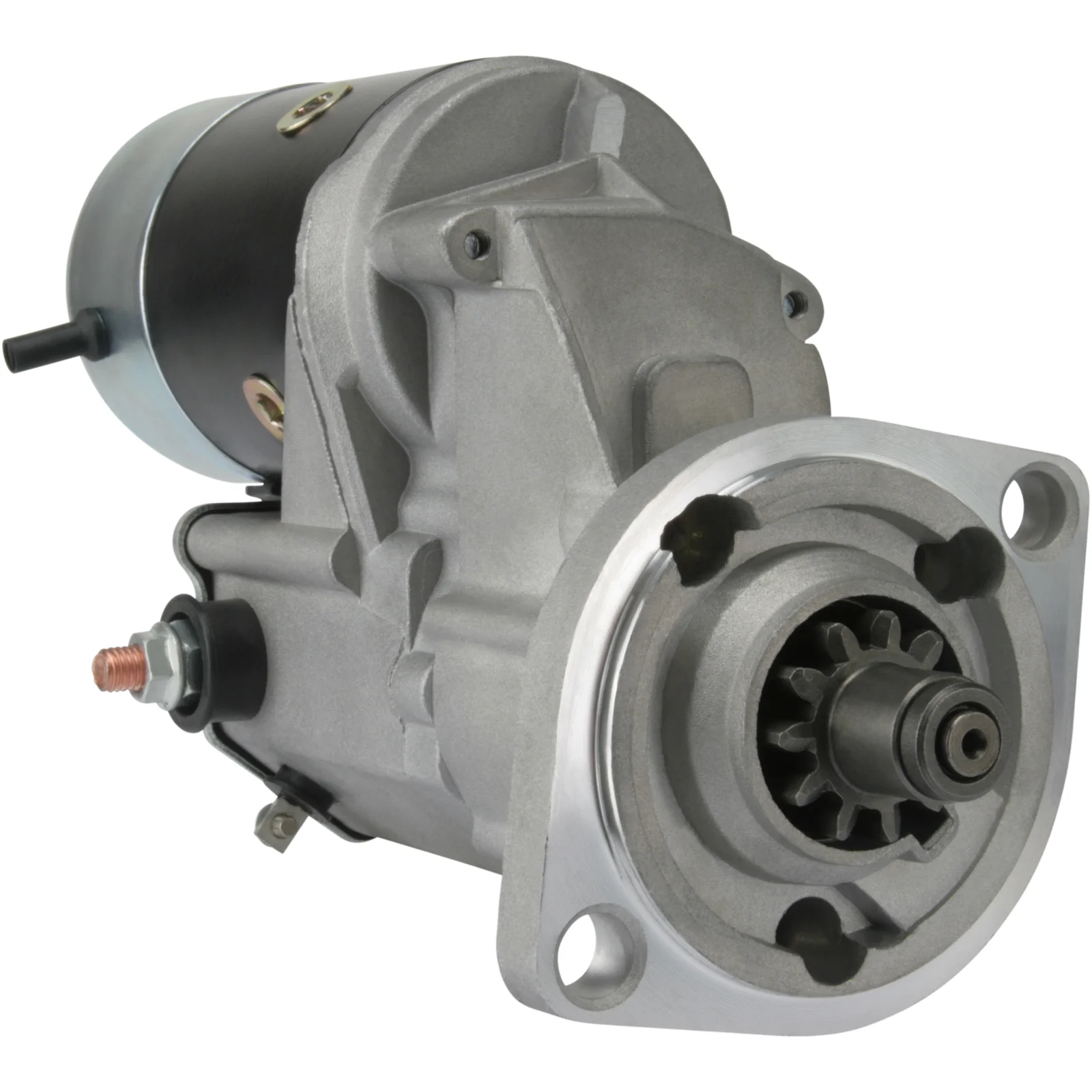

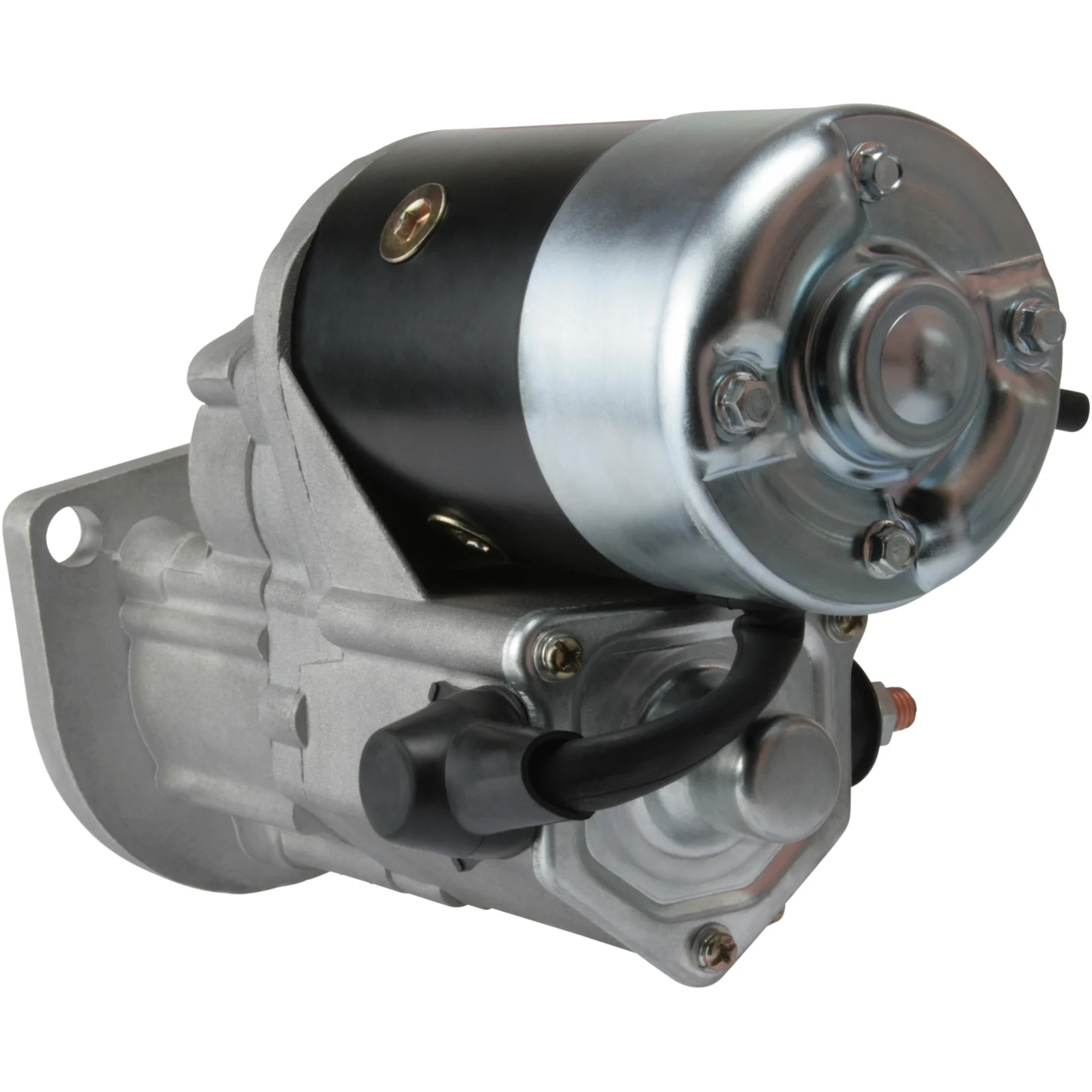

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114259

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 2.5
Mounting flange: 82.50
Drive distance: 25.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / rear: 184.00
Distance / front: 50.00
Number / teeth: 11
B+: M10
Position / 50: 22
Terminal 50: M5
Gear type: GR
Distance mm: 105.00
Rotation: CW
Total length mm: 296.00
Production info: BN
Number / mounting holes: 2 (0)

Files

  • OEM
    F032114259, 15611-63011, 15611-63012, 15611-63013, 028000-6060, 028000-6061, 028000-6062, 028000-6063

  • Normalised article numbler
    f032114259, snd0739, 19746n, 251179, 254301, 0280006060, 0280006061, 0280006062, 0280006063, 1561163011, 1561163012, 1561163013
  • Description
    Voltage: 12
    kW: 2.5
    Mounting flange: 82.50
    Drive distance: 25.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / rear: 184.00
    Distance / front: 50.00
    Number / teeth: 11
    B+: M10
    Position / 50: 22
    Terminal 50: M5
    Gear type: GR
    Distance mm: 105.00
    Rotation: CW
    Total length mm: 296.00
    Production info: BN
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114259, 15611-63011, 15611-63012, 15611-63013, 028000-6060, 028000-6061, 028000-6062, 028000-6063

    • Normalised article numbler
      f032114259, snd0739, 19746n, 251179, 254301, 0280006060, 0280006061, 0280006062, 0280006063, 1561163011, 1561163012, 1561163013
