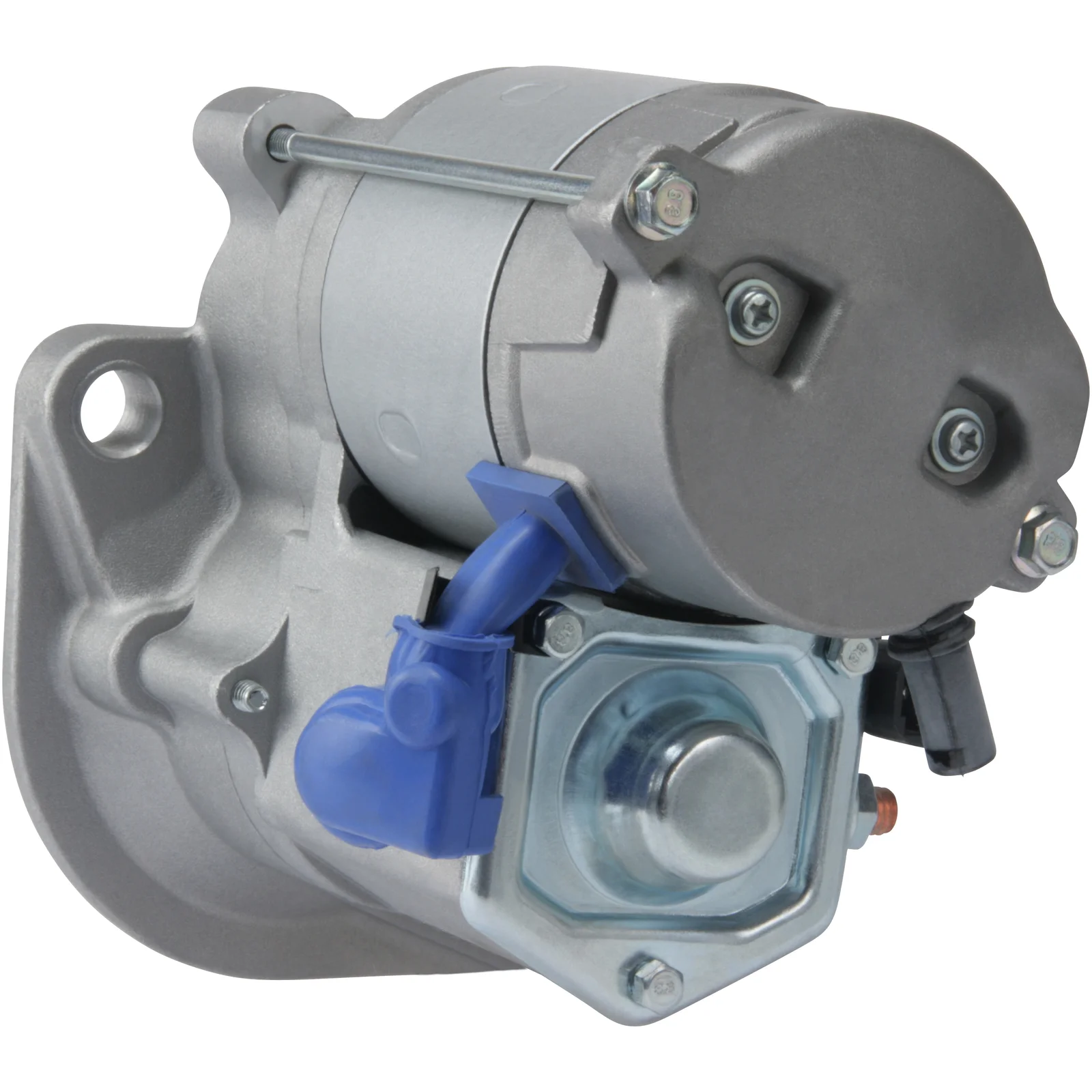

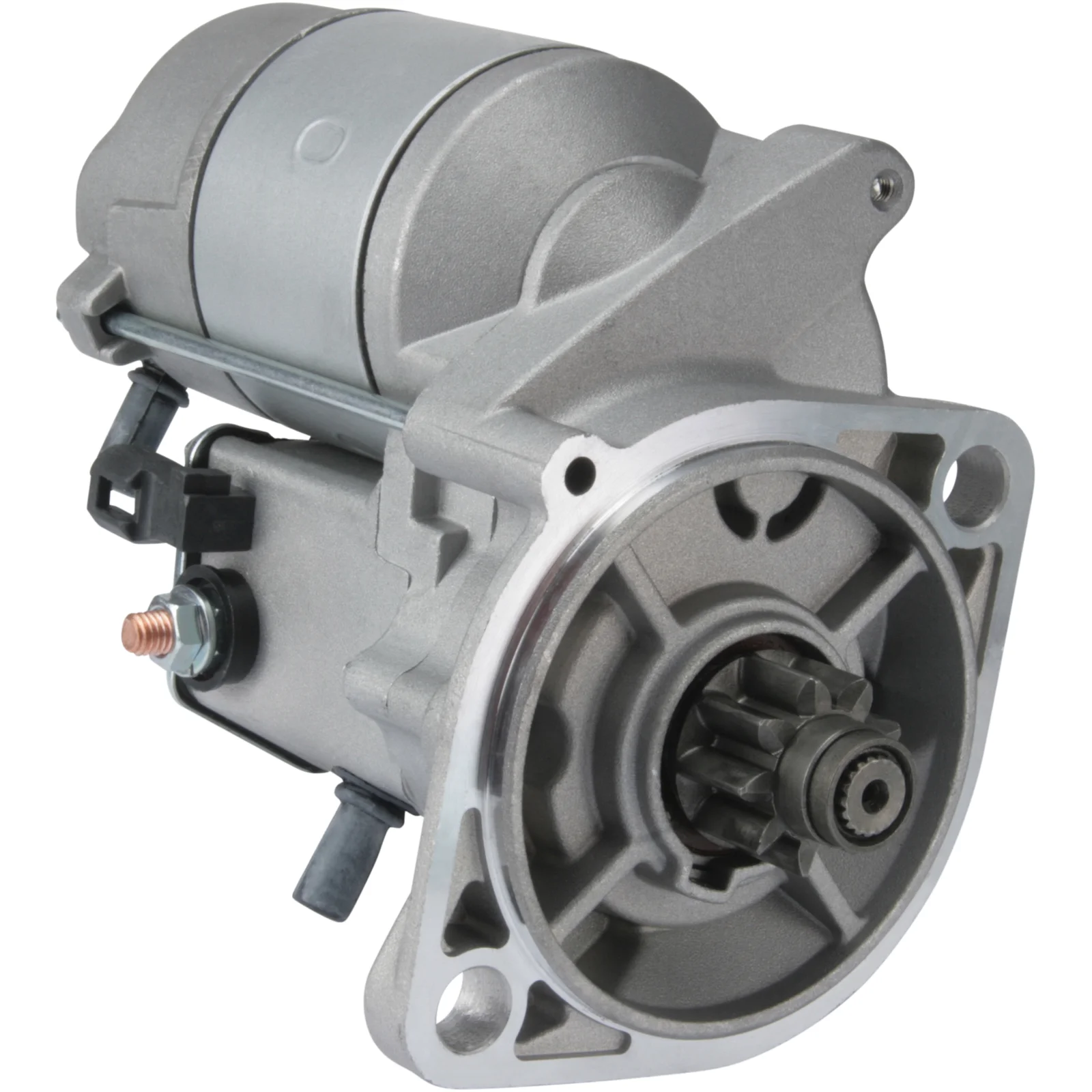

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114260

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mount. flange: 95.00
Drive dist.: 21.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 122.00
Dist./front: 34.00
No./teeth: 9
B+: M8
Position/50: 10
Terminal 50: 6.30
Gear type: GR
Dist. mm: 120.00
Rotation: CW
Total length mm: 189.00
No./mount. holes: 2 (0)

Files

  • OEM
    F032114260, 128000-1100, 128000-1101, 128000-1102, 228000-1980, 228000-1981, 228000-1983, 228000-1984, 228000-2000, 228000-2001, 228000-2002, 228000-2003, 8941702050, 8941702051, 8970489672, 8970489673

  • Normalised article numbler
    dsn2129, f032114260, s6363s, 17381n, 18159, 254055, 1280001100, 1280001101, 1280001102, 2280001980, 2280001981, 2280001983, 2280001984, 2280002000, 2280002001, 2280002002, 2280002003, 8941702050, 8941702051, 8970489672, 8970489673
  • Description
    Voltage: 12
    kW: 1.4
    Mount. flange: 95.00
    Drive dist.: 21.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 122.00
    Dist./front: 34.00
    No./teeth: 9
    B+: M8
    Position/50: 10
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 120.00
    Rotation: CW
    Total length mm: 189.00
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114260, 128000-1100, 128000-1101, 128000-1102, 228000-1980, 228000-1981, 228000-1983, 228000-1984, 228000-2000, 228000-2001, 228000-2002, 228000-2003, 8941702050, 8941702051, 8970489672, 8970489673

    • Normalised article numbler
      dsn2129, f032114260, s6363s, 17381n, 18159, 254055, 1280001100, 1280001101, 1280001102, 2280001980, 2280001981, 2280001983, 2280001984, 2280002000, 2280002001, 2280002002, 2280002003, 8941702050, 8941702051, 8970489672, 8970489673
