HC-Cargo Starter motor
HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116458

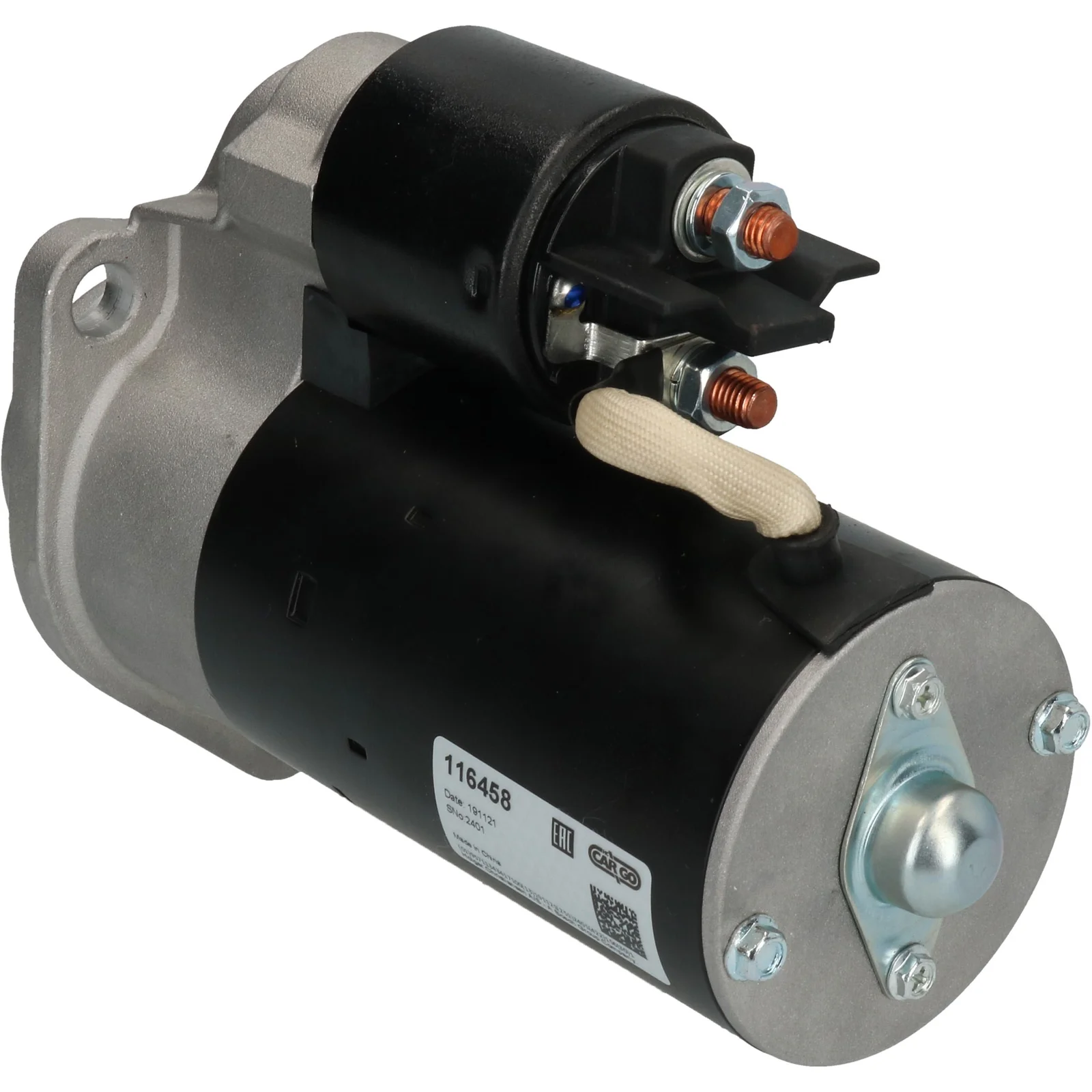

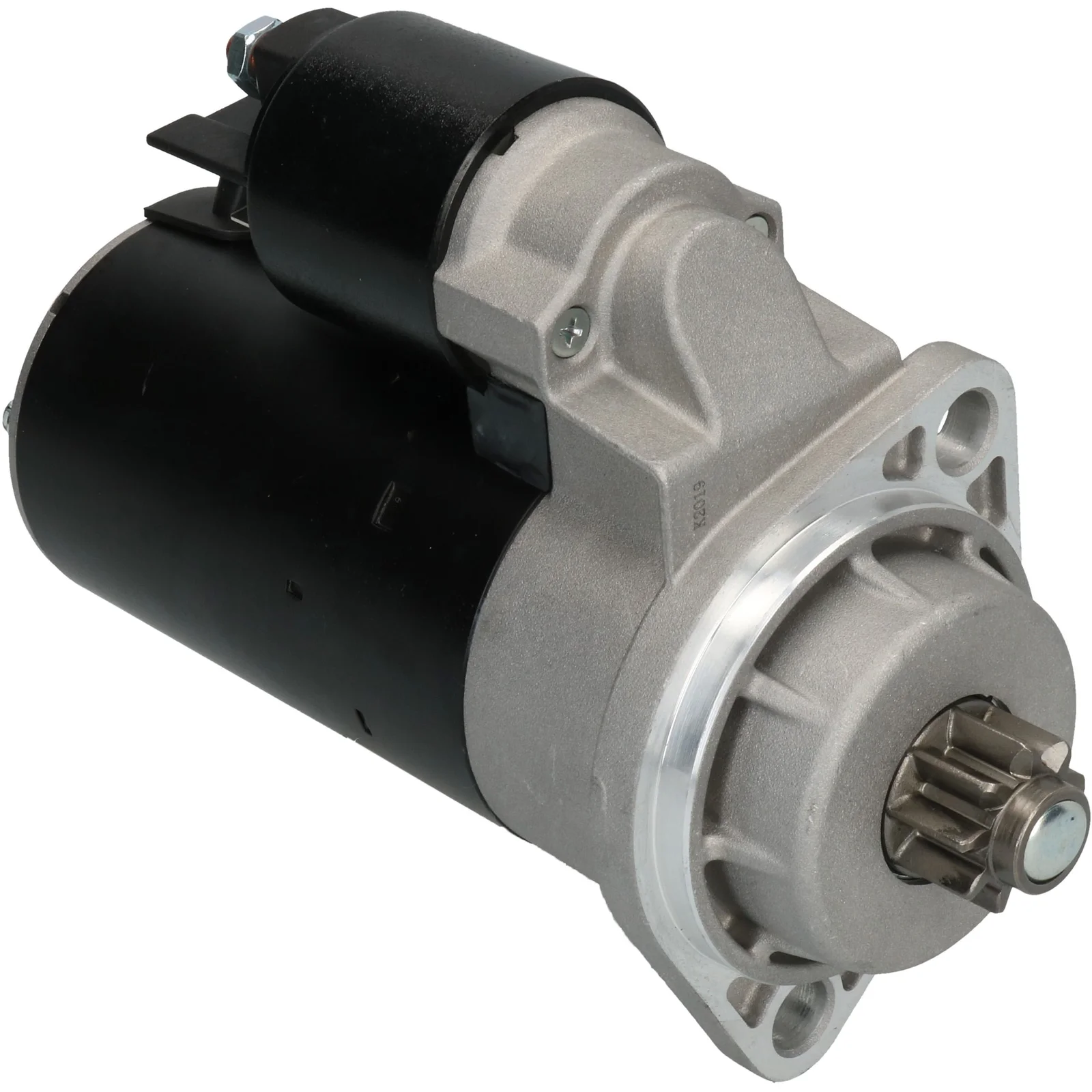

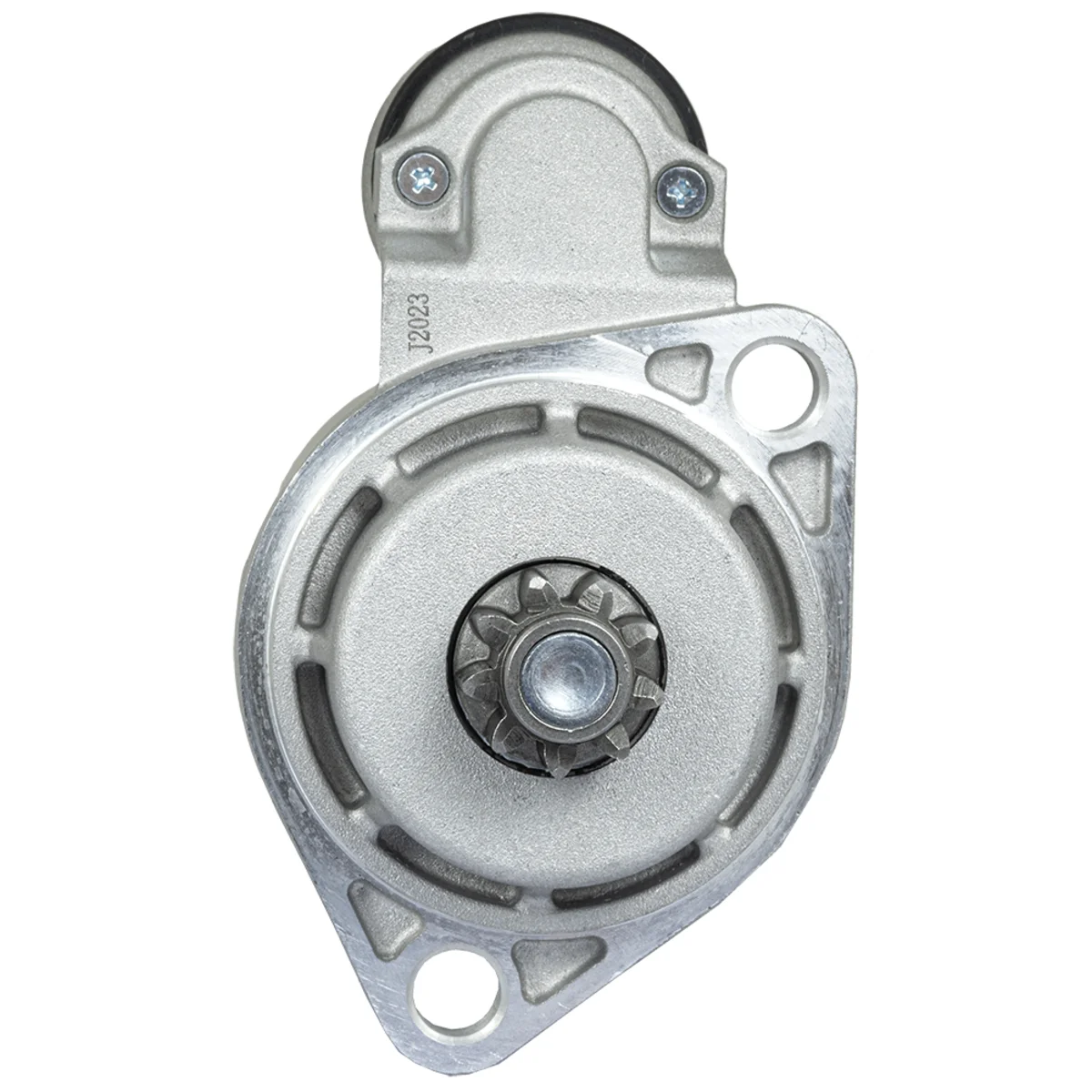

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

HC-Cargo Starter motor 12V-2.0kW, 9k 12V - 2.0kW, 9k. A - 82.5mm, B - 41mm Voltage: 12 kW: 2.0 Mounting flange: 82.50 Drive distance: 40.50 Mounting hole 2 mm: 11.00 Mounting hole 1 mm: 11.00 Distance/back: 177.00 Distance/front: 45.00 Number/teeth: 9 B+: M8 Position/B+: 60 Position/50: 15 Terminal 50: 6.30 Gear type: GR Distance mm: 102.50 Rotation: CW Total length mm: 233.50 Drive type: Steel Product info: BN Waterproof: No Oil sealed: No Number/mounting holes: 2 (0)

Files

  • OEM
    AZE 2606, AZE 2657, AZE 2663, AZE2606, aze2663, F032116458, MS 432, 11.130.923, 11.131.528, 91-216-0923, 1150, 11130 923, 11131 496, 11131 528, 116458, 05726001, 05728551, 50495900, 50495901, 72736060, 504959010733

  • Normalised article numbler
    aze2606, aze2657, aze2663, cst21118, drs0266, f032116458, is1150, ms432, s9200letrika, s9200s, 1150, 8096, 116458, 254043, 05726001, 05728551, 11130923, 11131496, 11131528, 50495900, 50495901, 72736060, 912160923, 504959010733
  • Description
    HC-Cargo Starter motor 12V-2.0kW, 9k 12V - 2.0kW, 9k. A - 82.5mm, B - 41mm Voltage: 12 kW: 2.0 Mounting flange: 82.50 Drive distance: 40.50 Mounting hole 2 mm: 11.00 Mounting hole 1 mm: 11.00 Distance/back: 177.00 Distance/front: 45.00 Number/teeth: 9 B+: M8 Position/B+: 60 Position/50: 15 Terminal 50: 6.30 Gear type: GR Distance mm: 102.50 Rotation: CW Total length mm: 233.50 Drive type: Steel Product info: BN Waterproof: No Oil sealed: No Number/mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZE 2606, AZE 2657, AZE 2663, AZE2606, aze2663, F032116458, MS 432, 11.130.923, 11.131.528, 91-216-0923, 1150, 11130 923, 11131 496, 11131 528, 116458, 05726001, 05728551, 50495900, 50495901, 72736060, 504959010733

    • Normalised article numbler
      aze2606, aze2657, aze2663, cst21118, drs0266, f032116458, is1150, ms432, s9200letrika, s9200s, 1150, 8096, 116458, 254043, 05726001, 05728551, 11130923, 11131496, 11131528, 50495900, 50495901, 72736060, 912160923, 504959010733
