Article no.: F032113891

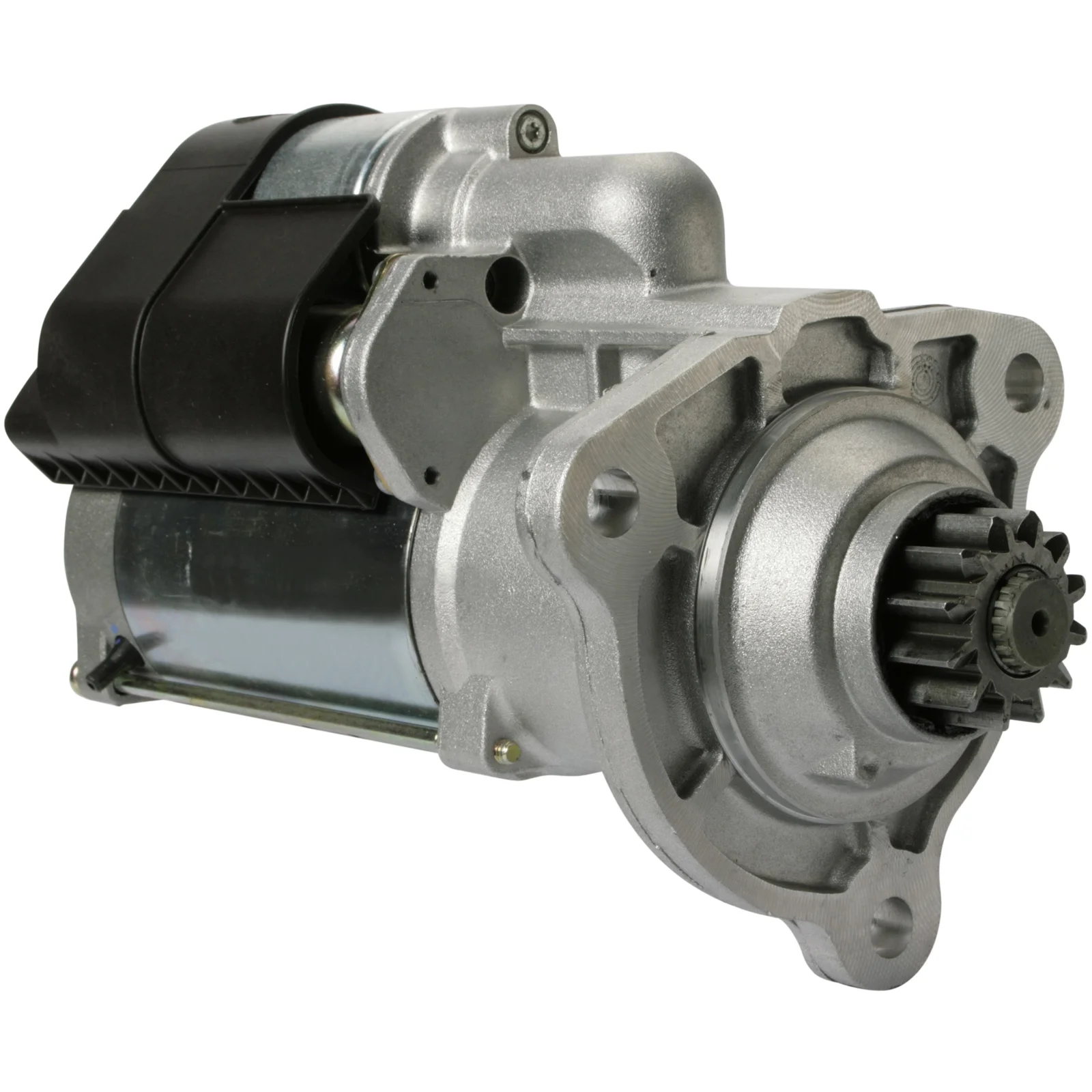

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.5, No./teeth: 12, Rotation: CW

Description

Starter 24V-5.5kW fits Scania 24V - 5.5kW, 12k A - 92mm, B - 48mm Bosch design, 12-tooth For YOUREX product order 91-500-2148 Alternative: 91-500-2150 Prestolite design, 11-tooth The Prestolite starter drive is 100% compatible!

Voltage: 24
kW: 5.5
Mounting flange: 92.00
Drive distance: 48.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance/back: 260.50
Distance/front: 52.50
Number/teeth: 12
B+: M10
Position/50: 45
Terminal 50: M5
Gear type: GR
Distance 2: 126.50
Distance 3: 126.50
Distance mm: 126.50
Rotation: CW
Total length mm: 325.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 3 (0)

Files

  • OEM
    AZF4876, cs1399, F032113891, M90R3545SE, M9T65971, RGO 113891, SCA 1447911, SCA 2031368, SCA 579261, 0001 241 001, 0001 261 001, 0001 261 002, 0001 261 025, 0001 261 026, 0001 261 027, 0001 261 028, 11.139.605, 91-500-2148, 0986 021 480, 1986S10002, 1986S10047, 113891, 571467, 573507, 0579261, 0001241001, 0001261001, 0001261002, 0001261025, 0001261026, 0001261027, 0001261028, 0001261105, 0001261106, 1447911, 1796026, 2031368, 2148650, 2276131, 2708317, 2969319, 19084253, 72442833, 081261001

  • Normalised article numbler
    azf4876, cs1399, cst10682, drt1480, drt1480n, drt1480x, f032113891, f042002135, f042002153, f042s02135, f042s02153, ga20001, les0336, lrs02272, m90r3545se, m9t65971, ms758, rgo113891, s0138, s0450, s0683s, s0883s, s5192, sca1447911, sca2031368, sca579261, str2411, str2461, 8ea012586101, 1986s10002, 1986s10047, 19795n, 19802n, 101399, 106267, 106359, 113891, 121760, 203047, 220993, 220993a, 453443, 458940, 571467, 573507, 0579261, 0001241001, 0001261001, 0001261002, 0001261025, 0001261026, 0001261027, 0001261028, 0001261105, 0001261106, 1447911, 1796026, 2031368, 2148650, 2276131, 2708317, 2969319, 08080200a, 11021480, 11139605, 19084253, 42021480, 72442833, 081261001, 332010124, 911501113, 915002148, 0986021480
  • Description
    Starter 24V-5.5kW fits Scania 24V - 5.5kW, 12k A - 92mm, B - 48mm Bosch design, 12-tooth For YOUREX product order 91-500-2148 Alternative: 91-500-2150 Prestolite design, 11-tooth The Prestolite starter drive is 100% compatible!

    Voltage: 24
    kW: 5.5
    Mounting flange: 92.00
    Drive distance: 48.00
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance/back: 260.50
    Distance/front: 52.50
    Number/teeth: 12
    B+: M10
    Position/50: 45
    Terminal 50: M5
    Gear type: GR
    Distance 2: 126.50
    Distance 3: 126.50
    Distance mm: 126.50
    Rotation: CW
    Total length mm: 325.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4876, cs1399, F032113891, M90R3545SE, M9T65971, RGO 113891, SCA 1447911, SCA 2031368, SCA 579261, 0001 241 001, 0001 261 001, 0001 261 002, 0001 261 025, 0001 261 026, 0001 261 027, 0001 261 028, 11.139.605, 91-500-2148, 0986 021 480, 1986S10002, 1986S10047, 113891, 571467, 573507, 0579261, 0001241001, 0001261001, 0001261002, 0001261025, 0001261026, 0001261027, 0001261028, 0001261105, 0001261106, 1447911, 1796026, 2031368, 2148650, 2276131, 2708317, 2969319, 19084253, 72442833, 081261001

    • Normalised article numbler
      azf4876, cs1399, cst10682, drt1480, drt1480n, drt1480x, f032113891, f042002135, f042002153, f042s02135, f042s02153, ga20001, les0336, lrs02272, m90r3545se, m9t65971, ms758, rgo113891, s0138, s0450, s0683s, s0883s, s5192, sca1447911, sca2031368, sca579261, str2411, str2461, 8ea012586101, 1986s10002, 1986s10047, 19795n, 19802n, 101399, 106267, 106359, 113891, 121760, 203047, 220993, 220993a, 453443, 458940, 571467, 573507, 0579261, 0001241001, 0001261001, 0001261002, 0001261025, 0001261026, 0001261027, 0001261028, 0001261105, 0001261106, 1447911, 1796026, 2031368, 2148650, 2276131, 2708317, 2969319, 08080200a, 11021480, 11139605, 19084253, 42021480, 72442833, 081261001, 332010124, 911501113, 915002148, 0986021480
