HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115623

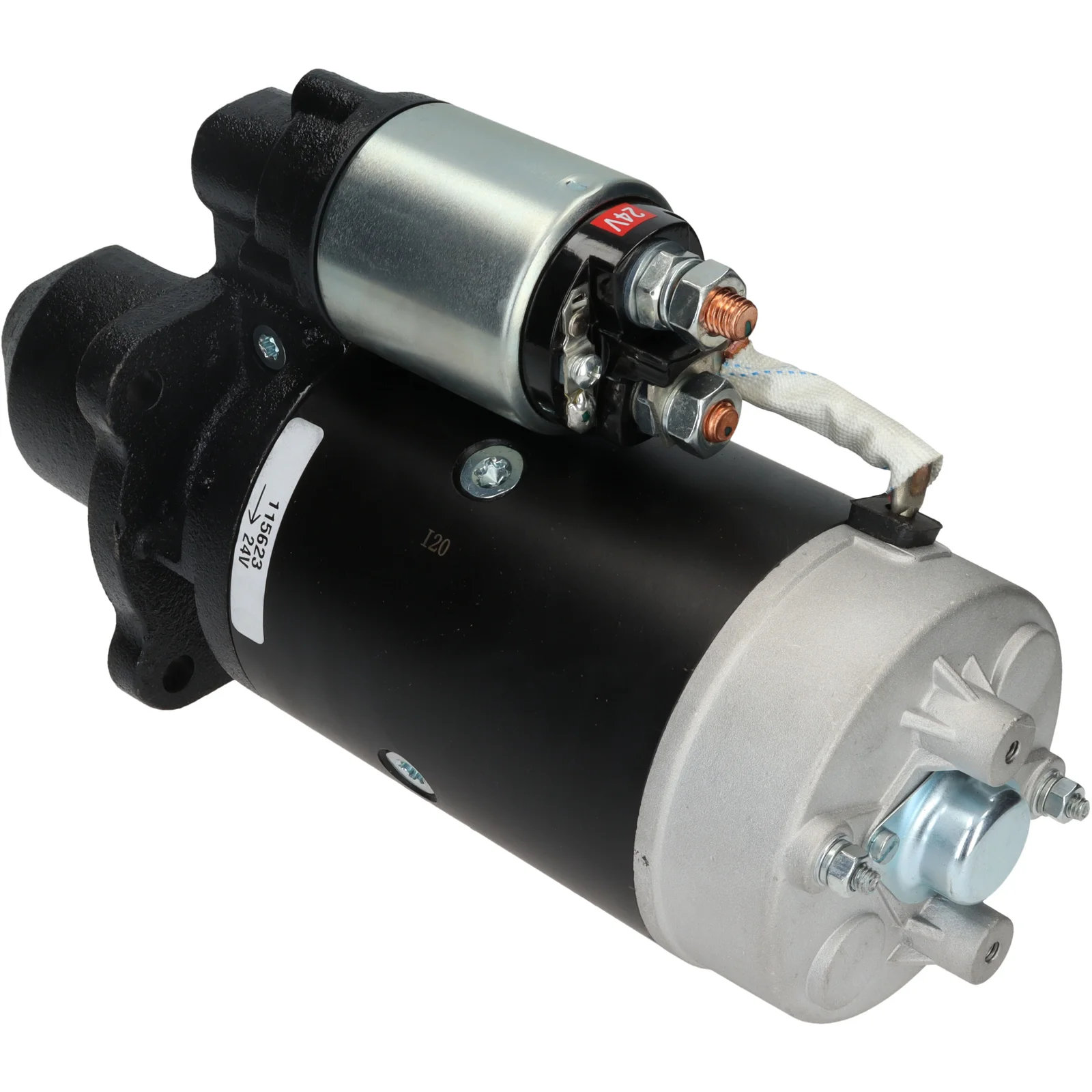

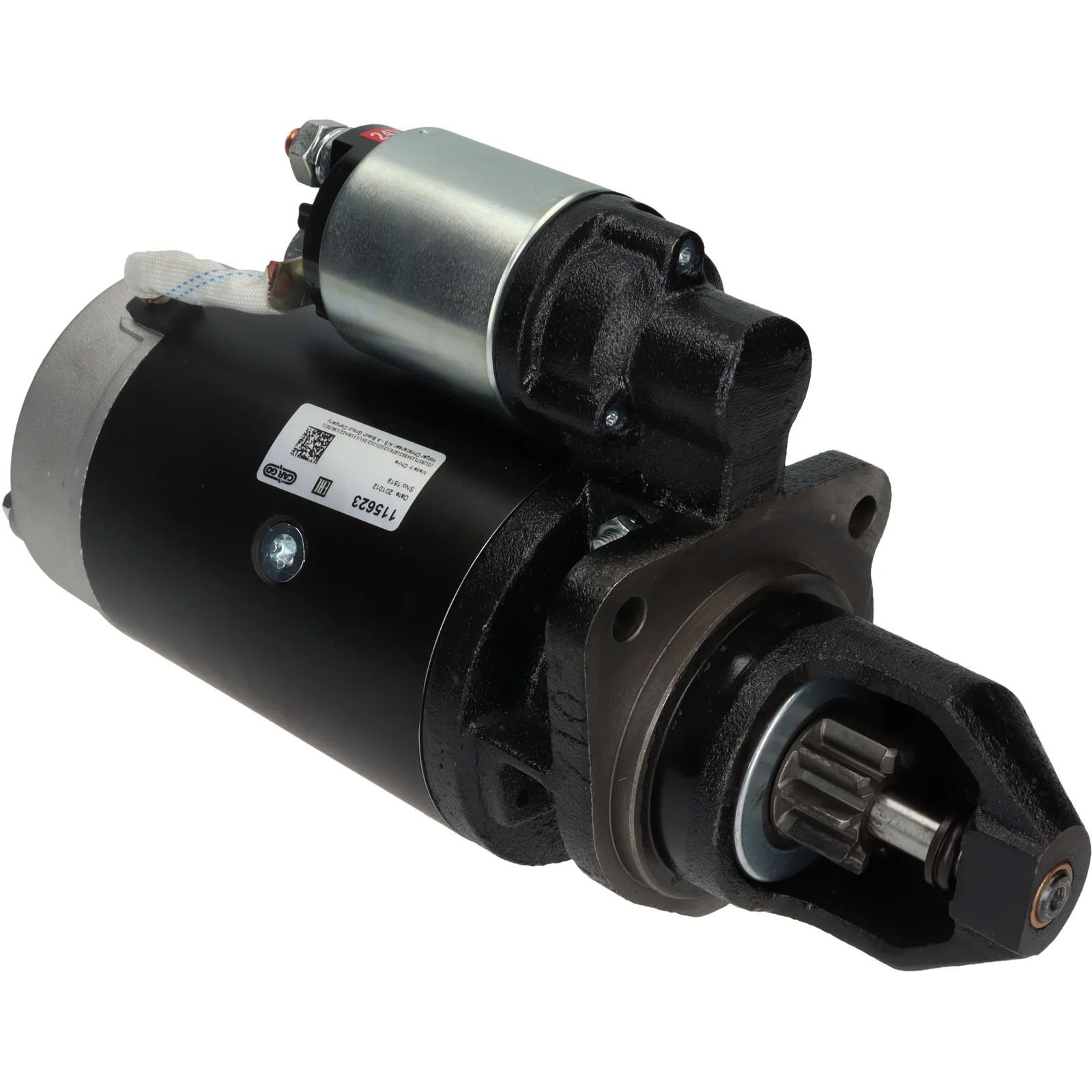

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 9, Rotation: CW

Description

Start 24V-4.0kW fits Volvo 24V - 4.0kW, 9/11k A - 89, B - 48mm Option: Bosch switched type 91-600-7513 (with certain restrictions), HC/Cargo Denso switched type = F032114047 For Yourex product order 91-600-1098

Voltage: 24
kW: 4.0
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 236.50
Distance / front: 95.00
No. / teeth: 9
B+: M10
Position / B+: 60
Position / 50: 45
Terminal 50: M4
Gear type: DD
Distance 2: 126.00
Distance 3: 89.00
Distance mm: 89.00
Rotation: CW
Total length mm: 340.00
Number of mounting holes: 3 (0)

Files

  • OEM
    AZJ 3231, CS 391, cs391, F032115623, LRS 925, RGO 115623, 0001 360 032, 0001 360 061, 0001 368 002, 0001 368 017, 0001 368 063, 0001 368 074, 0687, 0986 010 980, 1986S10104, 11130 687, 115623, 128000-7600, 128000-7601, 128000-7602, 128000-7603, 465604, 466772, 859534, 0001360061, 0001368017, 0001368063, 0001368074, 1516759R, 1676822, 5001784, 5003009, 19024288

  • Normalised article numbler
    azj3231, cs391, cst10692, drs0980, f032115623, is0687, lrs00925, lrs925, ms325, rgo115623, s0107, str22050, str22055, 0687, 1986s10104, 33525, 33733, 103421, 115623, 203021, 450422, 455536, 465604, 466772, 859534, 0001360032, 0001360061, 0001368002, 0001368017, 0001368063, 0001368074, 1516759r, 1676822, 5001784, 5003009, 8810980, 11010980, 11130687, 19024288, 338007094, 943252208, 0986010980, 0986010983, 1280007600, 1280007601, 1280007602, 1280007603, 943252208010
  • Description
    Start 24V-4.0kW fits Volvo 24V - 4.0kW, 9/11k A - 89, B - 48mm Option: Bosch switched type 91-600-7513 (with certain restrictions), HC/Cargo Denso switched type = F032114047 For Yourex product order 91-600-1098

    Voltage: 24
    kW: 4.0
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 236.50
    Distance / front: 95.00
    No. / teeth: 9
    B+: M10
    Position / B+: 60
    Position / 50: 45
    Terminal 50: M4
    Gear type: DD
    Distance 2: 126.00
    Distance 3: 89.00
    Distance mm: 89.00
    Rotation: CW
    Total length mm: 340.00
    Number of mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZJ 3231, CS 391, cs391, F032115623, LRS 925, RGO 115623, 0001 360 032, 0001 360 061, 0001 368 002, 0001 368 017, 0001 368 063, 0001 368 074, 0687, 0986 010 980, 1986S10104, 11130 687, 115623, 128000-7600, 128000-7601, 128000-7602, 128000-7603, 465604, 466772, 859534, 0001360061, 0001368017, 0001368063, 0001368074, 1516759R, 1676822, 5001784, 5003009, 19024288

    • Normalised article numbler
      azj3231, cs391, cst10692, drs0980, f032115623, is0687, lrs00925, lrs925, ms325, rgo115623, s0107, str22050, str22055, 0687, 1986s10104, 33525, 33733, 103421, 115623, 203021, 450422, 455536, 465604, 466772, 859534, 0001360032, 0001360061, 0001368002, 0001368017, 0001368063, 0001368074, 1516759r, 1676822, 5001784, 5003009, 8810980, 11010980, 11130687, 19024288, 338007094, 943252208, 0986010980, 0986010983, 1280007600, 1280007601, 1280007602, 1280007603, 943252208010
