HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114523

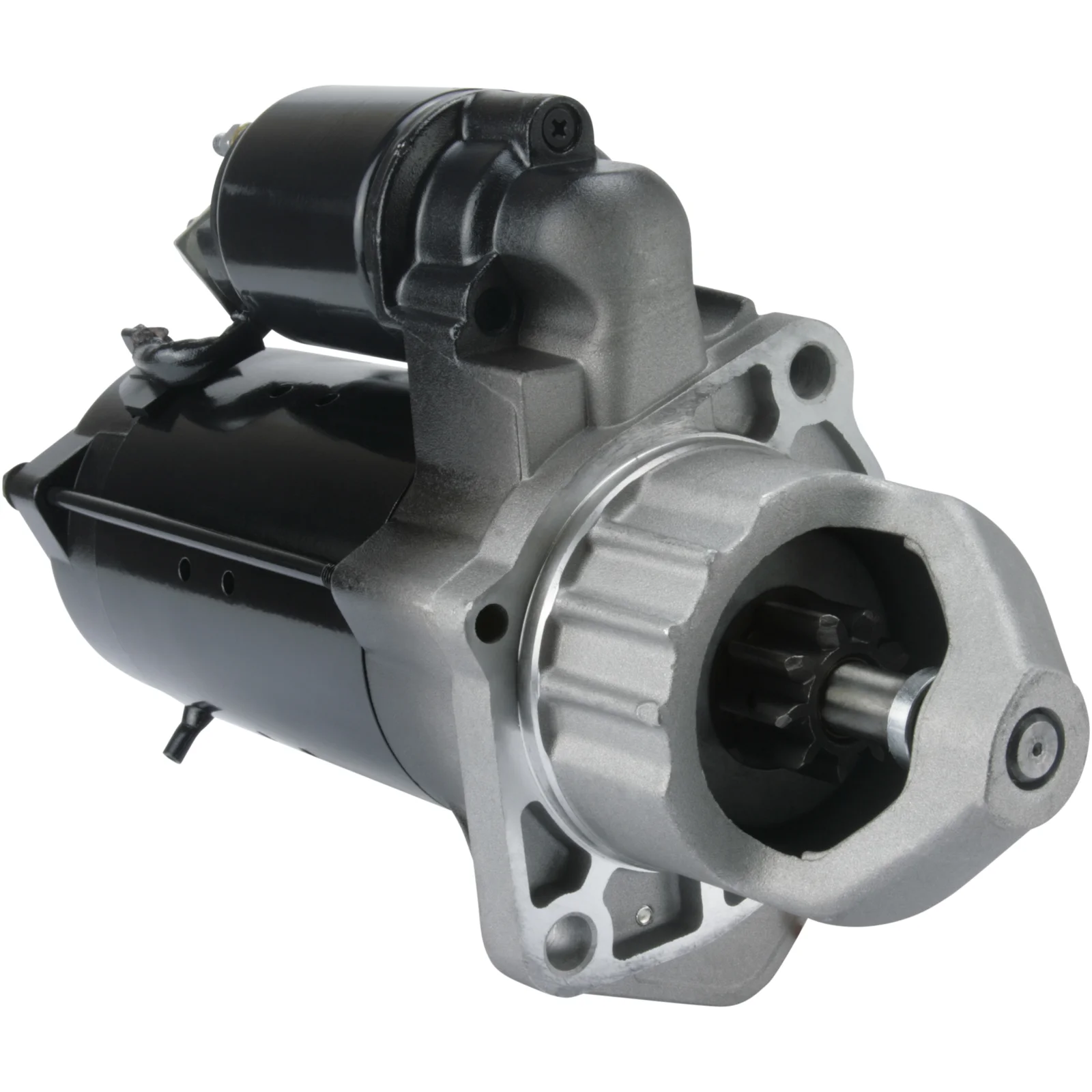

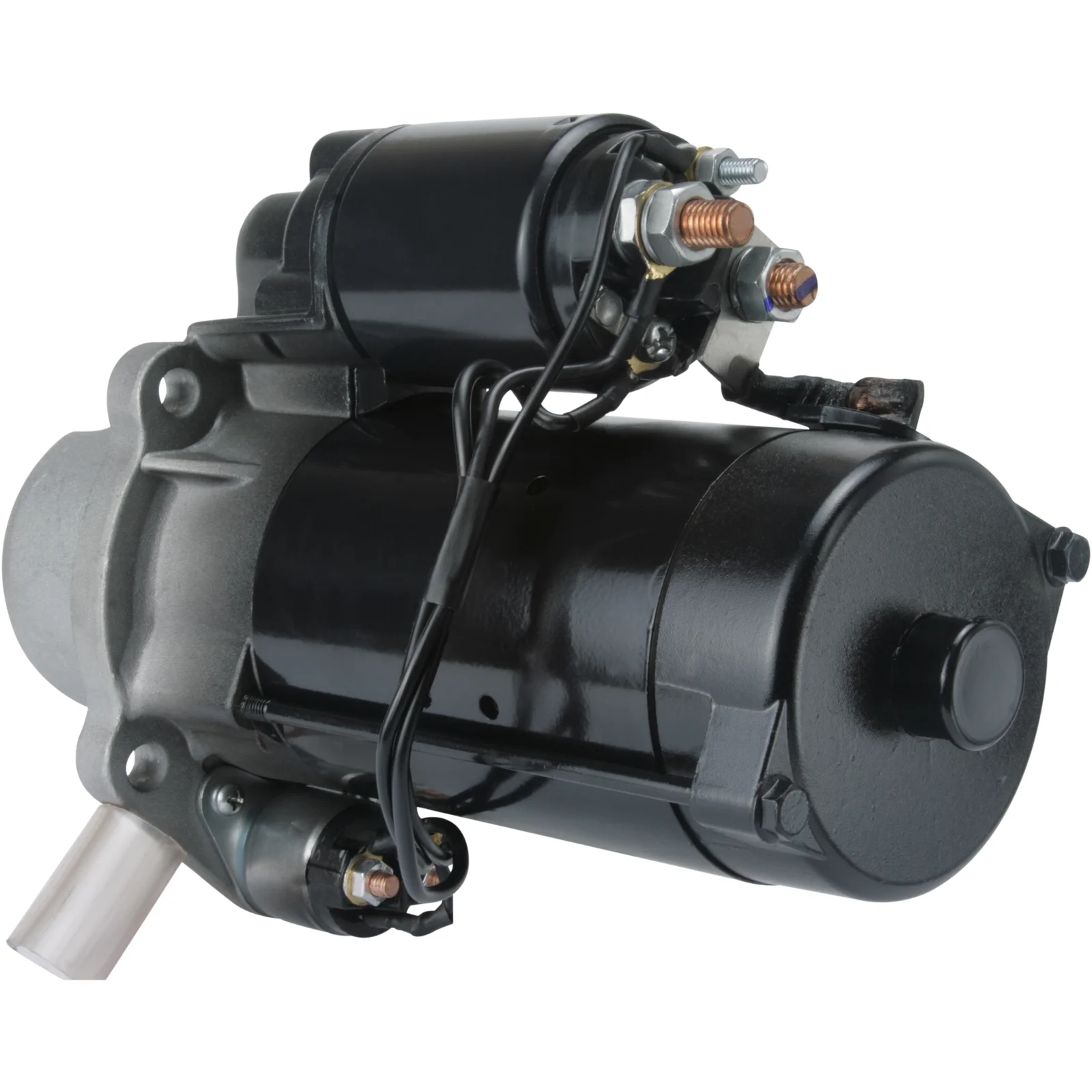

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 9, Rotation: CW

Description

Starting motor 24V-4.0kW fits Mercedes 24V - 4.0kW, 9k For Yourex product order 91-365-1724 Alternative: 91-365-6222 Assist relay sits at 02.00, 91-365-6210 Delco 29PG-type 91-365-6220 Prestolite M95-type 5.0kW

Voltage: 24
kW: 4.0
Mounting flange: 89.00
Drive distance: 48.50
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/back: 208.50
Distance/front: 94.50
Number/teeth: 9
B+: M10
Position/50: 5
Terminal 50: M6
Gear type: GR
Distance 2: 90.00
Distance 3: 127.00
Distance mm: 90.00
Rotation: CW
Total length mm: 313.00
Drive type: Steel
Servicing: Mercedes-Benz
Number/mounting holes: 3 (0)

Files

  • OEM
    A004 1518401, A0041518401, A004151840180, A005 1512001, A005 1512201, A0051512001, A005151200180, A005151220180, a0051519701, A006 1512201, A0061512201, A006151220180, A0061512203, A006151220380, AZF4402, B001260015, cs1112, F032114523, RGO 114523, 0001 231 001, 0001 231 002, 0001 231 032, 11.139.601, 0986 017 240, 1986S10088, 114523, 860321, 0001231001, 0001231002, 0001231032, 0001231033, 0001231133, 0001263015, 0001263016, 0001263049, 0001263050, 1516660R, 10461470, 10479626, 19084014, 0041518401, 0051512001, 0051519701, 0061512201, 0061512203, 72442813, 081251002, 081251033, 004151840180, 005151200180, 005151220180, 006151220180, 006151220380, 36262016003

  • Normalised article numbler
    a0041518401, a004151840180, a0051512001, a005151200180, a0051512201, a005151220180, a0051519701, a0061512201, a006151220180, a0061512203, a006151220380, azf4402, b001260015, cs1112, cst10655, cst10718, cst60621, drs0056, drs0056n, drs0239, drs7240, drs7240n, drs7240x, f032114523, f042002093, f042s02093, ga20002, is9453, lrs02158, lrs02545, lrs02626, lrt00225, ms141, ms753, rgo114523, s0037, s0037sr, s0689pr, s0689s, s0781s, s1119, str2320, 8ea012586011, 8ea737540001, 1986s10088, 4567, 6605n, 18364n, 19637n, 101112, 103670, 106694, 114523, 220278, 220278a, 220992, 220992a, 438473, 438478, 452344, 453302, 454299, 458177, 860321, 0001231001, 0001231002, 0001231032, 0001231033, 0001231133, 0001263015, 0001263016, 0001263049, 0001263050, 1516660r, 10461470, 10479626, 11139601, 19084014, 0041518401, 0051512001, 0051519701, 0061512201, 0061512203, 72442813, 081251002, 081251033, 625017094, 625025094, 625036094, 625039094, 0986017240, 0986017243, 0986018283, 0986021083, 004151840180, 005151200180, 005151220180, 006151220180, 006151220380, 36262016003, 063522310330
  • Description
    Starting motor 24V-4.0kW fits Mercedes 24V - 4.0kW, 9k For Yourex product order 91-365-1724 Alternative: 91-365-6222 Assist relay sits at 02.00, 91-365-6210 Delco 29PG-type 91-365-6220 Prestolite M95-type 5.0kW

    Voltage: 24
    kW: 4.0
    Mounting flange: 89.00
    Drive distance: 48.50
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/back: 208.50
    Distance/front: 94.50
    Number/teeth: 9
    B+: M10
    Position/50: 5
    Terminal 50: M6
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 127.00
    Distance mm: 90.00
    Rotation: CW
    Total length mm: 313.00
    Drive type: Steel
    Servicing: Mercedes-Benz
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      A004 1518401, A0041518401, A004151840180, A005 1512001, A005 1512201, A0051512001, A005151200180, A005151220180, a0051519701, A006 1512201, A0061512201, A006151220180, A0061512203, A006151220380, AZF4402, B001260015, cs1112, F032114523, RGO 114523, 0001 231 001, 0001 231 002, 0001 231 032, 11.139.601, 0986 017 240, 1986S10088, 114523, 860321, 0001231001, 0001231002, 0001231032, 0001231033, 0001231133, 0001263015, 0001263016, 0001263049, 0001263050, 1516660R, 10461470, 10479626, 19084014, 0041518401, 0051512001, 0051519701, 0061512201, 0061512203, 72442813, 081251002, 081251033, 004151840180, 005151200180, 005151220180, 006151220180, 006151220380, 36262016003

    • Normalised article numbler
      a0041518401, a004151840180, a0051512001, a005151200180, a0051512201, a005151220180, a0051519701, a0061512201, a006151220180, a0061512203, a006151220380, azf4402, b001260015, cs1112, cst10655, cst10718, cst60621, drs0056, drs0056n, drs0239, drs7240, drs7240n, drs7240x, f032114523, f042002093, f042s02093, ga20002, is9453, lrs02158, lrs02545, lrs02626, lrt00225, ms141, ms753, rgo114523, s0037, s0037sr, s0689pr, s0689s, s0781s, s1119, str2320, 8ea012586011, 8ea737540001, 1986s10088, 4567, 6605n, 18364n, 19637n, 101112, 103670, 106694, 114523, 220278, 220278a, 220992, 220992a, 438473, 438478, 452344, 453302, 454299, 458177, 860321, 0001231001, 0001231002, 0001231032, 0001231033, 0001231133, 0001263015, 0001263016, 0001263049, 0001263050, 1516660r, 10461470, 10479626, 11139601, 19084014, 0041518401, 0051512001, 0051519701, 0061512201, 0061512203, 72442813, 081251002, 081251033, 625017094, 625025094, 625036094, 625039094, 0986017240, 0986017243, 0986018283, 0986021083, 004151840180, 005151200180, 005151220180, 006151220180, 006151220380, 36262016003, 063522310330
