HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115556

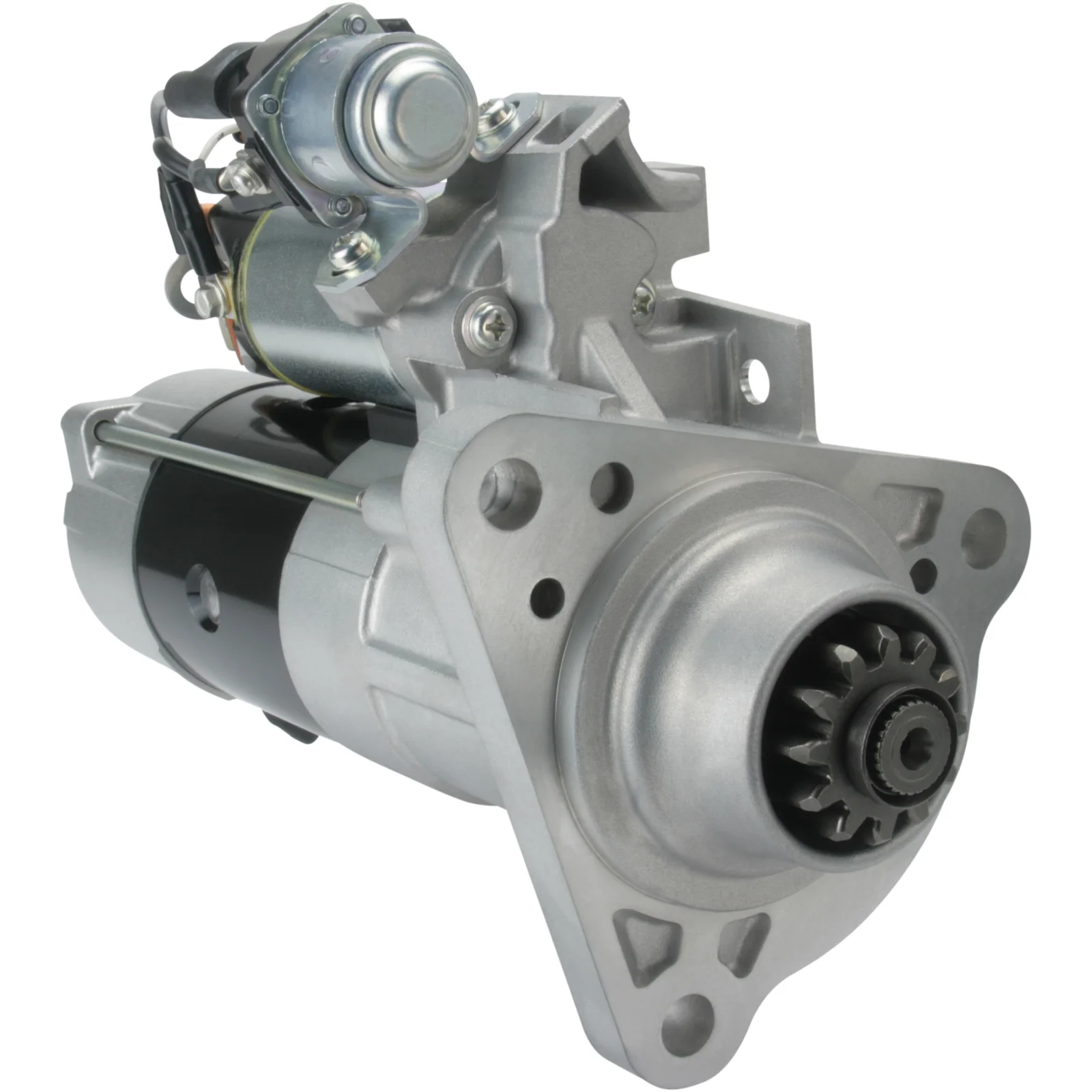

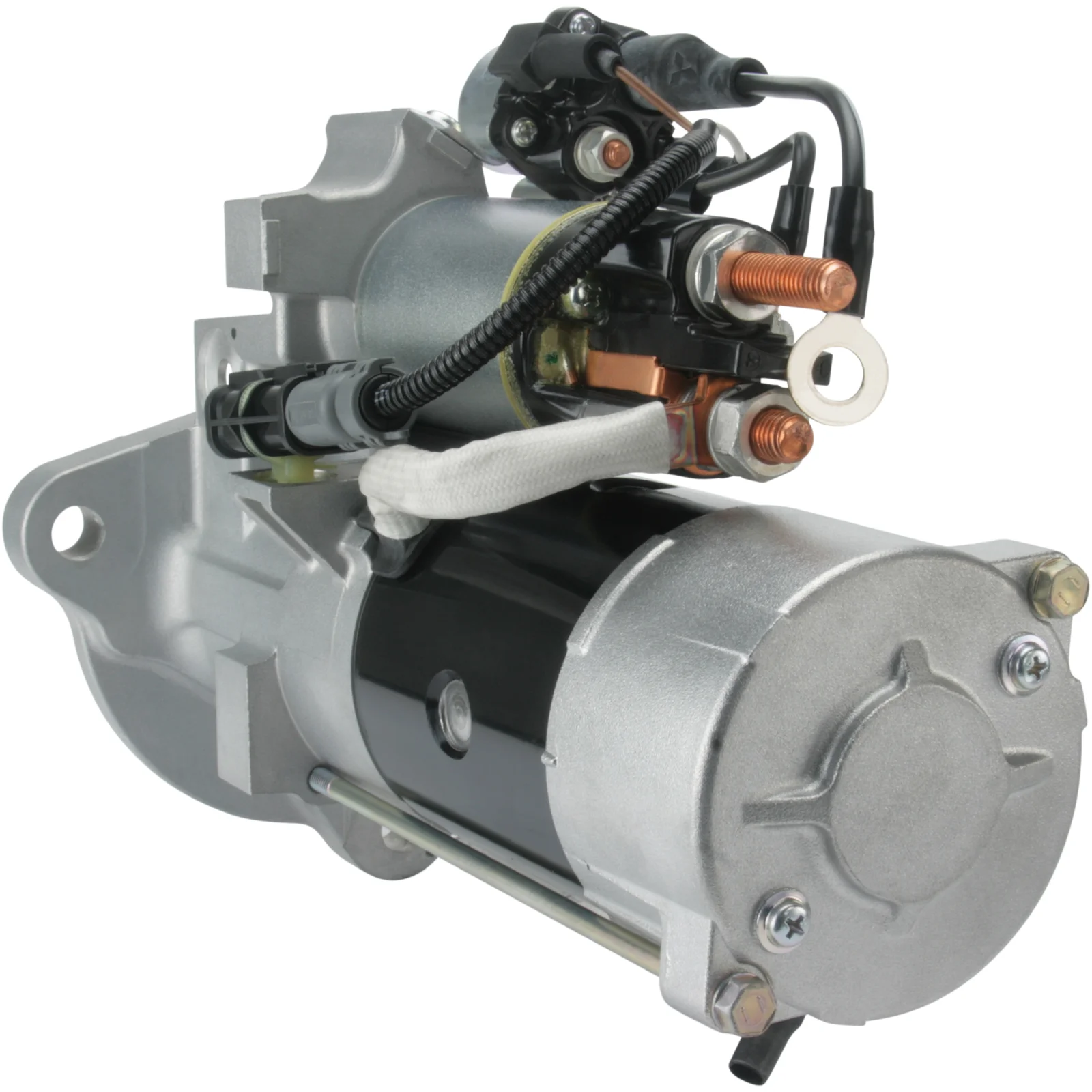

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.5, No./teeth: 12, Rotation: CW

Description

MAN starter motor 24V-5.5kW 24V - 5.5kW, 12k A - 92mm, B - 48mm For Yourex product order 91-336-7199 Alternative: 91-336-7226 (with mounting hole for heat shield)

Voltage: 24
kW: 5.5
Mounting flange: 92.00
Drive distance: 47.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance/behind: 264.50
Distance/in front: 54.50
Number of teeth: 12
B+: M10
Position/B+: 60
Terminal 50: Plug
Gear type: GR
Distance 2: 126.50
Distance 3: 126.50
Distance mm: 126.50
Rotation: CW
Total length mm: 319.00
Product info: BN
Number of mounting holes: 3 (0)

Files

  • OEM
    cs1529, F032115556, M009T61971, M009T62071, M9T-61971, m9t61971, M9T61971AM, M9T62071, M9T62071AM, M9TD2471, M9TD2471AM, RGO 115556, 51.26201-7199, 51.26201-7211, 51.26201-7284, 51.26201-9199, 51.26201-9211, 1986S10030, 115556, 19081019, 51262017199

  • Normalised article numbler
    cs1529, cst35615, cst35668, drs0022, drs0022x, drs0553, f032115556, f042001204, f042s01204, fe48999, les0462, lrs02520, m009t61971, m009t62071, m9t61971, m9t61971am, m9t62071, m9t62071am, m9td2471, m9td2471am, mitm9t61971, rgo115556, s5064, s5147, s5147mitsubishi, s5443s, str7913, 8ea012586381, 1986s10030, 106445, 115556, 220562, 220562a, 254702, 334005, 438295, 454050, 454192, 458959, 08081000a, 11041026, 19081019, 551536123, 551560123, 551580123, 0986026040, 51262017199, 51262017211, 51262017284, 51262019199, 51262019211
