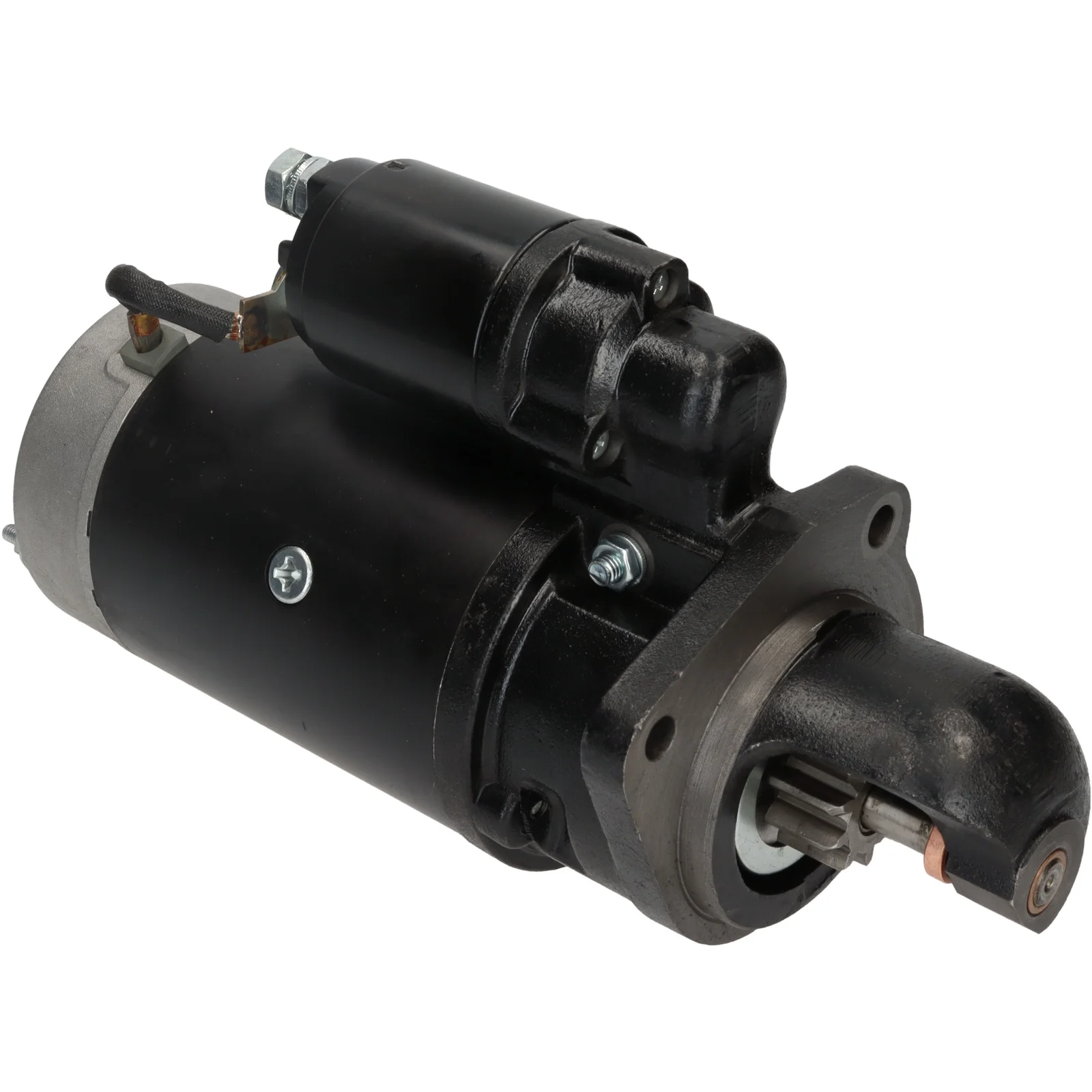

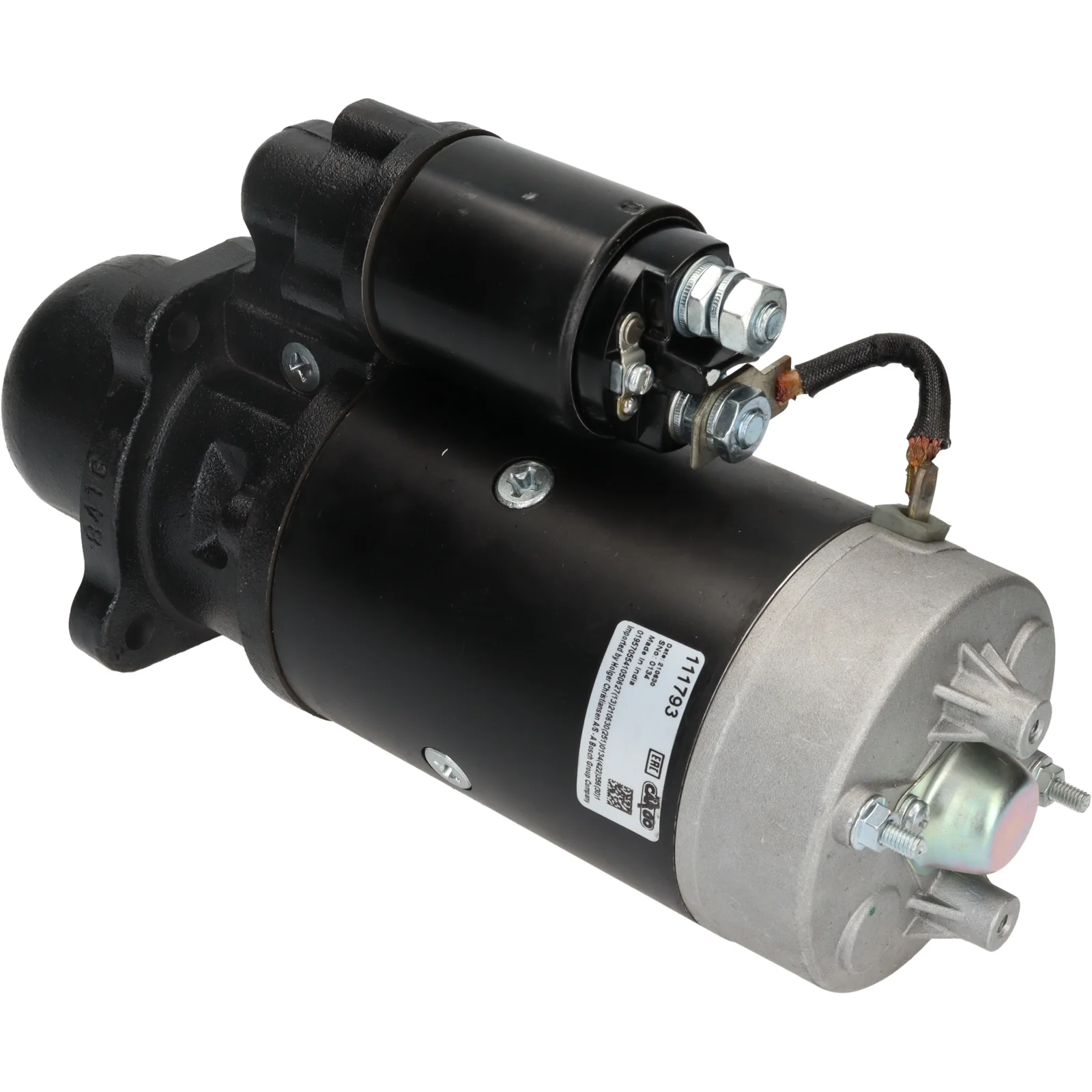

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111793

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 10, Rotation: CW

Description

Perkins/Caterp Start 12V-3.0kW 12V - 3.0kW, 10k For Yourrex product order 91-441-7076

Voltage: 12
kW: 3.0
Mounting flange: 89.00
Drive distance: 28.50
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/back: 263.00
Distance/front: 77.50
Number/teeth: 10
B+: M10
Position/50: 45
Terminal 50: M4
Gear type: DD
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 90.00
Rotation: CW
Total length mm: 342.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 3 (0)

Files

  • OEM
    cs1123, F032111793, RGO 111793, T 10 08224, 0001 367 076, 11.131.065, 100-8224, 1986S10082, 2873 D202, 2873d201, 2873D202, 111793, 241232, 465471, 481034, 504786, 598012, 0001359020, 0001359088, 0001359117, 0001367017, 0001367048, 0001367076, 3737270, 19024261, 700719635

  • Normalised article numbler
    cs1123, cst10298, drs4740, drs7750, f032111793, lrs01075, lrs04111, ms617of, ms643of, rgo111793, s0198, str22048, str22064, t1008224, 8ea737585001, 1986s10082, 2873d201, 2873d202, 4581, 17257, 17257n, 18386, 33573, 101123, 111793, 241232, 250373, 254167, 255274, 465471, 481034, 504786, 598012, 1008224, 0001359020, 0001359088, 0001359117, 0001367017, 0001367048, 0001367076, 3737270, 11017750, 11131065, 19024261, 42017750, 638012102, 700516103, 700719635, 943352256, 0986012770, 0986017750
  • Description
    Perkins/Caterp Start 12V-3.0kW 12V - 3.0kW, 10k For Yourrex product order 91-441-7076

    Voltage: 12
    kW: 3.0
    Mounting flange: 89.00
    Drive distance: 28.50
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/back: 263.00
    Distance/front: 77.50
    Number/teeth: 10
    B+: M10
    Position/50: 45
    Terminal 50: M4
    Gear type: DD
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 90.00
    Rotation: CW
    Total length mm: 342.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1123, F032111793, RGO 111793, T 10 08224, 0001 367 076, 11.131.065, 100-8224, 1986S10082, 2873 D202, 2873d201, 2873D202, 111793, 241232, 465471, 481034, 504786, 598012, 0001359020, 0001359088, 0001359117, 0001367017, 0001367048, 0001367076, 3737270, 19024261, 700719635

    • Normalised article numbler
      cs1123, cst10298, drs4740, drs7750, f032111793, lrs01075, lrs04111, ms617of, ms643of, rgo111793, s0198, str22048, str22064, t1008224, 8ea737585001, 1986s10082, 2873d201, 2873d202, 4581, 17257, 17257n, 18386, 33573, 101123, 111793, 241232, 250373, 254167, 255274, 465471, 481034, 504786, 598012, 1008224, 0001359020, 0001359088, 0001359117, 0001367017, 0001367048, 0001367076, 3737270, 11017750, 11131065, 19024261, 42017750, 638012102, 700516103, 700719635, 943352256, 0986012770, 0986017750
