HC-Cargo Starter motor
HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115776

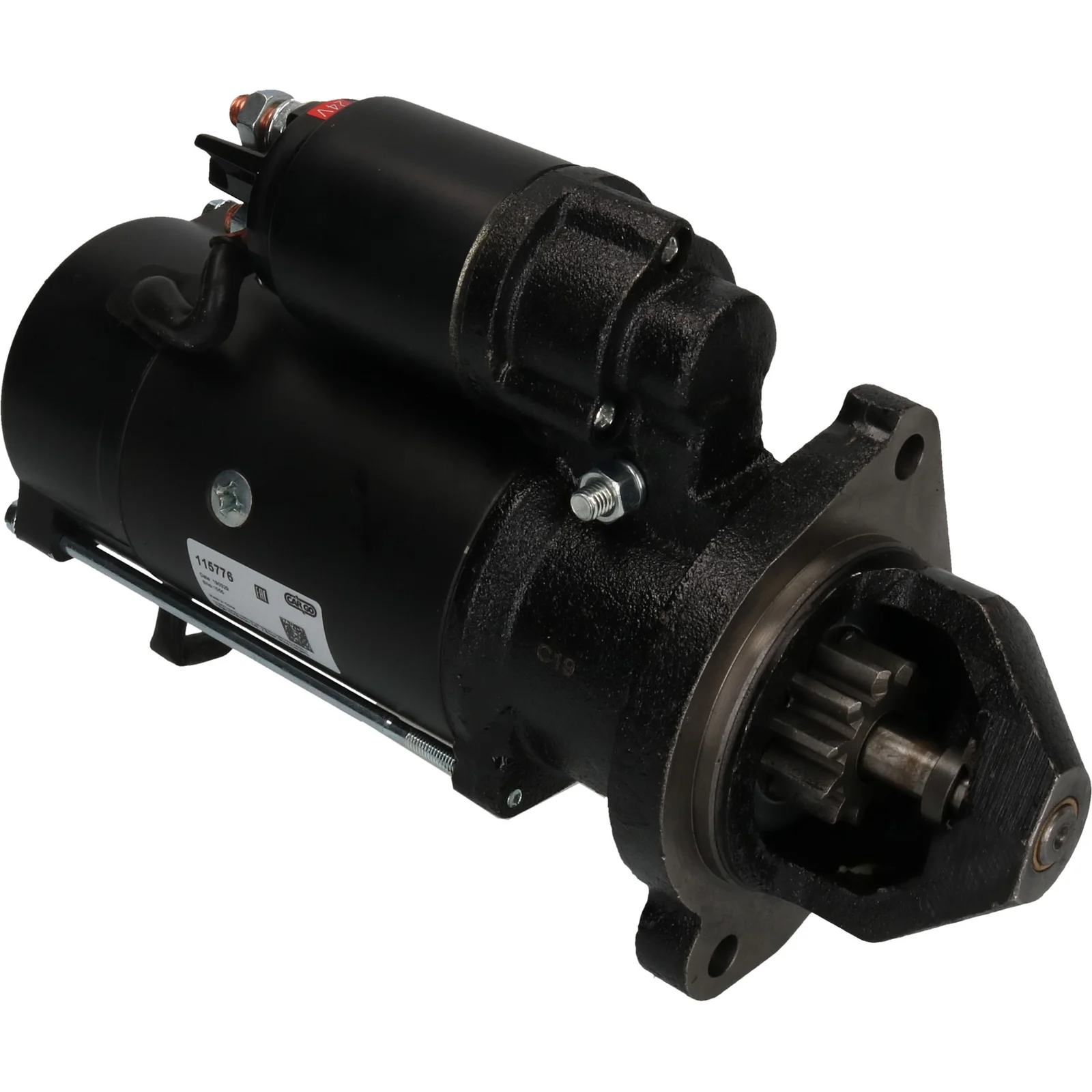

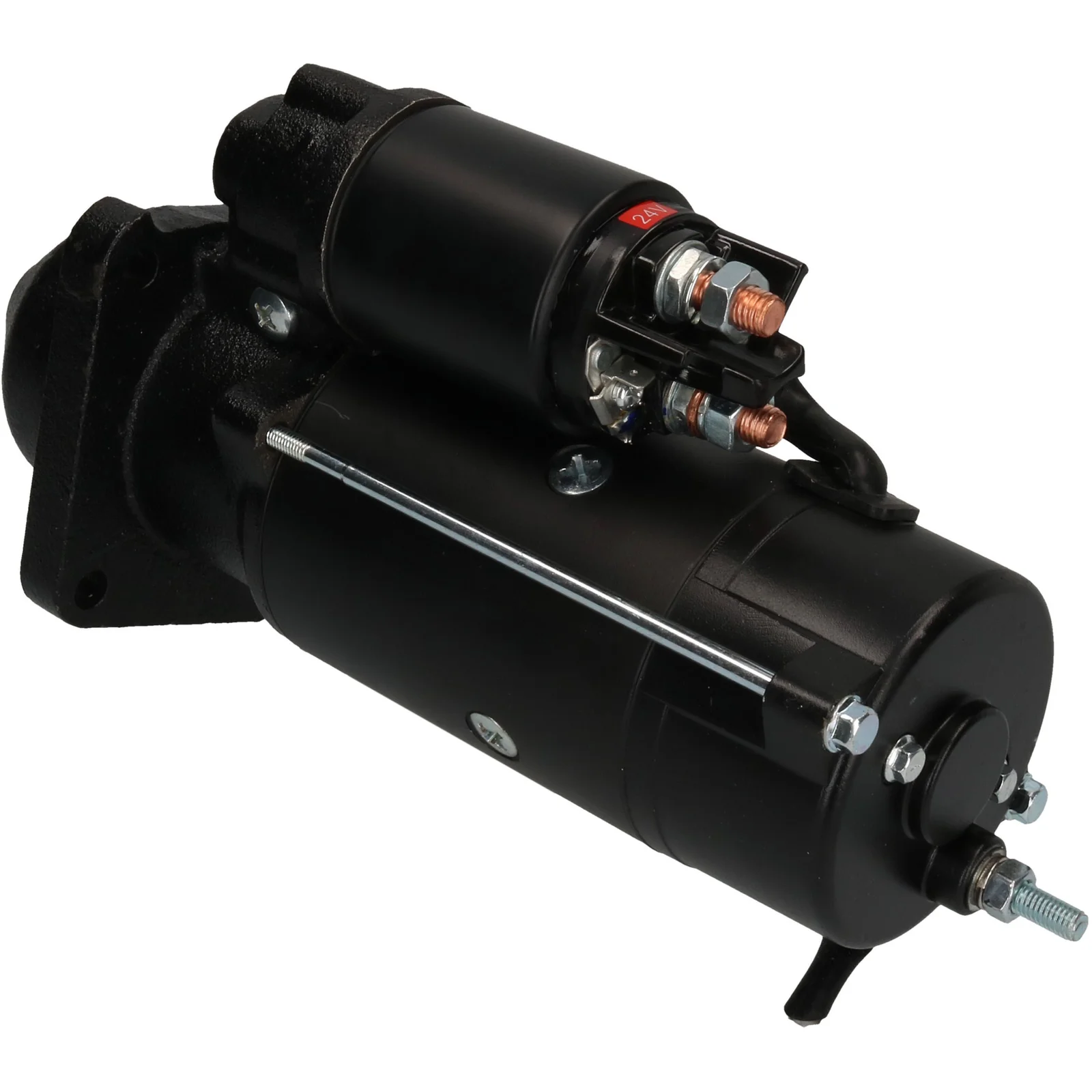

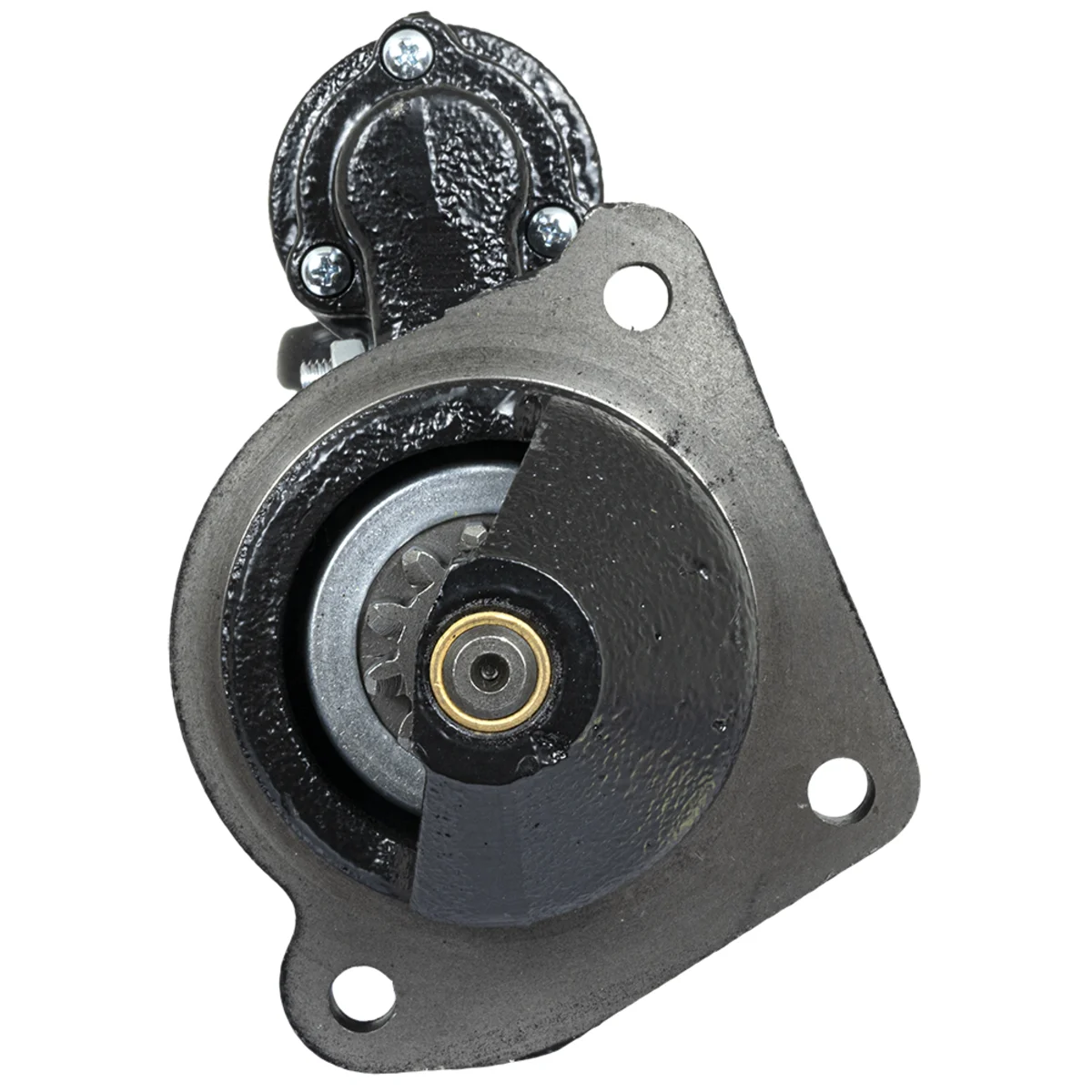

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 11, Rotation: CW

Description

HC-Cargo Starter motor 24V-4.0kW 24V - 4.0kW, 11k, (B-) A - 89mm, B - 21mm

Voltage: 24
kW: 4.0
Mounting flange: 89.00
Drive distance: 20.00
Mounting hole 3 mm: 11.20
Mounting hole 2 mm: 11.20
Mounting hole 1 mm: 11.20
Distance/back: 250.00
Distance/front: 68.50
Number/teeth: 11
B+: M10
Position/B+: 60
Thread length mm: 24.00
Position/50: 45
Terminal 50: M4-6.30
Gear type: GR
Distance 2: 90.00
Distance 3: 127.00
Distance mm: 90.00
Rotation: CW
Position/b-: 28
B-: M8
Total length mm: 352.00
Number/mounting holes: 3 (0)

Files

  • OEM
    AZF 4267, AZF 4338, AZF4211, AZF4225, AZF4267, AZF4579, F032115776, RGO115776, 11.131.303, 11.131.805, 11.131.849, 11.131.995, 11.132.230, 91-260-1106, 320-09023, 320-09033, 320-09347, 320-09453, 320-A9080, 320-A9453, 320/09023, 320/09033, 320/09347, 320/A9080, 1106, 11131 995, 11132 230, 115776

  • Normalised article numbler
    azf4211, azf4225, azf4267, azf4338, azf4579, cst21617, f032115776, is1106, ms5, rgo115776, s9097, s9097letrika, 320a9080, 320a9453, 1106, 33415n, 115776, 11131303, 11131805, 11131849, 11131995, 11132230, 32009023, 32009033, 32009347, 32009453, 701512113, 912601106
  • Description
    HC-Cargo Starter motor 24V-4.0kW 24V - 4.0kW, 11k, (B-) A - 89mm, B - 21mm

    Voltage: 24
    kW: 4.0
    Mounting flange: 89.00
    Drive distance: 20.00
    Mounting hole 3 mm: 11.20
    Mounting hole 2 mm: 11.20
    Mounting hole 1 mm: 11.20
    Distance/back: 250.00
    Distance/front: 68.50
    Number/teeth: 11
    B+: M10
    Position/B+: 60
    Thread length mm: 24.00
    Position/50: 45
    Terminal 50: M4-6.30
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 127.00
    Distance mm: 90.00
    Rotation: CW
    Position/b-: 28
    B-: M8
    Total length mm: 352.00
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF 4267, AZF 4338, AZF4211, AZF4225, AZF4267, AZF4579, F032115776, RGO115776, 11.131.303, 11.131.805, 11.131.849, 11.131.995, 11.132.230, 91-260-1106, 320-09023, 320-09033, 320-09347, 320-09453, 320-A9080, 320-A9453, 320/09023, 320/09033, 320/09347, 320/A9080, 1106, 11131 995, 11132 230, 115776

    • Normalised article numbler
      azf4211, azf4225, azf4267, azf4338, azf4579, cst21617, f032115776, is1106, ms5, rgo115776, s9097, s9097letrika, 320a9080, 320a9453, 1106, 33415n, 115776, 11131303, 11131805, 11131849, 11131995, 11132230, 32009023, 32009033, 32009347, 32009453, 701512113, 912601106
