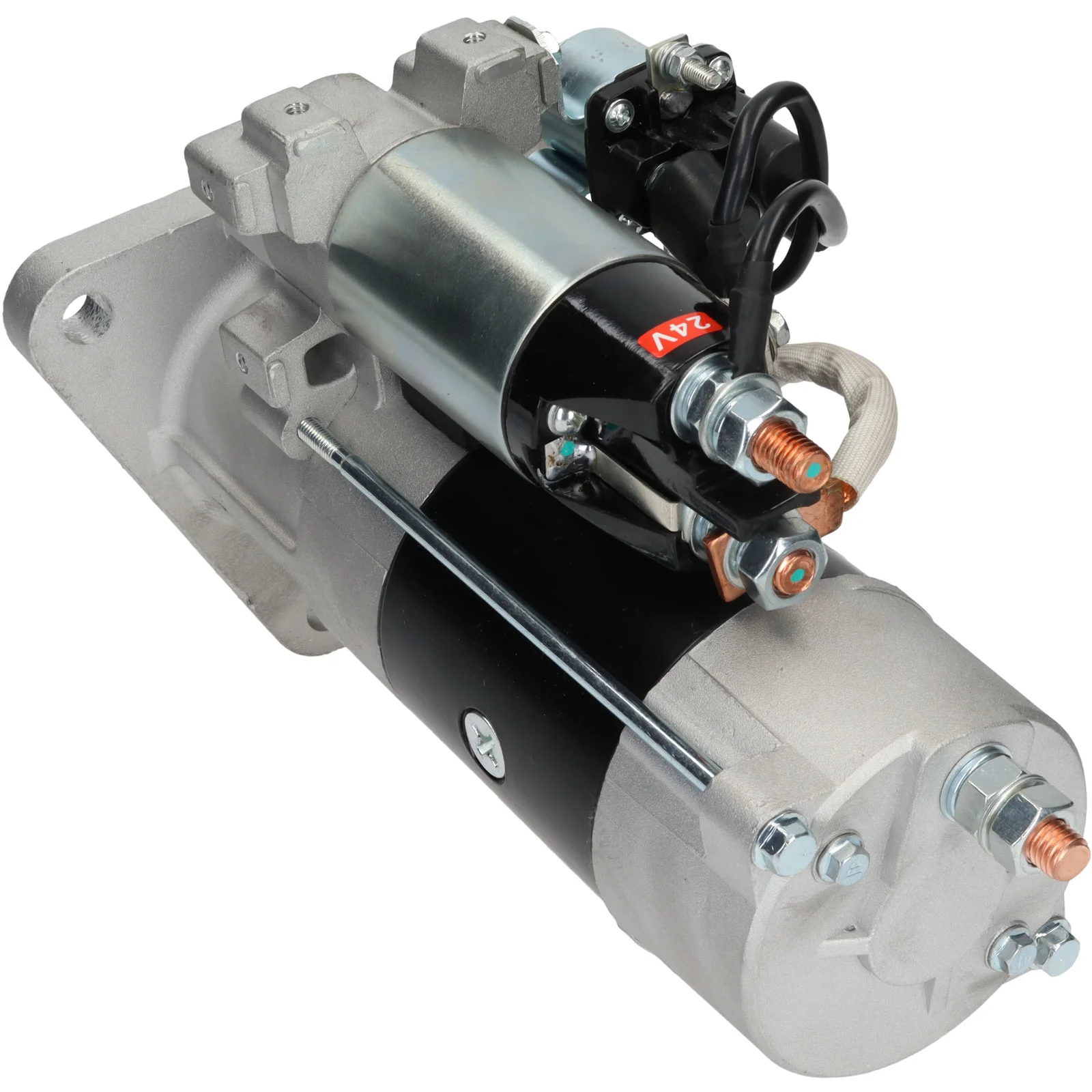

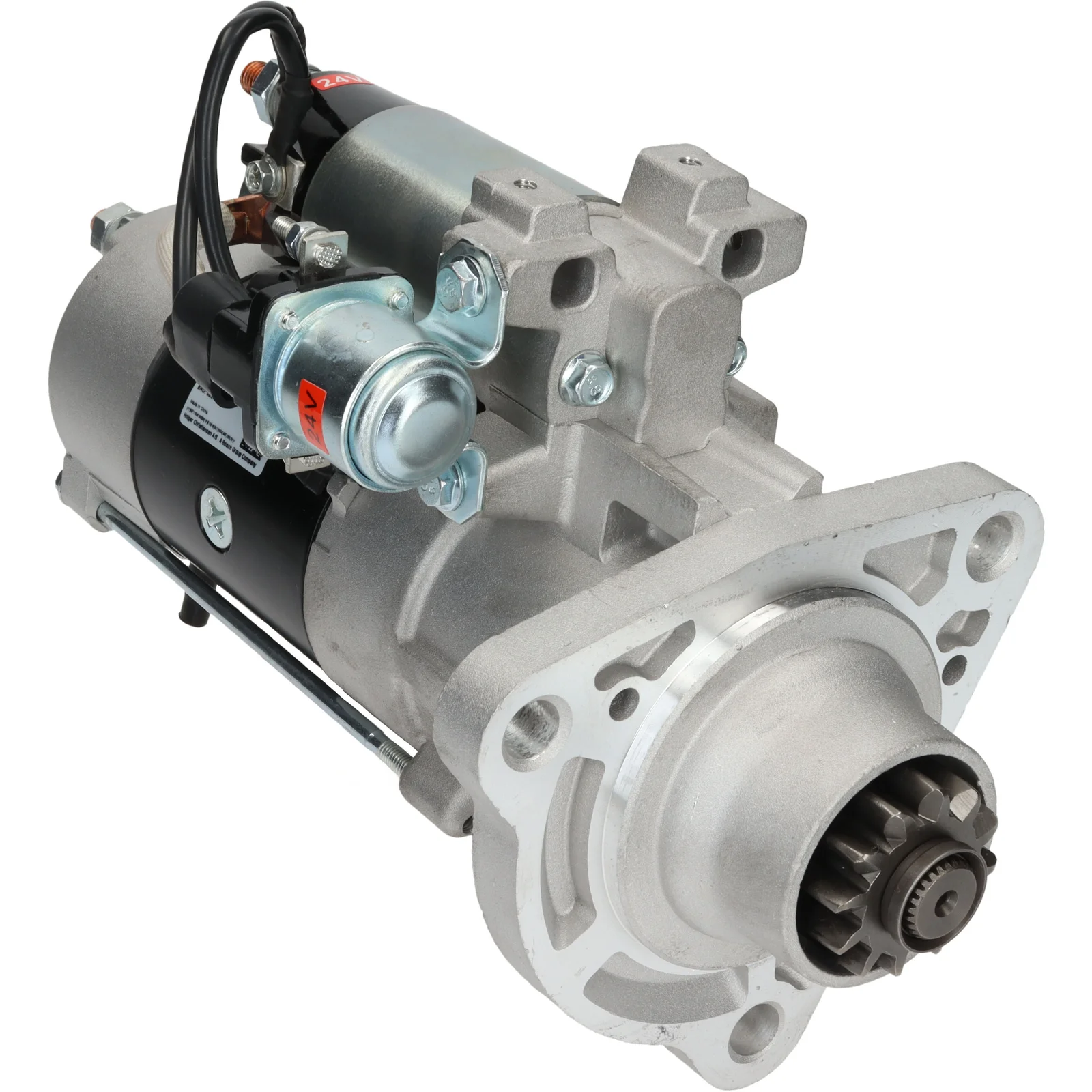

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114872

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.5, No./teeth: 12, Rotation: CW

Description

Start 24V-5.5kW fits Volvo 24V - 5.5kW, 12k A - 92mm, B - 47.5mm Alternative: We also stock original = 91-600-9663 OE Mitsubishi, missing (B-) bolt For HC-CARGO product order F032114872

Voltage: 24
kW: 5.5
Mounting flange: 92.00
Drive distance: 46.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance/back: 265.00
Distance/front: 52.00
Number/teeth: 12
B+: M10
Thread length mm: 16.00
Terminal 50: M5
Gear type: GR
Distance 2: 126.00
Distance 3: 126.00
Distance mm: 126.00
Rotation: CW
Position/b-: 5
B-: M10
Total length mm: 344.00
Product info: BN
Number/mounting holes: 3 (0)

Files

  • OEM
    AZE4693, cs1472, F032114872, FS60PR172, M009T62171, M009T62171AM, M009T62172, M009T62173, M009T62174, M009T62174AM, M009T64171, M009T64171ZT, M009T66371, M009T66371AM, M009T66372, M009T66372AM, M009T66373, M90R3547, M90R3547SE-V, M9T-62172, M9T-62173, M9T-64171, M9T-64172, M9T-66371, M9T-66372, M9T62171, M9T62172, M9T62173, M9T62174AM, M9T64171, M9T64171ZT, M9T66371, M9T66372, M9T66373AM, RGO 114872, 11.139.621, 0986 025 460, 1986S00003, 1986S10032, 114872, 19081015, 20572417, 20714203, 20891242, 21632125, 21632127, 22602940, 85000746, 85013089, 85020793, 5001866293, 7420714203, 7421632125, 7422602941, 7485013211, 7485020794

  • Normalised article numbler
    aze4693, cs1472, cst35631, cst35669, drs0539, drs0539n, drs0539x, drs0637, f032114872, f042001203, f042s01203, fs60pr172, is9473, lrs02455, m009t62171, m009t62171am, m009t62172, m009t62173, m009t62174, m009t62174am, m009t64171, m009t64171zt, m009t66371, m009t66371am, m009t66372, m009t66372am, m009t66373, m90r3547, m90r3547se, m90r3547sev, m9t62171, m9t62172, m9t62173, m9t62174am, m9t64171, m9t64171zt, m9t64172, m9t66371, m9t66372, m9t66373am, mitm9t66371, ms761, rgo114872, s5028, s5173, s5214, s5214mitsubishi, s5465s, str7903, 8ea012586291, 8ea738259281, 1986s00003, 1986s10032, 19928n, 114872, 220563, 220563a, 255259, 438241, 723364m, 11090273, 11139621, 19081015, 20572417, 20714203, 20891242, 21632125, 21632127, 22602940, 85000746, 85013089, 85020793, 811516123, 811525123, 0986025460, 0986028020, 5001866293, 7420714203, 7421632125, 7422602941, 7485013211, 7485020794
  • Description
    Start 24V-5.5kW fits Volvo 24V - 5.5kW, 12k A - 92mm, B - 47.5mm Alternative: We also stock original = 91-600-9663 OE Mitsubishi, missing (B-) bolt For HC-CARGO product order F032114872

    Voltage: 24
    kW: 5.5
    Mounting flange: 92.00
    Drive distance: 46.00
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance/back: 265.00
    Distance/front: 52.00
    Number/teeth: 12
    B+: M10
    Thread length mm: 16.00
    Terminal 50: M5
    Gear type: GR
    Distance 2: 126.00
    Distance 3: 126.00
    Distance mm: 126.00
    Rotation: CW
    Position/b-: 5
    B-: M10
    Total length mm: 344.00
    Product info: BN
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZE4693, cs1472, F032114872, FS60PR172, M009T62171, M009T62171AM, M009T62172, M009T62173, M009T62174, M009T62174AM, M009T64171, M009T64171ZT, M009T66371, M009T66371AM, M009T66372, M009T66372AM, M009T66373, M90R3547, M90R3547SE-V, M9T-62172, M9T-62173, M9T-64171, M9T-64172, M9T-66371, M9T-66372, M9T62171, M9T62172, M9T62173, M9T62174AM, M9T64171, M9T64171ZT, M9T66371, M9T66372, M9T66373AM, RGO 114872, 11.139.621, 0986 025 460, 1986S00003, 1986S10032, 114872, 19081015, 20572417, 20714203, 20891242, 21632125, 21632127, 22602940, 85000746, 85013089, 85020793, 5001866293, 7420714203, 7421632125, 7422602941, 7485013211, 7485020794

    • Normalised article numbler
      aze4693, cs1472, cst35631, cst35669, drs0539, drs0539n, drs0539x, drs0637, f032114872, f042001203, f042s01203, fs60pr172, is9473, lrs02455, m009t62171, m009t62171am, m009t62172, m009t62173, m009t62174, m009t62174am, m009t64171, m009t64171zt, m009t66371, m009t66371am, m009t66372, m009t66372am, m009t66373, m90r3547, m90r3547se, m90r3547sev, m9t62171, m9t62172, m9t62173, m9t62174am, m9t64171, m9t64171zt, m9t64172, m9t66371, m9t66372, m9t66373am, mitm9t66371, ms761, rgo114872, s5028, s5173, s5214, s5214mitsubishi, s5465s, str7903, 8ea012586291, 8ea738259281, 1986s00003, 1986s10032, 19928n, 114872, 220563, 220563a, 255259, 438241, 723364m, 11090273, 11139621, 19081015, 20572417, 20714203, 20891242, 21632125, 21632127, 22602940, 85000746, 85013089, 85020793, 811516123, 811525123, 0986025460, 0986028020, 5001866293, 7420714203, 7421632125, 7422602941, 7485013211, 7485020794
