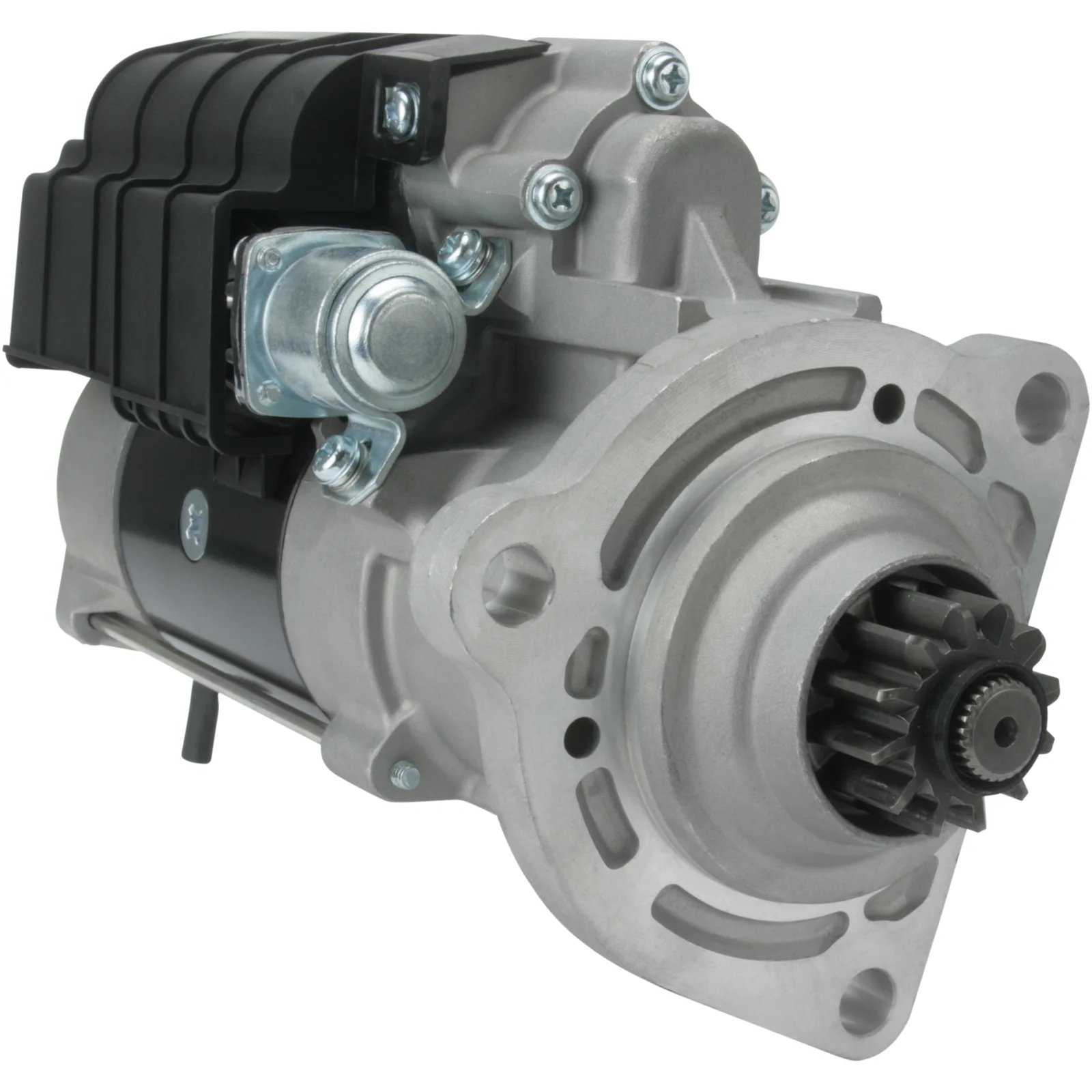

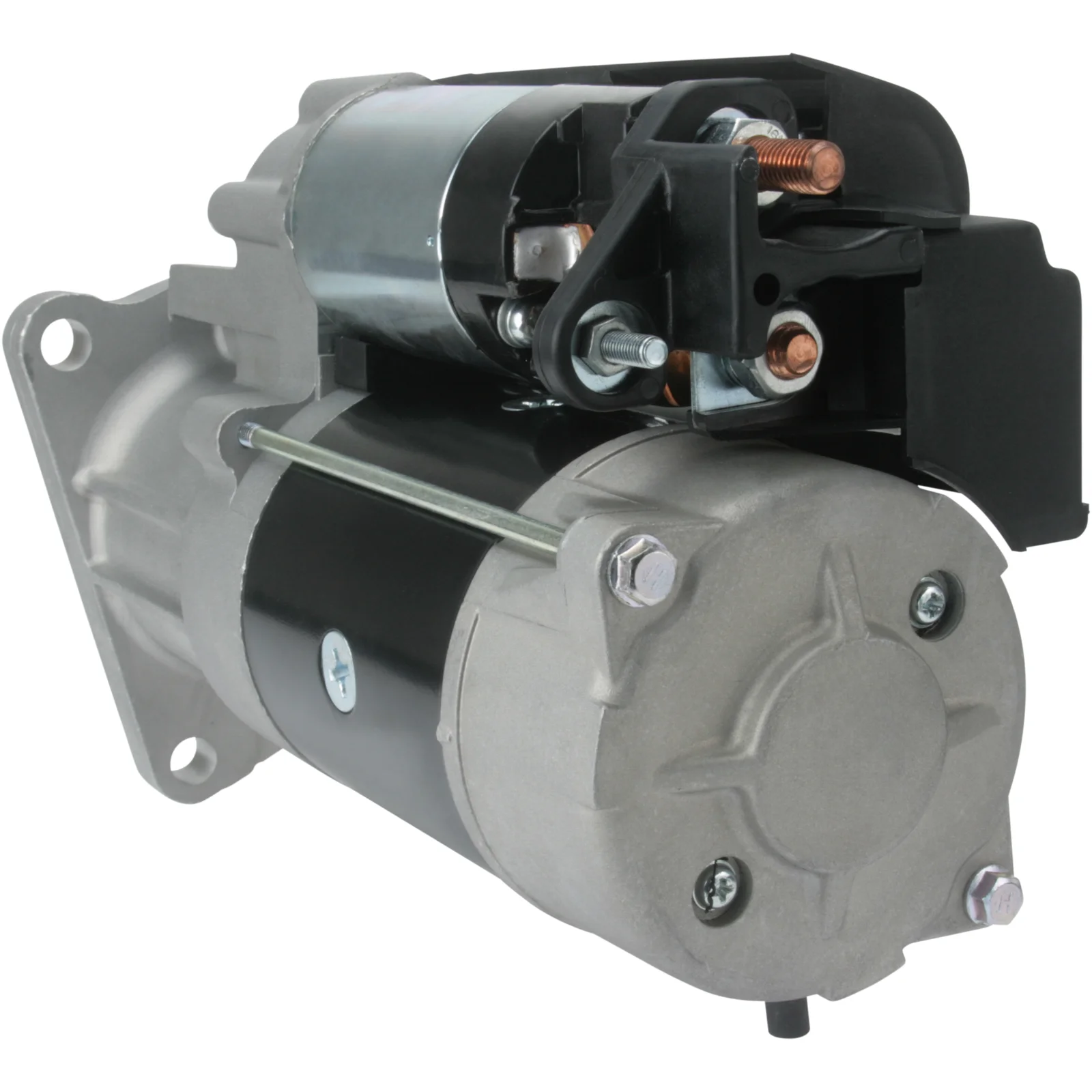

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115439

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 7.0, No./teeth: 12, Rotation: CW

Description

Scania Alternator DC16 Start m. 24V-7kW 24V - 7.0kW, 12k A - 92mm, B - 48mm Scania P, R trucks with DC16 Ch 2046404-SSS, 5225263-SNL, 9141512-SAN, 364484-SLA for Yourex product order 91-500-9837

Voltage: 24
kW: 7.0
Mounting flange: 92.00
Drive distance: 47.50
Mounting hole 3 mm: 14.00
Mounting hole 2 mm: 14.00
Mounting hole 1 mm: 14.00
Distance / back: 292.00
Distance / front: 55.00
Number / teeth: 12
B+: M10
Position/50: 38
Terminal 50: M6
Gear type: GR
Distance 2: 126.00
Distance 3: 126.00
Distance in millimeters: 126.00
Rotation: CW
Total length in millimeters: 349.00
Number of mounting holes: 3 (0)

Files

  • OEM
    cs1550, F032115439, M009T83771, M105R3527SE-VPP, M9T-83771, m9t83771, M9T83771AM, SCA 1797880, SCA 2008268, 115439, 571231, 573175, 1797880, 2008268, 2403301, 2777872, 2969380

  • Normalised article numbler
    cs1550, cst35635, drs0542, f032115439, f042001210, f042s01210, m009t83771, m105r3527se, m105r3527sevpp, m9t83771, m9t83771am, mitm9t83771, ms765, s5227, s5240s, sca1797880, sca2008268, str71232, str7951, 8ea012586671, 8ea012586681, 31264n, 115439, 220572, 220572a, 455028, 571231, 573175, 1797880, 2008268, 2403301, 2777872, 2969380, 08081400a, 11022250, 332013124, 911504123, 0986022250
  • Description
    Scania Alternator DC16 Start m. 24V-7kW 24V - 7.0kW, 12k A - 92mm, B - 48mm Scania P, R trucks with DC16 Ch 2046404-SSS, 5225263-SNL, 9141512-SAN, 364484-SLA for Yourex product order 91-500-9837

    Voltage: 24
    kW: 7.0
    Mounting flange: 92.00
    Drive distance: 47.50
    Mounting hole 3 mm: 14.00
    Mounting hole 2 mm: 14.00
    Mounting hole 1 mm: 14.00
    Distance / back: 292.00
    Distance / front: 55.00
    Number / teeth: 12
    B+: M10
    Position/50: 38
    Terminal 50: M6
    Gear type: GR
    Distance 2: 126.00
    Distance 3: 126.00
    Distance in millimeters: 126.00
    Rotation: CW
    Total length in millimeters: 349.00
    Number of mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1550, F032115439, M009T83771, M105R3527SE-VPP, M9T-83771, m9t83771, M9T83771AM, SCA 1797880, SCA 2008268, 115439, 571231, 573175, 1797880, 2008268, 2403301, 2777872, 2969380

    • Normalised article numbler
      cs1550, cst35635, drs0542, f032115439, f042001210, f042s01210, m009t83771, m105r3527se, m105r3527sevpp, m9t83771, m9t83771am, mitm9t83771, ms765, s5227, s5240s, sca1797880, sca2008268, str71232, str7951, 8ea012586671, 8ea012586681, 31264n, 115439, 220572, 220572a, 455028, 571231, 573175, 1797880, 2008268, 2403301, 2777872, 2969380, 08081400a, 11022250, 332013124, 911504123, 0986022250
