Article no.: F032113851

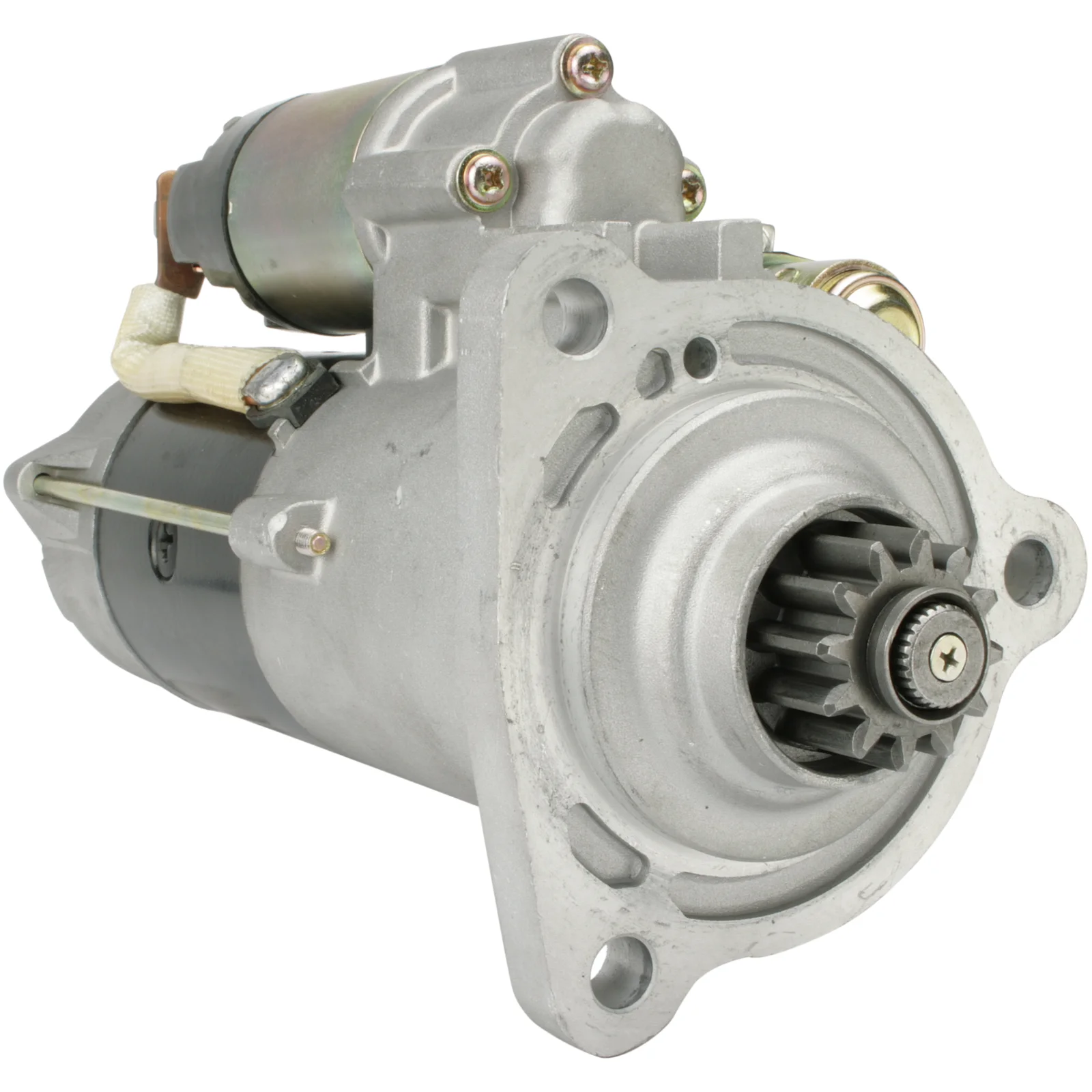

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 7.5, No./teeth: 12, Rotation: CW

Description

Start. 24V-7.5kW fits Mercedes 24V - 7.5kW, 12k Prestolite M105R type 7.5kW Can replace 91-365-1837, 91-365-2088 Spare part Delco 39MT type = ST-6857 For Yourex product order 91-365-6690

Voltage: 24
kW: 7.5
Mounting flange: 92.00
Drive distance: 48.00
Mounting hole 3 mm: 14.00
Mounting hole 2 mm: 14.00
Mounting hole 1 mm: 14.00
Distance / back: 289.50
Distance / front: 56.00
Number / teeth: 12
B+: M12
Position / 50: 60
Terminal 50: M6
Gear type: DD/GR
Distance 2: 126.00
Distance 3: 126.00
Distance mm: 126.00
Rotation: CW
Total length mm: 348.50
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Remarks: Replacing: 39MT.
Number / mounting holes: 3 (0)

Files

  • OEM
    A0051516401, A005151640180, A0061511501, A006151150180, A0061516901, A0061517001, a0071510401, A0071514501, A0071514601, AZG4865, cs1463, F032113851, F032115885, M009T80471, M009T80472, M009T80473, M009T83671, M009T83672, M009T84771, M105R 3031SE, M105R3031SE-V, M9T-80471, M9T-80472, M9T-80473, M9T-83671, M9T-84771, M9T80471, M9T80472, M9T80473, M9T83671, M9T83672, M9T84771, 0001 330 011, 005 151 6401, 006 151 0001, 006 151 1501, 006 151 6901, 007 151 0401, 11.139.615, 1986S10097, 1986S10133, 113851, 115885, 0001330050, 8200436, 8200519, 19011501, 19024196, 19081009, 0051516401, 0061511501, 0061516901, 0061517001, 0071510401, 0071514501, 0071514601, 005151640180, 006151150180

  • Normalised article numbler
    a0051516401, a005151640180, a0061511501, a006151150180, a0061516901, a0061517001, a0071510401, a0071514501, a0071514601, azg4865, cs1463, cst10676, cst10816, cst11613, cst35634, drs0100, drs0100x, f032113851, f032115885, f042001212, f042003085, f042s01212, f042s03085, ga21436, is1251, is9144, is9467, les0321, lrs02416, m009t80471, m009t80472, m009t80473, m009t83671, m009t83672, m009t84771, m105r3031se, m105r3031sev, m9t80471, m9t80472, m9t80473, m9t83671, m9t83672, m9t84771, mitm9t84771, ms754, s0842s, s1017, s5049, s5447s, str4394, str71172, str7953, 8ea012586231, 8ea738038001, 8ea738259231, 1986s10097, 1986s10133, 6857n, 30111ndr, 101463, 106175, 106565, 113851, 115885, 203044, 220575, 220575a, 0001330011, 0001330050, 08081300a, 8200436, 8200519, 8212783, 11020880, 11022980, 11139615, 19011501, 19024196, 19081009, 0051516401, 0061510001, 0061511501, 0061516901, 0061517001, 0071510401, 0071514501, 0071514601, 551237123, 551555123, 551563123, 625035124, 0986022980, 005151640180, 006151150180
  • Description
    Start. 24V-7.5kW fits Mercedes 24V - 7.5kW, 12k Prestolite M105R type 7.5kW Can replace 91-365-1837, 91-365-2088 Spare part Delco 39MT type = ST-6857 For Yourex product order 91-365-6690

    Voltage: 24
    kW: 7.5
    Mounting flange: 92.00
    Drive distance: 48.00
    Mounting hole 3 mm: 14.00
    Mounting hole 2 mm: 14.00
    Mounting hole 1 mm: 14.00
    Distance / back: 289.50
    Distance / front: 56.00
    Number / teeth: 12
    B+: M12
    Position / 50: 60
    Terminal 50: M6
    Gear type: DD/GR
    Distance 2: 126.00
    Distance 3: 126.00
    Distance mm: 126.00
    Rotation: CW
    Total length mm: 348.50
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Replacing: 39MT.
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      A0051516401, A005151640180, A0061511501, A006151150180, A0061516901, A0061517001, a0071510401, A0071514501, A0071514601, AZG4865, cs1463, F032113851, F032115885, M009T80471, M009T80472, M009T80473, M009T83671, M009T83672, M009T84771, M105R 3031SE, M105R3031SE-V, M9T-80471, M9T-80472, M9T-80473, M9T-83671, M9T-84771, M9T80471, M9T80472, M9T80473, M9T83671, M9T83672, M9T84771, 0001 330 011, 005 151 6401, 006 151 0001, 006 151 1501, 006 151 6901, 007 151 0401, 11.139.615, 1986S10097, 1986S10133, 113851, 115885, 0001330050, 8200436, 8200519, 19011501, 19024196, 19081009, 0051516401, 0061511501, 0061516901, 0061517001, 0071510401, 0071514501, 0071514601, 005151640180, 006151150180

    • Normalised article numbler
      a0051516401, a005151640180, a0061511501, a006151150180, a0061516901, a0061517001, a0071510401, a0071514501, a0071514601, azg4865, cs1463, cst10676, cst10816, cst11613, cst35634, drs0100, drs0100x, f032113851, f032115885, f042001212, f042003085, f042s01212, f042s03085, ga21436, is1251, is9144, is9467, les0321, lrs02416, m009t80471, m009t80472, m009t80473, m009t83671, m009t83672, m009t84771, m105r3031se, m105r3031sev, m9t80471, m9t80472, m9t80473, m9t83671, m9t83672, m9t84771, mitm9t84771, ms754, s0842s, s1017, s5049, s5447s, str4394, str71172, str7953, 8ea012586231, 8ea738038001, 8ea738259231, 1986s10097, 1986s10133, 6857n, 30111ndr, 101463, 106175, 106565, 113851, 115885, 203044, 220575, 220575a, 0001330011, 0001330050, 08081300a, 8200436, 8200519, 8212783, 11020880, 11022980, 11139615, 19011501, 19024196, 19081009, 0051516401, 0061510001, 0061511501, 0061516901, 0061517001, 0071510401, 0071514501, 0071514601, 551237123, 551555123, 551563123, 625035124, 0986022980, 005151640180, 006151150180
