Article no.: F032110212

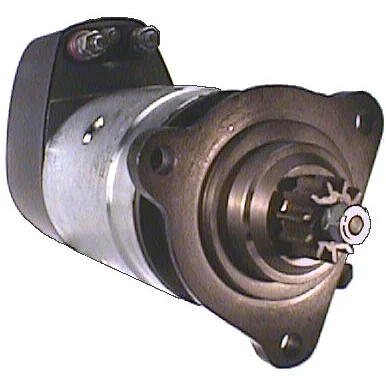

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 6.6, No./teeth: 11, Rotation: CW

Description

Startm. 24V-6.0kW fits Scania 24V - 6.0kW, 11k For Yourrex product order 91-500-1248

Voltage: 24
kW: 6.6
Mounting flange: 92.00
Drive distance: 48.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 338.00
Distance / front: 64.00
Number / teeth: 11
B+: M10
Position / 50: 60
Terminal 50: M6
Gear type: DD
Distance. 2: 126.00
Distance. 3: 126.00
Distance. mm: 126.00
Rotation: CW
B-: M10
Total length mm: 407.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)
  • OEM

    AZK5172, cs121, F032110212, R22.14, R22.16, r23.26, SCA 349578, SCA 571423, SCA 571460, 0001 410 098, 0001 411 013, 0001 411 027, 0001 415 015, 0001 416 048, 0001 417 007, 0001 417 045, 11-0212, 11.139.012, 0201, 312, 361, 548, 607, 645, 0986 012 480, 1986S00061, 1986S00062, 9011, 9012, 12800, 22711, 22713, 0140000, 0160000, 170743, 277451, 309220, 309470, 349578, 349581, 349587, 478281, 571423, 571460, 0001410098, 0001410115, 0001411005, 0001415014, 0001415015, 0001416029, 0001416048, 0001417045, 0001417046, 1516692R, 4782801, 6244321, 6260000, 9125130, 9125460, 19024042, 19024078, 42498185, 81467045, 9000084021, 9009084021
  • Normalised article numbler

    azk5172, cs121, cst10603, cst10633, drs2480, drs7100, drs8790, f032110212, f042002111, f042002126, f042s02111, f042s02126, is0607, is9011, is9012, is9040, lrs00746, lrs02146, lrs02147, mg726, ms480, ms481, ms537, ms560, r2214, r2216, r2326, s0220, s0349, sca349578, sca571423, sca571460, str22056, str23905, 8ea725974001, 0201, 312, 361, 548, 607, 645, 1513, 1986s00061, 1986s00062, 9011, 9012, 10121, 12800, 17216n, 17321, 22711, 22713, 33546, 33601, 33602, 33668, 103467, 104723, 110212, 0140000, 0160000, 170743, 203057, 220234, 220234a, 220235, 220235a, 254320, 254566, 277451, 309220, 309470, 349578, 349581, 349587, 438047, 450150, 450313, 450330, 450381, 455535, 460255, 478281, 571423, 571460, 0001410098, 0001410115, 0001411005, 0001411013, 0001411027, 0001415014, 0001415015, 0001416029, 0001416048, 0001417007, 0001417045, 0001417046, 1516692r, 4782801, 6244321, 6260000, 8812480, 9125130, 9125460, 11012480, 11017100, 11018790, 11139012, 19024042, 19024078, 42498185, 81467045, 332003114, 332005114, 332006114, 600221112, 943252231, 0986012480, 0986012483, 0986017100, 0986018790, 0986018793, 9000084021, 9009084021, 943252231010
  • Description
    Startm. 24V-6.0kW fits Scania 24V - 6.0kW, 11k For Yourrex product order 91-500-1248

    Voltage: 24
    kW: 6.6
    Mounting flange: 92.00
    Drive distance: 48.00
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 338.00
    Distance / front: 64.00
    Number / teeth: 11
    B+: M10
    Position / 50: 60
    Terminal 50: M6
    Gear type: DD
    Distance. 2: 126.00
    Distance. 3: 126.00
    Distance. mm: 126.00
    Rotation: CW
    B-: M10
    Total length mm: 407.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)
  • Suitable for these vehicles
    • OEM

      AZK5172, cs121, F032110212, R22.14, R22.16, r23.26, SCA 349578, SCA 571423, SCA 571460, 0001 410 098, 0001 411 013, 0001 411 027, 0001 415 015, 0001 416 048, 0001 417 007, 0001 417 045, 11-0212, 11.139.012, 0201, 312, 361, 548, 607, 645, 0986 012 480, 1986S00061, 1986S00062, 9011, 9012, 12800, 22711, 22713, 0140000, 0160000, 170743, 277451, 309220, 309470, 349578, 349581, 349587, 478281, 571423, 571460, 0001410098, 0001410115, 0001411005, 0001415014, 0001415015, 0001416029, 0001416048, 0001417045, 0001417046, 1516692R, 4782801, 6244321, 6260000, 9125130, 9125460, 19024042, 19024078, 42498185, 81467045, 9000084021, 9009084021
    • Normalised article numbler

      azk5172, cs121, cst10603, cst10633, drs2480, drs7100, drs8790, f032110212, f042002111, f042002126, f042s02111, f042s02126, is0607, is9011, is9012, is9040, lrs00746, lrs02146, lrs02147, mg726, ms480, ms481, ms537, ms560, r2214, r2216, r2326, s0220, s0349, sca349578, sca571423, sca571460, str22056, str23905, 8ea725974001, 0201, 312, 361, 548, 607, 645, 1513, 1986s00061, 1986s00062, 9011, 9012, 10121, 12800, 17216n, 17321, 22711, 22713, 33546, 33601, 33602, 33668, 103467, 104723, 110212, 0140000, 0160000, 170743, 203057, 220234, 220234a, 220235, 220235a, 254320, 254566, 277451, 309220, 309470, 349578, 349581, 349587, 438047, 450150, 450313, 450330, 450381, 455535, 460255, 478281, 571423, 571460, 0001410098, 0001410115, 0001411005, 0001411013, 0001411027, 0001415014, 0001415015, 0001416029, 0001416048, 0001417007, 0001417045, 0001417046, 1516692r, 4782801, 6244321, 6260000, 8812480, 9125130, 9125460, 11012480, 11017100, 11018790, 11139012, 19024042, 19024078, 42498185, 81467045, 332003114, 332005114, 332006114, 600221112, 943252231, 0986012480, 0986012483, 0986017100, 0986018790, 0986018793, 9000084021, 9009084021, 943252231010
