Article no.: F032110980

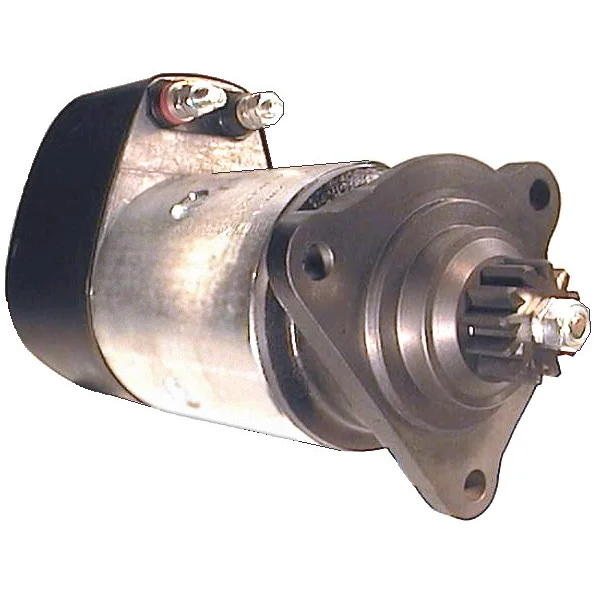

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.4, No./teeth: 12, Rotation: CW

Description

Start 24V-5.4kW fits Volvo 24V - 5.4kW, 12k A - 92mm, B - 48mm For Yourex product order 91-600-1543

Voltage: 24
kW: 5.4
Mounting flange: 92.00
Drive distance: 47.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 323.00
Distance / front: 62.50
Number / teeth: 12
B+: M10
Position / 50: 60
Terminal 50: M6
Gear type: DD
Distance 2: 125.00
Distance 3: 125.00
Distance mm: 125.00
Rotation: CW
B-: M10
Total length mm: 387.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    AZK5188, cs699, F032110980, R23.34, 0001 368 057, 0001 416 061, 11.139.029, 561, 0986 015 430, 0986 015 690, 110980, 420731, 471638, 477049, 858878, 860110, 860512, 860512GB, 0001416061, 0001416065, 1516796R, 5003312, 6340000, 8113230, 8113907, 8192965, 9125500, 19024048, 81466061, 85000440

  • Normalised article numbler
    azk5188, bso7107, cs699, cst10636, drs5430, f032110980, f042002112, f042s02112, is9029, is9109, lrs00767, ms540, ms574, r2334, s0355, s0807s, str22023, str23809, str50187, 8ea012586181, 8ea730215001, 561, 1643, 8741, 10699, 18376, 18376n, 33897, 103524, 105888, 110980, 220291, 220291a, 420731, 438039, 451366, 455538, 471638, 477049, 858878, 860110, 860512, 860512gb, 0001368057, 0001416061, 0001416065, 1516796r, 5003312, 6340000, 8113230, 8113907, 8192965, 8815430, 9125500, 11015430, 11139029, 19024048, 81466061, 85000440, 338016124, 0986015430, 0986015433, 0986015690, 0986019813, 0986019830, 943251569010
  • Description
    Start 24V-5.4kW fits Volvo 24V - 5.4kW, 12k A - 92mm, B - 48mm For Yourex product order 91-600-1543

    Voltage: 24
    kW: 5.4
    Mounting flange: 92.00
    Drive distance: 47.00
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 323.00
    Distance / front: 62.50
    Number / teeth: 12
    B+: M10
    Position / 50: 60
    Terminal 50: M6
    Gear type: DD
    Distance 2: 125.00
    Distance 3: 125.00
    Distance mm: 125.00
    Rotation: CW
    B-: M10
    Total length mm: 387.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZK5188, cs699, F032110980, R23.34, 0001 368 057, 0001 416 061, 11.139.029, 561, 0986 015 430, 0986 015 690, 110980, 420731, 471638, 477049, 858878, 860110, 860512, 860512GB, 0001416061, 0001416065, 1516796R, 5003312, 6340000, 8113230, 8113907, 8192965, 9125500, 19024048, 81466061, 85000440

    • Normalised article numbler
      azk5188, bso7107, cs699, cst10636, drs5430, f032110980, f042002112, f042s02112, is9029, is9109, lrs00767, ms540, ms574, r2334, s0355, s0807s, str22023, str23809, str50187, 8ea012586181, 8ea730215001, 561, 1643, 8741, 10699, 18376, 18376n, 33897, 103524, 105888, 110980, 220291, 220291a, 420731, 438039, 451366, 455538, 471638, 477049, 858878, 860110, 860512, 860512gb, 0001368057, 0001416061, 0001416065, 1516796r, 5003312, 6340000, 8113230, 8113907, 8192965, 8815430, 9125500, 11015430, 11139029, 19024048, 81466061, 85000440, 338016124, 0986015430, 0986015433, 0986015690, 0986019813, 0986019830, 943251569010
