Article no.: F032112119

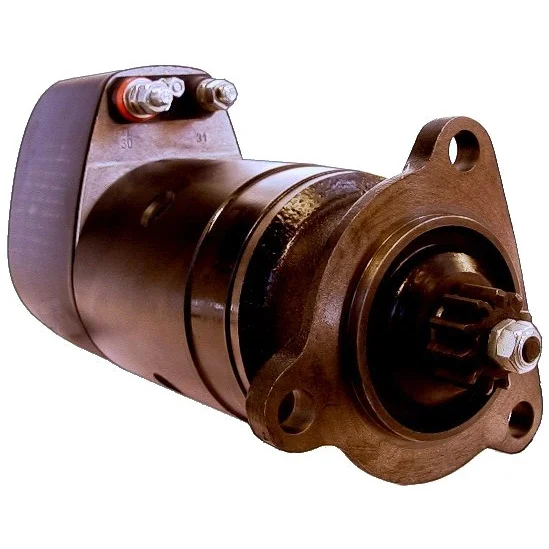

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 6.6, No./teeth: 11, Rotation: CW

Description

HC-Cargo Starter motor For Yourex product order 91-500-1345

Voltage: 24
kW: 6.6
Mounting flange: 92.00
Drive distance: 37.00
Mounting hole 3 mm: 20.00
Mounting hole 2 mm: 17.00
Mounting hole 1 mm: 17.00
Distance / back: 353.50
Distance / front: 56.00
Number / teeth: 11
B+: M10
Position / 50: 60
Terminal 50: M6
Gear type: DD
Distance 2: 126.00
Distance 3: 126.00
Distance mm: 126.00
Rotation: CW
B-: M10
Total length mm: 406.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    azk5181, cs881, F032112119, SCA 349575, SCA 571421, SCA 571453, 0001 410 043, 0001 410 077, 0001 417 042, 0001 417 044, 11.139.022, 642, 0986 013 450, 9022, 22718, 112119, 349575, 571453, 858879, 860505, 0001417042, 1516820R, 9125110, 19024076, 81467042, 81467043

  • Normalised article numbler
    azk5181, bso7103, cs881, cst10645, drs3450, drs7250, f032112119, f042002125, f042s02125, is9022, lrs00764, ms472, s0065, sca349575, sca571421, sca571453, str22025, str23904, str9117, 8ea012586431, 8ea732660001, 642, 4144, 9022, 10881, 15005n, 18377, 18377n, 22718, 33517, 103493, 112119, 220243, 220243a, 349575, 438045, 450479, 455541, 571453, 858879, 860505, 0001410043, 0001410077, 0001417042, 0001417044, 1516820r, 8813450, 9125110, 11013450, 11139022, 19024076, 81467042, 81467043, 332004114, 943252243, 0986013450, 0986013453
  • Description
    HC-Cargo Starter motor For Yourex product order 91-500-1345

    Voltage: 24
    kW: 6.6
    Mounting flange: 92.00
    Drive distance: 37.00
    Mounting hole 3 mm: 20.00
    Mounting hole 2 mm: 17.00
    Mounting hole 1 mm: 17.00
    Distance / back: 353.50
    Distance / front: 56.00
    Number / teeth: 11
    B+: M10
    Position / 50: 60
    Terminal 50: M6
    Gear type: DD
    Distance 2: 126.00
    Distance 3: 126.00
    Distance mm: 126.00
    Rotation: CW
    B-: M10
    Total length mm: 406.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      azk5181, cs881, F032112119, SCA 349575, SCA 571421, SCA 571453, 0001 410 043, 0001 410 077, 0001 417 042, 0001 417 044, 11.139.022, 642, 0986 013 450, 9022, 22718, 112119, 349575, 571453, 858879, 860505, 0001417042, 1516820R, 9125110, 19024076, 81467042, 81467043

    • Normalised article numbler
      azk5181, bso7103, cs881, cst10645, drs3450, drs7250, f032112119, f042002125, f042s02125, is9022, lrs00764, ms472, s0065, sca349575, sca571421, sca571453, str22025, str23904, str9117, 8ea012586431, 8ea732660001, 642, 4144, 9022, 10881, 15005n, 18377, 18377n, 22718, 33517, 103493, 112119, 220243, 220243a, 349575, 438045, 450479, 455541, 571453, 858879, 860505, 0001410043, 0001410077, 0001417042, 0001417044, 1516820r, 8813450, 9125110, 11013450, 11139022, 19024076, 81467042, 81467043, 332004114, 943252243, 0986013450, 0986013453
