Article no.: F032110214

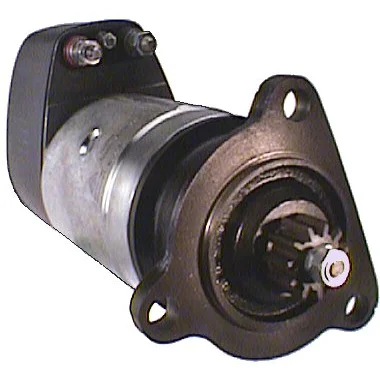

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 6.6, No./teeth: 11, Rotation: CW

Description

Starter motor 24V-6.6kW fits Scania 24V - 6.6 kW, 11k, insulated return A - 92mm, B - 37mm For Yourex product order 91-500-1143

Voltage: 24
kW: 6.6
Insulated return: Yes
Mounting flange: 92.00
Drive distance: 37.00
Mounting hole 3 mm: 16.70
Mounting hole 2 mm: 16.70
Mounting hole 1 mm: 16.70
Distance / back: 355.00
Distance / front: 52.00
Number / teeth: 11
B+: M10
Position / 50: 60
Terminal 50: M6
Gear type: DD
Distance 2: 125.00
Distance 3: 125.00
Distance mm: 125.00
Rotation: CW
B-: M10
Total length mm: 407.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    F032110214, r20.28, r20d1, r22.13, 0001 410 037, 0001 417 043, 0001 501 020, 0001 501 029, 0001 501 033, 0001 501 035, 330, 643, 0986 011 430, 0986 017 250, 22710, 110214, 0130000, 163394, 279932, 349576, 571454, 860548, 0001410037, 0001415008, 0001417043, 0001417143, 0001501020, 0001501029, 0001501033, 0001501035, 1516654R, 1516832R, 2998006, 9125120, 19024077, 81460037

  • Normalised article numbler
    bso7099, cst10646, drs1430, f032110214, f042002132, f042s02132, is0281, is9034, lrs00878, ms460, ms673, r2028, r20d1, r2213, s0010, s0805s, str22012, str22025, str2395, 8ea726254001, 8ea737288001, 330, 643, 1098, 1510, 4482, 18393, 18393n, 22710, 33530, 33598, 33599, 101040, 103446, 103566, 110214, 0130000, 163394, 220239, 220239a, 279932, 349576, 450114, 450399, 455534, 571454, 860548, 0001410037, 0001415008, 0001417043, 0001417143, 0001501020, 0001501029, 0001501033, 0001501035, 1516654r, 1516832r, 2998006, 8811430, 9125120, 11011430, 11017250, 19024077, 81460037, 332002114, 632002114, 632002114m, 943252197, 0986011430, 0986017250, 0986017253, 943252197010
  • Description
    Starter motor 24V-6.6kW fits Scania 24V - 6.6 kW, 11k, insulated return A - 92mm, B - 37mm For Yourex product order 91-500-1143

    Voltage: 24
    kW: 6.6
    Insulated return: Yes
    Mounting flange: 92.00
    Drive distance: 37.00
    Mounting hole 3 mm: 16.70
    Mounting hole 2 mm: 16.70
    Mounting hole 1 mm: 16.70
    Distance / back: 355.00
    Distance / front: 52.00
    Number / teeth: 11
    B+: M10
    Position / 50: 60
    Terminal 50: M6
    Gear type: DD
    Distance 2: 125.00
    Distance 3: 125.00
    Distance mm: 125.00
    Rotation: CW
    B-: M10
    Total length mm: 407.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110214, r20.28, r20d1, r22.13, 0001 410 037, 0001 417 043, 0001 501 020, 0001 501 029, 0001 501 033, 0001 501 035, 330, 643, 0986 011 430, 0986 017 250, 22710, 110214, 0130000, 163394, 279932, 349576, 571454, 860548, 0001410037, 0001415008, 0001417043, 0001417143, 0001501020, 0001501029, 0001501033, 0001501035, 1516654R, 1516832R, 2998006, 9125120, 19024077, 81460037

    • Normalised article numbler
      bso7099, cst10646, drs1430, f032110214, f042002132, f042s02132, is0281, is9034, lrs00878, ms460, ms673, r2028, r20d1, r2213, s0010, s0805s, str22012, str22025, str2395, 8ea726254001, 8ea737288001, 330, 643, 1098, 1510, 4482, 18393, 18393n, 22710, 33530, 33598, 33599, 101040, 103446, 103566, 110214, 0130000, 163394, 220239, 220239a, 279932, 349576, 450114, 450399, 455534, 571454, 860548, 0001410037, 0001415008, 0001417043, 0001417143, 0001501020, 0001501029, 0001501033, 0001501035, 1516654r, 1516832r, 2998006, 8811430, 9125120, 11011430, 11017250, 19024077, 81460037, 332002114, 632002114, 632002114m, 943252197, 0986011430, 0986017250, 0986017253, 943252197010
