Article no.: F032112172

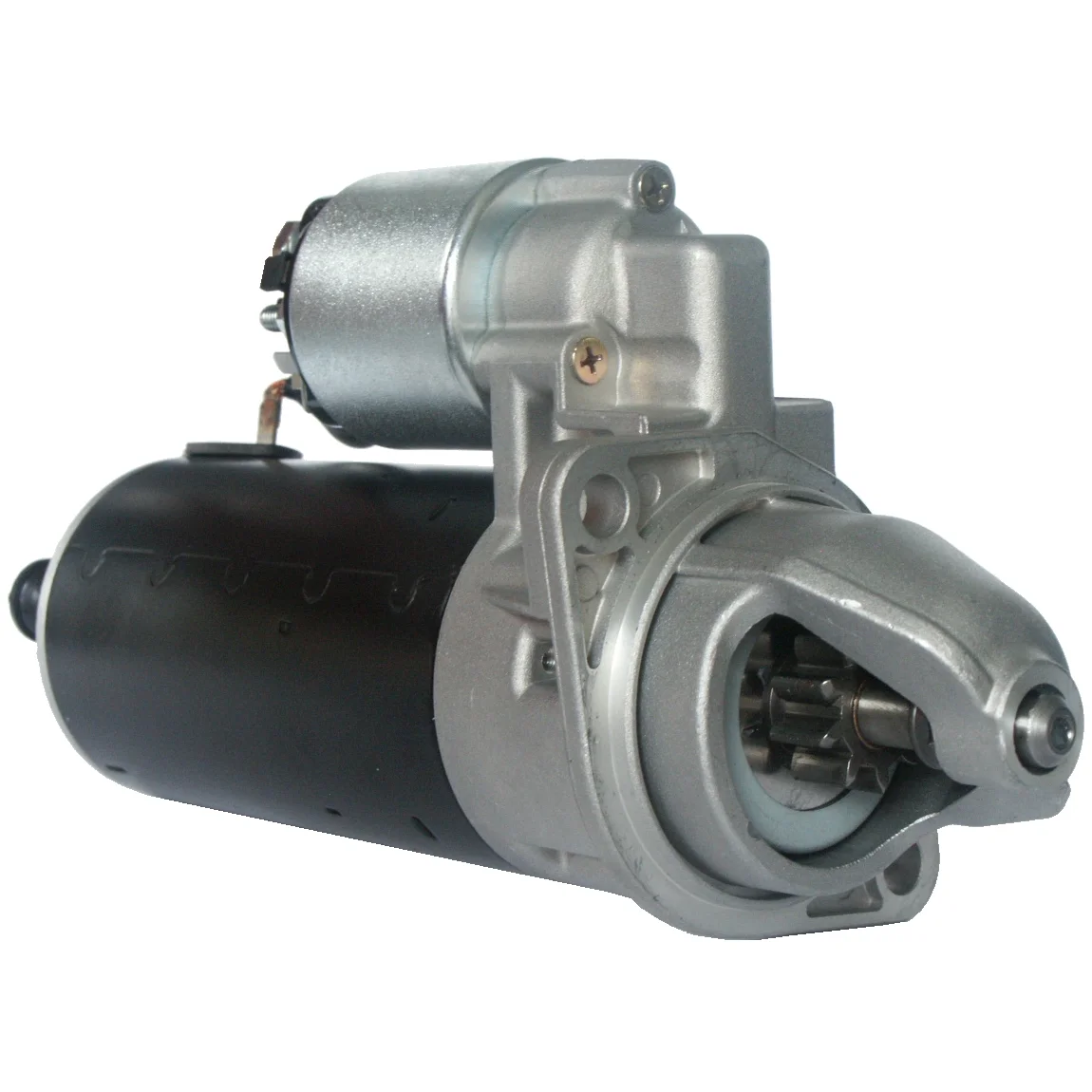

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.6, No./teeth: 9, Rotation: CW

Description

BMW Starter motor 12V-1.7kW 12V - 1.7kW, 9k For Yourex product order 91-040-1489

Voltage: 12
kW: 1.6
Mounting flange: 76.00
Drive distance: 28.00
Mounting hole 2 mm: 10.00
Mounting hole 1 mm: 10.00
Distance / back: 200.00
Distance / front: 63.00
Number / teeth: 9
B+: M8
Position / 50: 45
Terminal 50: M6
Gear type: GR
Distance in millimeters: 104.00
Rotation: CW
Total length in millimeters: 267.50
Terminal 30h: M5
Position / 30h: 15
Clutch type: Dry
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Number of / mounting holes: 2 (0)

Files

  • OEM
    cs515, E9002901237, F032112172, RGO 112172, 0001 110 041, 0001 110 042, 0001 314 001, 0986 014 890, 1241 1713898, 1241 1720663, 1241 1720664, 3206-319, 112172, 0001110028, 0001110041, 0001110042, 0001314001, 1713898, 1720663, 1720664, 63223209, 12411466100, 12411713898, 12411720636, 12411720663, 12411720664

  • Normalised article numbler
    cs515, cst10136, drs4890, e9002901237, f032112172, f042002079, f042s02079, les0186, lrs00808, lrs01379, lrs01439, lrt00161, rgo112172, s0411, s0412, sbo0098, str22070, str2231, str50040, 8ea011611021, 8ea726161001, 1444, 3607, 8480, 10515, 11659, 17237n, 17237r, 18365, 18365n, 21267bo, 33839, 103282, 112172, 201191, 220201, 220201a, 220913, 220913a, 252241, 252357, 254005, 261280, 455677, 726112, 726912, 0001110028, 0001110041, 0001110042, 0001314001, 1514890, 1713898, 1720663, 1720664, 3206319, 11014890, 63223209, 315107092, 600049092, 600051092, 681011092, 943251419, 0986014890, 0986014893, 0986014897, 0986015620, 0986015623, 0986021767, 12411466100, 12411713898, 12411720636, 12411720663, 12411720664, 943251419010, 944280148900
  • Description
    BMW Starter motor 12V-1.7kW 12V - 1.7kW, 9k For Yourex product order 91-040-1489

    Voltage: 12
    kW: 1.6
    Mounting flange: 76.00
    Drive distance: 28.00
    Mounting hole 2 mm: 10.00
    Mounting hole 1 mm: 10.00
    Distance / back: 200.00
    Distance / front: 63.00
    Number / teeth: 9
    B+: M8
    Position / 50: 45
    Terminal 50: M6
    Gear type: GR
    Distance in millimeters: 104.00
    Rotation: CW
    Total length in millimeters: 267.50
    Terminal 30h: M5
    Position / 30h: 15
    Clutch type: Dry
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Number of / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs515, E9002901237, F032112172, RGO 112172, 0001 110 041, 0001 110 042, 0001 314 001, 0986 014 890, 1241 1713898, 1241 1720663, 1241 1720664, 3206-319, 112172, 0001110028, 0001110041, 0001110042, 0001314001, 1713898, 1720663, 1720664, 63223209, 12411466100, 12411713898, 12411720636, 12411720663, 12411720664

    • Normalised article numbler
      cs515, cst10136, drs4890, e9002901237, f032112172, f042002079, f042s02079, les0186, lrs00808, lrs01379, lrs01439, lrt00161, rgo112172, s0411, s0412, sbo0098, str22070, str2231, str50040, 8ea011611021, 8ea726161001, 1444, 3607, 8480, 10515, 11659, 17237n, 17237r, 18365, 18365n, 21267bo, 33839, 103282, 112172, 201191, 220201, 220201a, 220913, 220913a, 252241, 252357, 254005, 261280, 455677, 726112, 726912, 0001110028, 0001110041, 0001110042, 0001314001, 1514890, 1713898, 1720663, 1720664, 3206319, 11014890, 63223209, 315107092, 600049092, 600051092, 681011092, 943251419, 0986014890, 0986014893, 0986014897, 0986015620, 0986015623, 0986021767, 12411466100, 12411713898, 12411720636, 12411720663, 12411720664, 943251419010, 944280148900
