HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110411

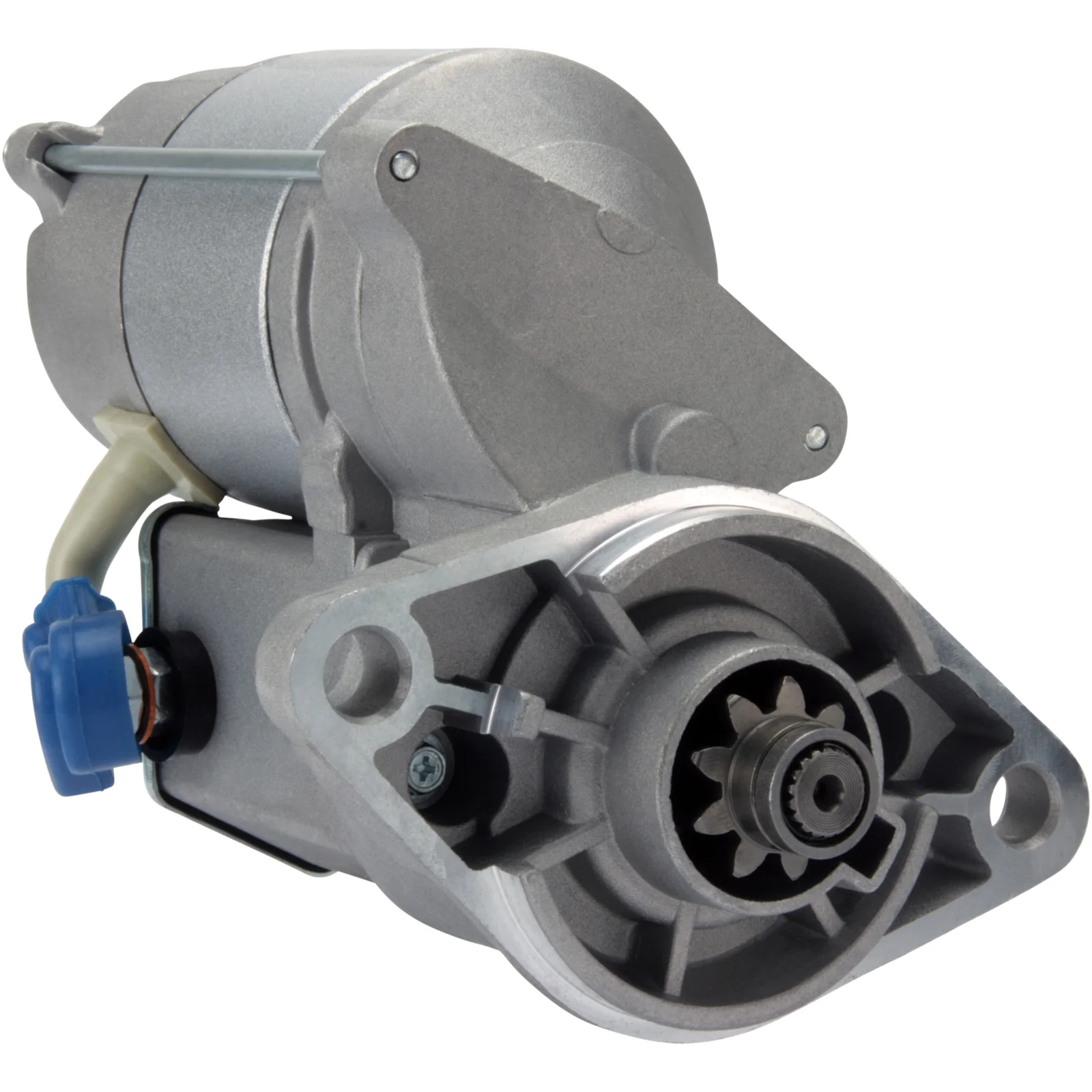

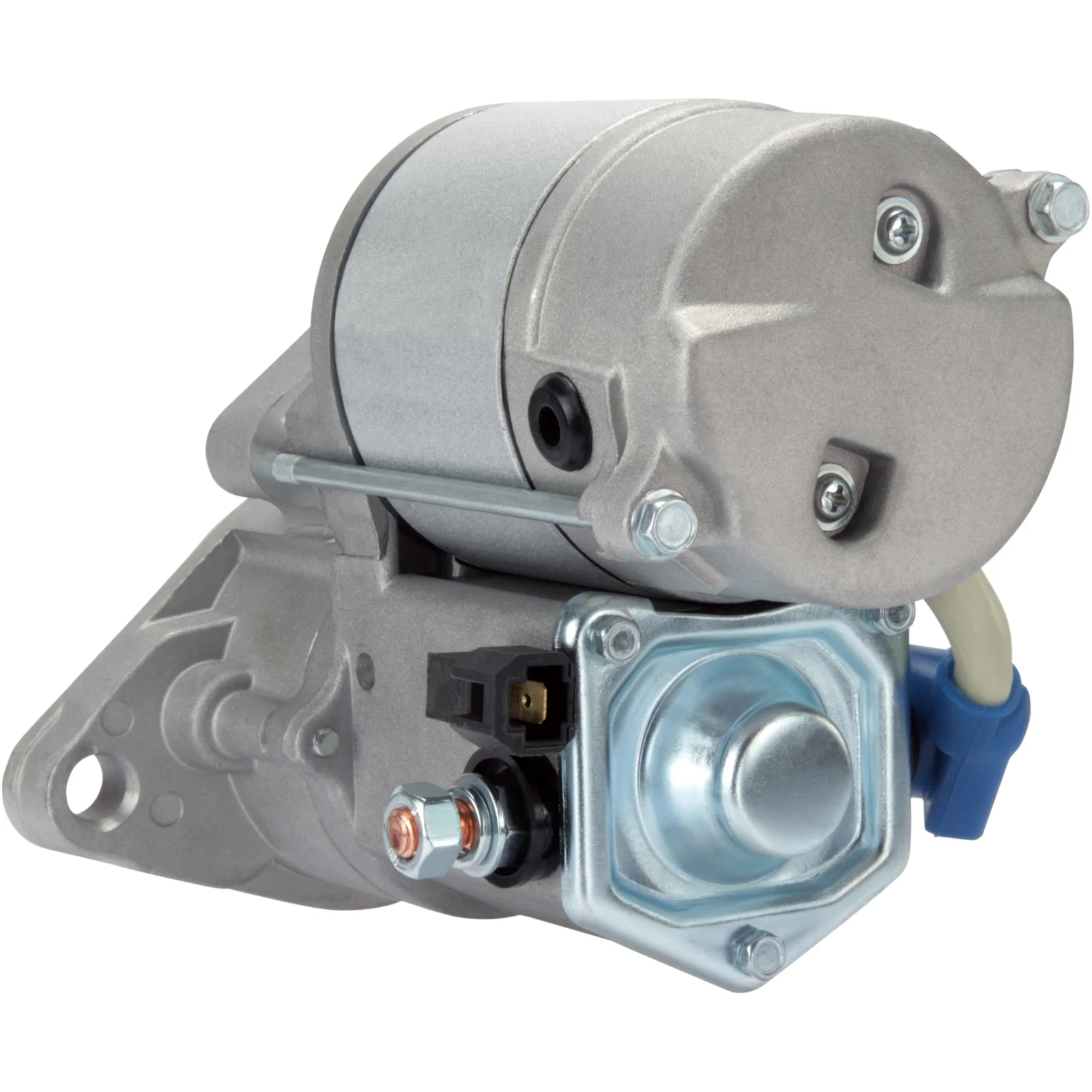

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Toyota Pick-up 84> Start.1,4kW 12V - 1.4kW, 9k 12V - 1.4kW, 9k For Yourex product order 91-555-1445

Voltage: 12
kW: 1.4
Mounting flange: 74.00
Drive distance: 20.00
Mounting hole 2 mm: 11.20
Mounting hole 1 mm: 11.20
Distance / back: 155.50
Distance / front: 31.50
Number / teeth: 9
B+: M8
Position / 50: 50
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 115.00
Rotation: CW
Total length in millimeters: 189.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032110411, js669, RGO 110411, 028000-4000, 028000-4001, 028000-4020, 028000-4021, 028000-4022, 028000-4023, 028000-4024, 028000-4510, 028000-4511, 028000-4512, 028000-5820, 028000-5821, 028000-5822, 028000-5992, 028000-7550, 028000-7551, 028000-7570, 028000-7571, 028000-9270, 028000-9271, 28100-08020, 28100-20550-71, 28100-20551, 28100-20551-71, 28100-20552, 28100-20552-71, 28100-20553, 28100-20553-71, 28100-20557, 28100-20571, 28100-20572, 28100-22000, 28100-34030, 28100-34040, 28100-34042, 28100-34043, 28100-34044, 28100-34052, 28100-34053, 28100-35020, 28100-35040, 28100-35060, 28100-35140, 28300-22003-71, 110411, 128000-0620, 128000-0621, 128000-0622, 128000-0623, 128000-1250, 128000-1251, 128000-1252, 128000-4930, 128000-9730, 128000-9740, 228000-4370, 228000-4371, 228000-4372, 228000-439, 228000-4390, 228000-4391, 228000-4392, 228000-4840, 228000-4850, 228080-4374, 228080-4392

  • Normalised article numbler
    ahs152, cst40136, cst40140, cst40170, cst40435, drs2851, drs3258, drs3389, drs4451, drs4461, ds16578, ds16674, ds16675, ds16790, dsn2067, dsn2068, f032110411, f042000131, f042s00131, js669, lrs00428, rgo110411, s6157, s6157denso, s6332denso, s741, s742, s8032, s8192, s9045, sr112x, sr3235, sr3235x, st00108r, st0024r, st0074r, str8006, 8ea730257001, 8ea731799001, 4242, 4287, 16578, 16674, 16675, 16706, 16758, 16790, 16790n, 16790r, 16831, 16831n, 18410, 18410n, 19508n, 20669, 20764, 21024nd, 21439nd, 21614nd, 31333, 103254, 110411, 251208, 252343, 253140, 352113, 352262, 361225, 444642, 446153, 446161, 458599, 3048566, 3952223, 3952251, 11040390, 91265064, 190937092, 190940092, 190941092, 228000439, 0280004000, 0280004001, 0280004020, 0280004021, 0280004022, 0280004023, 0280004024, 0280004510, 0280004511, 0280004512, 0280005820, 0280005821, 0280005822, 0280005992, 0280007550, 0280007551, 0280007570, 0280007571, 0280009270, 0280009271, 635002092, 0986014451, 1280000620, 1280000621, 1280000622, 1280000623, 1280001250, 1280001251, 1280001252, 1280004930, 1280009730, 1280009740, 2280004370, 2280004371, 2280004372, 2280004390, 2280004391, 2280004392, 2280004840, 2280004850, 2280804374, 2280804392, 2810008020, 2810020551, 2810020552, 2810020553, 2810020557, 2810020571, 2810020572, 2810022000, 2810034030, 2810034040, 2810034042, 2810034043, 2810034044, 2810034052, 2810034053, 2810035020, 2810035040, 2810035060, 2810035140, 281002055071, 281002055171, 281002055271, 281002055371, 283002200371
  • Description
    Toyota Pick-up 84> Start.1,4kW 12V - 1.4kW, 9k 12V - 1.4kW, 9k For Yourex product order 91-555-1445

    Voltage: 12
    kW: 1.4
    Mounting flange: 74.00
    Drive distance: 20.00
    Mounting hole 2 mm: 11.20
    Mounting hole 1 mm: 11.20
    Distance / back: 155.50
    Distance / front: 31.50
    Number / teeth: 9
    B+: M8
    Position / 50: 50
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 115.00
    Rotation: CW
    Total length in millimeters: 189.50
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110411, js669, RGO 110411, 028000-4000, 028000-4001, 028000-4020, 028000-4021, 028000-4022, 028000-4023, 028000-4024, 028000-4510, 028000-4511, 028000-4512, 028000-5820, 028000-5821, 028000-5822, 028000-5992, 028000-7550, 028000-7551, 028000-7570, 028000-7571, 028000-9270, 028000-9271, 28100-08020, 28100-20550-71, 28100-20551, 28100-20551-71, 28100-20552, 28100-20552-71, 28100-20553, 28100-20553-71, 28100-20557, 28100-20571, 28100-20572, 28100-22000, 28100-34030, 28100-34040, 28100-34042, 28100-34043, 28100-34044, 28100-34052, 28100-34053, 28100-35020, 28100-35040, 28100-35060, 28100-35140, 28300-22003-71, 110411, 128000-0620, 128000-0621, 128000-0622, 128000-0623, 128000-1250, 128000-1251, 128000-1252, 128000-4930, 128000-9730, 128000-9740, 228000-4370, 228000-4371, 228000-4372, 228000-439, 228000-4390, 228000-4391, 228000-4392, 228000-4840, 228000-4850, 228080-4374, 228080-4392

    • Normalised article numbler
      ahs152, cst40136, cst40140, cst40170, cst40435, drs2851, drs3258, drs3389, drs4451, drs4461, ds16578, ds16674, ds16675, ds16790, dsn2067, dsn2068, f032110411, f042000131, f042s00131, js669, lrs00428, rgo110411, s6157, s6157denso, s6332denso, s741, s742, s8032, s8192, s9045, sr112x, sr3235, sr3235x, st00108r, st0024r, st0074r, str8006, 8ea730257001, 8ea731799001, 4242, 4287, 16578, 16674, 16675, 16706, 16758, 16790, 16790n, 16790r, 16831, 16831n, 18410, 18410n, 19508n, 20669, 20764, 21024nd, 21439nd, 21614nd, 31333, 103254, 110411, 251208, 252343, 253140, 352113, 352262, 361225, 444642, 446153, 446161, 458599, 3048566, 3952223, 3952251, 11040390, 91265064, 190937092, 190940092, 190941092, 228000439, 0280004000, 0280004001, 0280004020, 0280004021, 0280004022, 0280004023, 0280004024, 0280004510, 0280004511, 0280004512, 0280005820, 0280005821, 0280005822, 0280005992, 0280007550, 0280007551, 0280007570, 0280007571, 0280009270, 0280009271, 635002092, 0986014451, 1280000620, 1280000621, 1280000622, 1280000623, 1280001250, 1280001251, 1280001252, 1280004930, 1280009730, 1280009740, 2280004370, 2280004371, 2280004372, 2280004390, 2280004391, 2280004392, 2280004840, 2280004850, 2280804374, 2280804392, 2810008020, 2810020551, 2810020552, 2810020553, 2810020557, 2810020571, 2810020572, 2810022000, 2810034030, 2810034040, 2810034042, 2810034043, 2810034044, 2810034052, 2810034053, 2810035020, 2810035040, 2810035060, 2810035140, 281002055071, 281002055171, 281002055271, 281002055371, 283002200371
