Article no.: F032110512

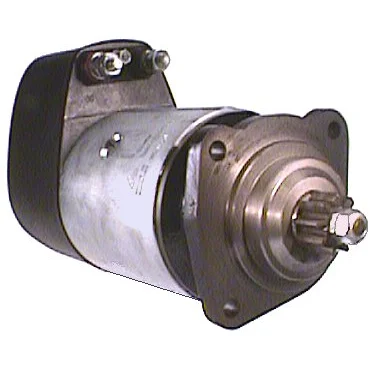

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.4, No./teeth: 9, Rotation: CW

Description

Mercedes/Man Starter motor 24V-5.4kW 24V - 5.4kW, 9k Same type of starter motor with 11 teeth = 91-600-1326 For Yourex product order 91-365-1155

Voltage: 24
kW: 5.4
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 10.50
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Back/Distance: 318.00
Front/Distance: 62.00
Number/Teeth: 9
B+: M10
Position/50: 60
Terminal 50: M6
Gear type: DD
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.50
Rotation: CW
Position/b-: 2
B-: M10
Total length mm: 384.00
Drive type: Steel
Prod. info: BN/OE
Waterproof: No
Oil sealed: No
Number/mounting holes: 3 (0)
  • OEM

    A001 1514101, A0011512401, A0011513701, A0011513801, A0011514101, A002 1518501, A0021511301, A0021518101, A0021518501, A003 1515701, A003 1516001, A0031515701, A0031516001, A003151600180, A0031519501, A941505, azk5104, AZK5194, AZK5412, bng4/24, bng4/24cr231, bng4/24crs163, BNG4/24CRS165, BNG424CRS163, cs194, d13e63, d13e63t, d13e69, d13e69t, d13e81, d13e81t, D3R24X6H7622, DLT039566, F032110512, LR155-414B, r20.17, r20z, R23.16, R23.17, R23.25, RGO 110512, 0001 402 008, 0001 402 023, 0001 402 037, 0001 402 041, 0001 402 054, 0001 402 055, 0001 402 064, 0001 402 075, 0001 402 081, 0001 402 083, 0001 402 089, 0001 410 012, 0001 410 021, 0001 411 014, 0001 414 003, 0001 414 010, 0001 414 024, 0001 415 002, 0001 416 022, 0001 416 024, 0001 416 047, 0001 416 054, 1, 1/1, 4/1, 10.130.123, 0011 513 801, 0011 514 101, 11-0512, 11.130.115, 11.139.035, 11.139.052, 17/1, 0021 518 101, 0021 518 501, 0031 515 701, 0031 516 001, 51.26201-7001, 51.26201-7043, 51.26201-7052, 51.26201-7074, 51.26201-7099, 51.26201-7112, 51.26201-78074, 51.26201-9001, 51.26201-9074, 51.26201-9099, 0075, 90.80110-5190, 0115, 320, 522, 524, 547, 554, 0622, 0652, 0986 011 550, 0986 011 560, 0986 014 790, 03285, 06940, 9036, 10130 123, 22201, 22615, 22616, 22624, 22625, 72280, 076571, 239572, 313360, 359581, 455505, 01161473, 1161473, 01174631, 1174631, 0001402008, 0001402023, 0001402037, 0001402041, 0001402054, 0001402055, 0001402064, 0001402075, 0001402081, 0001402083, 0001410012, 0001410021, 0001411014, 0001414003, 0001414010, 0001415002, 0001416022, 0001416024, 0001416037, 0001416047, 0001416054, 1516709R, 03367010, 3367010, 05710904, 6104021, 6160000, 6250000, 8123168, 9125320, 9125340, 0011512401, 0011513701, 0011513801, 0011514101, 19024024, 19024550, 19024556, 0021511301, 0021518101, 0021518501, 0025841022, 0031515701, 0031516001, 0031519501, 296190600, 296190700, 003151600180, 4139090014, 5000080750, 5000241737, 5000592182, 5000789048, 5000808251, 5001000127, 5001014203, 5001014215, 7701007508, 605720100016, 605720520005
  • Normalised article numbler

    a0011512401, a0011513701, a0011513801, a0011514101, a0021511301, a0021518101, a0021518501, a0031515701, a0031516001, a003151600180, a0031519501, a941505, azk5104, azk5194, azk5412, bng424, bng424cr231, bng424crs163, bng424crs165, bso7185, cs194, cst10620, cst10632, d13e63, d13e63t, d13e69, d13e69t, d13e81, d13e81t, d3r24x6h7622, dlt039566, drs1410, drs1420, drs1550, drs4780, f032110512, f042002118, f042s02118, is0075, is0115, is0607, is0622, is0652, is9009, is9036, lr155414b, lrs00817, lrs00824, lrs00843, lrs00854, lrs01806, ms509, ms546, ms577, msr680, msr685, r2017, r20z, r2316, r2317, r2325, rgo110512, s0151, s0344, sr920x, sr921x, str22038, str2386, vs194, 1, 8ea012586171, 8ea726023001, 11, 41, 0075, 0115, 171, 320, 522, 524, 547, 554, 0622, 0652, 1576, 03285, 06940, 9036, 10194, 17108, 22201, 22615, 22616, 22624, 22625, 33419, 33454, 33472, 33526, 33565, 33583, 33584, 33587, 33588, 33707, 33736, 72280, 076571, 103457, 103458, 103516, 103583, 110512, 220219, 220219a, 220313, 220313a, 220325, 220325a, 220493, 220493a, 239572, 280931, 313360, 359581, 438038, 450091, 450128, 450435, 451428, 452061, 455504, 455505, 455615, 455926, 509113, 01161473, 1161473, 01174631, 1174631, 0001402008, 0001402023, 0001402037, 0001402041, 0001402054, 0001402055, 0001402064, 0001402075, 0001402081, 0001402083, 0001402089, 0001410012, 0001410021, 0001411014, 0001414003, 0001414010, 0001414024, 0001415002, 0001416022, 0001416024, 0001416037, 0001416047, 0001416054, 1516709r, 03367010, 3367010, 05710904, 6104021, 6160000, 6250000, 8123168, 8811410, 8811420, 8811550, 8811560, 8814780, 8814790, 9125320, 9125340, 10130123, 11011550, 11011560, 11014790, 11130115, 11139035, 11139052, 0011512401, 0011513701, 0011513801, 0011514101, 19024024, 19024550, 19024556, 0021511301, 0021518101, 0021518501, 0025841022, 0031515701, 0031516001, 0031519501, 296190600, 296190700, 551104093, 625004094, 625005094, 625013094, 625018094, 943252012, 943252046, 943252129, 943252212, 0986011410, 0986011420, 0986011550, 0986011553, 0986011560, 0986011563, 0986014780, 0986014790, 003151600180, 4139090014, 5000080750, 5000241737, 5000592182, 5000789048, 5000808251, 5001000127, 5001014203, 5001014215, 7701007508, 51262017001, 51262017043, 51262017052, 51262017074, 51262017099, 51262017112, 51262019001, 51262019074, 51262019099, 90801105190, 512620178074, 605720100016, 605720520005, 943252012010, 943252129010, 943252188010
  • Description
    Mercedes/Man Starter motor 24V-5.4kW 24V - 5.4kW, 9k Same type of starter motor with 11 teeth = 91-600-1326 For Yourex product order 91-365-1155

    Voltage: 24
    kW: 5.4
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 10.50
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 10.50
    Back/Distance: 318.00
    Front/Distance: 62.00
    Number/Teeth: 9
    B+: M10
    Position/50: 60
    Terminal 50: M6
    Gear type: DD
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.50
    Rotation: CW
    Position/b-: 2
    B-: M10
    Total length mm: 384.00
    Drive type: Steel
    Prod. info: BN/OE
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 3 (0)
  • Suitable for these vehicles
    • OEM

      A001 1514101, A0011512401, A0011513701, A0011513801, A0011514101, A002 1518501, A0021511301, A0021518101, A0021518501, A003 1515701, A003 1516001, A0031515701, A0031516001, A003151600180, A0031519501, A941505, azk5104, AZK5194, AZK5412, bng4/24, bng4/24cr231, bng4/24crs163, BNG4/24CRS165, BNG424CRS163, cs194, d13e63, d13e63t, d13e69, d13e69t, d13e81, d13e81t, D3R24X6H7622, DLT039566, F032110512, LR155-414B, r20.17, r20z, R23.16, R23.17, R23.25, RGO 110512, 0001 402 008, 0001 402 023, 0001 402 037, 0001 402 041, 0001 402 054, 0001 402 055, 0001 402 064, 0001 402 075, 0001 402 081, 0001 402 083, 0001 402 089, 0001 410 012, 0001 410 021, 0001 411 014, 0001 414 003, 0001 414 010, 0001 414 024, 0001 415 002, 0001 416 022, 0001 416 024, 0001 416 047, 0001 416 054, 1, 1/1, 4/1, 10.130.123, 0011 513 801, 0011 514 101, 11-0512, 11.130.115, 11.139.035, 11.139.052, 17/1, 0021 518 101, 0021 518 501, 0031 515 701, 0031 516 001, 51.26201-7001, 51.26201-7043, 51.26201-7052, 51.26201-7074, 51.26201-7099, 51.26201-7112, 51.26201-78074, 51.26201-9001, 51.26201-9074, 51.26201-9099, 0075, 90.80110-5190, 0115, 320, 522, 524, 547, 554, 0622, 0652, 0986 011 550, 0986 011 560, 0986 014 790, 03285, 06940, 9036, 10130 123, 22201, 22615, 22616, 22624, 22625, 72280, 076571, 239572, 313360, 359581, 455505, 01161473, 1161473, 01174631, 1174631, 0001402008, 0001402023, 0001402037, 0001402041, 0001402054, 0001402055, 0001402064, 0001402075, 0001402081, 0001402083, 0001410012, 0001410021, 0001411014, 0001414003, 0001414010, 0001415002, 0001416022, 0001416024, 0001416037, 0001416047, 0001416054, 1516709R, 03367010, 3367010, 05710904, 6104021, 6160000, 6250000, 8123168, 9125320, 9125340, 0011512401, 0011513701, 0011513801, 0011514101, 19024024, 19024550, 19024556, 0021511301, 0021518101, 0021518501, 0025841022, 0031515701, 0031516001, 0031519501, 296190600, 296190700, 003151600180, 4139090014, 5000080750, 5000241737, 5000592182, 5000789048, 5000808251, 5001000127, 5001014203, 5001014215, 7701007508, 605720100016, 605720520005
    • Normalised article numbler

      a0011512401, a0011513701, a0011513801, a0011514101, a0021511301, a0021518101, a0021518501, a0031515701, a0031516001, a003151600180, a0031519501, a941505, azk5104, azk5194, azk5412, bng424, bng424cr231, bng424crs163, bng424crs165, bso7185, cs194, cst10620, cst10632, d13e63, d13e63t, d13e69, d13e69t, d13e81, d13e81t, d3r24x6h7622, dlt039566, drs1410, drs1420, drs1550, drs4780, f032110512, f042002118, f042s02118, is0075, is0115, is0607, is0622, is0652, is9009, is9036, lr155414b, lrs00817, lrs00824, lrs00843, lrs00854, lrs01806, ms509, ms546, ms577, msr680, msr685, r2017, r20z, r2316, r2317, r2325, rgo110512, s0151, s0344, sr920x, sr921x, str22038, str2386, vs194, 1, 8ea012586171, 8ea726023001, 11, 41, 0075, 0115, 171, 320, 522, 524, 547, 554, 0622, 0652, 1576, 03285, 06940, 9036, 10194, 17108, 22201, 22615, 22616, 22624, 22625, 33419, 33454, 33472, 33526, 33565, 33583, 33584, 33587, 33588, 33707, 33736, 72280, 076571, 103457, 103458, 103516, 103583, 110512, 220219, 220219a, 220313, 220313a, 220325, 220325a, 220493, 220493a, 239572, 280931, 313360, 359581, 438038, 450091, 450128, 450435, 451428, 452061, 455504, 455505, 455615, 455926, 509113, 01161473, 1161473, 01174631, 1174631, 0001402008, 0001402023, 0001402037, 0001402041, 0001402054, 0001402055, 0001402064, 0001402075, 0001402081, 0001402083, 0001402089, 0001410012, 0001410021, 0001411014, 0001414003, 0001414010, 0001414024, 0001415002, 0001416022, 0001416024, 0001416037, 0001416047, 0001416054, 1516709r, 03367010, 3367010, 05710904, 6104021, 6160000, 6250000, 8123168, 8811410, 8811420, 8811550, 8811560, 8814780, 8814790, 9125320, 9125340, 10130123, 11011550, 11011560, 11014790, 11130115, 11139035, 11139052, 0011512401, 0011513701, 0011513801, 0011514101, 19024024, 19024550, 19024556, 0021511301, 0021518101, 0021518501, 0025841022, 0031515701, 0031516001, 0031519501, 296190600, 296190700, 551104093, 625004094, 625005094, 625013094, 625018094, 943252012, 943252046, 943252129, 943252212, 0986011410, 0986011420, 0986011550, 0986011553, 0986011560, 0986011563, 0986014780, 0986014790, 003151600180, 4139090014, 5000080750, 5000241737, 5000592182, 5000789048, 5000808251, 5001000127, 5001014203, 5001014215, 7701007508, 51262017001, 51262017043, 51262017052, 51262017074, 51262017099, 51262017112, 51262019001, 51262019074, 51262019099, 90801105190, 512620178074, 605720100016, 605720520005, 943252012010, 943252129010, 943252188010
