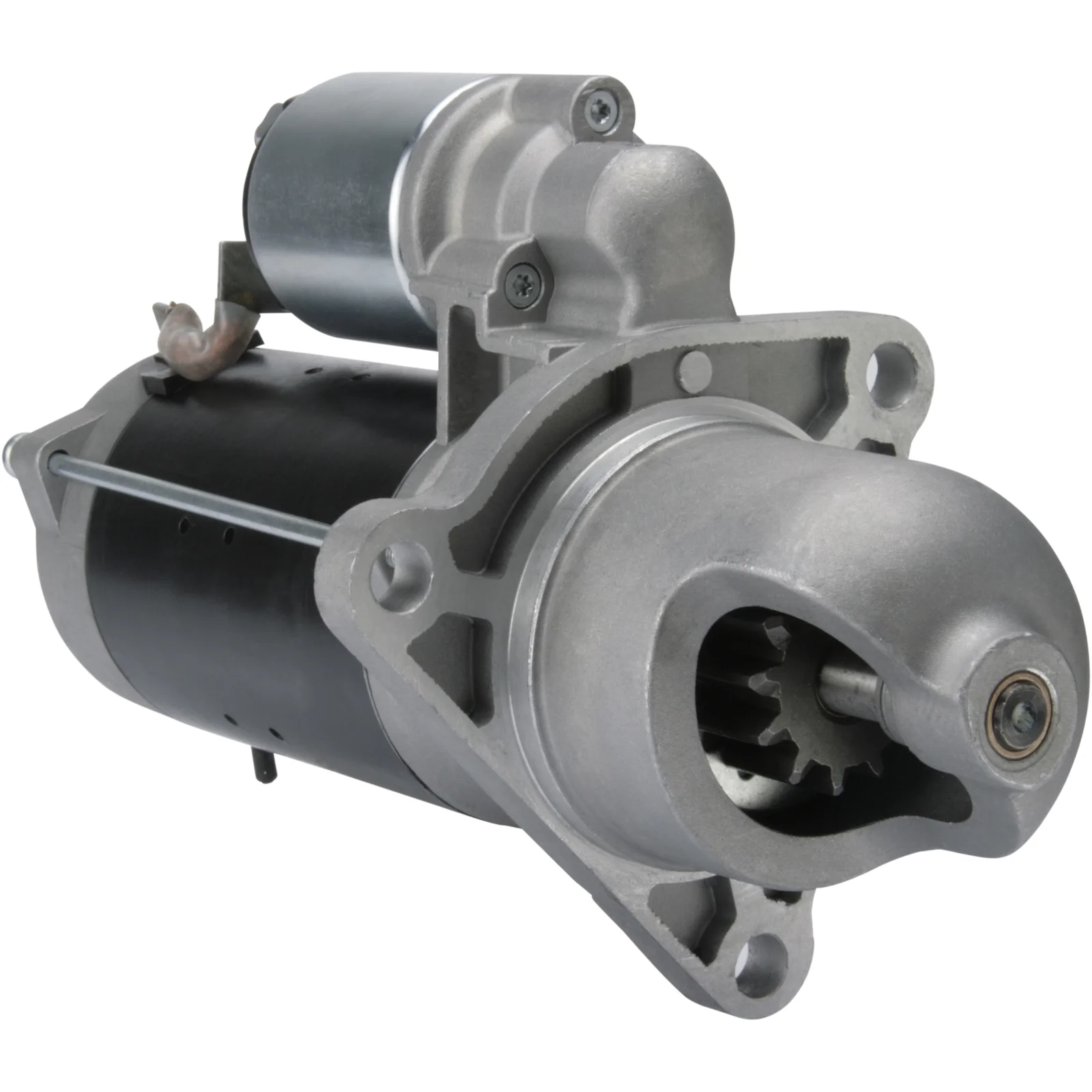

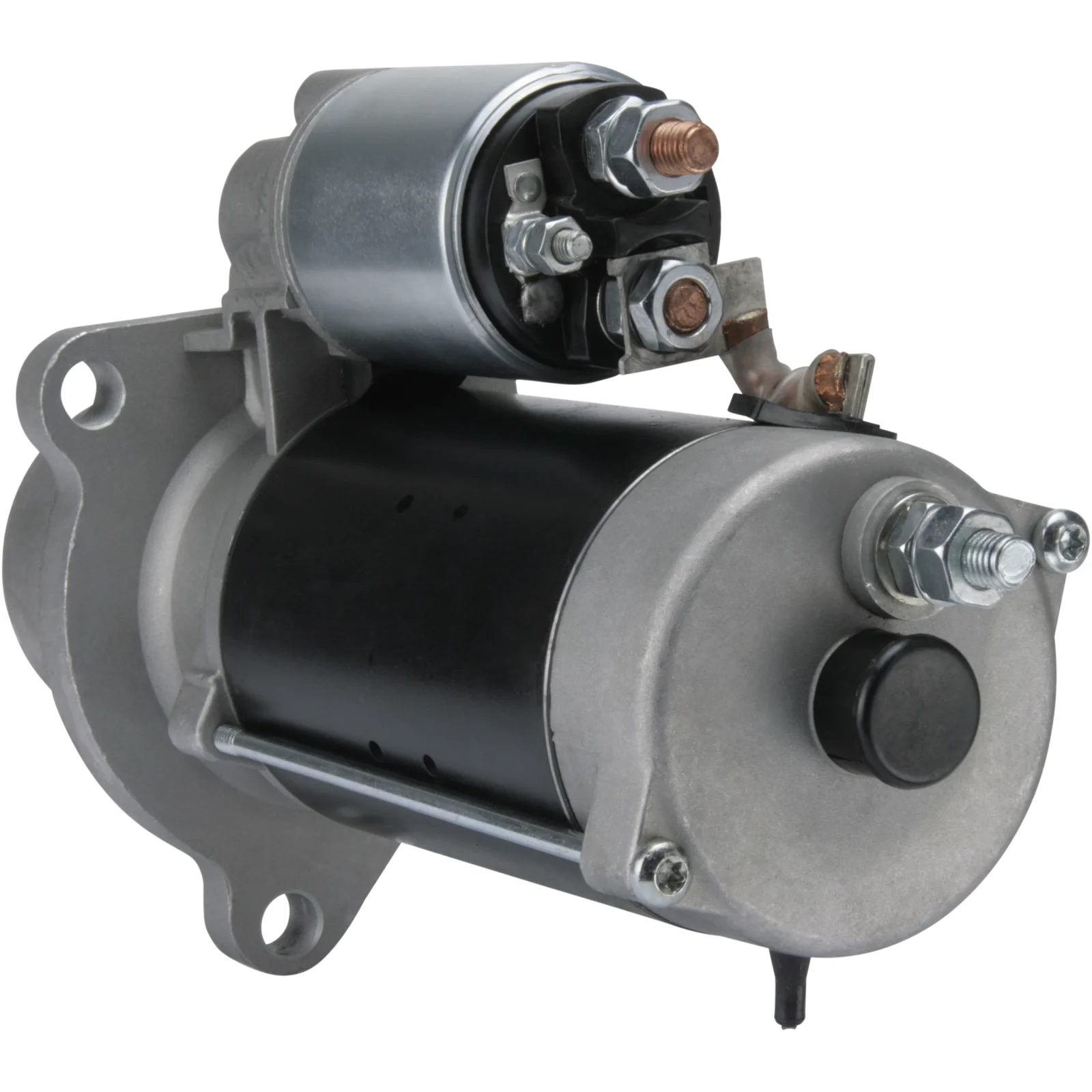

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114033

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 12, Rotation: CW

Description

Start 24V-4.0kW fits Volvo 24V - 4.0kW, 12k A - 92mm, B - 48mm Vehicles with PTO (power take-off) For Yourex product order 91-600-1983 Voltage: 24 kW: 4.0 Mount. flange: 92.00 Drive distance: 47.00 Mount. hole 3 mm: 13.20 Mount. hole 2 mm: 13.20 Mount. hole 1 mm: 13.20 Distance / back: 221.00 Distance / front: 97.00 Number / teeth: 12 B+: M10 Thread length mm: 20.00 Position / 50: 45 Terminal 50: M6 Gear type: GR Distance 2: 126.50 Distance 3: 126.50 Distance 4: 126.50 Distance mm: 126.50 Rotation: CW Position / b-: 5 B-: M10 Total length mm: 334.00 Number / mount. holes: 3 (0)

Files

  • OEM
    cs1285, F032114033, 0001 231 004, 0986 019 830, 1986S10121, 114033, 0001231004, 3978710, 8113230, 8192965, 19084031, 21477586, 85000447, 85003304

  • Normalised article numbler
    cs1285, cst10656, drs3898, f032114033, f042s02190, s0108, 8ea012586481, 1986s10121, 18956n, 101285, 114033, 220726, 220726a, 453067, 860618, 0001231004, 3978710, 8113230, 8192965, 11019830, 19084031, 21477586, 85000447, 85003304, 0986019830, 0986019833
  • Description
    Start 24V-4.0kW fits Volvo 24V - 4.0kW, 12k A - 92mm, B - 48mm Vehicles with PTO (power take-off) For Yourex product order 91-600-1983 Voltage: 24 kW: 4.0 Mount. flange: 92.00 Drive distance: 47.00 Mount. hole 3 mm: 13.20 Mount. hole 2 mm: 13.20 Mount. hole 1 mm: 13.20 Distance / back: 221.00 Distance / front: 97.00 Number / teeth: 12 B+: M10 Thread length mm: 20.00 Position / 50: 45 Terminal 50: M6 Gear type: GR Distance 2: 126.50 Distance 3: 126.50 Distance 4: 126.50 Distance mm: 126.50 Rotation: CW Position / b-: 5 B-: M10 Total length mm: 334.00 Number / mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1285, F032114033, 0001 231 004, 0986 019 830, 1986S10121, 114033, 0001231004, 3978710, 8113230, 8192965, 19084031, 21477586, 85000447, 85003304

    • Normalised article numbler
      cs1285, cst10656, drs3898, f032114033, f042s02190, s0108, 8ea012586481, 1986s10121, 18956n, 101285, 114033, 220726, 220726a, 453067, 860618, 0001231004, 3978710, 8113230, 8192965, 11019830, 19084031, 21477586, 85000447, 85003304, 0986019830, 0986019833
