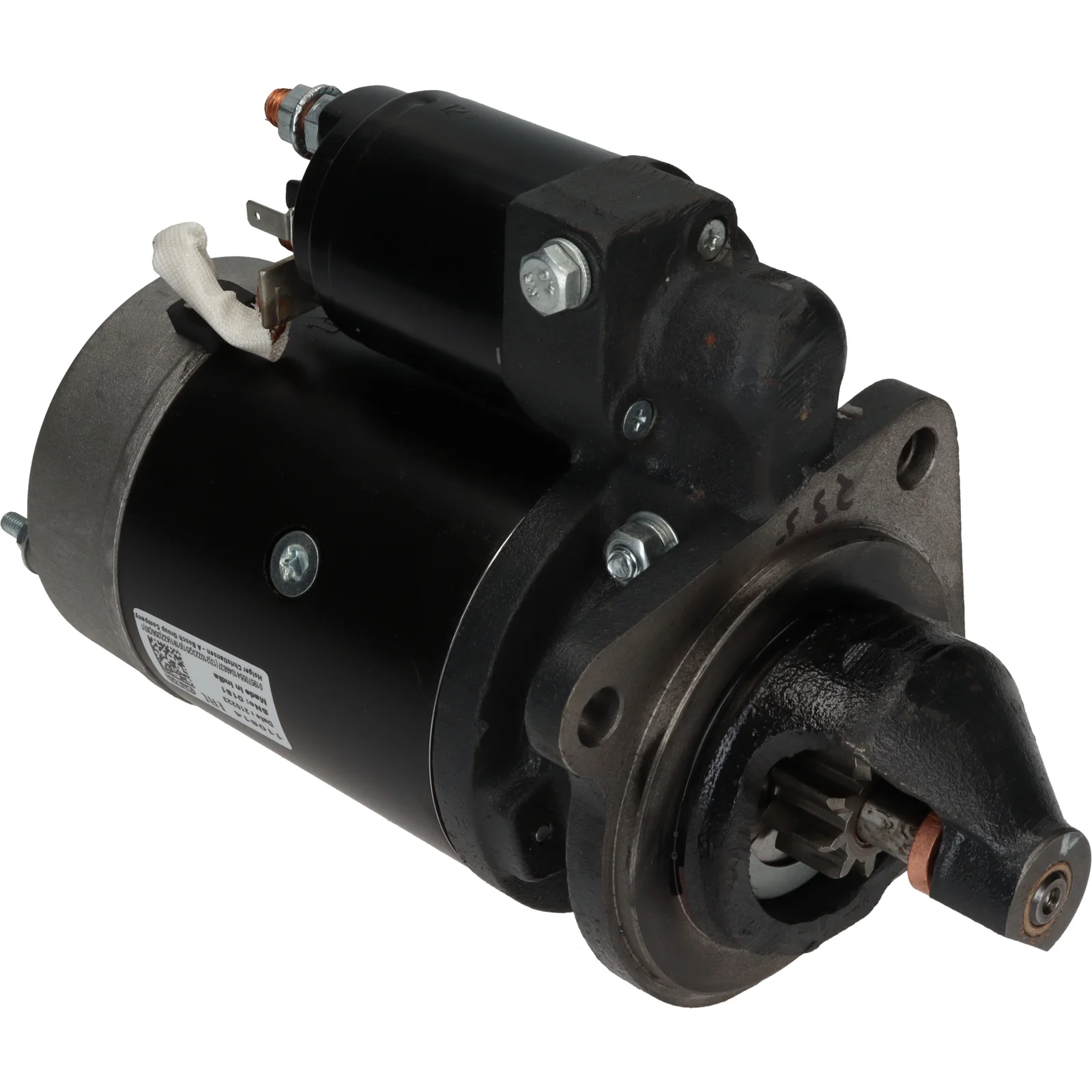

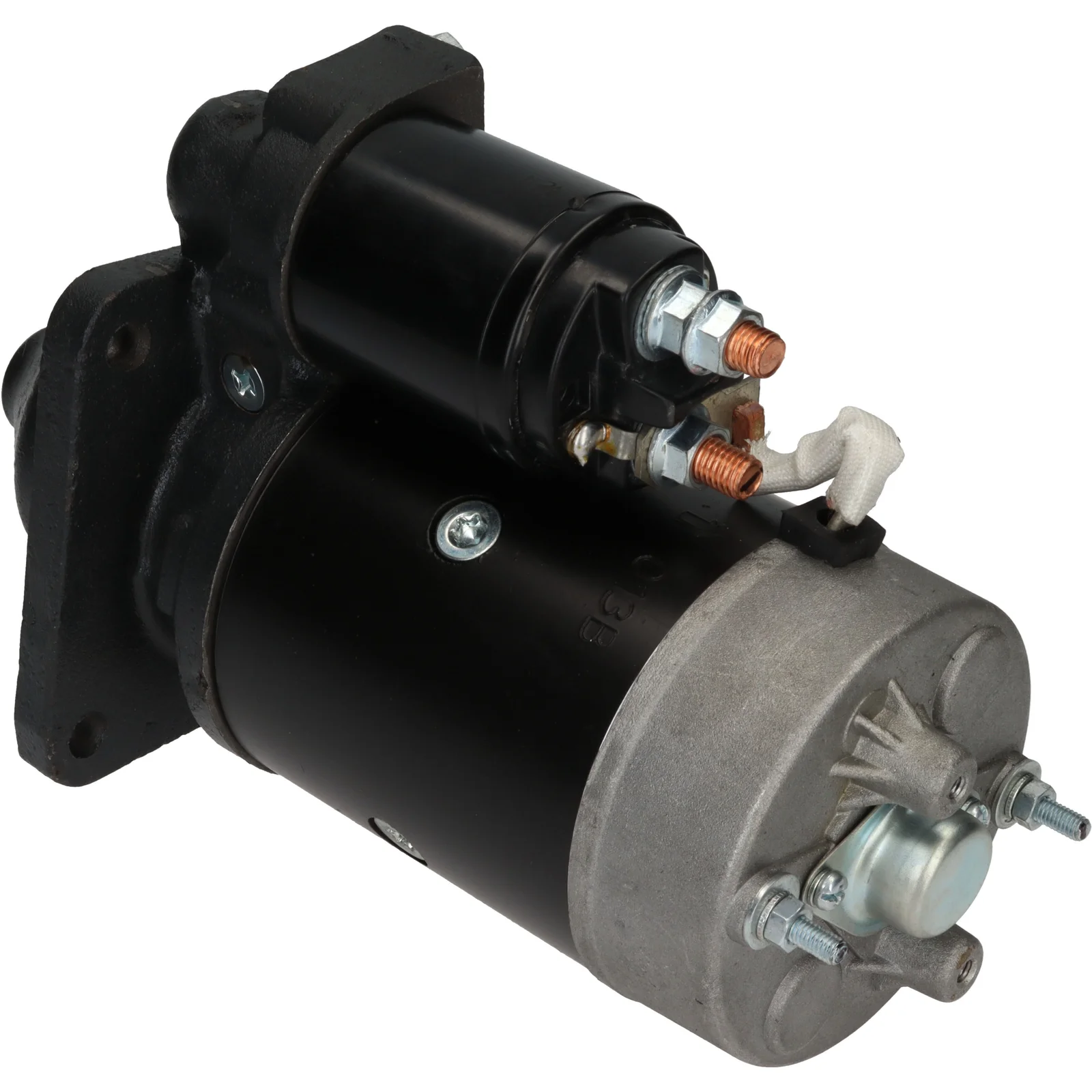

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110814

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.7, No./teeth: 9, Rotation: CW

Description

Iveco Starter motor 12V-2.7kW 12V - 2.7kW, 9k For Yourex product order 91-255-1106 - 3.0kW

Voltage: 12
kW: 2.7
Mounting flange: 110.00
Drive distance: 27.00
Mounting hole 3 mm: 12.00
Mounting hole 2 mm: 12.00
Mounting hole 1 mm: 12.00
Distance / back: 222.50
Distance / front: 74.00
Number / teeth: 9
B+: M10
Thread length mm: 10.00
Position / 50: 15
Terminal 50: 6.30
Gear type: DD
Distance 2: 146.00
Distance 3: 103.00
Distance mm: 103.00
Rotation: CW
Total length mm: 296.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    azj3137, azj3514, cs230, F032110522, F032110814, LRS 838, LRS 940, MT 71 DB, MT 71D, MT 71DA, MT 74L, MT68L, MT68LA, mt71d, MT71DA, mt71da, MT71DB, mt71db, RGO 110814, 0001 230 009, 0001 359 122, 0001 359 127, 0001 362 062, 0001 367 029, 11-0522, 11-0814, 11.130.123, 11.130.500, 0366, 0500, 0986 011 060, 0986 011 061, 0986 012 720, 11420, 14650, 14660, 27401, 436037, 436070, 0001362062, 1516714R, 0000004711699, 0004711699, 4711699, 4713806, 004719664, 04719664, 4719664, 4745930, 4755110, 4807374, 4856056, 4919664, 19024255, 20404077, 30180309, 42498138, 42498149, 42498506, 63216873, 63216896, 63217104, 63217147, 63217148, 63217410, 77028560, 94317148, 0399180000, 063117148000, 443115144723

  • Normalised article numbler
    azj3137, azj3514, bso7059, cs230, cst10363, cst10372, cst30100, cst30103, drs1060, f032110522, f032110814, f042s0h011, is0500, is0532, lrs00838, lrs838, lrs940, ms187, msn229, mt68l, mt68la, mt71d, mt71da, mt71db, mt74l, qs1458, rgo110814, s0760s, s4037, str22003, strh011, vs302, 8ea726029001, 0366, 0500, 1569, 11420, 11437, 14650, 14660, 18461, 18461n, 27401, 103102, 104832, 110522, 110814, 220016, 220016a, 220170, 220170a, 220518, 220518a, 250340, 436037, 436070, 438495, 0001230009, 0001359122, 0001359127, 0001362062, 0001367029, 1516714r, 1911060, 0000004711699, 0004711699, 4711699, 4713806, 004719664, 04719664, 4719664, 4745930, 4755110, 4807374, 4856056, 4919664, 8811060, 11130123, 11130500, 19024255, 20404077, 30180309, 42498138, 42498149, 42498506, 63216873, 63216896, 63217104, 63217147, 063217148, 63217148, 63217410, 77028560, 94317148, 318016092, 318037092, 0399180000, 943216748, 943217147, 943217148, 0986001235, 0986011060, 0986011061, 0986012720, 063117148000, 063217148010, 063217410010, 443115144723
  • Description
    Iveco Starter motor 12V-2.7kW 12V - 2.7kW, 9k For Yourex product order 91-255-1106 - 3.0kW

    Voltage: 12
    kW: 2.7
    Mounting flange: 110.00
    Drive distance: 27.00
    Mounting hole 3 mm: 12.00
    Mounting hole 2 mm: 12.00
    Mounting hole 1 mm: 12.00
    Distance / back: 222.50
    Distance / front: 74.00
    Number / teeth: 9
    B+: M10
    Thread length mm: 10.00
    Position / 50: 15
    Terminal 50: 6.30
    Gear type: DD
    Distance 2: 146.00
    Distance 3: 103.00
    Distance mm: 103.00
    Rotation: CW
    Total length mm: 296.50
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      azj3137, azj3514, cs230, F032110522, F032110814, LRS 838, LRS 940, MT 71 DB, MT 71D, MT 71DA, MT 74L, MT68L, MT68LA, mt71d, MT71DA, mt71da, MT71DB, mt71db, RGO 110814, 0001 230 009, 0001 359 122, 0001 359 127, 0001 362 062, 0001 367 029, 11-0522, 11-0814, 11.130.123, 11.130.500, 0366, 0500, 0986 011 060, 0986 011 061, 0986 012 720, 11420, 14650, 14660, 27401, 436037, 436070, 0001362062, 1516714R, 0000004711699, 0004711699, 4711699, 4713806, 004719664, 04719664, 4719664, 4745930, 4755110, 4807374, 4856056, 4919664, 19024255, 20404077, 30180309, 42498138, 42498149, 42498506, 63216873, 63216896, 63217104, 63217147, 63217148, 63217410, 77028560, 94317148, 0399180000, 063117148000, 443115144723

    • Normalised article numbler
      azj3137, azj3514, bso7059, cs230, cst10363, cst10372, cst30100, cst30103, drs1060, f032110522, f032110814, f042s0h011, is0500, is0532, lrs00838, lrs838, lrs940, ms187, msn229, mt68l, mt68la, mt71d, mt71da, mt71db, mt74l, qs1458, rgo110814, s0760s, s4037, str22003, strh011, vs302, 8ea726029001, 0366, 0500, 1569, 11420, 11437, 14650, 14660, 18461, 18461n, 27401, 103102, 104832, 110522, 110814, 220016, 220016a, 220170, 220170a, 220518, 220518a, 250340, 436037, 436070, 438495, 0001230009, 0001359122, 0001359127, 0001362062, 0001367029, 1516714r, 1911060, 0000004711699, 0004711699, 4711699, 4713806, 004719664, 04719664, 4719664, 4745930, 4755110, 4807374, 4856056, 4919664, 8811060, 11130123, 11130500, 19024255, 20404077, 30180309, 42498138, 42498149, 42498506, 63216873, 63216896, 63217104, 63217147, 063217148, 63217148, 63217410, 77028560, 94317148, 318016092, 318037092, 0399180000, 943216748, 943217147, 943217148, 0986001235, 0986011060, 0986011061, 0986012720, 063117148000, 063217148010, 063217410010, 443115144723
