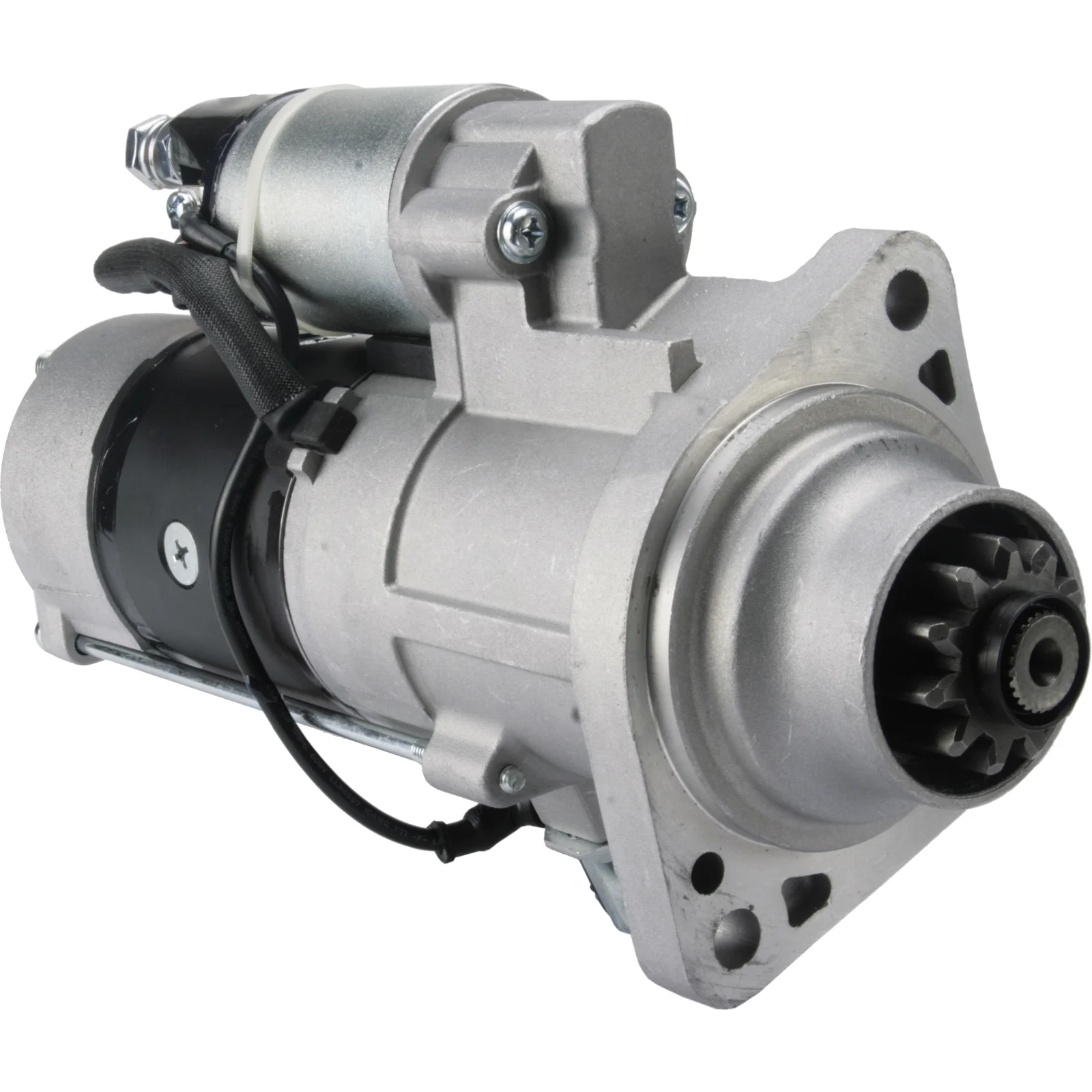

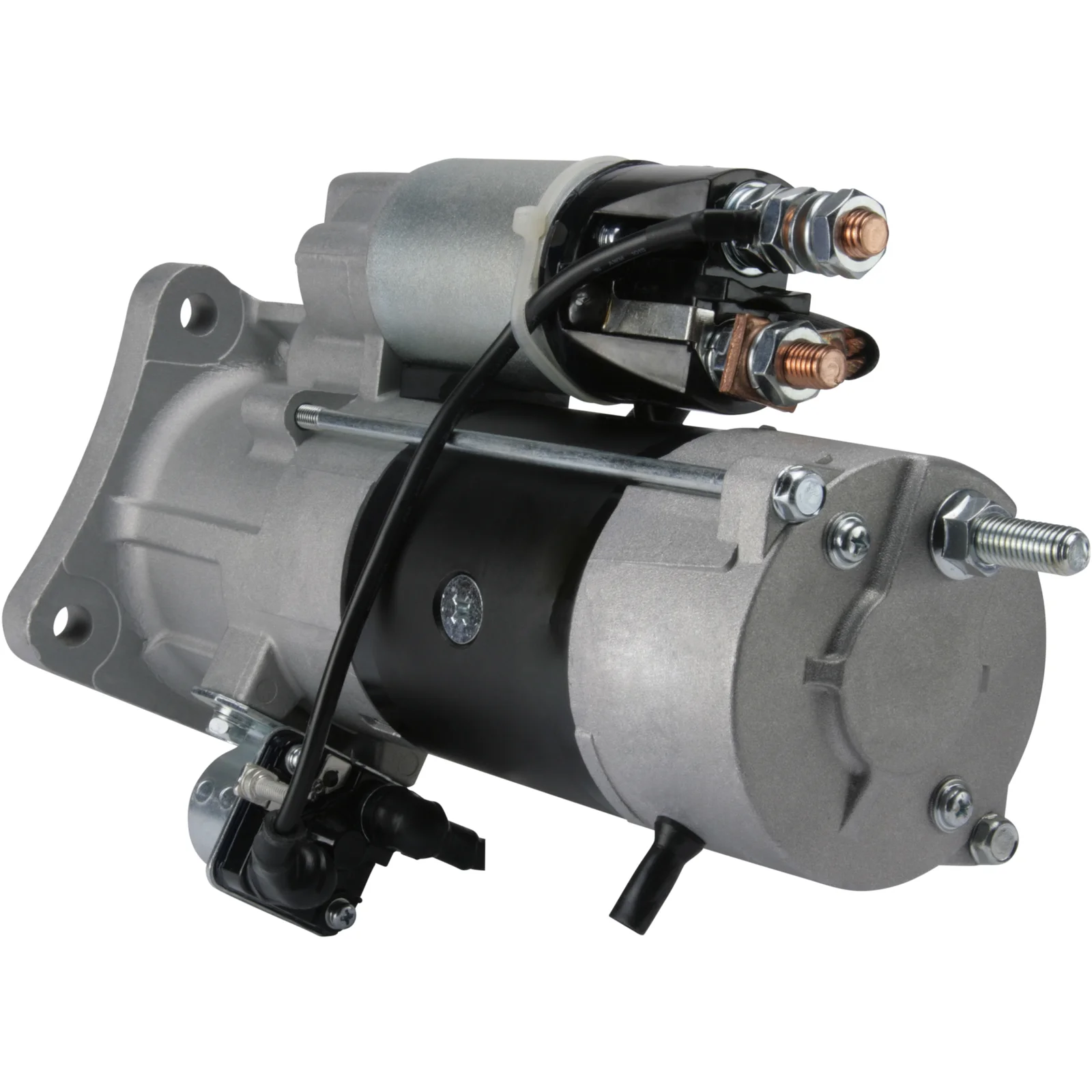

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114193

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.5, No./teeth: 11, Rotation: CW

Description

Start 24V-5.5kW fits Volvo 24V - 5.5kW, 11k A - 89mm, B - 48mm Auxiliary relay with 1 terminal, (B-) bolt / Relay with 1 terminal, (B-) terminal Alternative: 91-600-9614 auxiliary relay with 2 terminals 91-600-6149 OE Mitsubishi For Yourrex product order 91-600-6147

Voltage: 24
kW: 5.5
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 12.00
Mounting hole 2 mm: 12.00
Mounting hole 1 mm: 12.00
Distance/back: 263.00
Distance/front: 55.50
Number of teeth: 11
B+: M10
Position/B+: 60
Thread length mm: 33.00
Terminal 50: M6
Gear type: GR
Distance 2: 89.00
Distance 3: 127.00
Distance mm: 89.00
Rotation: CW
Position/b-: 3
B-: M10
Total length mm: 350.00
Number of mounting holes: 3 (0)

Files

  • OEM
    cs1495, F032114193, M009T61471, M009T61472, M009T64973, M009T64973AM, M90R3538, M90R3538SE, M9T-61471, M9T61471, M9T61471AM, M9T61472, M9T64973, M9T64973AM, 0001 261 041, 0986 024 670, 1986S10044, 114193, 860822, 0001261041, 11127809, 20397219, 22344130, 85000148, 85000937, 85013134, 85020161, 5001866702, 7420732977, 7421598449

  • Normalised article numbler
    cs1495, cst10804, cst35644, drs0125, drs0125n, f032114193, f042001198, f042s01198, m009t61471, m009t61472, m009t64973, m009t64973am, m90r3538, m90r3538se, m9t61471, m9t61471am, m9t61472, m9t64973, m9t64973am, mitm9t61471, ms775, s0594, s0594bosch, s0594pr, s5070, s5070mitsubishi, s5269mitsubishi, str7905, 8ea012586271, 1986s10044, 33311n, 106519, 106611, 114193, 220559, 220559a, 220560, 220560a, 438482, 454135, 454498, 860822, 0001261041, 11127809, 20397219, 22344130, 85000148, 85000937, 85013134, 85020161, 561504133, 638056114, 638061134, 811529113, 0986024670, 5001866702, 7420732977, 7421598449
  • Description
    Start 24V-5.5kW fits Volvo 24V - 5.5kW, 11k A - 89mm, B - 48mm Auxiliary relay with 1 terminal, (B-) bolt / Relay with 1 terminal, (B-) terminal Alternative: 91-600-9614 auxiliary relay with 2 terminals 91-600-6149 OE Mitsubishi For Yourrex product order 91-600-6147

    Voltage: 24
    kW: 5.5
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 12.00
    Mounting hole 2 mm: 12.00
    Mounting hole 1 mm: 12.00
    Distance/back: 263.00
    Distance/front: 55.50
    Number of teeth: 11
    B+: M10
    Position/B+: 60
    Thread length mm: 33.00
    Terminal 50: M6
    Gear type: GR
    Distance 2: 89.00
    Distance 3: 127.00
    Distance mm: 89.00
    Rotation: CW
    Position/b-: 3
    B-: M10
    Total length mm: 350.00
    Number of mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1495, F032114193, M009T61471, M009T61472, M009T64973, M009T64973AM, M90R3538, M90R3538SE, M9T-61471, M9T61471, M9T61471AM, M9T61472, M9T64973, M9T64973AM, 0001 261 041, 0986 024 670, 1986S10044, 114193, 860822, 0001261041, 11127809, 20397219, 22344130, 85000148, 85000937, 85013134, 85020161, 5001866702, 7420732977, 7421598449

    • Normalised article numbler
      cs1495, cst10804, cst35644, drs0125, drs0125n, f032114193, f042001198, f042s01198, m009t61471, m009t61472, m009t64973, m009t64973am, m90r3538, m90r3538se, m9t61471, m9t61471am, m9t61472, m9t64973, m9t64973am, mitm9t61471, ms775, s0594, s0594bosch, s0594pr, s5070, s5070mitsubishi, s5269mitsubishi, str7905, 8ea012586271, 1986s10044, 33311n, 106519, 106611, 114193, 220559, 220559a, 220560, 220560a, 438482, 454135, 454498, 860822, 0001261041, 11127809, 20397219, 22344130, 85000148, 85000937, 85013134, 85020161, 561504133, 638056114, 638061134, 811529113, 0986024670, 5001866702, 7420732977, 7421598449
